Tail-lift vehicles and pallet handling.
Understand the vehicle, platform and ground route together. Compare lift designs, pallet-truck handling, load centres and the receiving conditions that decide whether a tail-lift delivery will work.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Rear access | Clear doorway, threshold and approach inside the body | Allow for the goods being raised on the pallet truck. |
| Platform | Usable width/depth, load chart and load-centre position | Count pallet, handling equipment and any authorised rider. |
| Vehicle | Actual freight allowance and axle distribution | A lift and powered truck add mass, often towards the rear. |
| Ground route | Firmness, level, width, thresholds and receiving point | Ground-level lowering does not provide stair or rough-ground handling. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.
Configuration explained
Cantilever platforms.
A rear platform that commonly folds upright for travel.
Construction and useful capability
The platform is supported by an arm-and-cylinder installation attached to the vehicle. It can offer a useful working area for appropriate pallets and cages, with a platform shape and load chart particular to the installation. The upright travel position can affect access to the rear doors and loading dock. A large-looking platform does not have full rated lifting capability at every position.
Loading, limitations and booking implications
Plan the doorway, handling route and platform as one continuous operation. A pallet truck must transfer the load between floor and platform without unsupported manoeuvres. Ground, rear clearance, platform edge protection and vehicle stability govern the receiving setup. The operator follows the actual manual and controls; a booking guide cannot approve a load by dividing its weight by the number of lift arms.
Configuration explained
Tuckaway and underbody lifts.
A folding platform stowed beneath the body.
Construction and useful capability
Stowing beneath the rear can leave access useful for particular dock operations, but platform folds, joints, clear depth and opening procedure differ from an upright cantilever. Some platforms provide less practical area for long pallets or bulky handling equipment. The stowed mechanism also needs sufficient road and approach clearance.
Loading, limitations and booking implications
Request the usable platform measurements and chart rather than assuming that the truck’s gross-weight class identifies its lift. Include the pallet base, loaded footprint and pallet-truck dimensions. Where frequent deliveries alternate between docks and ground level, both interfaces need to be suitable, including safe door access and any equipment or supports required by the installation.
Configuration explained
Column lifts.
A platform guided on vertical columns at the rear.
Construction and useful capability
Columns and the platform travel define the working geometry. Such systems can suit particular distribution bodies or loading arrangements, but the clear width between columns and access to controls matter. The supported load, centre position, edge protection and operator position must match the design. A column lift is not automatically a passenger lift.
Loading, limitations and booking implications
A specialist installation may reach different levels, but this must be established from its design and approved duty. A normal one-deck lift cannot be assumed to serve a double-deck upper floor. The full loading cycle should identify the floor served, gate or guard arrangement, platform travel and whether people are permitted to travel with the goods.
Configuration explained
Luton, rigid and trailer installations.
The body and lift must both suit the consignment.
Construction and useful capability
A Luton tail-lift vehicle can be useful for an appropriate smaller load; a rigid or articulated body can accommodate a different quantity and mass. A larger vehicle does not automatically bring the platform needed for one unusually long or dense pallet. Conversely, fitting a powerful lift to a light vehicle can consume a significant part of its road payload.
Loading, limitations and booking implications
Compare the actual combination of internal space, door opening, lift chart, handling equipment, axle limits and receiving access. Existing standard vehicle dimensions help identify an initial class, but the assigned equipped vehicle supplies the final figures. Explain all stops and returns so platform use and road loading work throughout the route.
The practical guide
How the equipment works.
What a tail lift is useful for
A suitable lift and pallet truck can unload appropriate palletised or caged goods where there is no dock or forklift. It can make a relatively small vehicle practical for bulky retail or business deliveries. However, the lift only changes level at the vehicle; the load still has to reach an agreed safe receiving point over suitable ground.
Cantilever, tuckaway, column and specialist lifts
A cantilever platform usually folds vertically at the rear. A tuckaway platform stows beneath the body. Column lifts and other designs have different platform sizes, travels and interfaces. Specialist multi-level lifts can serve particular double-deck trailers. “Tail lift fitted” does not identify the usable platform, operating height or rating. Ask for the specific platform and load-centre information.
Count all the mass on the platform
Include the gross pallet or cage, pallet truck and any authorised rider or other items on the lift. A 1,000 kg pallet plus a 250 kg powered pallet truck already exceeds a 1,200 kg lift before considering an authorised person. This is an illustrative calculation, not our equipment specification. Gross freight weight and tail-lift rating are separate limits.
Load centre and platform position
The safe lifting allowance depends on where the combined load is positioned on the platform, as shown on the lift’s rating chart or plate. A long pallet may put its centre of gravity farther out and reduce the permitted mass. Do not infer full rated capacity at the outer edge. Platform dimensions must also contain and safely support the load and handling equipment.

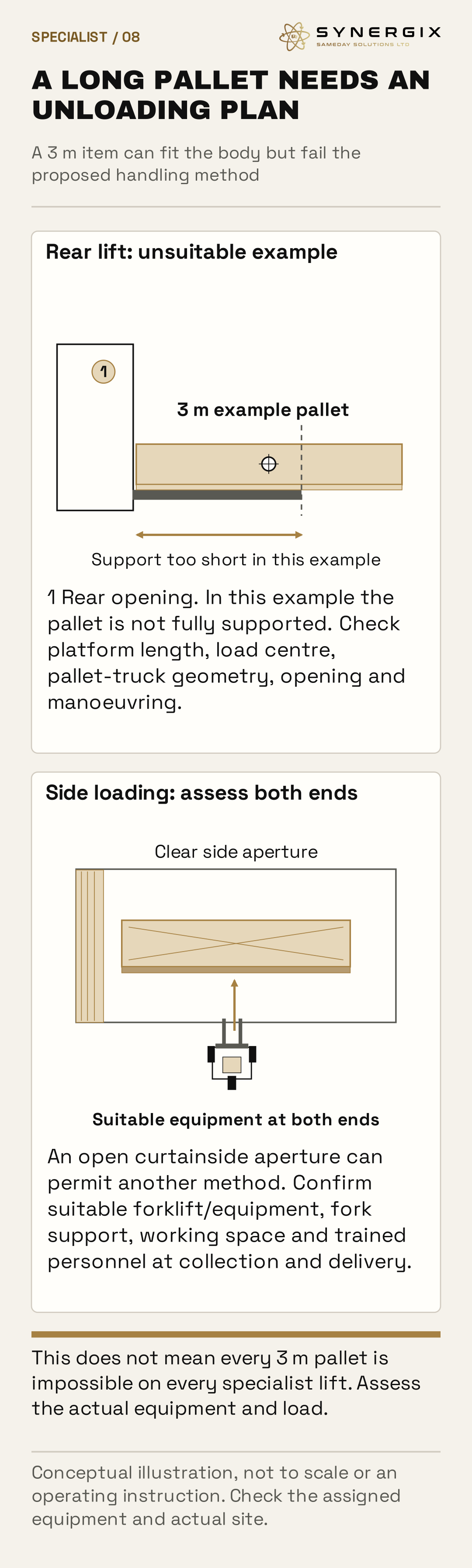

Why a 3 m pallet can fail
A long pallet needs a compatible clear rear aperture, a supported path from the body and a sufficiently large/rated platform. Turning it does not necessarily solve the problem: the cargo bay, doors and pump-truck geometry can obstruct the manoeuvre. A standard lift is not approval for a pallet protruding unsupported. Side-loading with a curtainsider and suitable forklift or crane may be the appropriate arrangement.
Door fit is still a separate check
Measure the packaged item through its actual loading orientation and allow for pallet-truck lift height and handling clearance. A body with a 2.2 m internal height may have a smaller clear rear opening. A lift platform that can raise the weight does not prove that the load can pass safely into or out of the body.
Our powered pump-truck requirement
Under Synergix’s booking rule, an individual loaded pallet weighing 800 kg or more requires an electric pump truck when pallet-truck handling is needed. This is a company handling requirement, not a universal legal threshold. Lighter pallets may also need powered handling because of the surface, slope, distance or task. Tell us before booking rather than assuming any driver carries a powered truck.
Pallet base and powered equipment
Fork length, runner layout, pallet integrity and clearance determine whether a pallet truck can handle the load. Some pallet shapes cannot be picked up from the required side. Powered pallet trucks also add mass, need compatible lift capacity and require a suitable battery/charging plan. The pallet truck cannot traverse steps, deep gravel or unsuitable thresholds simply because it is electric.
Ground, traffic and rolling loads
A suitable level standing area and firm route are essential. Crossfall can make a cage or pallet truck run away; soft asphalt, gravel, damaged paving or a steep driveway can prevent controlled movement. Lift edge protection, roll stops and other controls must suit the load. Parking brakes on cages do not replace all restraint and handling precautions.
People riding a tail lift
A platform intended and approved to carry an operator needs the correct controls and protection. People must not ride a goods-only lift. Any authorised rider is included in the platform load, and the operating instructions govern position and use. Being a delivery driver does not automatically permit riding every platform or using it as access to an upper floor.
LOLER certification means the written examination report
Check the equipment identity, date, next due date and any defects or restrictions in its thorough-examination report. A sticker alone does not establish current suitability. Unless a competent person’s written examination scheme specifies otherwise, equipment lifting people and lifting accessories have six-month examination intervals; other lifting equipment has twelve-month intervals. A tail lift used to carry people therefore needs the relevant people-lifting examination regime.
Servicing is not thorough examination
Routine maintenance, an annual vehicle test, a hydraulic repair and a LOLER thorough examination serve different purposes. All necessary duties still apply. The operator must act on dangerous defects and carry out appropriate pre-use checks. Check the platform, connections, controls, leakage, guards and safety features through the manufacturer’s system. Never override a defect because a delivery slot is urgent.
Tail lift versus a MOFFETT or HIAB
Choose a lift for appropriate ground-level rear unloading on suitable surfaces. A MOFFETT can take compatible goods across an assessed site; a crane can place a load within its lift plan. A tall, long, irregular or heavy item may need side access or lifting points that a standard pallet truck cannot use. Request the handling outcome, not just the cheapest equipment name.
Lift equipment changes the transport price
The lift, pallet truck and fittings use payload and cost money to maintain and examine. Loading/unloading, manoeuvring, waiting and travel beyond the rear of the vehicle use working time. Specify additional people, long carrying distances or access restrictions when enquiring. A tail-lift quote does not automatically include indoor delivery, stairs or assembly.

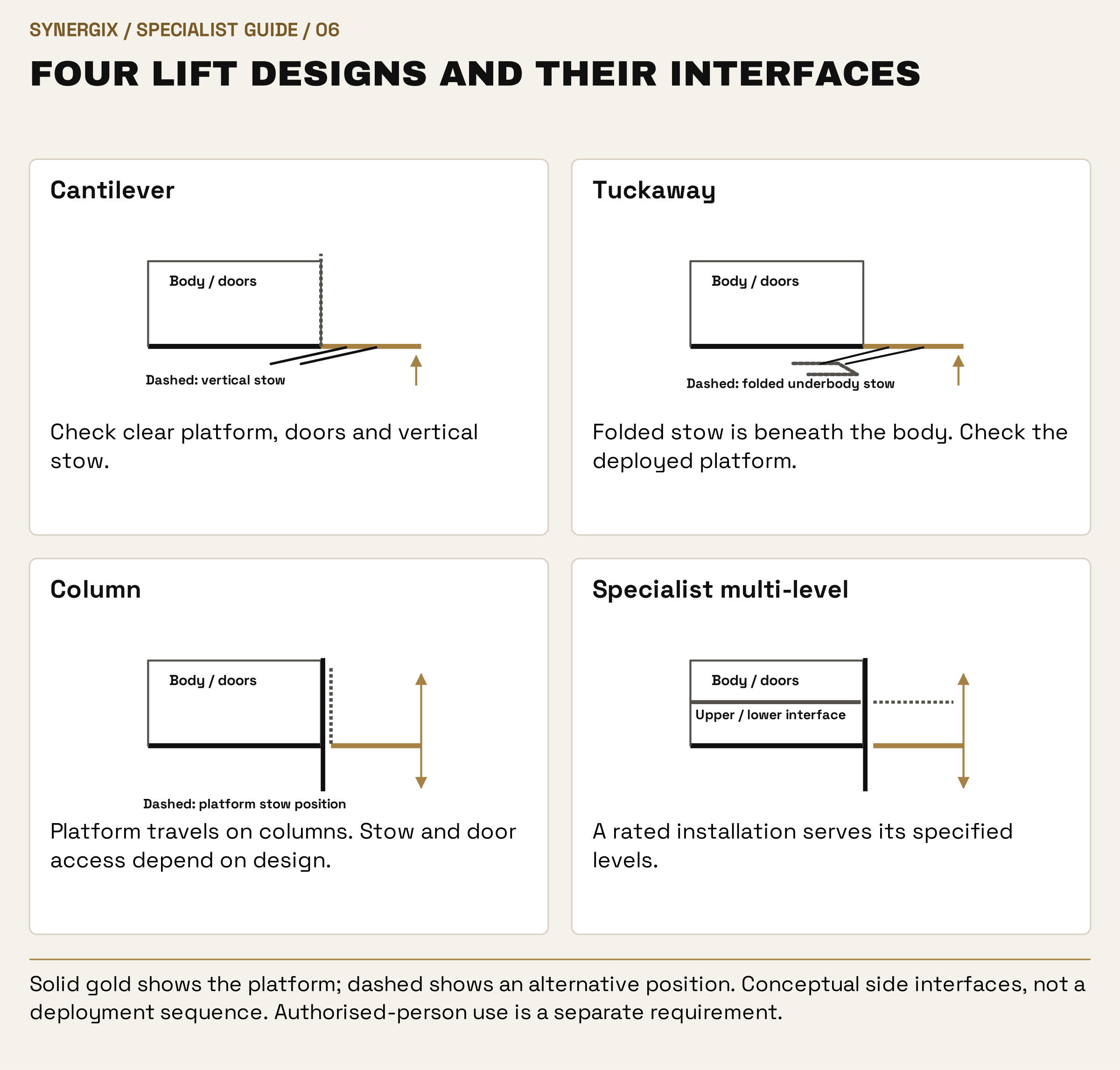

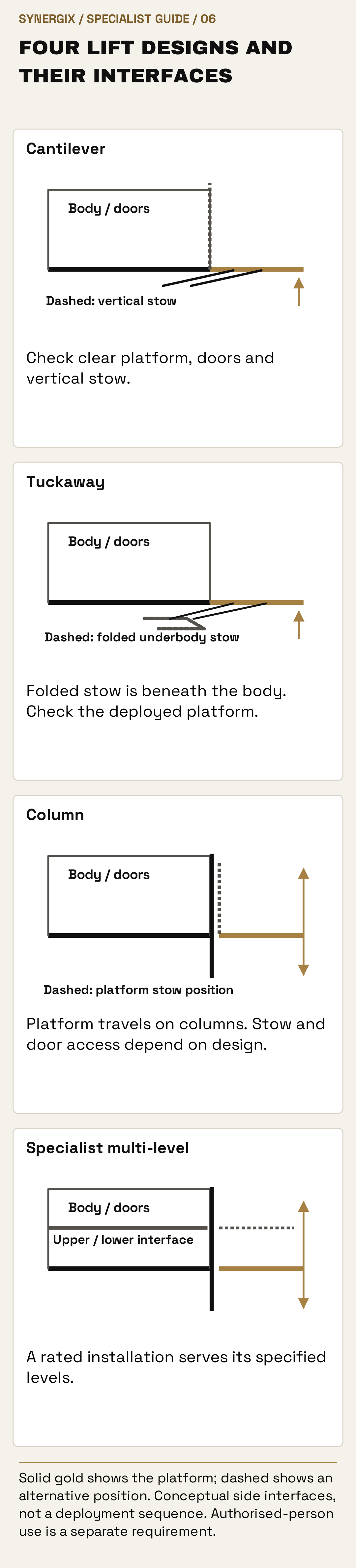

Solid gold shows the platform; dashed shows an alternative position. Conceptual side interfaces, not a deployment sequence. Authorised-person use is a separate requirement.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
The platform calculation.
Add the whole moving load
If an illustrative pallet weighs 900 kg, the electric pallet truck 180 kg and an authorised operator 90 kg, the platform carries 1,170 kg. That arithmetic is only the start: the combined centre of gravity and platform support must also meet the chart. A 1,200 kg badge would leave little nominal margin and does not establish approval at an outboard load centre. Use verified actual masses and the assigned lift’s instructions.
Why length changes the result
A long load can place more of its weight farther from the vehicle, increasing demand on the platform and mechanism. Positioning the pallet truck alongside or behind it also changes the combined geometry. Turning a long pallet is only useful if the doorway, body space, pallet base and platform can support the entire manoeuvre. There is no universal trick that makes a three-metre pallet suitable for a standard lift.
Platform capacity is different from vehicle payload
A truck may legally carry several tonnes of freight while the lift handles a much smaller amount in each cycle. The lift, truck and any person count on the platform, while the whole road load remains within the vehicle’s gross and axle limits. A heavy pallet can therefore fail the handling check even when there is ample carrying allowance.

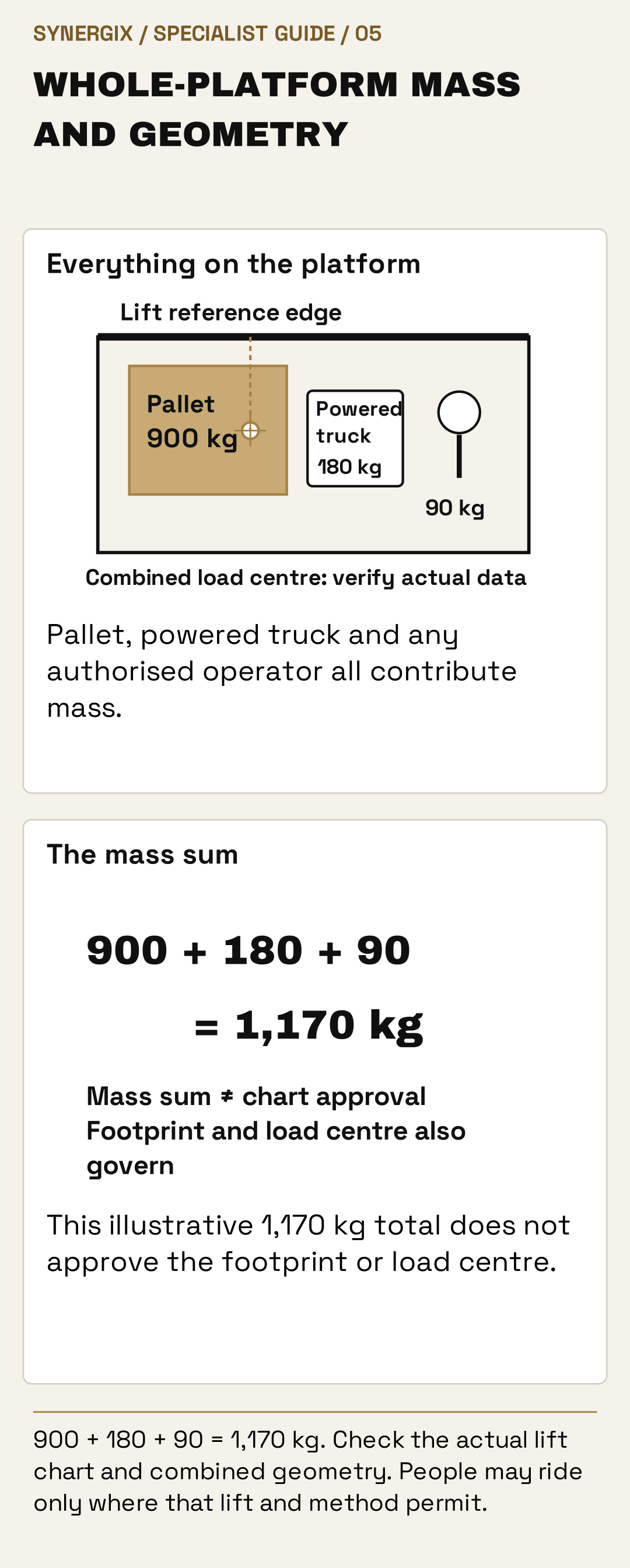

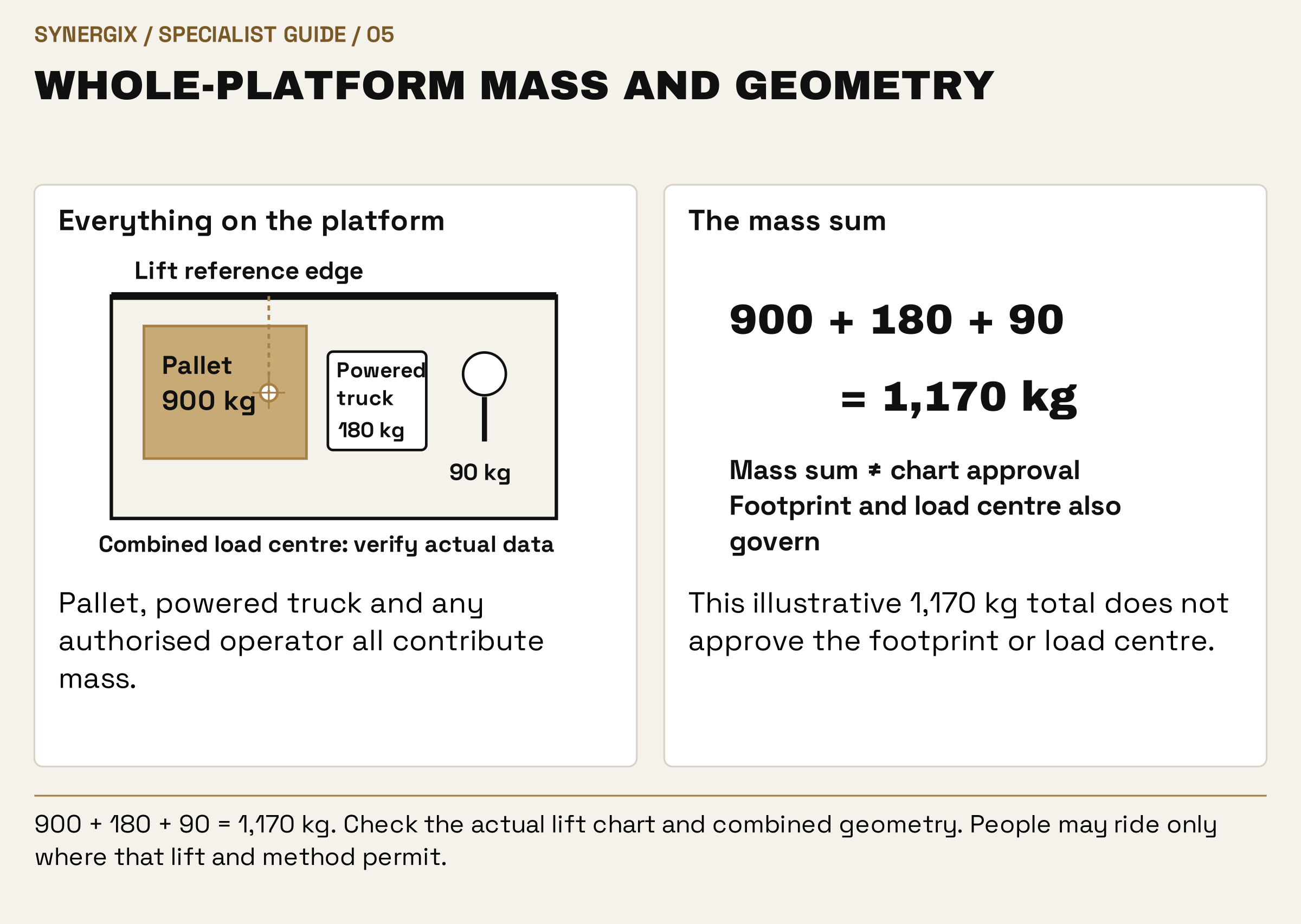

900 + 180 + 90 = 1,170 kg. Check the actual lift chart and combined geometry. People may ride only where that lift and method permit.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Ground movement after lowering.
The receiving point is part of the specification
Give the distance from the vehicle, surface, crossfall, slopes, kerbs, doors and final position. A pump truck’s small wheels need a suitable route. Gravel, soft ground, steps and poor thresholds can stop a delivery that fits the lift perfectly. If the goods need carrying, unpacking, indoor positioning or assembly, that work needs its own agreed method and people.
Manual and electric pallet trucks
Powered movement can reduce the push/pull effort of an appropriate task, but it does not cure a weak pallet, an unsuitable surface or an excessive lift load. Battery condition, fork length, wheel layout and the operator’s competence matter. Synergix requires an electric pump truck for an individual loaded pallet of 800 kg or more where pallet-truck handling is needed. Lower weights may also require it.
Cages and rolling loads
A roll cage can move unexpectedly on crossfall or a platform that is unsuitable for it. The relevant roll stops, edge protection and controls must work, and the load inside the cage must remain stable. The cage’s parking brake is useful for its intended purpose; it does not make the entire road or lift operation safe by itself. Give cage dimensions, laden mass and any special restraint points.
The practical guide
Condition, servicing and examination.
A usable platform is more than a moving platform
Pre-use checks need to identify damage, leakage, insecure mounts, worn pins or guides, poor grip, defective controls, travel locks and protective devices through the manufacturer’s system. Intermittent operation or a lift that drops unexpectedly is a defect to address, not something to work around to finish an urgent stop. The operator must be familiar with the actual installation.
Maintenance follows use and environment
Frequent lift cycles, road spray, salt, impact damage and long idle periods affect the maintenance needed. Batteries, charging cables and electrical connections can cause faults as well as hydraulics. Use the manufacturer’s schedule and the operator’s risk-based programme; there is no one service interval suitable for every lift. Repairs and replacement safety-critical parts need appropriate competence and records.
The written examination report has its own purpose
A thorough examination addresses safety-critical condition and records defects, restrictions and the next due date. Maintenance and the vehicle’s annual test remain separate. Where LOLER applies, the usual intervals without a competent person’s examination scheme are six months for people-lifting equipment and lifting accessories, and twelve months for other lifting equipment. The actual use and written scheme decide the applicable regime.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate platform cycles, pallet-truck handling, unloading distance and preparation of the receiving route. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on lift chart, platform/controls/protection, report dates, pallet truck and ground. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for platform cycles, pallet-truck handling, unloading distance and preparation of the receiving route, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is whole-platform mass, load centre, openings and final receiving route. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel and lift/powered-truck battery duty, including sufficient charging between stops. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Receiving forklift/dock | Where suitable equipment and competent receiving staff are guaranteed. |
| MOFFETT | For compatible fork-supported freight over an assessed site route. |
| HIAB | For suitable suspended lifting and placement through an assessed lift plan. |
Put the information to work
Three practical booking examples.
A heavy pallet on an electric truck
Provide both masses and the loaded geometry. Check platform support and chart, rear opening, vehicle axle loading and the ground route. Do not compare only the pallet’s mass with the lift badge.
A delivery on a gravel driveway
A lift may lower the pallet but the pump truck may be unable to reach the receiving point. Assess a different standing point, prepared surface, carried forklift or crane rather than booking on the assumption that electric wheels solve gravel.
A three-metre crate
Check all orientations, the crate’s support and handling points and the platform. Side-loading by an appropriate forklift or crane may be more practical than rear unloading.
Terminology in plain English
Useful equipment terms.
- Load centre
- The location of the combined load relative to the lift’s reference, assessed through its chart.
- Cantilever
- A lift supported through an arm-and-cylinder arrangement, commonly stowed upright.
- Tuckaway
- A folding lift stowed beneath the rear body.
- Column lift
- A platform guided on vertical rear columns.
- SWL
- Safe working load under the specified conditions, not necessarily at every platform position.
- Thorough examination
- A competent person’s detailed safety examination and written report, separate from routine service.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Tail-lift vehicles and pallet handling FAQs
Your questions answered.
What does tail-lift delivery mean?
A vehicle-mounted platform raises or lowers suitable goods between its body and an agreed receiving level. It does not automatically include movement through a building or over unsuitable ground.
How much can a tail lift carry?
Use its actual chart at the required position, including handling equipment and any authorised person. Vehicle size alone cannot answer this.
Does an 800 kg pallet require an electric pump truck?
Under Synergix’s booking rule, yes, where pallet-truck handling is needed. This is a company requirement rather than a universal legal threshold. Suitability still needs assessing.
Can a driver ride on the platform?
Only where the platform is intended and approved for that use, with the appropriate controls and protection. The person’s mass counts in the load.
Can you unload on a slope?
A suitable level standing and working area is required. Tell us about gradients and crossfall so the arrangement can be assessed before booking.
Can a lift serve a double-deck trailer?
Only an installation designed and approved for the required levels. An ordinary rear lift does not establish access to an upper deck.
Is a LOLER sticker enough?
No. The equipment identity, written report, due date, defects and actual condition matter, alongside maintenance and safe use.
Does the quote include indoor delivery?
Only if that scope and a suitable method are agreed. State distance, thresholds, doors, people, unpacking and any installation requirement.
