Wagon-and-drag vehicles.
A rigid truck and drawbar trailer create two separate load spaces. Compare open, enclosed, front-crane, rear-crane and carried-forklift arrangements, with the loading sequence and equipment location made clear.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Rigid body | Usable deck/openings, freight allowance and axles | Its load plan remains separate from the trailer. |
| Drawbar body | Usable dimensions, support and permitted loading | Two body lengths cannot be treated as one continuous deck. |
| Combination | Train limits, coupling/nose loads and swept path | Total mass being acceptable does not prevent a local overload. |
| Handling | Crane position/reach or forklift location and route | Uncoupling can leave equipment behind or change the lift geometry. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.
Standard wagon and drag: researched height
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.

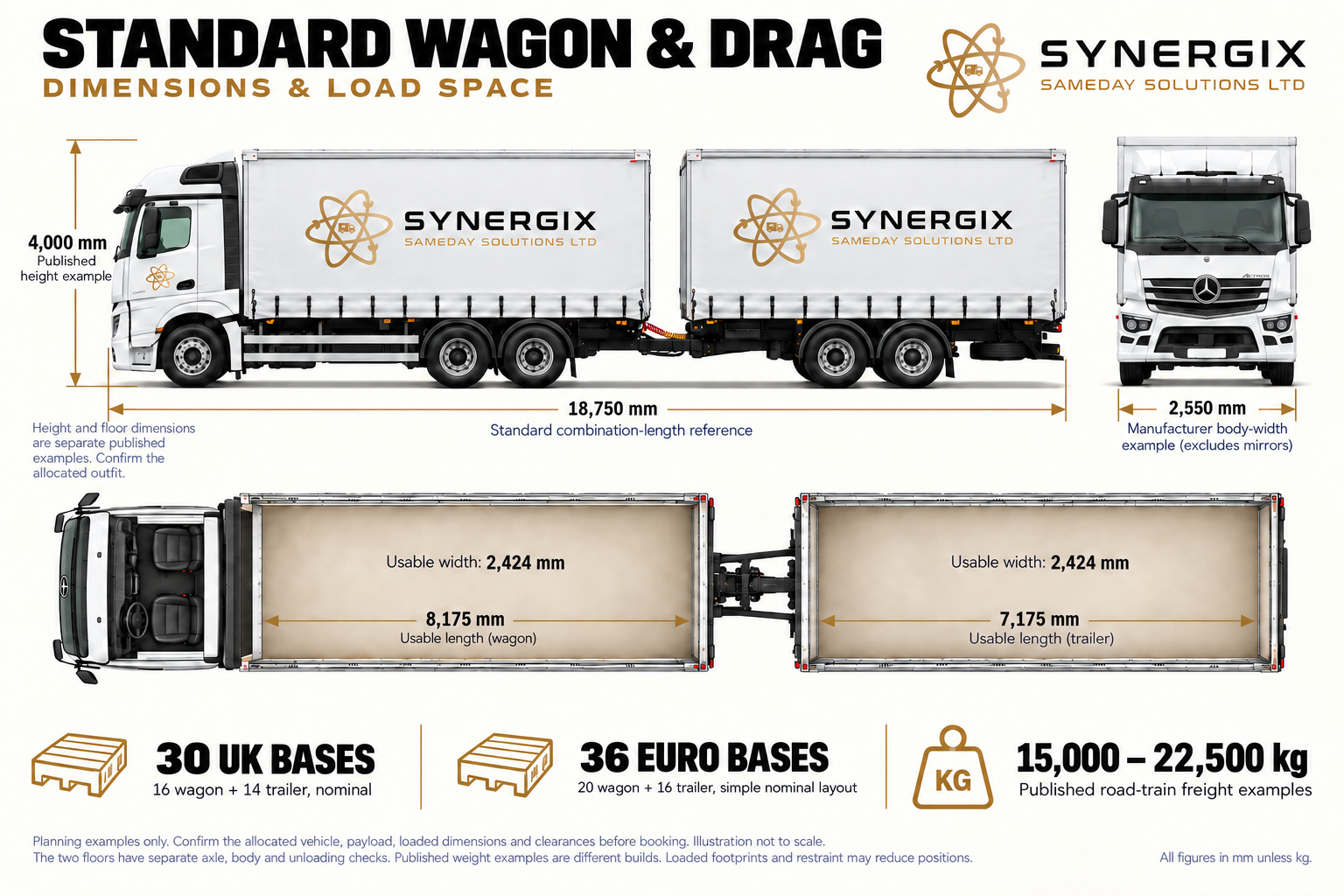

Open the full-size diagramDimensions and planning figures in text
Standard combination-length reference 18,750 mm. Body-width example 2,550 mm. Published completed-outfit height example 4,000 mm. Floors 8,175 mm wagon and 7,175 mm trailer, both 2,424 mm wide. 30 UK /36 Euro nominal positions. Published road-train freight 15,000–22,500 kg.
The 4 m height is now supported by a primary delivery guide, rather than an illustration assumption. Outside height, floor sizes and payload are separate published examples, not one measured matched outfit. Height reference is from German supplier data; no UK statistical average claimed.
Published example sources:
Configuration explained
Open-deck wagon and drag.
Two platforms for appropriate separately supported freight.
Construction and useful capability
The truck carries goods on its rigid chassis and pulls a trailer with another deck. This can suit load allocation that benefits from two bodies, such as separate consignments or a particular distribution sequence. Each platform has its own useful dimensions and ratings. The gap and moving coupling separate them physically.
Loading, limitations and booking implications
A long piece must not casually bridge the two bodies. Cargo position also changes rigid axle loads, trailer loads and coupling effects. Collection and delivery need suitable handling at each deck, including access alongside both where side loading is planned. Choose it for the useful operating pattern, not a sum of deck lengths presented as one long platform.
Configuration explained
Curtainsider and enclosed drawbar arrangements.
Separate roofed bodies for compatible distribution work.
Construction and useful capability
Covered bodies can provide useful volume and a division between freight groups. Doors, side bays, posts and height determine access to each load space. A pass-through arrangement or bridge between bodies is a specific engineered feature, not an automatic capability of every wagon and drag.
Loading, limitations and booking implications
Where deliveries are allocated to one body first, plan accessibility and remaining weight distribution throughout the route. Leaving a trailer and taking the rigid to a restricted site needs an authorised standing area and suitable independent unloading arrangements. It must not be assumed merely because the rigid alone appears small enough for the address.
Configuration explained
Rear-crane wagon and drag.
The crane sits towards the rigid’s rear, near the trailer interface.
Construction and useful capability
This position can bring the crane nearer to portions of both freight bodies than a behind-cab installation. It can be valuable where suitable goods need crane handling across two decks. The actual radius to every pick and placement, working sector, supports and coupling geometry determine the permitted duty. The rear-most trailer load can still be significantly farther away than a near-deck item.
Loading, limitations and booking implications
A plan to turn, reposition or uncouple the trailer changes the operation and needs room, approved support and agreed responsibility. Road equipment mass and location also affect payload and axle distribution. The detailed HIAB guide explains those engineering differences; this family guide keeps their effect on the two-body operation visible.
Configuration explained
Front-crane wagon and drag.
A behind-cab crane with a different reach to the two decks.
Construction and useful capability
Positioning the crane near the cab creates a different chassis and freight layout. It can suit work where the required lifts are accessible within the installation’s duty, but the trailer’s far end lies further from the crane than nearby rigid-deck freight. Crane class, boom/jib and actual rated load at radius must address those distances.
Loading, limitations and booking implications
Compare every required pick and placement rather than assuming one maximum-lift number applies across the outfit. Repositioning to bring trailer freight closer may be possible only through an agreed operation and suitable site space. Chassis, engineered mounting and support spread matter alongside the crane chart. A front-crane picture is not an independent unloading promise for every trailer position.
Configuration explained
Wagon and drag with a rear-carried MOFFETT.
A mobile forklift carried at the trailer’s rear.
Construction and useful capability
In the established covered arrangement, the forklift travels on the trailer and can be demounted to serve accessible bays of either body over a suitable route. Its mobility differs from a fixed crane: access depends on the machine physically reaching a load it can support and lift, rather than the crane reaching it from one base.
Loading, limitations and booking implications
The rear needs room for demounting and remounting, and both bodies need usable side access. Fork entry, load centre, ground, width, mast clearance and the receiving route remain essential. If the rigid drives away without the trailer, the carried forklift stays with the trailer in this arrangement. A smaller truck reaching the site does not by itself preserve the unloading service.
The practical guide
How the equipment works.
What the combination offers
A suitable rigid plus trailer can suit particular distribution or specialist movements. Body combinations can include assessed open decks, curtains or crane-equipped arrangements. This is different from an artic: the coupling, turning path, reversing behaviour and allocation of weight are different. The actual combination, not a generic name, determines useful cargo space.
Two platforms, separate limits
Check each deck’s dimensions, payload, axle loads and any local support ratings, together with the whole train limit. Two equally sized platforms do not automatically share mass equally. A full train allowance can coexist with an overloaded rigid or trailer axle. Loading/unloading order must remain legal and stable after each change.
Crane reach across the trailer
A crane fitted to the rigid must be assessed for every required lift on both decks, including radius, working sector, stabilisers and coupling position. The rear-most load can be much farther away than a near-cab load. Turning or uncoupling to alter geometry is a separate operation that needs suitable space and an agreed safe system.
Coupling, parking and site access
The whole combination needs sufficient road and site manoeuvring space. If the trailer must be left, it needs an approved standing/support and braking arrangement. Agree who is allowed to uncouple, where it happens and whether later collection remains possible. A smaller rigid alone fitting a street does not prove the complete wagon and drag fits.
Loading interfaces and transfers
State whether a loading bridge, dock, forklift, crane or ground-level handling is needed for each platform. Passing goods between bodies depends on a specifically compatible arrangement; it is not a standard feature of every drawbar combination. Check step heights and safety of any connection.
When another vehicle is more practical
A single rigid may offer simpler access for a modest load. An artic may suit a continuous long load or a standard dock movement. Wagon and drag can offer value for its particular operational pattern but can add handling and parking requirements. Supply the full route and site plan before selecting from total pallet numbers.
The practical guide
The coupling and two-body plan.
A drawbar is different from an artic
An articulated tractor carries semitrailer load through a fifth wheel; a wagon and drag has a goods-carrying rigid and a separate drawbar trailer. Trailer designs and coupling loads vary, so use the actual plated arrangement. Steering and reversing behaviour also differ. Similar overall floor area does not create the same road or site behaviour.
Load each stage, not only the start
A load plan allocates every unit to one body and position. Removing or adding goods can change axle/coupling loads as well as access. Returns, empty pallets and equipment need a planned place. A routine repeat movement should be reassessed when unit masses, unloading order or trailer equipment change.
Trailer parking is a booked operation
Agree the location, permission, surface/support, braking, security and later collection before uncoupling. Trained staff must follow the appropriate equipment procedure. A wide entrance is not enough if a trailer cannot be left without blocking access or if its lifting/handling equipment is needed elsewhere. Drop-and-return mileage and time belong in the quote.

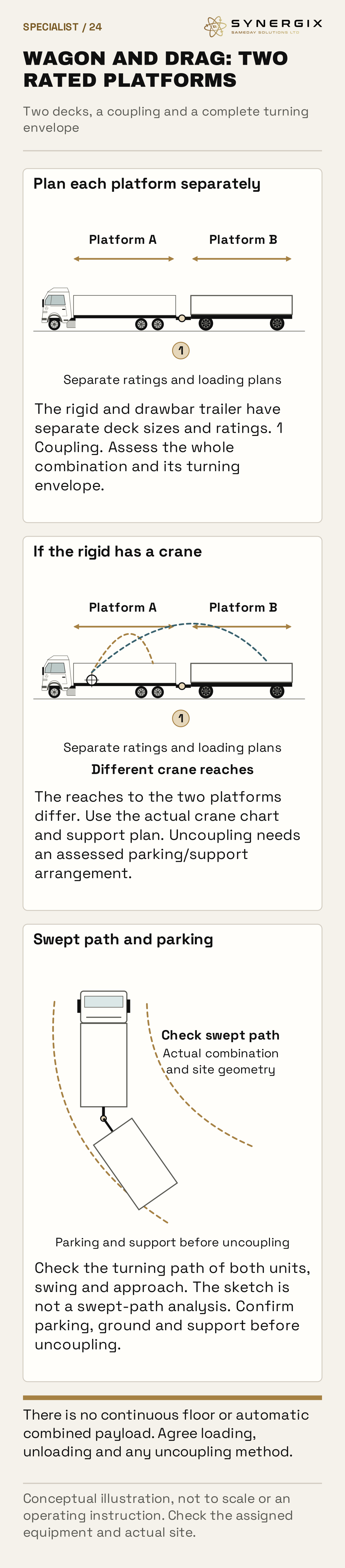

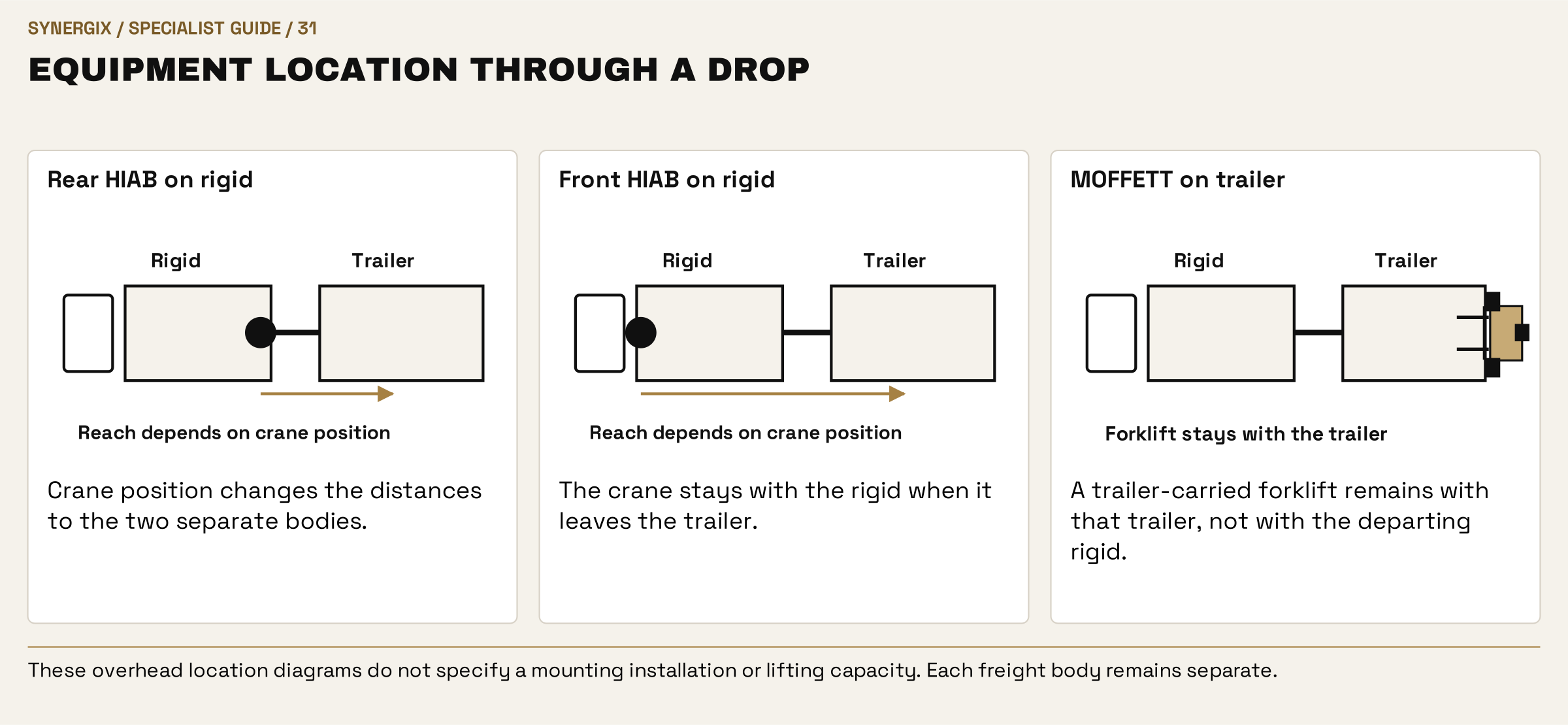

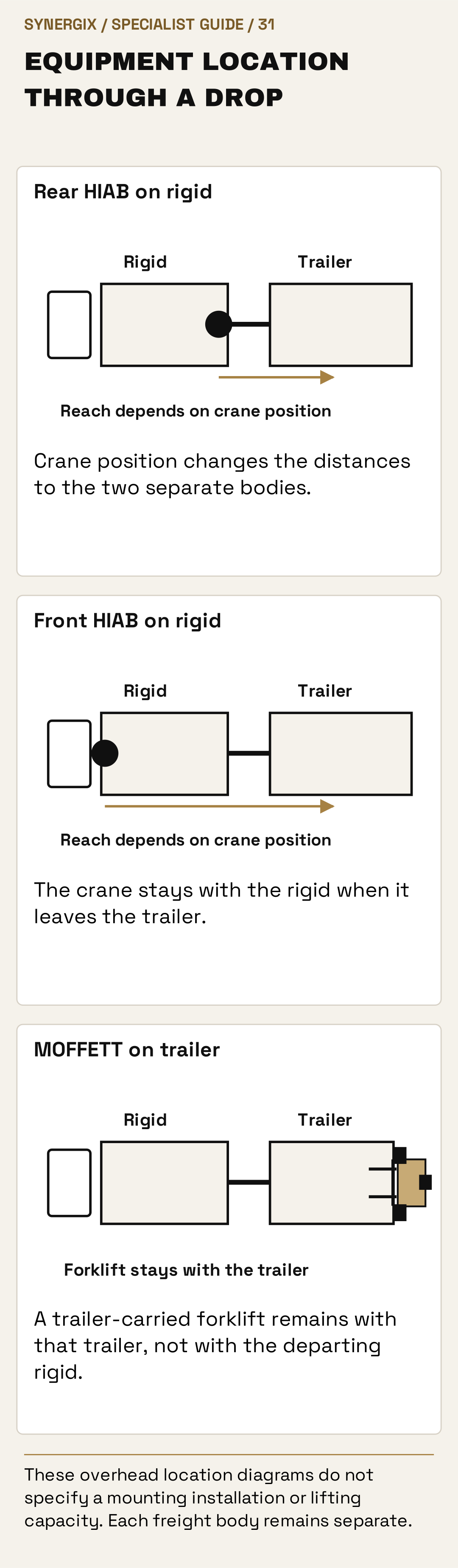

These overhead location diagrams do not specify a mounting installation or lifting capacity. Each freight body remains separate.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Condition and servicing.
Inspect the connection as well as the bodies
Coupling components, attachment, drawbar, locking/indication systems, air/electrical connections and any steering gear need the relevant checks and maintenance. Defects in the connection can compromise the whole outfit even where each body looks sound. A previous successful journey does not establish condition after damage or a changed arrangement.
Separate road and handling equipment duties
The rigid and trailer need their roadworthiness programmes and tests as applicable. Cranes, forklift mounts, the carried machine and accessories have their own maintenance and examination requirements. The records should identify the equipment actually supplied. A service on the rigid does not establish that the trailer’s coupling or rear-mounted forklift is ready.
Clear roles at collection and delivery
Identify who loads each body, operates handling equipment, controls the site and receives the freight. Any uncoupling, load transfer or installation scope must be agreed. A road driver’s licence alone does not establish competence for every crane, forklift or trailer configuration.

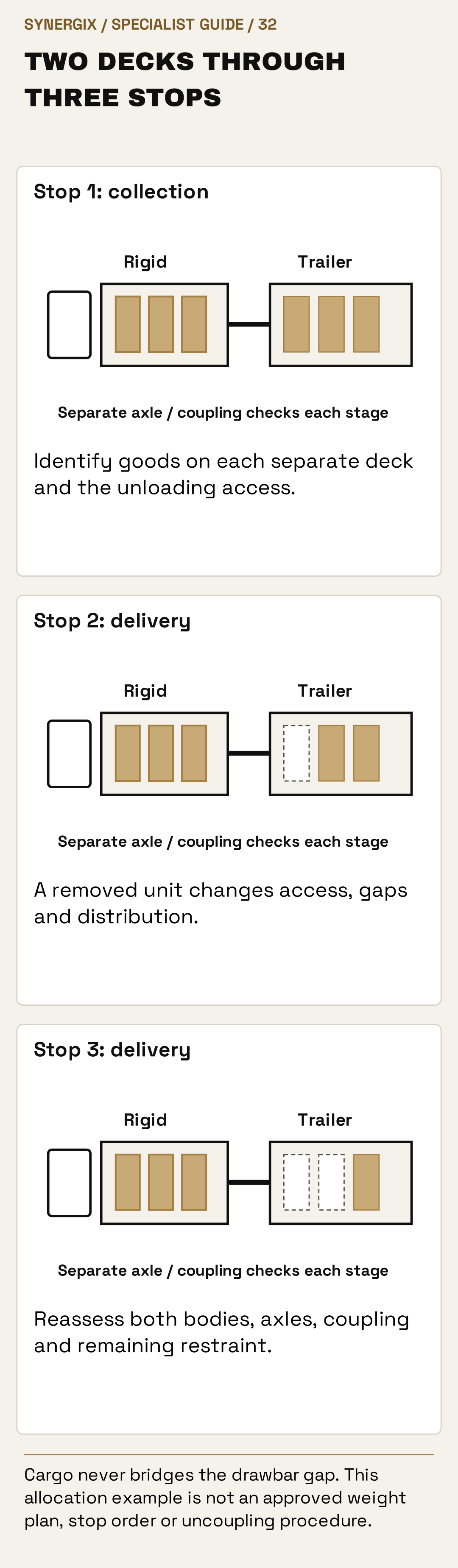

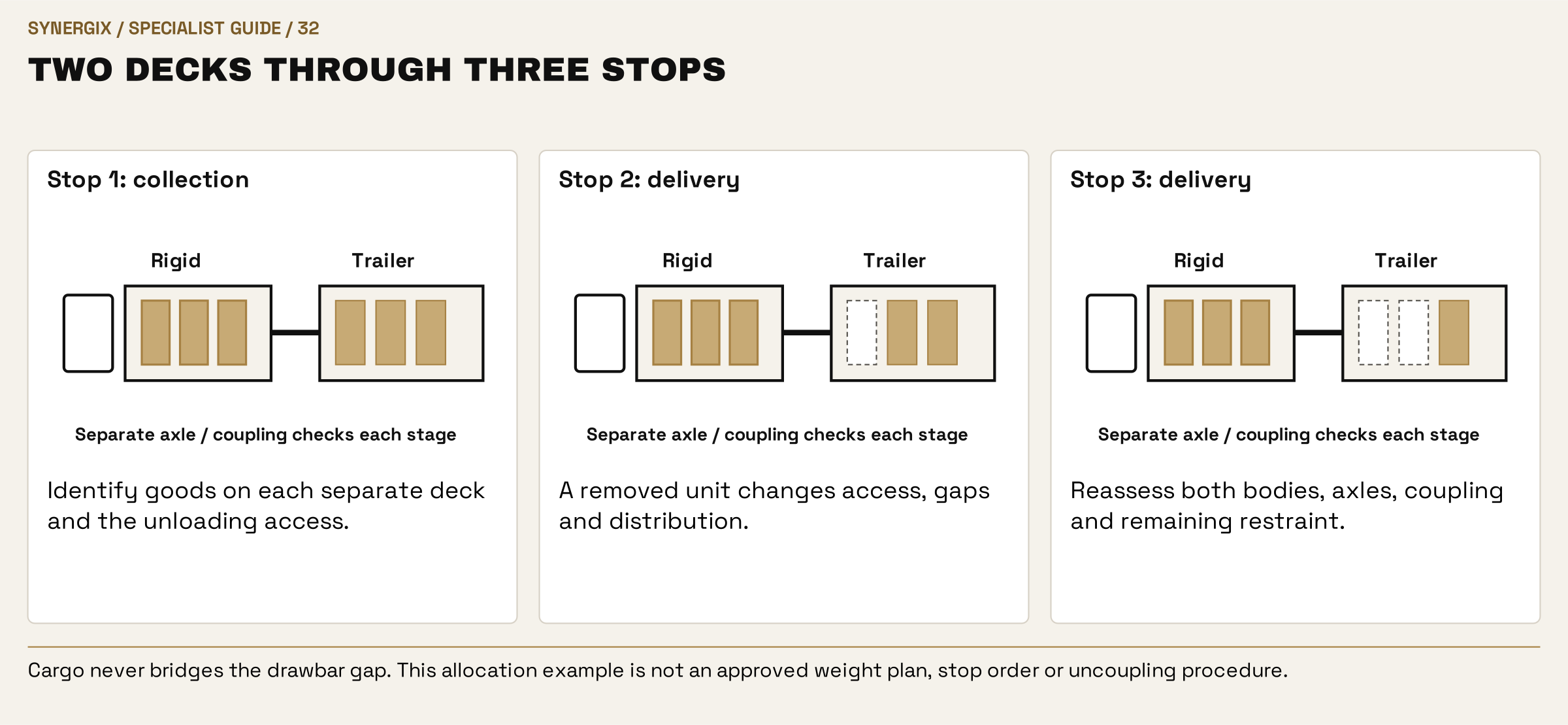

Cargo never bridges the drawbar gap. This allocation example is not an approved weight plan, stop order or uncoupling procedure.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate body allocation, coupling/uncoupling where agreed and access for the handling equipment. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on coupling/drawbar/connections, each body and the actual crane or forklift equipment. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for body allocation, coupling/uncoupling where agreed and access for the handling equipment, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is separate body plans, coupling/axle limits, equipment location and all stops. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel plus crane, carried forklift or other actual auxiliary work. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Single rigid | For a smaller consignment where one body and simpler access suffice. |
| Artic | For suitable continuous-deck freight and its different coupling/access pattern. |
| Separate deliveries | Where the two-body site operation creates avoidable handling or parking complexity. |
Put the information to work
Three practical booking examples.
Two separate festival consignments
Allocate each load to a body, identify site receiving order and the unloading equipment. Preserve space for crane supports or forklift routes rather than filling all apparent deck area.
A restricted final approach
Assess whether leaving the trailer is permitted and practical, then confirm how the rigid unloads independently. Do not leave the needed MOFFETT behind unintentionally.
Heavy cargo at the back of the trailer
Compare front- and rear-crane radius and chart duty at the actual position. A nominal maximum crane lift cannot answer the far-deck question.
Terminology in plain English
Useful equipment terms.
- Wagon
- The goods-carrying rigid part of a drawbar combination.
- Drag
- The separate trailer pulled behind the rigid.
- Drawbar
- The designed trailer coupling structure and connection.
- Train weight
- The permitted mass of the complete relevant combination.
- Nose/coupling load
- The coupling force relevant to the actual trailer design and loading.
- Transfer bridge
- A specific engineered connection for loading access, not a universal feature.
