Synergix / Specialist vehicle guides
Specialist traction and wet-kit tractors.
A tractor that can tow a trailer may still be unable to run its specialist equipment. Understand coupling, hydraulic wet kits, low-height combinations, refrigeration duties, trailer handovers and the records needed before dispatch.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Trailer | Identity, plated limits, dimensions and ready-to-travel condition | Customer ownership does not remove the carrier’s roadworthiness responsibilities. |
| Tractor | Coupling/fifth-wheel height, clearances, axles and permitted outfit | The complete laden combination must be compatible. |
| Ancillary equipment | Pressure, flow, return, oil, connections and controls | Wet-kit compatibility is system-specific, not a yes/no label. |
| Operation | Tow only, operate equipment, drop/swap or remain at site | Define who sets, checks, monitors and hands over each system. |

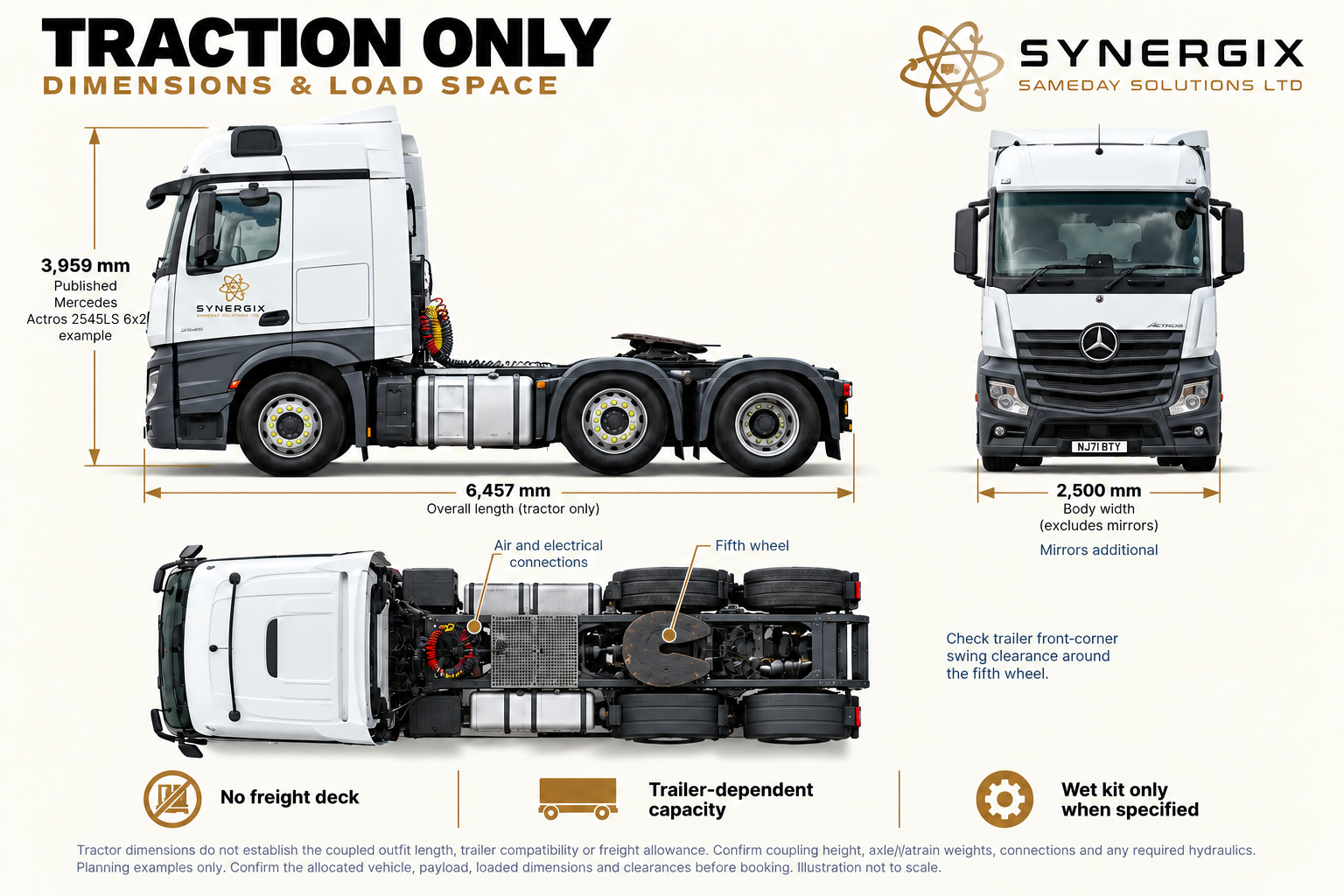

Traction-only tractor unit
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
Published Actros 2545 LS 6 × 2 example 6,457 mm long,2,500 mm wide excluding mirrors,3,959 mm high. No freight deck or pallet positions; trailer-dependent capacity.
One published tractor example, not dimensions of every Actros. Check fifth wheel, front-corner swing, air/electrics and specified wet kit.
Published example sources:
Configuration explained
Standard traction for a compatible trailer.
A tractor and driver moving an agreed roadworthy trailer.
Construction and useful capability
Traction-only work can support a customer-owned or supplied trailer without hiring a complete carrying body. The operator still needs its identity, current condition, dimensions, mass/distribution and release authority. Trailer and tractor must be compatible in coupling height, kingpin/fifth-wheel arrangement, front/rear swing, connections and road limits.
Loading, limitations and booking implications
Define whether the job is a loaded movement, empty repositioning, regular trunking or a staged drop. A sealed trailer still needs relevant cargo, dangerous-goods, weight and securing information from the loader. The carrier cannot accept an unknown unsafe trailer simply because another party owns it. Declare defects and restrictions before the tractor is sent.
Configuration explained
Hydraulic wet-kit traction.
A power system matched to the trailer’s mechanism.
Construction and useful capability
A wet kit normally combines a power take-off or other drive, pump, reservoir, valves, hoses and controls to supply hydraulic equipment. Tippers, moving floors, some low-loader mechanisms and specialist systems can require different duties. Having a hydraulic connection does not establish correct pressure, flow, return back pressure, fluid cleanliness or cooling.
Loading, limitations and booking implications
Provide the trailer/equipment manufacturer, model and required interface. A tipping circuit may not meet a moving floor’s sustained flow and return needs. Connections that physically fit can still be incompatible. The scope must identify who operates the machinery, supplies hoses or adapters, checks the system and responds to a fault. Do not plan to experiment with unfamiliar circuits at the customer site.
Configuration explained
Low-height and specialist coupling arrangements.
A matched tractor can be essential to the body geometry.
Construction and useful capability
Mega, low-height, longer or other specialist trailers can require particular fifth-wheel height, wheel/axle layout and clearance. A tractor that couples may still make the loaded outfit too high, create inadequate swing clearance or produce an unsuitable load distribution. The actual combination should be assessed rather than selected solely by horsepower or number of axles.
Loading, limitations and booking implications
Give the trailer’s drawing, coupling requirements, loaded dimensions and mass. If a trailer was previously pulled by another tractor, that history is useful information but not approval for the proposed pairing. Equipment options, route and applicable trailer operating conditions must be established for the specific movement.
Configuration explained
Traction for refrigerated trailers.
The cold chain continues while the trailer moves or waits.
Construction and useful capability
Many refrigerated trailers have their own auxiliary power, but the tractor driver’s responsibilities still need to be defined. Product instructions, set points/modes, fuel, alarm checks, monitoring records and the receiving handover may be part of the agreed scope. Moving a sealed refrigerated box is not necessarily only a road-driving task.
Loading, limitations and booking implications
If the trailer is left at a depot or event, power or fuel and responsible monitoring must remain suitable. Agree what happens on an alarm or temperature excursion and who can authorise action. Do not assume the tractor provides refrigeration standby or that customer live monitoring automatically exists.
Configuration explained
Drop, swap and staged movements.
Handover and standing conditions are part of the service.
Construction and useful capability
A tractor may leave one trailer and collect another, or return later for an agreed trailer. The standing location needs permission, suitable support/braking, safe access and any loading restraint required while uncoupled. The receiver must know who controls the parked trailer and its equipment.
Loading, limitations and booking implications
Record trailer identity, condition, seals where used, documents, keys or controls, time and authority to release. If loading continues after the tractor leaves, the support and dock arrangement must be approved for it. Include waiting, repositioning, empty returns and later collection in the commercial plan rather than treating them as uncosted movements.
The practical guide
How the equipment works.
Towing and operating are different requirements
A tractor may couple and legally move a trailer without being equipped to run its moving floor, tipper, refrigeration standby or other specialist system. Specify the required hydraulic/PTO or electrical interfaces, approved pressure/flow and responsibility for ancillary systems. Do not assume every traction-only tractor is a wet-kit unit.
Customer trailer information
Provide trailer identity, dimensions, plates, condition and maintenance information, coupling height, kingpin/connection details, actual load and axle distribution, location, release and route. Declare defects or operating restrictions before dispatch. The carrier’s responsibilities are not transferred away merely because the trailer belongs to the customer.
Refrigeration responsibility
Agree who sets and verifies the temperature, checks the unit fuel/power and supplies the journey records. A temperature-controlled traction movement can need more than a driver moving a sealed trailer. Customer monitoring arrangements must fit the actual system, and breakdown/escalation contacts need to be available.
Drop, swap and uncoupled operation
Give suitable standing areas, trailer parking/support requirements, handover authority and any later collection. Specify if a loaded trailer must be left at a dock or for an event. Compatibility, support, braking and safe loading conditions remain essential when the tractor leaves. Dead mileage and waiting are part of the job.
A road-coupling match does not establish hydraulic or operating compatibility. No hose-connection instructions or settings are supplied.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Compatibility is a complete-system decision.
Road mass and axle distribution
The tractor’s own mass, fuel, equipment and axle layout combine with trailer mass, kingpin load and freight. A heavy wet kit or crane changes the ready-to-work allowance. An outfit below its total permitted mass can still overload a tractor or trailer axle. Use actual loading data and plates, not the payload of the trailer on a different tractor.
Hydraulic duty is more than peak pressure
Pressure relates to force, while flow affects operating speed and the ability to sustain the duty. Reservoir, cooling, return and filtration affect reliability too. Manufacturer interface information is therefore essential. A high pump figure cannot prove a trailer circuit suitable, and an unverified adapter is not a compatibility assessment.
Who operates the trailer?
Towing and operating are separate tasks. The driver needs competence and familiarisation for equipment actually used, while the site controls its receiving machinery and work area. If the customer operates a discharge system, that responsibility still needs coordination with the carrier. Write the scope down so an urgent handover does not leave a gap.
The practical guide
Condition, service and handover evidence.
First-use and daily checks
The operator needs an effective process for inspecting a supplied trailer, checking records and reporting defects before use. Coupling, braking, tyres, suspension, lights, structural condition, loads and any relevant height indication remain important. Documentary reassurance cannot override a newly discovered dangerous defect.
Wet-kit maintenance
PTO, pump, reservoir, fluid/filters, hoses, connections, valves and guarding need manufacturer-based maintenance appropriate to duty. Leakage, damaged hoses, overheating and abnormal operation need competent response. Specialist trailer equipment has its own maintenance and, where applicable, inspection/examination programme. One tractor service does not cover every connected machine.
Commercial and operational handover
Agree collection/release references, trailer condition, cargo data, seals, destination contacts, slots, documents and what happens if the trailer is not ready. Clarify insurance and the declared goods/value before acceptance. A photo of the coupled outfit is useful evidence but does not prove every cargo or compatibility check.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate trailer acceptance, coupling checks, release, equipment duties and drop/swap handovers. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on tractor/trailer condition, coupling/clearances, interfaces and specialist-equipment records. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.

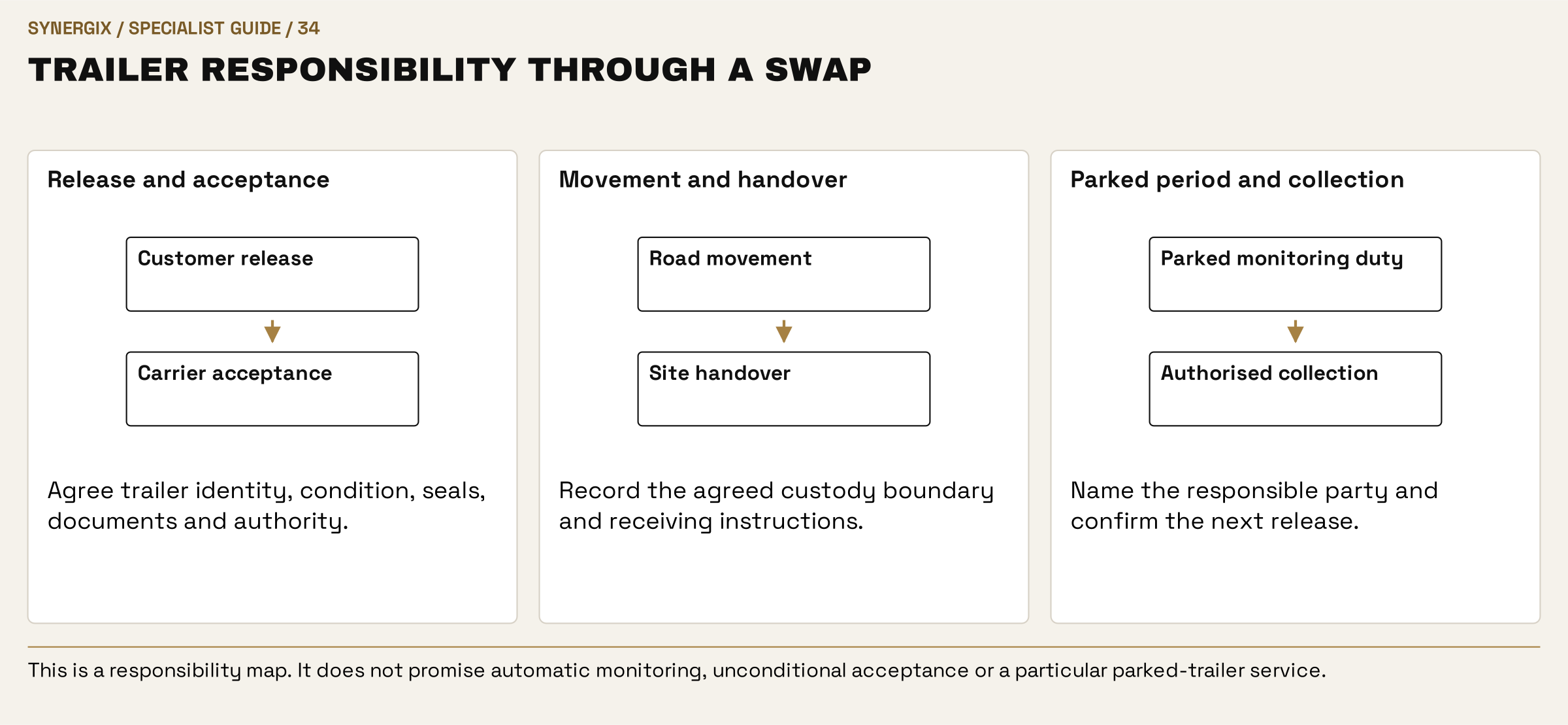

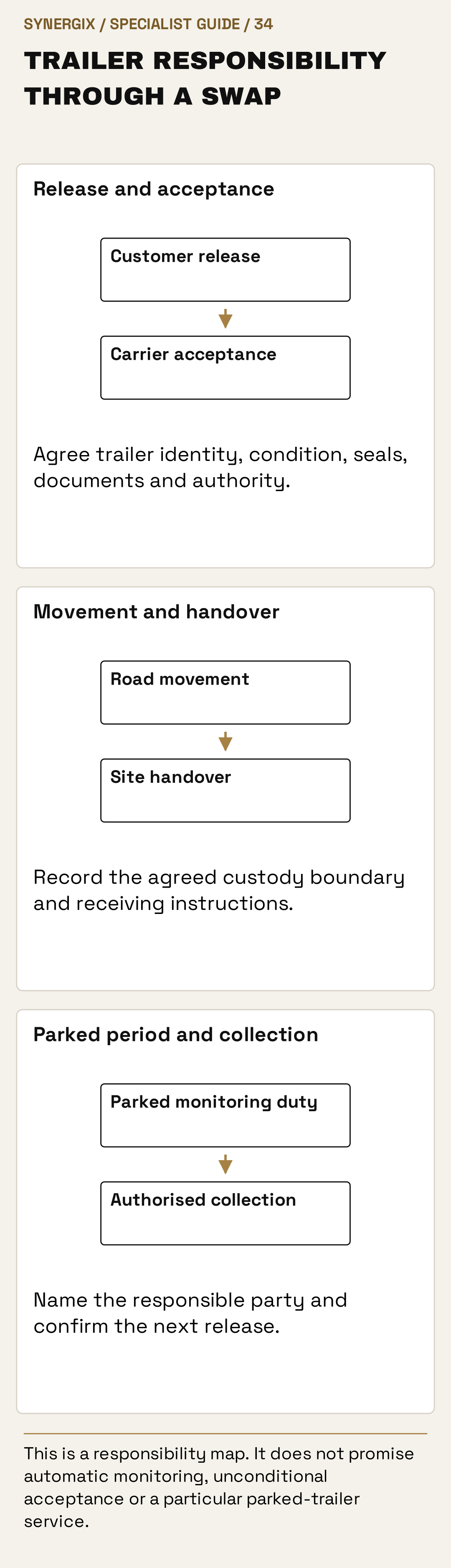

This is a responsibility map. It does not promise automatic monitoring, unconditional acceptance or a particular parked-trailer service.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for trailer acceptance, coupling checks, release, equipment duties and drop/swap handovers, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is trailer identity/records, compatible tractor, interfaces, load data and handover responsibilities. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel, hydraulic wet-kit duty and any agreed refrigeration monitoring/ancillary running. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Complete vehicle and trailer | Where no suitable customer trailer is available. |
| Different tractor specification | Where coupling height, plates, power or interfaces do not match. |
| Separate site equipment | Where towing the trailer and operating its machinery need distinct arrangements. |
Put the information to work
Three practical booking examples.
Customer moving-floor trailer
Send trailer and floor identification, hydraulic requirements, material and discharge site. Book the correct tractor and agreed operating scope rather than standard traction with an unspecified wet kit.
A loaded fridge swap
Agree temperature instructions, fuel, records, alarm contact, trailer identity and the receiving handover. The cold chain must remain defined between tractor movements.
A low-height trailer
Check fifth-wheel height, tyre/suspension arrangement, loaded height, swing clearances and plates. Successful coupling is not the final compatibility check.
Terminology in plain English
Useful equipment terms.
- Traction only
- An agreed tractor-and-driver movement of a supplied compatible trailer.
- PTO
- Power take-off used to drive suitable ancillary equipment.
- Wet kit
- The hydraulic supply installation matched to a particular trailer mechanism.
- Fifth-wheel height
- A coupling geometry affecting compatibility, loaded height and clearance.
- Drop and swap
- A planned trailer handover/replacement, including standing and release requirements.
- POA
- Period of availability under the applicable rules, distinct from working or resting time.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Specialist traction and wet-kit tractors FAQs
Your questions answered.
What does traction only include?
The agreed tractor/driver movement of a compatible trailer. Ancillary operation, waiting, drops and monitoring need explicit scope.
Does every tractor have a wet kit?
No. Request the actual power/interface required for the trailer.
Will a tipper wet kit run a walking floor?
Not automatically. Flow, pressure, return, fluid and sustained duty need matching to the actual system.
Can you move a customer-owned trailer?
Subject to compatibility, condition, records, load information, release authority and the actual booking agreement.
Who is responsible for the trailer’s condition?
The parties must supply relevant records and disclose defects; the road operator retains its duties and must not use an unsafe trailer.
Does the driver operate the equipment?
Only where included, competent and familiarised for the actual machinery. Define towing and operating separately.
Can a fridge trailer be left running?
Only with a suitable agreed power/fuel, support, parking and monitoring arrangement, with clear responsibility after handover.
What affects the price?
Tractor specification, full mileage, waiting, trailer readiness, equipment operation, drops/swaps, overnight work, documents and timing.
Before you book
Tell us what needs moving.
You do not need to identify every equipment model before contacting us. Start with trailer identity/records, compatible tractor, interfaces, load data and handover responsibilities.
Describe the goods
Product/type, quantity, packed dimensions, verified gross unit weights or density/volume as relevant, support/handling points, condition, value and any hazards, hygiene or temperature instructions.
Show both sites
Postcodes, approach, restrictions, measured openings, ground, working space, loading/discharge equipment, receiving position, contacts and useful photographs or drawings.
Define the work
Date/time windows, stops, loading/unloading roles, equipment operation, placement or transfer, parked periods, returns, cleaning and required documents. Include any installation or indoor handling as a separate requested scope.
Agree the arrangement
The team confirms the appropriate equipment, availability, scope, price and conditions. A vehicle illustration or LoadCheck calculation is planning help, not a reservation or approval for specialist handling.
