Step-frame trailers.
A raised front deck and a lower main platform create different loading zones. Understand when that lower deck helps, where the step limits a load and how a step frame differs from a flatbed or specialist low loader.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Upper deck | Length, width and height above ground | The tractor and coupling determine the raised front zone. |
| Lower deck | Continuous usable length, width and height above ground | The step divides the platform; do not add both lengths for one long item. |
| Loading | Side/overhead access, ramps where fitted and handling ratings | A dropped deck does not prove that drive-on ramps are supplied. |
| Road envelope | Cargo plus deck/support height, projections and axle loads | Lower freight height can help while ground clearance becomes more important. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

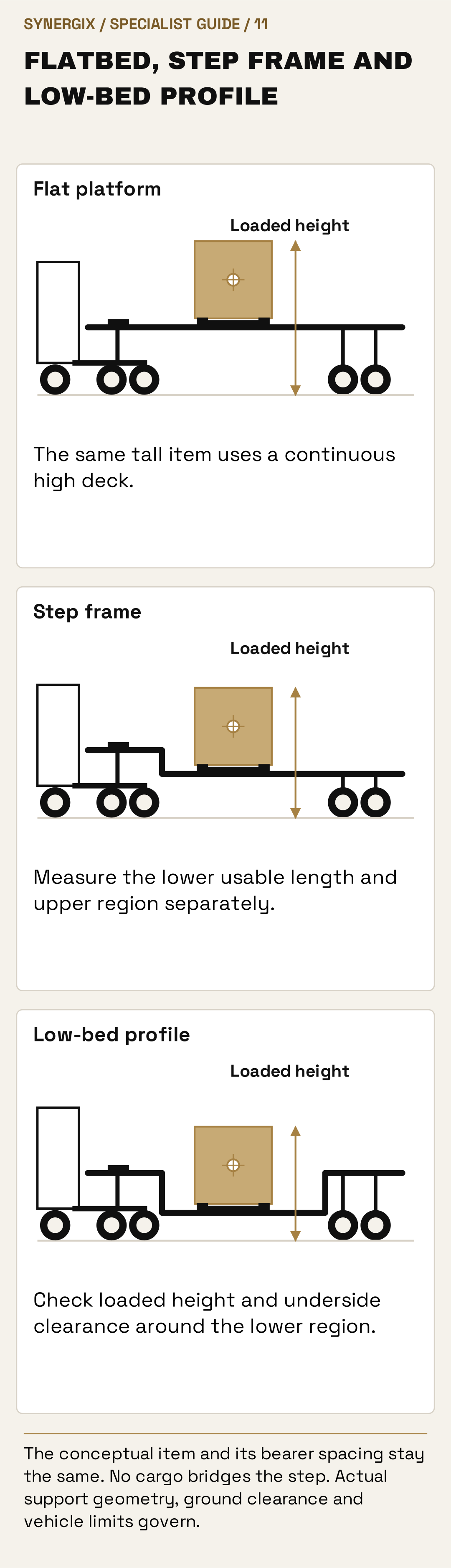

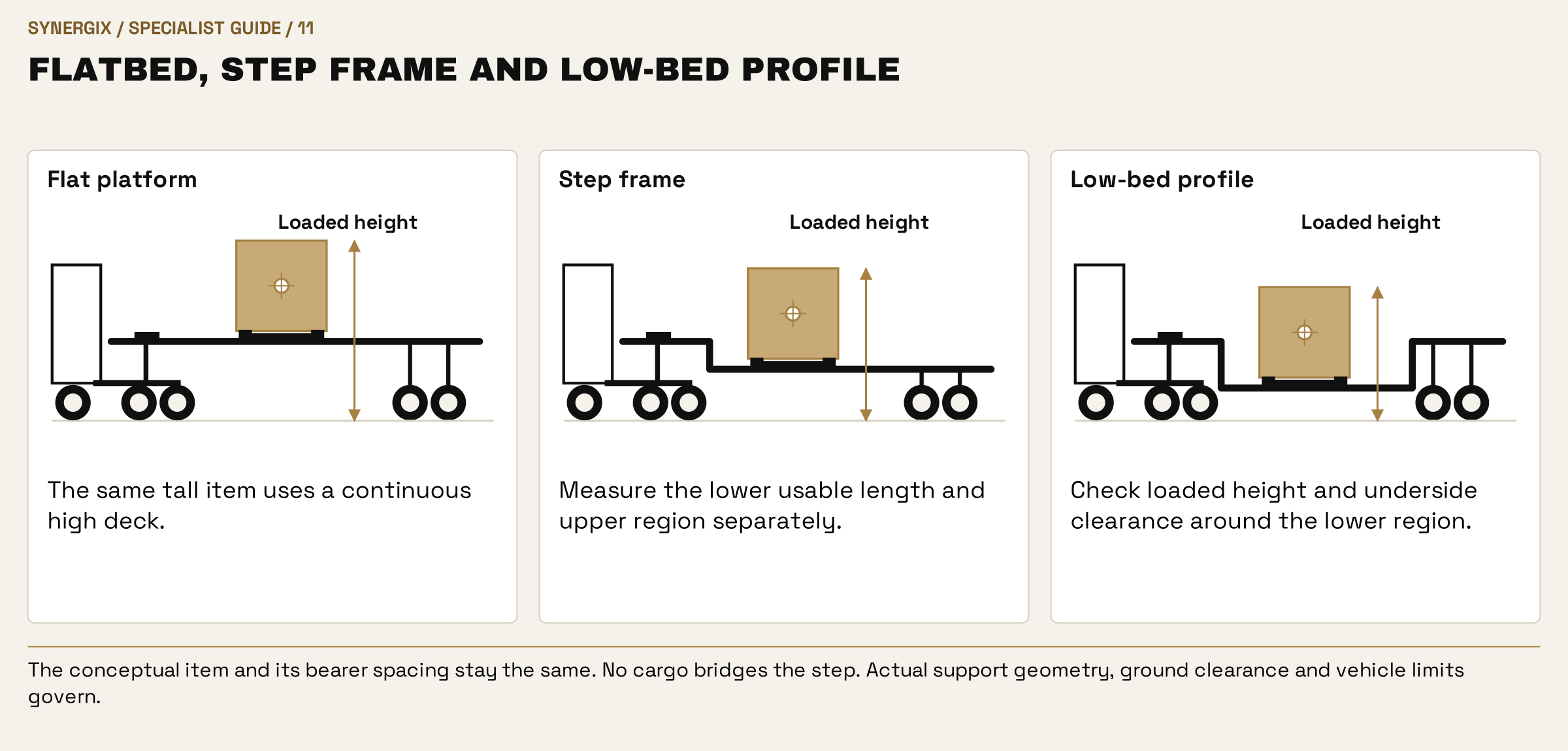

The conceptual item and its bearer spacing stay the same. No cargo bridges the step. Actual support geometry, ground clearance and vehicle limits govern.
Open full-size desktop diagram · Open full-size mobile diagram
Step-frame trailer
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text

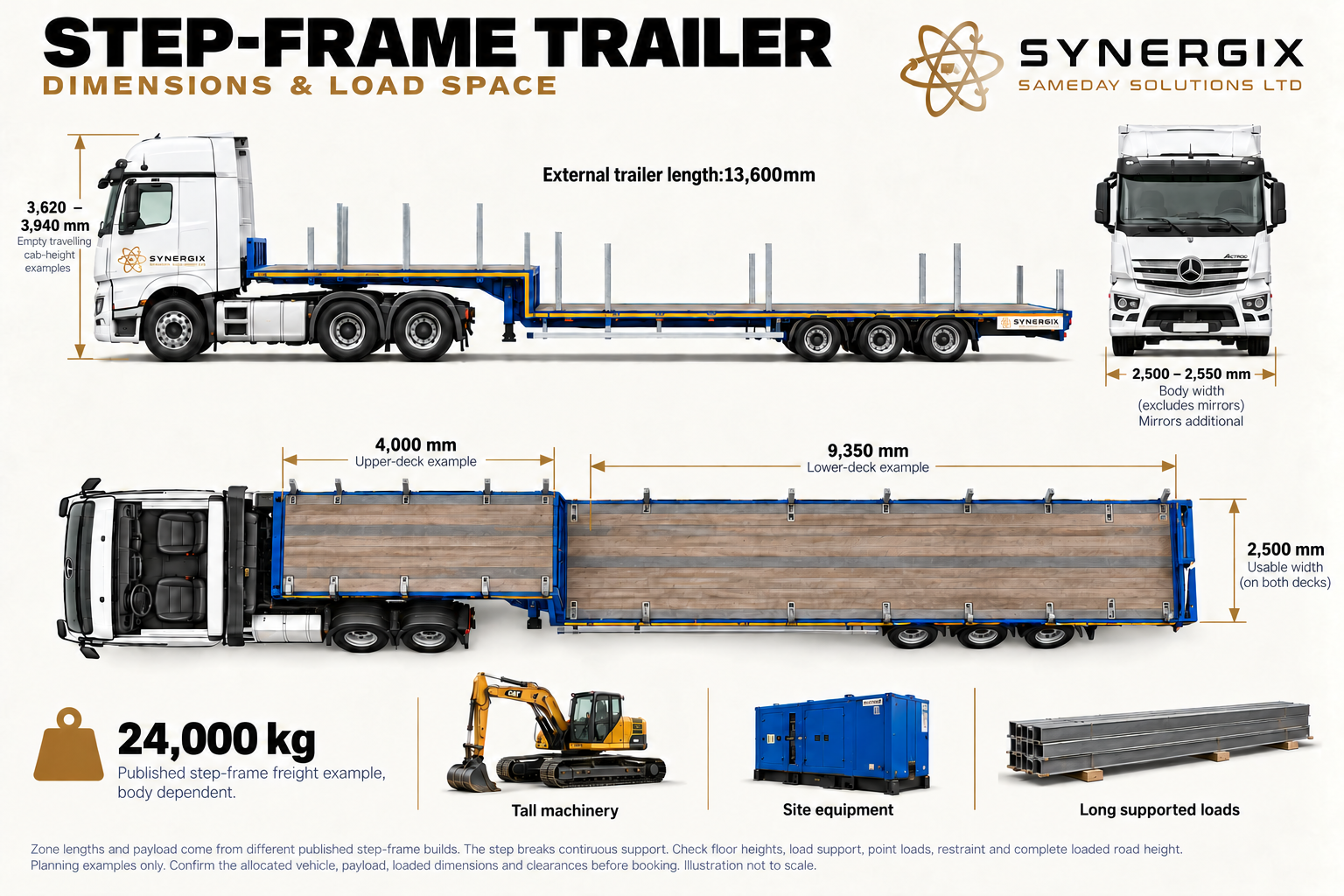

External trailer length 13,600 mm; empty cab height 3,620–3,940 mm; body width 2,500–2,550 mm. Upper deck 4,000 mm, lower 9,350 mm, usable width 2,500 mm. Published step-frame freight example 24,000 kg.
Zone dimensions and payload are different step-frame builds, including covered examples. No pallet count. Check point loads, supports and loaded road height.
Published example sources:
Step-Frame Trailer: pallet layout
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text

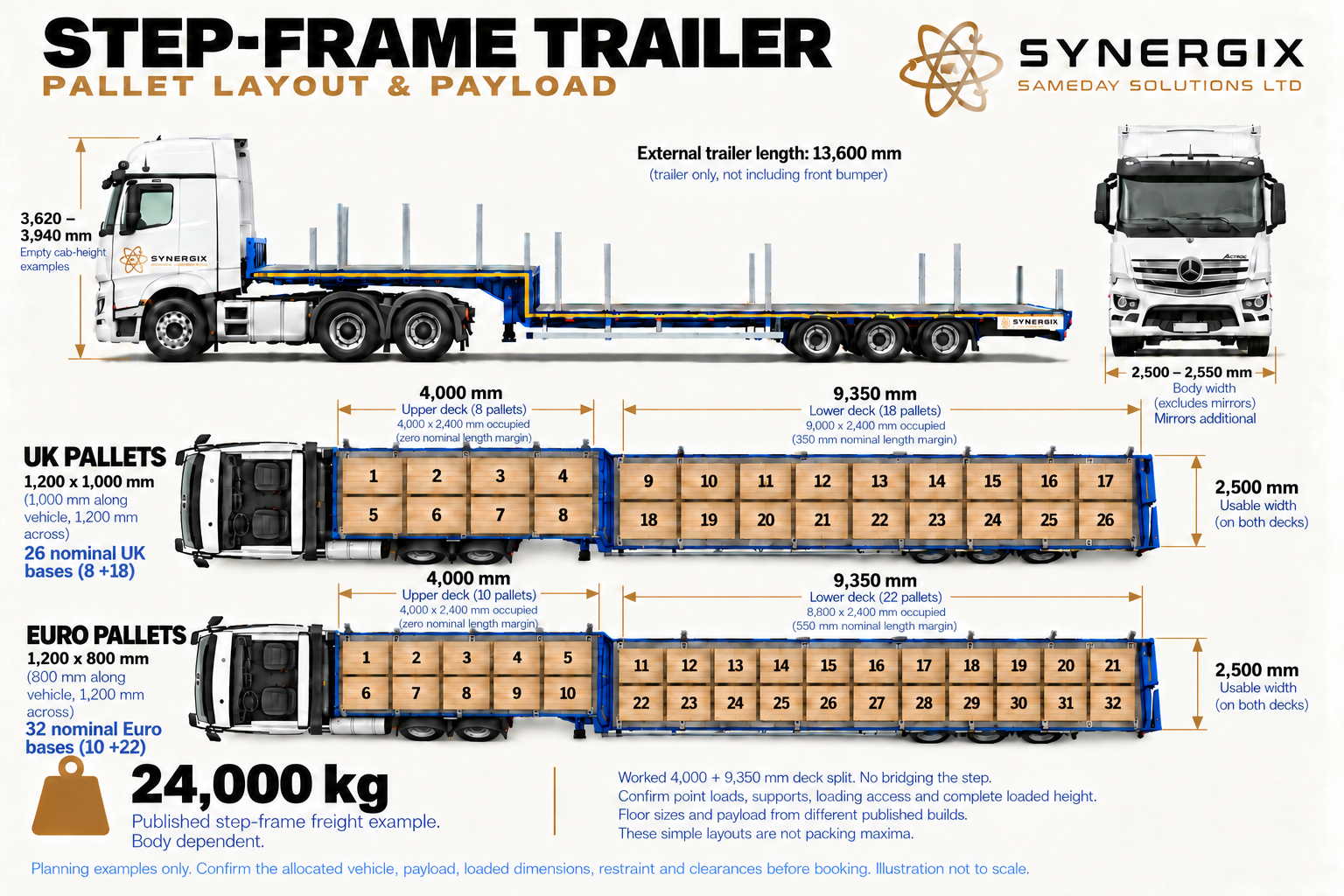

26 nominal UK / 32 nominal Euro bases. Separate 4,000 and 9,350 mm zones, each 2,500 mm wide. 24,000 kg published step-frame freight example.
UK 8 upper + 18 lower. Euro 10 upper + 22 lower. Zero nominal upper-deck length margin. Lower margins 350 mm UK / 550 mm Euro. No base bridges the step; these regular arrangements are not asserted to be packing maxima.
Published example sources:
Configuration explained
Open step-frame platforms.
Separate upper and lower deck regions for suitable freight.
Construction and useful capability
The front section clears the tractor and coupling, then the structure drops to a lower main platform. A tall piece carried on that lower section can have a lower overall travelling height than on a higher flatbed. The upper deck may carry other suitable goods under its own loading plan. The change of level remains a physical interruption: a long rigid piece cannot simply be treated as fully supported across it.
Loading, limitations and booking implications
This can suit fabricated equipment, suitable machinery, modules or bulky industrial freight when the lower zone provides enough usable support length. Loading may use a customer’s crane or forklift. Give each piece’s support positions and centre of gravity so it can be allocated to a real deck region, rather than selected from total floor area.
Configuration explained
Step frames with loading ramps.
An equipped arrangement for compatible drive-on machinery.
Construction and useful capability
Ramps can allow suitable wheeled or tracked equipment to reach the lower deck. Trailer height, ramp length, width, spacing, surface and permitted loading determine the approach. The breakover at the top also matters: a long-wheelbase machine or low underbody can ground even if its tyres climb the ramp. A winch, if fitted, has a separate duty and does not become the road restraint.
Loading, limitations and booking implications
Provide the machine model, operating/transport mass, wheelbase or track contact length, ground clearance and transport dimensions. State whether it runs, steers and brakes. Ramp capability needs to match individual wheel/track loads and the approved support arrangement, not only the machine’s total mass. Collection and delivery surfaces must both permit the intended loading cycle.
Configuration explained
Extendable step frames.
A specialist variation when lower-deck length is decisive.
Construction and useful capability
An extendable chassis can increase a designated deck length, but extension changes support positions, structural ratings and road dimensions. Intermediate supports or infill may be needed for particular loads. The nominal full extended length is not a universal freely supported platform or an ordinary road-length entitlement.
Loading, limitations and booking implications
Use the actual trailer drawing, extension positions and permitted loading. The equipment family is explained here for comparison; exact extension, steering and ramp options are confirmed for the job. A load survey may show that a continuous flatbed or a different low-bed arrangement offers a better supported path. Include the time and space needed to configure equipment before loading.
The practical guide
How the equipment works.
What a step frame is used for
The front deck sits above the tractor coupling area and the main deck is lower behind it. Depending on the body, this can help with tall machinery, plant, bulky equipment or double-deck freight. Open, enclosed, curtain and other specialist bodies can use a stepped chassis. Request the needed loading outcome rather than assuming all step frames are plant trailers.

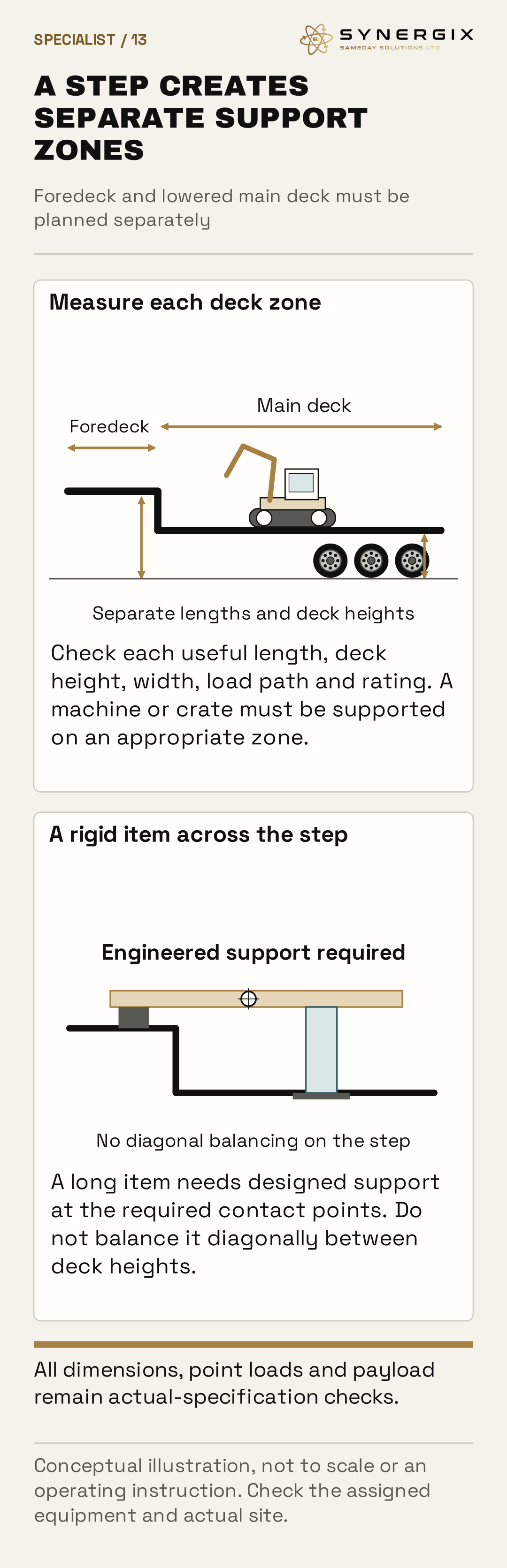

Each deck needs its own measurements
Ask for the useful foredeck length/width, the lower-deck length/width, the step height, floor height and any wheel or rear structures. A 4 m machine may fit on the lower deck but not across the step. A long rigid object needs approved continuous support or a designed cradle; it cannot simply bridge two levels where the support geometry is wrong.
Loading method and clearances
Rear ramps, forklift access, crane loading or a detachable front are separate equipment options. Approach and breakover angles, ground clearance and traction matter for wheeled or tracked plant. Tall equipment can meet its travel-height target on the main deck but be unable to negotiate the ramp or step. Include any attachments and whether the machine is mobile.
Payload, point loads and restraint
The actual tare, plate, axles and route determine freight allowance. The deck and step also need to support local load concentrations. Use the equipment’s approved transport tie-down points, suitable lashing angles and blocking. A hydraulic parking brake on carried plant is not the complete road restraint system.
Advantages and trade-offs
A step frame can gain usable cargo height without needing the deepest low-loader well. However, the raised front takes some full-height length away, deck transitions complicate loading and access needs care. For a very low machine or difficult ramp angle, another low-loader arrangement may be more appropriate.
What to send
Supply the machine’s travel dimensions and mass, track/wheel base, ground clearance, centre of gravity, load/support points and photographs. State whether it drives, steers and brakes, how it will be loaded and whether it needs winching. Include any requirement to move a crane boom, cab, bucket or other attachment into transport position.
The practical guide
Choose the lower deck for a reason.
A worked height comparison
For illustration, a 3.0m item on 0.1m of support reaches 4.4m on a 1.3m deck, or 4.0m on a 0.9m deck. These are assumed dimensions, not Synergix trailer specifications or route approvals. The 0.4m reduction can be useful, but the load must fit on the lower region and remain within structural, mass and route limits.
Step frame versus low loader
The names overlap in some industry usage, so describe the actual layout. A general step frame has a raised foredeck and lower platform. Specialist low loaders can have a very low bed between the neck and rear running gear, removable necks, wheel wells or other loading arrangements. The deck drawing, loading method and clearances resolve the choice more reliably than the name.
The step affects the load plan
A load can fit the total quoted trailer length but exceed the lower deck’s useful length. Supports spanning levels need an engineered arrangement rather than improvised timbers. Tall cargo on the upper deck can also eliminate the height benefit. Draw the goods in their transport orientation, including pipework, rails, lifting lugs and braces, against the individual deck regions.

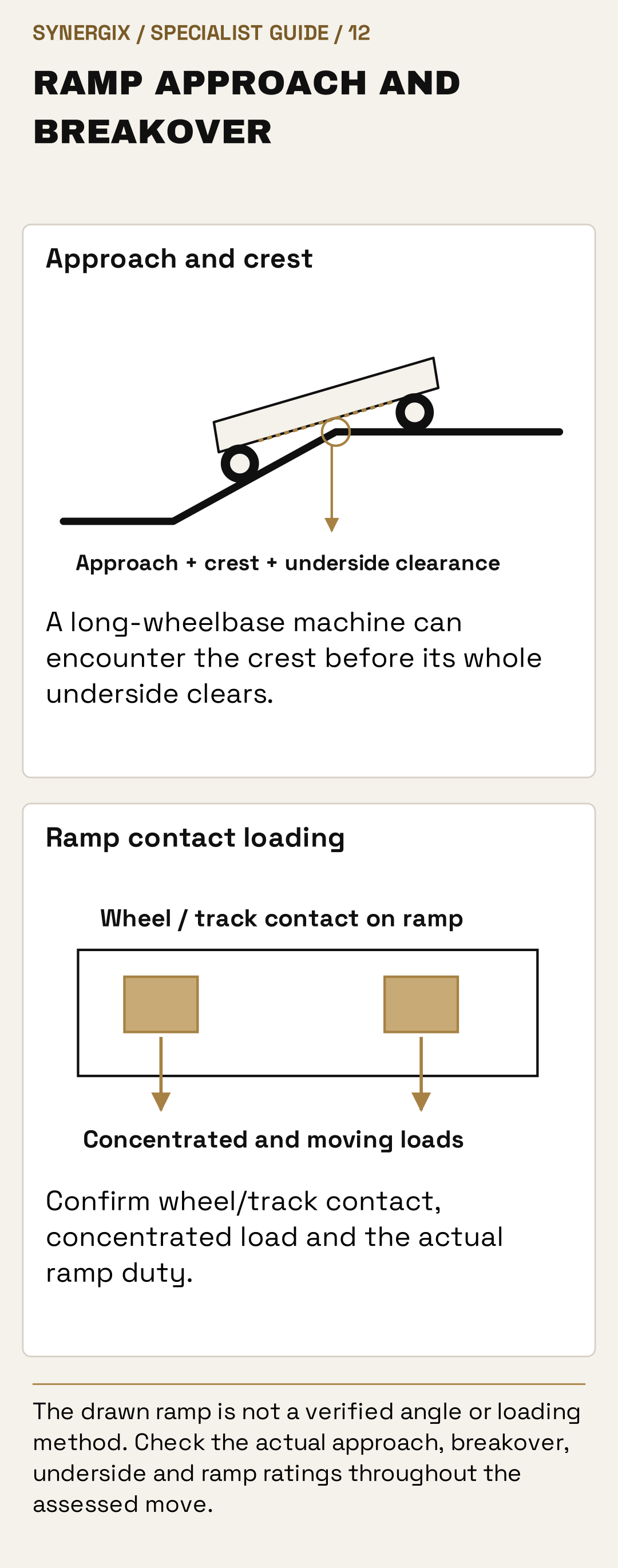

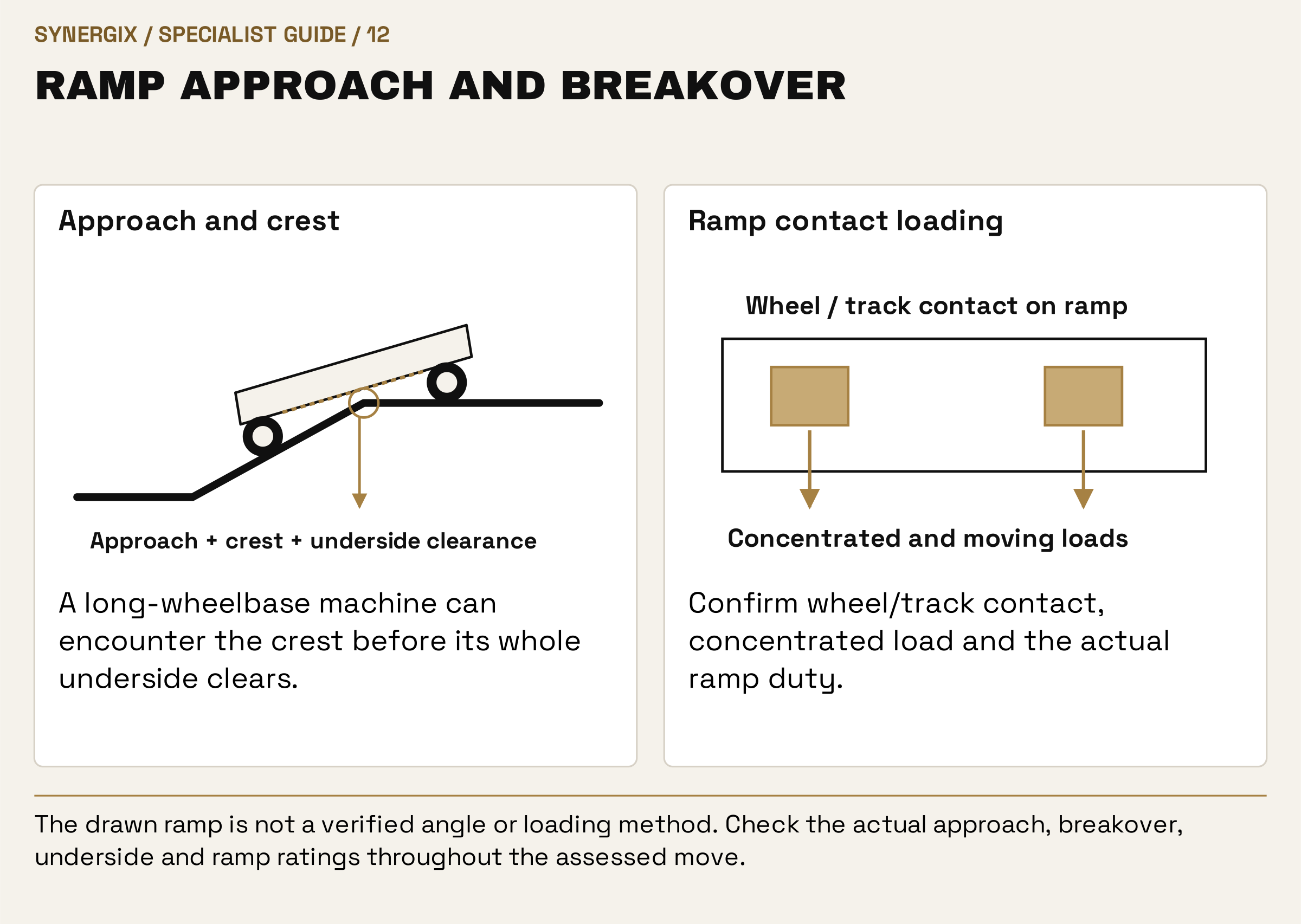

The drawn ramp is not a verified angle or loading method. Check the actual approach, breakover, underside and ramp ratings throughout the assessed move.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Condition, restraint and loading.
Structural condition
The step, main beams, deck and extension locks where fitted carry significant forces. Damage, cracking, loose supports or unapproved repairs need competent assessment. Ramps and their attachments need their own inspections and travel locks. Vehicle running-gear maintenance does not establish that every local deck or ramp load is acceptable.
Supports and securing
Use suitable bearers, cradles and rated anchors around the actual load. The lowered deck does not restrain a machine by itself. Tracks and wheels need adequate support, and accessories, detached buckets and loose ramps need securing. The chosen method must protect both the goods and the people unloading them.
Ground clearance and access
Check humps, ferry ramps, steep entrances and the transition from road to yard. A deck low enough to help bridge clearance can be vulnerable to grounding underneath. Steering options can change manoeuvring behaviour but do not remove the need for an actual route and swept-path assessment.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate deck configuration, support positioning, ramp or crane loading and securing. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on step/frame/deck, approved locks, ramps where fitted and rated securing points. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for deck configuration, support positioning, ramp or crane loading and securing, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is each deck region, cargo support positions, loaded height and loading geometry. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel and any powered ramp, extension or winch operation. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Flatbed | For suitable loads benefiting from one continuous platform. |
| Specialist low bed | For a lower support region or a different machinery-loading method. |
| Enclosed body | Where protection and openings fit better than an open platform. |
Put the information to work
Three practical booking examples.
A tall fabricated module
Compare loaded height on each candidate deck. Confirm the module’s permitted support positions fit the lower platform and assess projections, axle distribution and route.
A machine that drives on
Check transport configuration, tyre/track contact, ramp duty, approach and breakover. Identify who operates the machine and whether it has sufficient running, steering and braking capability.
Long and tall freight
An extendable arrangement may help, but assess structural support and the lawful loaded dimensions before treating extension length as a solution.
Terminology in plain English
Useful equipment terms.
- Foredeck
- The raised front platform clearing the tractor/coupling.
- Main deck
- The lower principal loading platform behind the step.
- Breakover
- The clearance issue as a machine crosses the change of angle at a ramp crest.
- Extension
- An approved adjustable chassis-length arrangement with defined positions and ratings.
- Dunnage
- Suitable cargo supports, not an improvised way to bridge incompatible deck heights.
- Loaded overall height
- Height from ground to the highest part of the complete travelling load.
