Refrigerated vehicles and trailers.
Match the cold chain to the goods, the journey and the receiving site. Compare refrigerated vans, rigid trucks, articulated trailers and compartment layouts, then understand temperature evidence, airflow, power and unloading.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Each temperature zone | Clear usable length, width, height and loading aperture | Pallets, weight and airflow space allocated to that zone. |
| Road vehicle | Actual ready-to-load mass and plated axle limits | Body, refrigeration, lift and handling equipment all use allowance. |
| Parked trailer | Overall height, landing-leg area, door and ventilation space | Correct electrical supply or auxiliary fuel, plus loading support. |
| Product instruction | Required range, loading condition, mode and monitoring | Air set point, product condition and acceptance limits are different. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

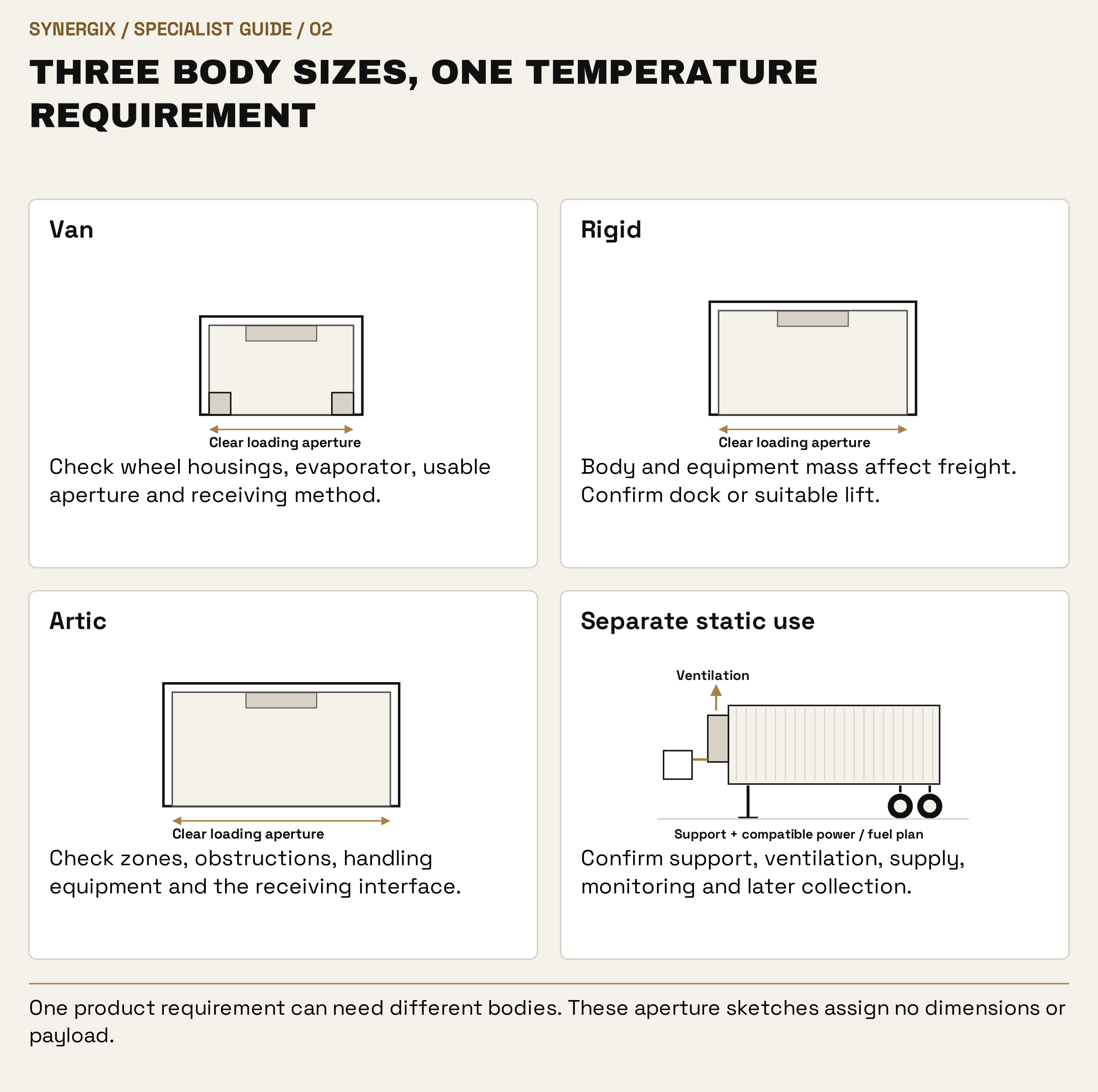

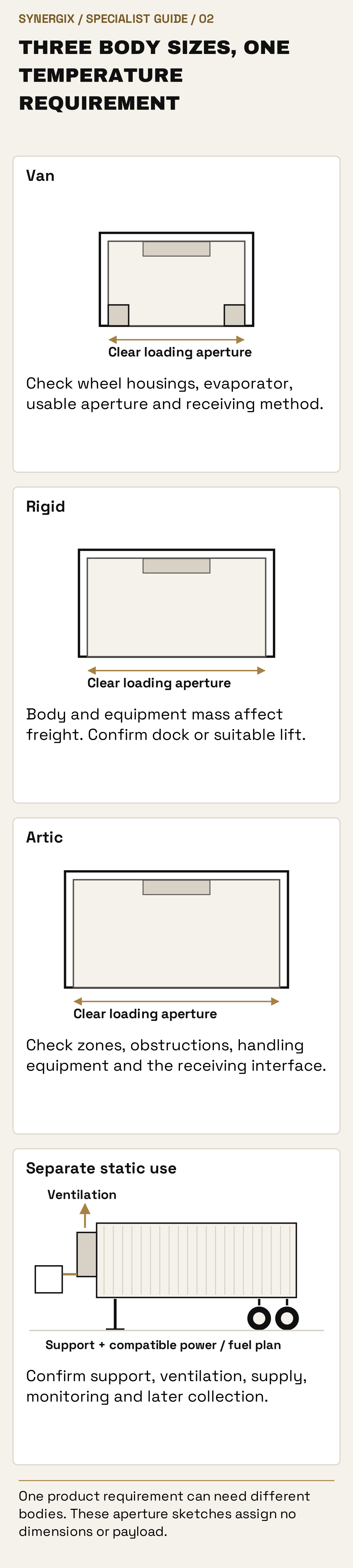

One product requirement can need different bodies. These aperture sketches assign no dimensions or payload.
Open full-size desktop diagram · Open full-size mobile diagramConfiguration explained
Refrigerated vans.
A smaller insulated vehicle for suitable compact loads, samples or urgent stock.
Construction and useful capability
One load compartment can keep the goods together on a dedicated movement without requiring HGV-sized receiving space. The conversion has its own usable measurements and weight allowance. Wheel housings, the evaporator and door opening can govern fit before the apparent body volume is used. Small consignments still need temperature instructions, suitable packaging and an agreed receiving handover.
Loading, limitations and booking implications
A van may use a vehicle-driven compressor, electric system or another arrangement. Standby operation and cooling with the road engine stopped are equipment-specific. Describe any stationary wait, multiple stops or overnight requirement. A van with the right temperature range can still be the wrong choice if the product cannot enter through the doors or needs equipment the vehicle cannot carry.
Configuration explained
Refrigerated rigid trucks.
A single chassis for larger consignments and assessed distribution work.
Construction and useful capability
A rigid can offer a useful middle ground between a van and an articulated trailer. The insulated body stays with the cab, while rear doors, an agreed tail lift and receiving equipment determine how pallets or cages move. Loading at a dock and unloading at ground level are different interfaces. The lift must accommodate the whole platform load, including the pallet truck and any authorised rider.
Loading, limitations and booking implications
Rigid size should follow the load and access rather than a generic pallet count. Product temperature, gross pallet weights, door clearances and the route to the receiving position all matter. A larger fridge body does not provide permission to load warm stock or mix incompatible products. Multi-drop work needs an opening sequence that limits exposure and retains suitable restraint after each stop.
Configuration explained
Articulated refrigerated trailers.
A long insulated semitrailer for suitable higher-volume movements.
Construction and useful capability
The trailer brings substantial continuous loading space and can remain refrigerated when separated from its tractor if its own power arrangement permits. The refrigeration unit, body specification, bulkheads and fitted handling equipment determine the actual freight allowance. A 13.6m category description is a starting point, not the internal length of every compartment. A dock operation also needs compatible floor height, leveller, restraint and trailer support.
Loading, limitations and booking implications
An artic needs an assessed approach and standing area. Leaving a trailer at a venue or depot adds a parked operation to the transport job: braking, landing-leg ground, power or fuel, unit ventilation, security and access to doors must remain suitable after the tractor leaves. Collection of the empty trailer, cleaning and return timing belong in the agreement.
Configuration explained
Single, dual and multi-temperature layouts.
Choose compartments around the products and loading order.
Construction and useful capability
A single-temperature body is often the straightforward choice when all goods share compatible requirements. Dual or multi-temperature systems introduce insulated divisions, suitable evaporators and controls for the zones. Two set points on an enquiry do not prove that any divided trailer can maintain both. The machinery needs the duty, airflow and monitoring appropriate to the temperature difference and ambient conditions.
Loading, limitations and booking implications
Allocate actual pallets and mass to each zone, then consider how every delivery is reached. Moving a bulkhead changes useful length; passing through another compartment can expose stock. Door arrangements, insulation condition and sensor locations therefore matter alongside the headline temperature range. An ambient zone is also a defined operating requirement, particularly where freezing damage or heat sensitivity matters.
Configuration explained
Parked refrigeration and event use.
A separate operating plan when stock remains in a trailer.
Construction and useful capability
A refrigerated trailer can support an agreed temporary holding requirement, but transport, static trailer hire and warehouse storage are different services. For parked use, the receiving team needs practical access, sound support, ventilation around the unit and a supply or refuelling plan for the full period. A power socket somewhere on the site is not enough information.
Loading, limitations and booking implications
Explain stock quantity, loading frequency, event hours, noise restrictions and the person monitoring the unit. Suitable three-phase standby can reduce auxiliary diesel running at a powered location. Connection, protection, cables, alarms and fallback arrangements need to be established before the trailer is delivered. Do not plan a parked hire around an assumed domestic extension lead.
The practical guide
How the equipment works.
What a refrigerated body does
A purpose-built insulated body and refrigeration system maintain suitable goods within an agreed operating range. Chilled food, frozen stock and certain temperature-sensitive goods have different requirements. A normal dry box is not equivalent. Transport refrigeration is normally intended to maintain appropriately conditioned product, not to freeze warm food or rapidly pull down a large unconditioned load.
Internal space and equipment weight
A purpose-built refrigerated truck or trailer can have broadly comparable internal dimensions to a standard body. Do not automatically subtract insulation from another vehicle’s internal measurement. Obtain the fridge body’s own specification. Evaporators, air ducts, partitions and protective fittings can create local restrictions. Refrigeration equipment and an agreed tail lift add mass and can reduce payload even when the usable body dimensions remain similar.
Choose the set point from the product requirement
Give the required product temperature, acceptable range, collection condition and loading duration. Chilled and frozen are broad labels, not complete instructions. A +2°C air set point does not prove that the centre of every carton is +2°C. Likewise, a frozen-food requirement may be stricter than an assumed freezer setting. Different foods, medicines, flowers and chemicals need their own product specification.
Air temperatures are not product temperatures
The controller’s set point, supply-air reading, return-air reading and a probe measurement in the goods describe different things. A defrost cycle or open door may change an air reading temporarily without establishing the core product condition. Agree which measurements form the acceptance criteria, where they are taken and how readings are recorded. Do not use a single display photograph as proof of an entire uninterrupted journey.
Temperature logs and fridge records
State before booking whether you need a printed temperature ticket, a downloadable journey log, a calibrated recorder, compartment-specific readings or a live alert arrangement. Useful records identify the unit, time/date, sensors, trip or consignment, set point and relevant exceptions. Agree who obtains the record and when it is available. A vehicle being refrigerated does not automatically include remote customer access or an evidential report in a particular format.
Quick-frozen food and record retention
Quick-frozen food transport has specific air-temperature monitoring and record rules, including applicable standards for recording equipment. Where those rules apply, dated records are normally retained for at least one year, and longer where the product nature or shelf life requires it. Scope and limited local-distribution exceptions need checking. A short trip does not remove the wider duty to maintain suitable food conditions.

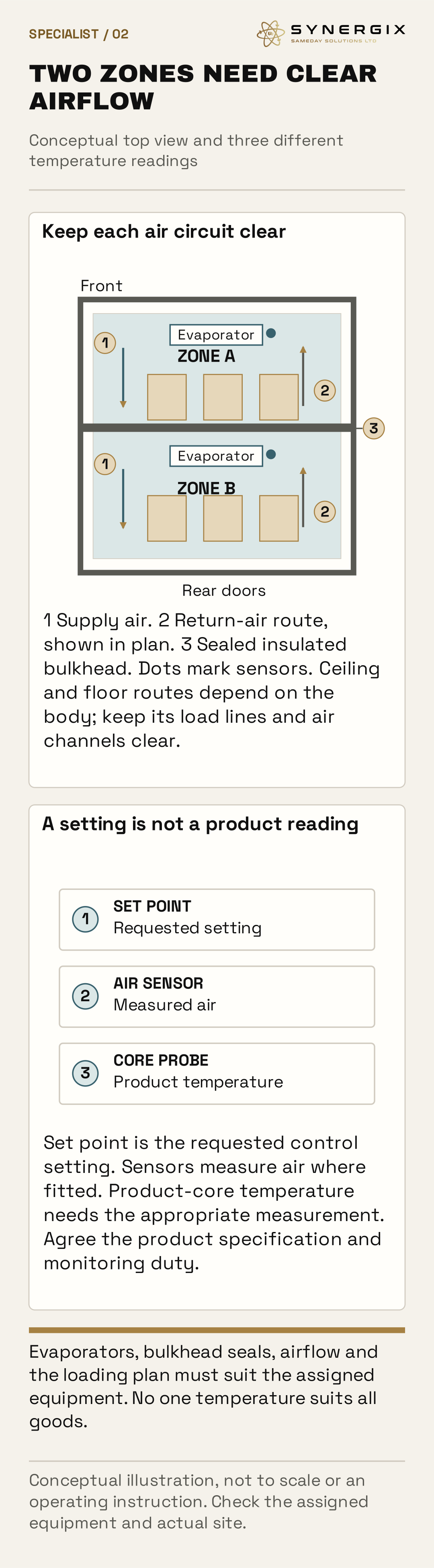

Dual-temperature and multi-temperature bodies
A dual-temperature trailer needs compatible compartments and refrigeration control, not simply chilled goods at the front and frozen goods at the back. An insulated dividing bulkhead, suitable evaporators and independent monitoring/control arrangements establish the zones. Give the pallet count, weight and temperature for each compartment. Bulkhead positions, doors and airflow determine useful length. A shared doorway or repeated opening can affect both zones.
Airflow and loading height
Supply air must reach the load and return through the route required by the actual system. Keep goods clear of identified load lines, evaporators and channels. Do not obstruct floor air routes or pack goods against a ceiling duct merely to gain an extra pallet. Pallet wrapping, collapsed packaging and blocked rear circulation can defeat an otherwise correct set point. Use the body manufacturer’s load plan.
Pre-cooling, loading and door openings
Agree when the body is pre-cooled, when product is ready, how long doors may stay open and how the loading dock is managed. The correct unit operating mode during loading depends on the equipment and loading interface. Ask for a planned procedure rather than requiring the engine to run continuously with open doors. Minimise uncontrolled exposure and account for each delivery stop.
Start-stop and continuous operation
Some units can cycle off after reaching the set point; others or certain products require continuous airflow. These are equipment and product choices, not interchangeable fuel-saving shortcuts. Specify the required mode with the temperature instruction. A medicine or sensitive produce shipment may have requirements beyond a routine frozen-food load. No pharmaceutical validation or specialist accreditation is implied by the word refrigerated.

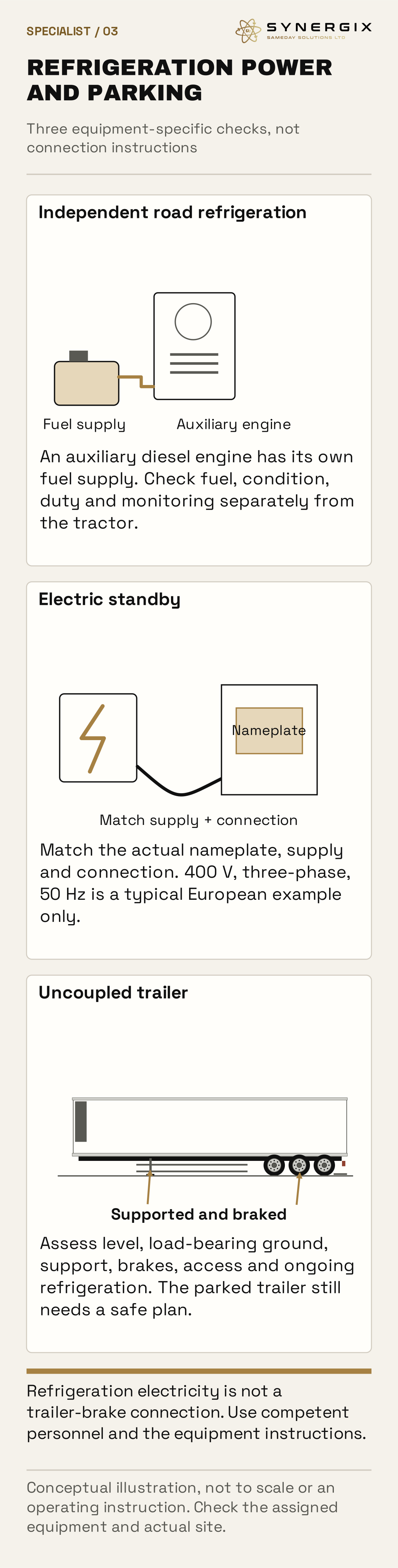

The diesel “donkey engine”
Many trailer refrigeration units have their own auxiliary diesel engine and fuel supply. It can run when the tractor engine is off or the tractor is uncoupled, provided the system and operating conditions permit it. Its fuel is separate from the tractor’s road fuel calculation. Confirm the fuel level, operating duration, refuelling responsibility, noise constraints and what happens if the unit alarms or runs out of fuel.
Three-phase electric standby
Many European trailer systems offer electric standby using a suitable three-phase supply, often 400 V, 50 Hz. The actual unit’s nameplate determines voltage, phases, current, protection and connector. A standard domestic socket is not a substitute. Have a competent person confirm the supply and suitable cable before delivery. Generator compatibility and start-up demand must be checked rather than judged only by its headline kVA.
Electrical connection and event positioning
Agree the socket location, cable length, protection against vehicles/pedestrians, supply availability and who connects the equipment. A refrigeration power cable supplies the refrigeration system; it is not a trailer-brake connection. Isolate and disconnect safely before moving the trailer, following the equipment instructions. Event hire also needs a position that allows ventilation, access to controls and doors, suitable support and a clear emergency arrangement.
Trailer brakes, landing legs and parked operation
An uncoupled trailer must be parked and supported through the approved system, including its parking brake and suitable ground under the landing legs. Disconnecting an air line is not a replacement for deliberately applying the parking brake. Any wheel restraints or chocks form part of the site assessment. Forklift entry can create substantial loading forces; confirm the trailer’s approved support and dock restraints before driving machinery inside.
Load bars, cages and restraint
Refrigerated freight still needs securing. Match rated load bars, shoring beams, tracks, straps or other restraints to the actual body and load. A friction pole is not automatically equivalent to a positive-locking rated bar. A cage’s wheel brake helps parking but is not the complete road restraint. Do not place a bar where it damages the insulation, blocks an evaporator or prevents required circulation.
Cleanliness, separation and odours
Tell us about allergens, raw and ready-to-eat products, packaging integrity, previous-load restrictions and any cleaning evidence required. Chilling does not remove contamination or make incompatible products suitable for a shared compartment. Drainage, condensation and residues need consideration. A temperature-controlled waste or chemical job is not interchangeable with food carriage.
Breakdown and out-of-range arrangements
Agree the site contact, alarm escalation, acceptable time outside the range and who decides whether product can be accepted or released. A refrigeration alarm is not automatically a vehicle breakdown, and restarting a unit does not erase an earlier temperature excursion. Availability of replacement transport, spare power or emergency storage must be agreed rather than assumed. Keep the evidence for the whole incident.
Refrigerants, maintenance and international carriage
Refrigeration servicing includes the engine or electrical drive, heat exchangers, seals, controls, sensors and refrigerant circuit. Applicable F-gas work needs appropriately qualified personnel. International carriage of certain perishable foods can require ATP-compliant equipment and certification; that is separate from product hygiene and journey logs. Tell us the country and goods so the relevant requirements can be checked.
| Requirement | How to specify it |
|---|---|
| Chilled | A product may require a positive set point such as+2°C or+4°C. Give its permitted product range and applicable limits |
| Quick-frozen | Generally−18°C or colder after thermal stabilisation, subject to the applicable rules and permitted limited variations |
| Medicines or sensitive products | A labelled range such as+2to+8°C requires the actual product and appropriate qualified transport arrangements |
| Controlled ambient | A product may specify a range such as+15to+25°C and need heating in winter, not only cooling |
| Give us | Why it matters |
|---|---|
| Product and temperature | Set point, acceptable range and goods condition control the transport instruction |
| Zone plan | Separate dimensions, weights and temperatures for each compartment |
| Records | Recorder/calibration, logging interval, report format and required retention |
| Power | Diesel duration or exact electrical supply, cable and connection responsibility |
| Handling | Dock, tail lift, cages, pallets, pump truck and individual unit weights |
| Contingency | Contacts, alarm escalation and responsibility for accepting affected product |
The practical guide
Product instructions that work.
Frozen, chilled and temperature-sensitive goods
Start with the product owner’s written specification. Frozen foods, fresh produce and chilled prepared foods need different treatment, and medicines or technical products can introduce validation requirements. A general refrigerated vehicle guide cannot select the temperature on the customer’s behalf. Include the allowed range, packaging, collection condition, maximum exposure and acceptance method, so a technically suitable vehicle is matched to the actual consignment.
A useful handover record
A sound handover identifies the consignment, time, quantity, condition, seal where used and relevant temperature evidence. Decide in advance whether the receiver uses product probes, surface checks or journey air logs. Record an exception rather than changing a set point to make a display look acceptable. The product owner’s authorised person decides product disposition after an excursion; transport staff should not invent a new acceptance limit.
A cold-chain job can be weight-limited
Dense frozen cases can reach the permitted freight mass before all floor positions are filled. Lightweight flowers or packaging can consume space first. Multi-zone partitions and airflow also change the usable plan. Compare actual gross unit weights and zone dimensions rather than filling every theoretical pallet position and checking total mass afterwards.

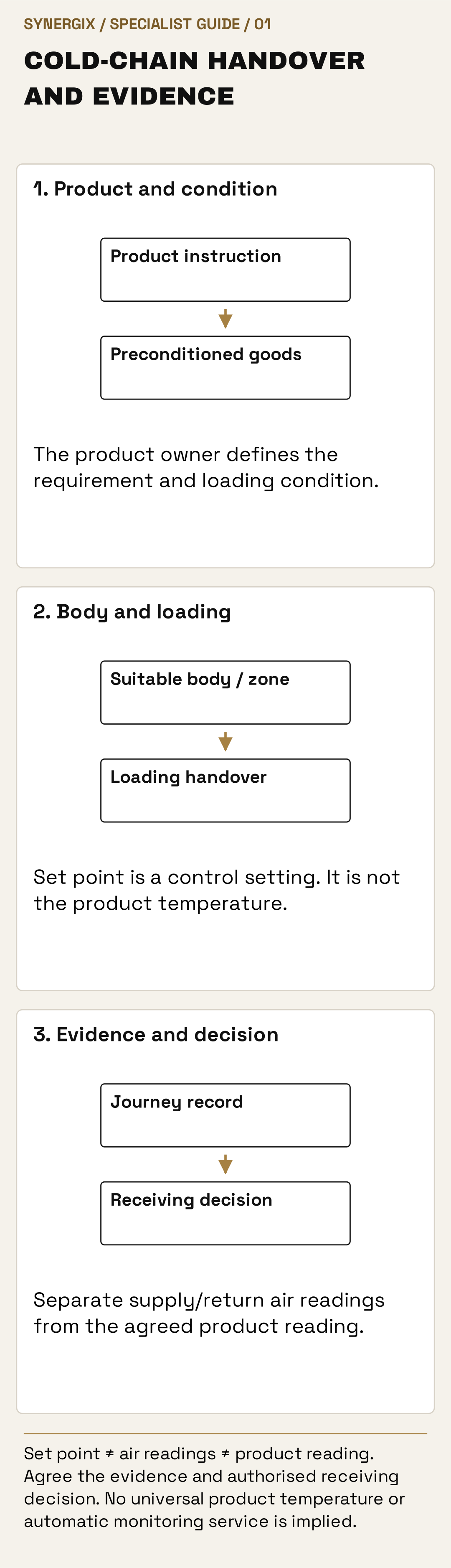

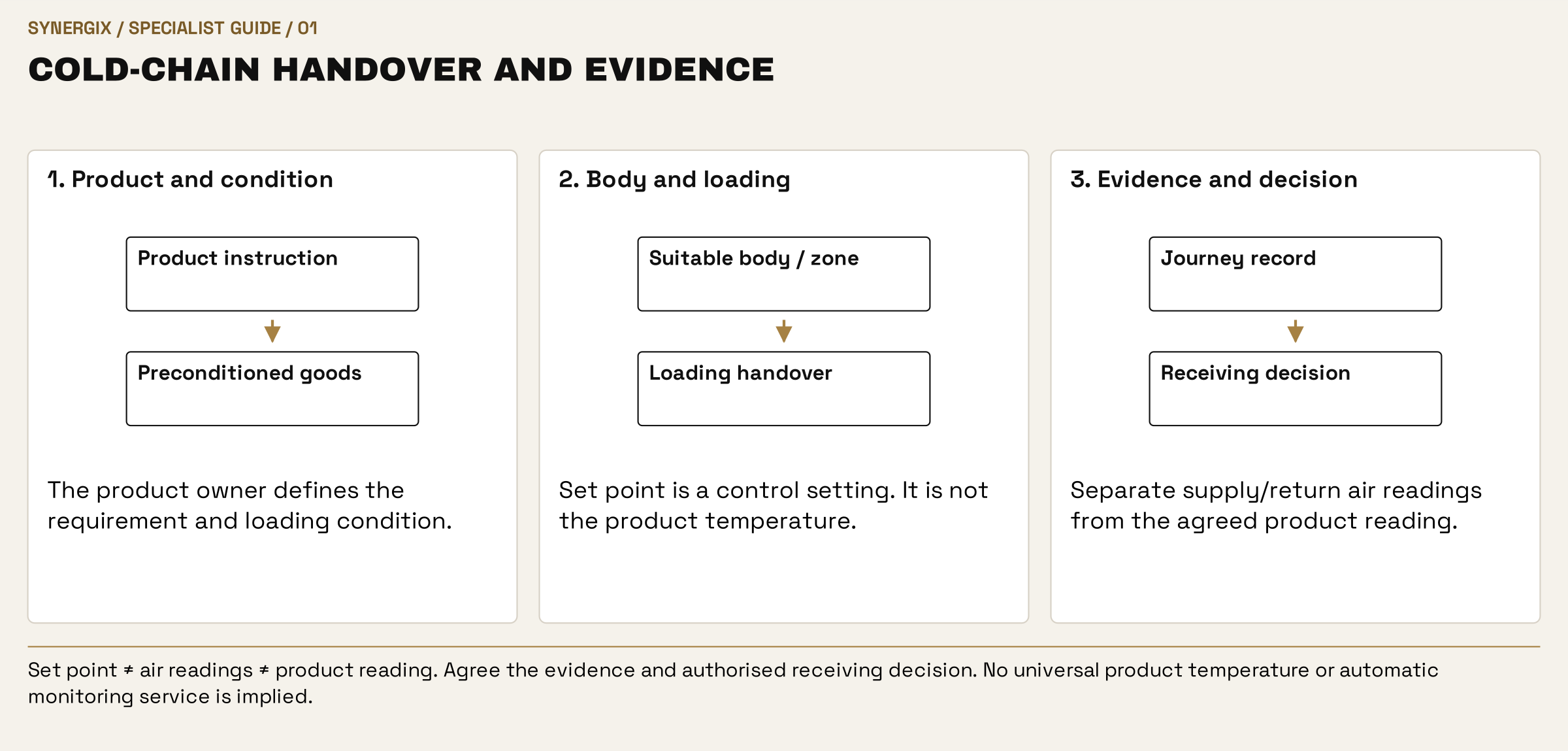

Set point ≠ air readings ≠ product reading. Agree the evidence and authorised receiving decision. No universal product temperature or automatic monitoring service is implied.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Condition and servicing that protect the load.
The insulated body matters as much as the unit
Damaged door seals, punctured panels, open drains, ineffective bulkheads and obstructed ducts increase heat gain or disrupt circulation. Ice and moisture can also affect footing and freight restraint. A powerful unit cannot compensate for every body defect. Pre-use checks should cover the body, doors, unit status and loading environment as well as fuel or supply availability.
Three separate service records
The road vehicle or trailer needs its roadworthiness programme. The refrigeration unit needs the manufacturer’s servicing and defect response, which may depend on engine hours and duty as well as calendar time. Monitoring equipment needs the appropriate verification or calibration evidence. None of these is replaced by a temperature reading taken after loading. Applicable refrigerant work must be undertaken by appropriately qualified personnel.
Plan for a loss of power
Identify who is alerted, who can authorise action and how records are retained. A local alarm, remote monitoring service and customer access to data are different capabilities. Backup power, replacement transport or emergency cold space need an agreed arrangement. Setting a lower temperature in advance is not a substitute for resilience and may damage goods that must not freeze.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate temperature preparation, door openings, product checks and the receiving cold-chain handover. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on unit/body/sensor condition, fuel or supply, product compatibility and monitoring. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for temperature preparation, door openings, product checks and the receiving cold-chain handover, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is zone allocation, collection temperature, logs, unloading and any parked holding period. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes an independently powered refrigeration unit, electric standby and any required continuous-airflow duty. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Dry box | For goods genuinely requiring enclosure without active temperature control. |
| Static trailer hire | For an agreed parked holding period, with separate support, power and monitoring. |
| Warehouse storage | For a separately specified storage requirement, not an assumed refrigerated warehouse offer. |
Put the information to work
Three practical booking examples.
Two temperatures, one delivery
A consignment includes frozen cases and chilled dairy. Plan separate compatible zones, gross pallet weights, zone lengths, loading order and compartment records. One open compartment set halfway between the temperatures cannot meet both instructions.
A trailer staying after a festival delivery
Separate the road movement from the parked period. Confirm ground/support, doors, power characteristics, noise constraints, stock access, monitoring contact, duration and recovery. Include any return stock and cleaning requirement.
A small urgent food sample
A suitable refrigerated van may avoid sending an unnecessarily large truck. Confirm packed dimensions, required range, sample condition and the receiver’s hours. Small size does not remove the need for a maintained cold chain.
Terminology in plain English
Useful equipment terms.
- Set point
- The control setting requested for the refrigeration system.
- Supply and return air
- Air leaving the cooling unit and air returning to it, which can have different readings.
- Bulkhead
- A partition defining a compartment; multi-temperature use needs suitable insulation and sealing.
- Electric standby
- A compatible external electrical supply running the refrigeration system while parked.
- ATP
- The international agreement concerning specified perishable foods and special equipment used for their carriage.
- Temperature excursion
- An out-of-range event requiring evidence and an authorised product decision.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Refrigerated vehicles and trailers FAQs
Your questions answered.
Does refrigerated transport freeze warm goods?
Transport systems are normally selected to maintain correctly conditioned product. Tell us if goods need cooling or freezing from warm: that is a different duty and must be specifically assessed.
Can chilled and frozen goods travel together?
Only in an appropriate compartment arrangement with compatible controls, airflow, loading and monitoring. Give the quantities and temperature instruction for each product.
Is the displayed temperature the temperature inside my goods?
No. The set point, supply air, return air and product core can differ. Agree what is measured and which evidence is required for acceptance.
Can a trailer run without its tractor?
An independently powered unit may do so. Its fuel or compatible standby supply, support, parking and monitoring must remain suitable.
Will a normal socket power a refrigerated artic trailer?
Do not assume it will. Many trailer standby systems need a suitable three-phase supply. The assigned unit’s electrical specification determines the supply, protection and connection.
Can I get a temperature log?
Request the required format, sensors, time coverage and delivery of the record before booking. Refrigeration does not automatically include customer live access or every reporting option.
Can you carry medicines?
Give the product specification, validation and document requirements for assessment before acceptance. A refrigerated body alone does not establish pharmaceutical qualification.
How much does refrigerated transport cost?
Quantity, temperature duty, vehicle, route, timing, stops, waiting, monitoring, handling and any parked operation affect the quotation. Include auxiliary running and return requirements.
Before you book
Tell us what needs moving.
You do not need to identify every equipment model before contacting us. Start with zone allocation, collection temperature, logs, unloading and any parked holding period.
Describe the goods
Product/type, quantity, packed dimensions, verified gross unit weights or density/volume as relevant, support/handling points, condition, value and any hazards, hygiene or temperature instructions.
Show both sites
Postcodes, approach, restrictions, measured openings, ground, working space, loading/discharge equipment, receiving position, contacts and useful photographs or drawings.
Define the work
Date/time windows, stops, loading/unloading roles, equipment operation, placement or transfer, parked periods, returns, cleaning and required documents. Include any installation or indoor handling as a separate requested scope.
Agree the arrangement
The team confirms the appropriate equipment, availability, scope, price and conditions. A vehicle illustration or LoadCheck calculation is planning help, not a reservation or approval for specialist handling.
