Megalift and container side-loader vehicles.
Carry a compatible container and place it through an assessed side-lifting operation. Understand lifting versus road payload, working-side access, ground support, container condition and the space needed for the whole outfit.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Container | Size/type, actual gross mass, centre of gravity and lifting fittings | The empty shell, contents and any fitted equipment count. |
| Lifting duty | Actual equipment chart, configuration and handling method | Lifting capacity is separate from permitted road freight allowance. |
| Working area | Container corridor, deployed supports and overhead clearance | Include tractor standing room in front and safe access for personnel. |
| Final position | Orientation, prepared support, doors and later collection | A container can fit but be unusable if its doors cannot open. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

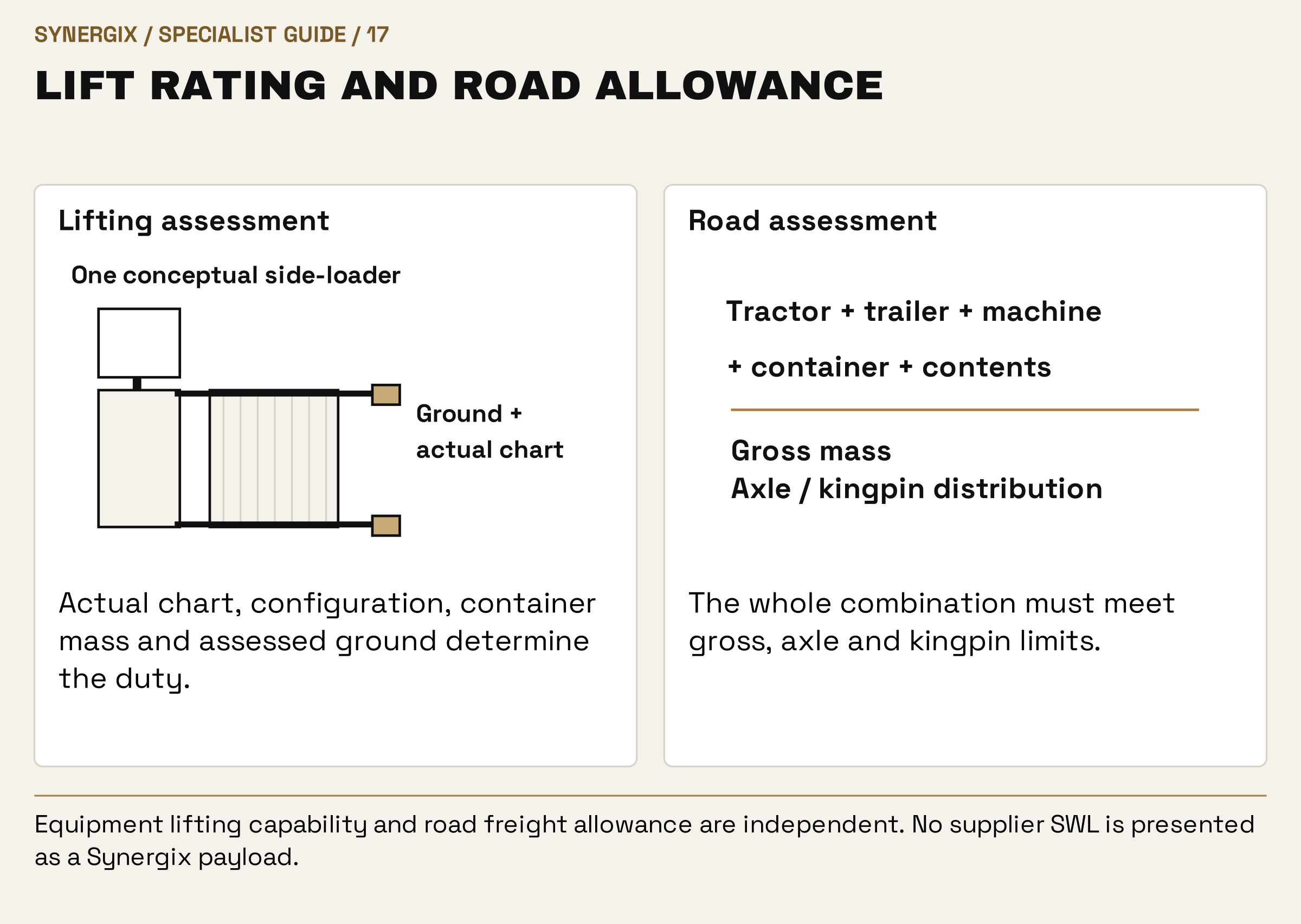

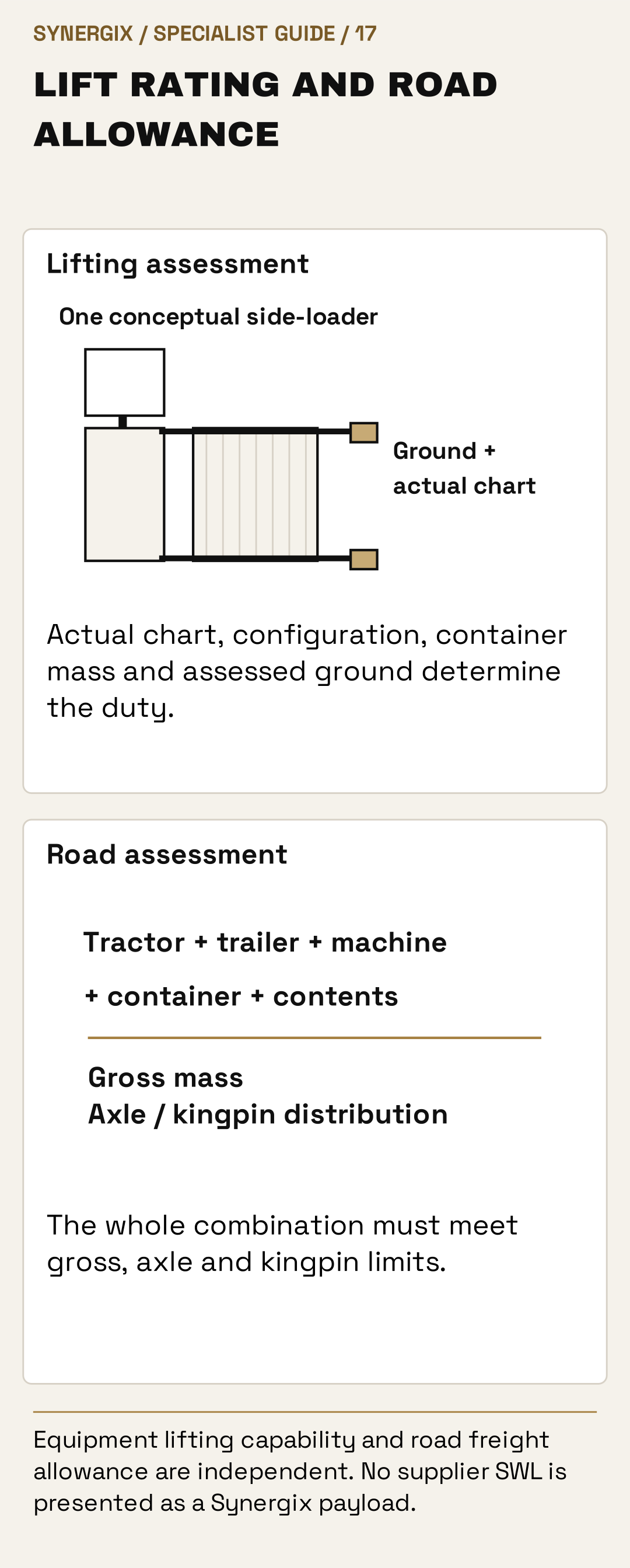

Equipment lifting capability and road freight allowance are independent. No supplier SWL is presented as a Synergix payload.
Open full-size desktop diagram · Open full-size mobile diagram

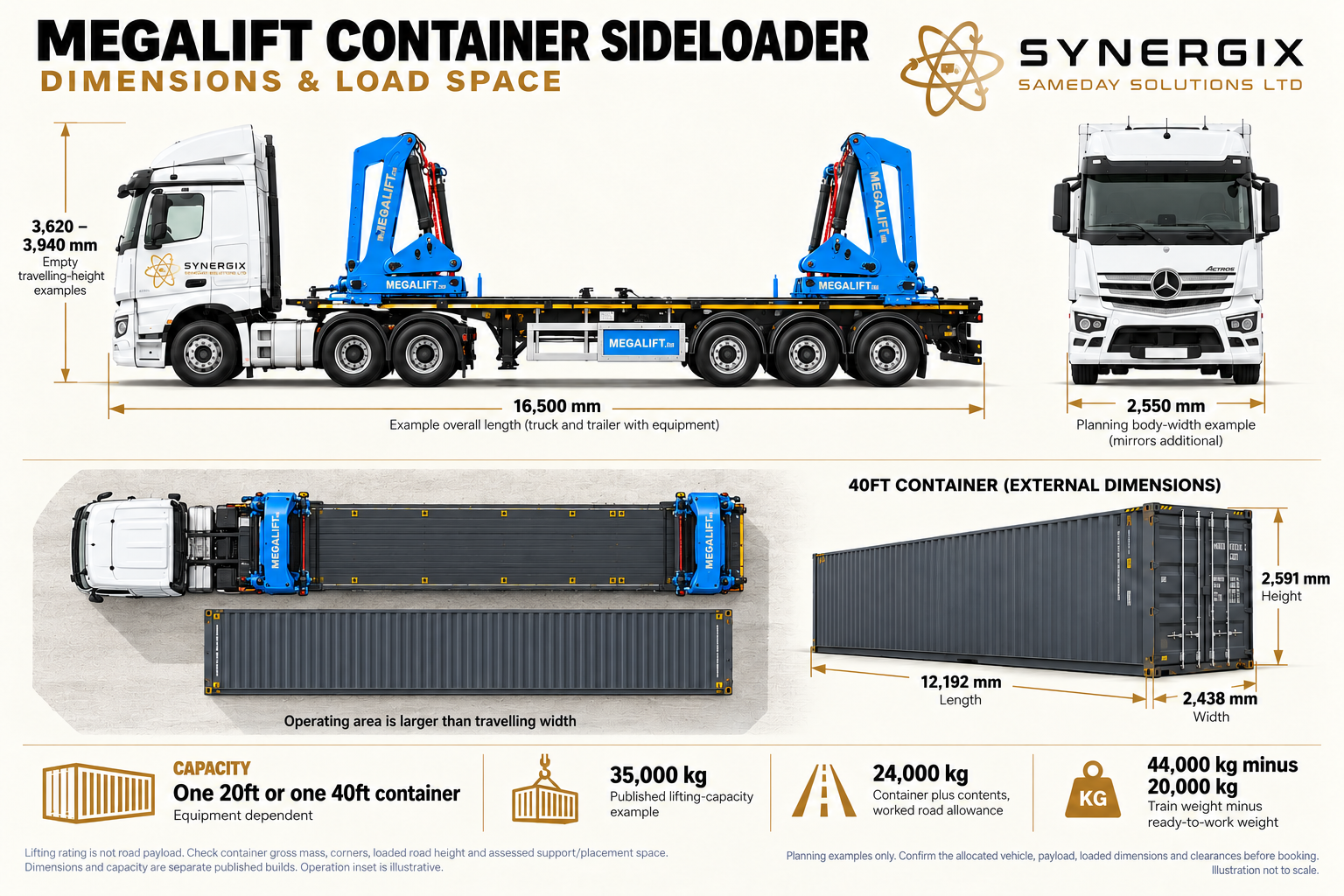

Megalift container sideloader
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
Complete-length example 16,500 mm; planning body width 2,550 mm; empty cab-height examples 3,620–3,940 mm. One 20 ft or 40 ft container. Machinery lifting example 35,000 kg. Worked road container-plus-contents allowance 24,000 kg =44,000−20,000 kg.
Machinery lifting rating is not road payload. Empty height/width are separate planning examples, not a matched manufacturer GA. Operating space requires assessment, not scaling from the drawing.
Published example sources:
Configuration explained
Ground-level container collection and delivery.
The self-loading carrier brings its own lifting arrangement.
Construction and useful capability
A side-loader uses lifting equipment at the container’s ends to transfer a compatible unit between the chassis and an adjacent prepared position. This can remove the need for a separate site crane for an appropriate job. The container and cargo need to be suitable for the lifting method, while the supports and working space must accommodate the complete operation.
Loading, limitations and booking implications
Henry’s established Megalift arrangement unloads to the right with the tractor in front. Plan the vehicle’s approach and final facing direction around that requirement. Do not assume it can work on the other side or stand at right angles across a confined site. The equipment’s permitted duty, ground and container gross mass decide acceptance, rather than the container size alone.
Configuration explained
Chassis-to-chassis transfers.
A specialist transfer where both vehicles and supports are compatible.
Construction and useful capability
Some side-loading systems can transfer a container to or from another chassis alongside. This can be valuable when a conventional container carrier needs the box grounded or collected at a site without fixed lifting equipment. The receiving chassis height, support positions and the lifting equipment’s approved geometry all matter.
Loading, limitations and booking implications
Two vehicles require more than two parked road outlines. The plan must include their approach, alignment, container path, legs/supports and access for competent staff. A manufacturer’s photograph of one transfer does not approve every pairing. Specify whether the job is transport plus grounding, a transfer only or a staged movement, with responsibilities and handovers agreed.
Configuration explained
Container sizes and specialist options.
Use the actual unit and machine configuration.
Construction and useful capability
Manufacturers offer systems for different container sizes and configurations, including selected 20ft, 40ft and other arrangements. This does not mean every machine handles every size, pairs of boxes, tank containers or stacking. Movable lifting modules and extending chassis positions must match the actual container and permitted road arrangement.
Loading, limitations and booking implications
Published Hammar examples illustrate that lifting ratings, chassis layouts and optional stacking capability vary between installations. Those figures are not Synergix lifting or road ratings. Tell us the container number, type, gross mass and intended operation. High cubes, modified containers and unevenly loaded units introduce additional geometry, structural and stability questions.
The practical guide
How the equipment works.
What a self-loading container trailer does
Two specialist lifting modules can place a compatible container beside the trailer or perform an approved transfer to another carrier. Lifting capacity, container size, support geometry and working reach depend on the actual installation. It is different from a plain skeletal needing a separate reach stacker, and different from a general loader crane.

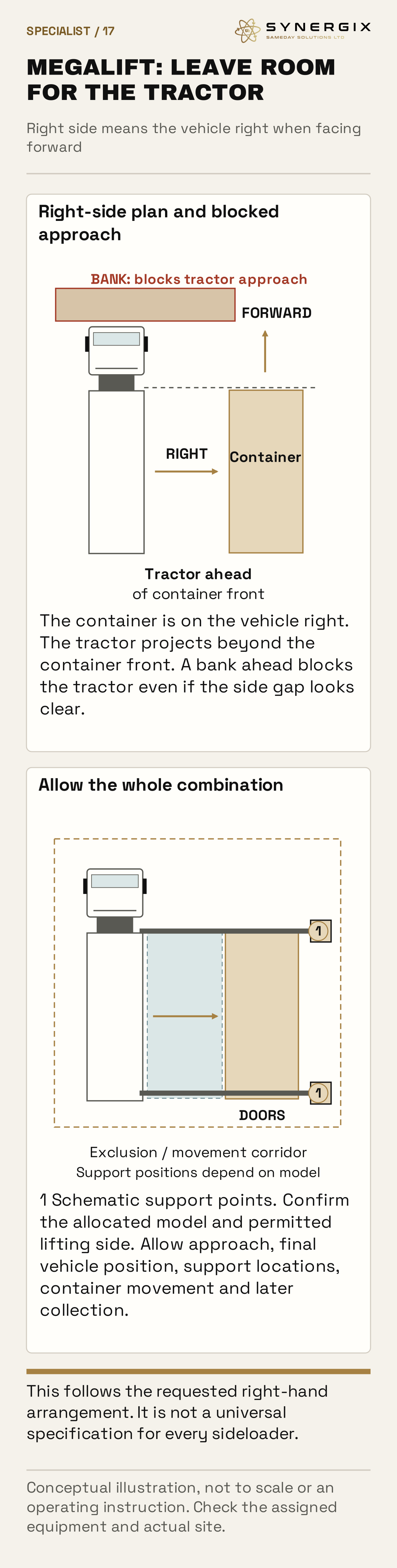

Right-hand-side access in this arrangement
For the right-hand-loading Megalift arrangement covered by our booking brief, the container must be accessible on the vehicle’s right-hand side, as viewed facing forwards. Do not orient the drawing from the container’s perspective and accidentally reverse the sides. Other side-loader configurations can differ. Confirm the allocated equipment’s lifting side before preparing either site.
The tractor needs room in front
The trailer can only line up with the container if the whole coupled vehicle can reach and occupy the required position. A bank, wall, building or parked vehicle beyond the container’s forward end can block the tractor, even when there is clear space down the lifting side. Send a site plan showing the full container length and the available area beyond both ends.
Allow for the whole working corridor
The assessment covers vehicle width, the gap to the container, lifting modules, deployed stabilisers, container movement and a controlled exclusion area. Side clearance alone is not the complete requirement. The container may need to move through a curved lifting path, and support legs need rated ground positions. There is no universal clearance number that suits every model and lift.
Container gross mass and lifting condition
Give the container’s gross mass, contents, dimensions and centre-of-gravity concerns. The container and its lifting fittings must be suitable and accessible. Modified units, damaged castings, attached canopies, pipes or air-conditioning equipment can interfere with the lift and travel envelope. The lifting allowance does not automatically equal the permissible road-carried mass.
Two20ft containers and transfer jobs
A system may offer specific options for one20ft, one40ft, one45ft or two20ft containers. Whether two containers can be lifted together depends on the approved joining arrangement and ratings, not simply adding their weights. Transfer to another chassis, rail or raised position is also configuration-dependent. Declare the actual task rather than asking for a generic container delivery.
Ground, level and overhead obstacles
Both the vehicle and support positions need appropriate load-bearing ground. Declared surface appearance is not proof of strength over drains or buried structures. Overhead cables, trees, canopy roofs and fixed services can obstruct the lift. The final container position needs suitable support and usable door clearance. A large side opening does not make a poorly supported location acceptable.
Cost, payload and booking evidence
Lifting modules, chassis, hydraulics and support equipment add substantial tare and operating cost. Include the container’s own mass within the freight allowance. Allow time for set-up, checks, lifting and collection positioning. Photographs from each end and the intended approach direction are particularly useful. Do not move the container into a tight final position before its future collection route is checked.
The practical guide
Why lifting tonnes and road tonnes differ.
The machine carries its own machinery
Lifting equipment, supports, hydraulics and chassis structure add substantial mass. A container can be within a machine’s lift rating but leave the complete road outfit overweight. Conversely, a legal road load may not be liftable in the required geometry. The quotation needs both assessments, using the actual tractor, trailer, container and cargo.
An illustrative mass check
If an assumed ready-to-load combination weighs 20t and the relevant permitted total is 44t, the nominal remaining allowance is 24t for container and contents, before the separate axle and equipment checks. A 4t container would leave 20t for its contents in that arithmetic. These assumed values explain the method; they are not the specification of the supplied Megalift.
Contents can change the lift
An unevenly packed container may impose different reactions at its lifting ends. Loose goods inside can move during handling. Provide gross mass and relevant distribution information, secure the contents and declare modifications or damage. A locked container door and an intact seal do not establish suitable lifting condition.
The practical guide
Prepare a site that can actually receive it.
Sound ground under the whole support system
The standing area and deployed support positions must sustain their actual reactions. Compacted appearance does not prove bearing strength; drains, voids, made ground and buried services can undermine a support. Suitable spreaders or ground preparation depend on the assessed load and site. The customer should provide reliable ground information rather than estimating a universal pad size.
The right-hand corridor and tractor
For the established arrangement, show the right-side set-down corridor with the tractor still in front. Add gates, fences, buildings, parked vehicles, banks and overhead services. A large space beside the desired container is not usable if the tractor cannot get into its operating position. Include leaving the site after the box has been placed.
Support and future access
The container needs suitable prepared support and a practical door orientation. Consider drainage, ground settlement, loading activity and the later collection method. A container placed behind a later fence or stored stock may no longer be recoverable by the planned vehicle. Any stacking, lifting over obstacles or unusual placement is a separate assessed requirement.
The practical guide
Condition, servicing and lift planning.
Machine condition
The lifting structure, chains or other accessories, pins, supports, controls, hydraulics, interlocks and transport locks need the relevant inspections and maintenance. Wear, leakage, damage or unreliable controls must be addressed. The road trailer’s annual test and the lifting equipment’s examination have different scopes.
Lifting records and competence
LOLER planning, competent operation and appropriate thorough-examination records apply to in-scope lifting equipment and accessories. Equipment used to lift people has a different examination regime from ordinary goods lifting; the container system is not an improvised personnel platform. Use the actual competent-person scheme and reports, not a claim that one yearly service covers every duty.
Container structure is part of the lifting system
The method relies on sound appropriate fittings and structure. Modified corners, severe corrosion, damage or an unverified gross mass can prevent a lift even where the external box dimensions match. Explain previous use and any internal fit-out or machinery, and provide the requested identification and inspection evidence before dispatch.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate positioning, supports, lifting, container transfer and the agreed set-down. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on lifting structure/accessories, controls/supports, examinations and container lifting fittings. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for positioning, supports, lifting, container transfer and the agreed set-down, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is container gross mass/condition, right-side corridor, tractor space, ground and final orientation. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel plus the actual side-loading hydraulic power source and duty. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Standard skeletal | Where suitable lifting exists or contents can be unloaded from the chassis. |
| Appropriate crane | Where placement geometry needs a different lifting method and plan. |
| Different receiving position | Where an accessible prepared position can meet the actual outcome more practically. |
Put the information to work
Three practical booking examples.
A loaded storage container to a festival site
Provide gross mass and contents information, a plan showing the right-hand position, tractor access, overhead services, support and doors. Include the return date and the space that must remain available.
A port box arriving on a standard skeletal
If grounding is needed, agree the transfer and both chassis arrangements. Port collection, container release and the lifting operation are distinct handovers.
A modified container with machinery inside
Provide structural changes, gross mass and centre-of-gravity information. A familiar container outline does not establish lifting compatibility.
Terminology in plain English
Useful equipment terms.
- Side-loader
- A self-loading container carrier transferring a compatible box to an adjacent position.
- Working sector
- The direction or area covered by the equipment’s permitted lifting duty.
- Support reaction
- The force imposed on the ground through the deployed support system.
- Gross container mass
- The box, cargo and fitted equipment together.
- Chassis transfer
- Moving the container between compatible carriers through an approved operation.
- Lift chart
- The actual permitted duty for the machine and configuration, separate from road payload.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Megalift and container side-loader vehicles FAQs
Your questions answered.
Is a side-loader the same as a HIAB?
No. It is a specialist container-handling arrangement. A loader crane has different lifting geometry, rigging and placement capabilities.
Which side does the Megalift unload?
The established Synergix arrangement is right-hand unloading with the tractor in front. The actual assigned equipment and site plan are confirmed for the job.
Can it lift a full container?
That depends on actual gross mass, contents/distribution, structure, fittings, machine duty and ground. Loaded size alone is insufficient.
Is its lifting rating the road payload?
No. The heavy equipment, container and cargo all count in the road outfit. Axle and train limits are separate from the lift chart.
Can it stack containers?
Only an appropriate specifically equipped and approved arrangement. Stacking is not an automatic feature of every side-loader or this guide’s illustrated machine.
Can it work on soft ground?
The complete support system needs assessed ground capacity. Appearance, dry weather or a small load estimate cannot establish this.
Can it transfer to another trailer?
Certain compatible systems can. The equipment, geometry, support and space for both vehicles need specific assessment.
What should I photograph?
Approach, entrance, standing position, right-side corridor, tractor space, overhead obstructions, final support and door orientation.
