Low-loader vehicles and trailers.
Plan machinery transport around the machine, the loading method and the route. Compare ramped semi-low loaders, low-bed and specialist variations, with clear guidance on support, restraint, access and preparation.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Machine | Transport length, width, height, mass and centre of gravity | Include attachments, fluids, counterweights and the agreed transport configuration. |
| Deck | Useful bed zones, height, wheel wells and support ratings | Axle/track contact and concentrated loads can decide suitability. |
| Loading path | Ramps or detachable neck, approach, breakover and traction | The machine must load and unload without grounding or losing support. |
| Whole movement | Loaded dimensions, axle distribution, route and site envelope | Technical trailer capacity is different from lawful road freight capacity. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

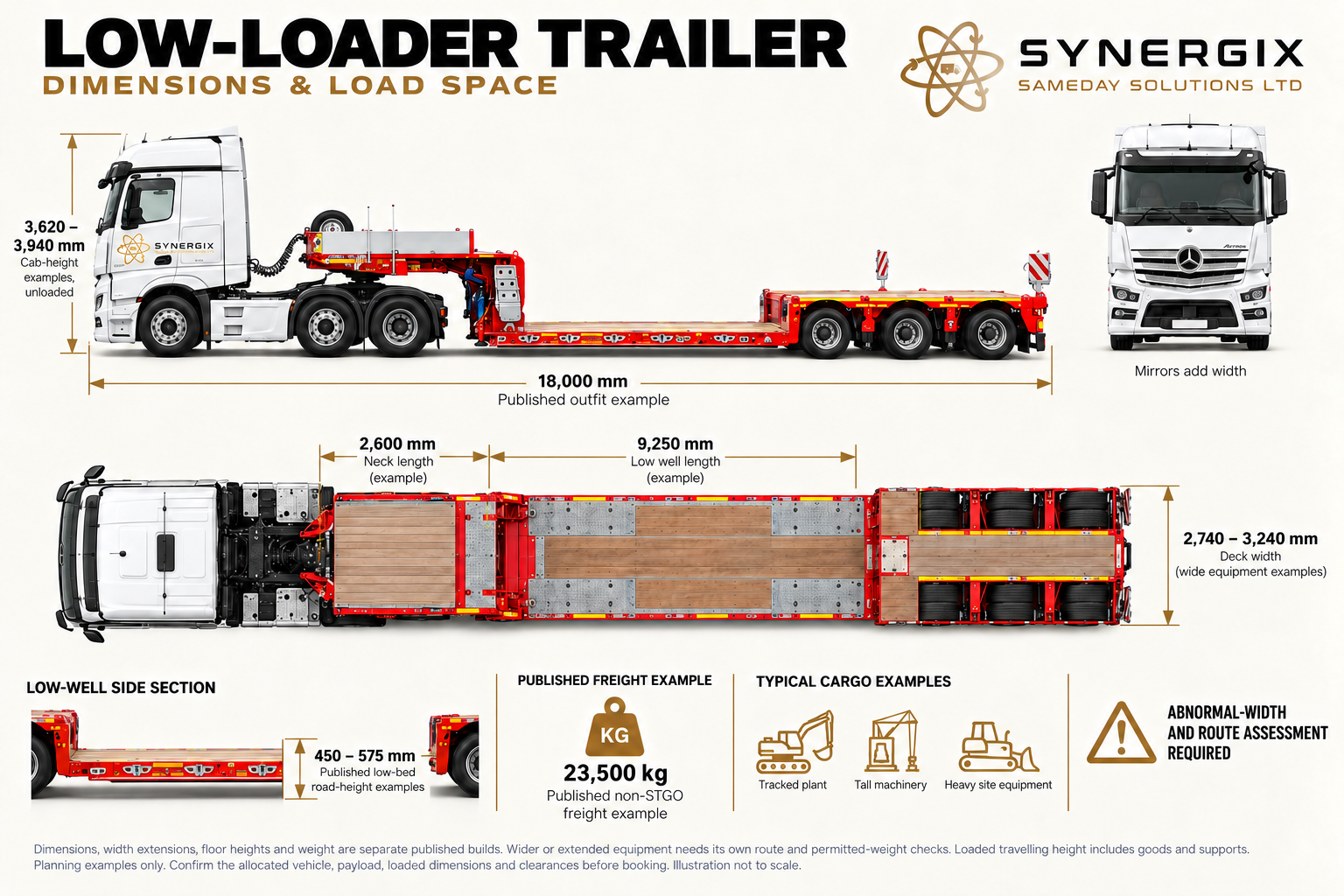

Low-loader trailer
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
Complete-outfit example 18,000 mm; empty cab height 3,620–3,940 mm; wide deck/equipment width 2,740–3,240 mm. Low well 9,250 mm, neck 2,600 mm; selected low floor 450–575 mm. Non-STGO freight example 23,500 kg.
Wide equipment needs route/abnormal-load assessment. Wide/low-deck dimensions and payload describe different builds. No pallet count.
Published example sources:
Configuration explained
Ramped semi-low loaders.
A useful machinery platform with rear loading access.
Construction and useful capability
A lowered main platform and rear loading ramps can suit appropriate plant, forklifts, powered access and agricultural machinery. The platform may still sit above rear running gear and include a raised neck. Ramp design and tyre or track spacing therefore matter as much as the main bed height. A machine able to drive on level ground is not automatically able to negotiate the loading path.
Loading, limitations and booking implications
Provide the actual machine configuration, contact geometry, ground clearance and running condition. A longer two-part ramp may reduce approach angle compared with a shorter ramp, but the crest and machine underbody remain separate checks. The trailer and tractor need the approved support arrangement while loading. The receiving site must provide an equivalent safe unloading opportunity.
Configuration explained
Low-bed and detachable-neck arrangements.
Specialist layouts for particularly tall or difficult machinery.
Construction and useful capability
A very low bed can sit between the neck and rear axle assembly, helping reduce loaded height for a suitable piece. Some designs load through a detachable or removable front neck rather than over rear ramps. This is a distinct configuration with its own setup, support and coupling sequence, requiring trained operation and space at the site.
Loading, limitations and booking implications
The low well can restrict useful continuous length or the locations where wheels, tracks and machine feet can stand. Machinery overhang may need a specific supported arrangement. A lower bed can also reduce road clearance on humps or changes of gradient. Compare the complete route and loading cycle; the lowest published deck is not automatically the most practical trailer.
Configuration explained
Extendable, steered and multi-axle variations.
Additional equipment where the load genuinely requires it.
Construction and useful capability
A longer or heavier indivisible item may need an extendable chassis, additional axles, steering, wheel wells or a specialist frame. These features address different problems: extension provides an approved length arrangement, axles share road loads within the permitted regime, and steering changes swept path. None creates unlimited payload or permission to use every road.
Loading, limitations and booking implications
The tractor, trailer and load must be considered together. Advertised manufacturer technical ratings can relate to particular speeds, axle arrangements or non-UK operation. They are not an ordinary UK payload promise. Availability and the need for surveys, authorities, escorts or other measures are established for the actual movement. Give unusual requirements early rather than selecting the largest pictured carrier.
The practical guide
How the equipment works.
Low loader and semi-low loader are not identical
Semi-low loaders often use a lowered main platform behind a raised neck with rear loading ramps. A deeper low-bed/well trailer may have a detachable neck or another specialist loading arrangement. Names vary between operators and manufacturers. Ask for the actual deck and loading system. Extendable or multi-axle equipment needs its own specification and route assessment.
Payload is not a universal “maximum”
Published technical capacities can refer to a particular trailer, axle configuration or permitted speed and may exceed the allowance for an ordinary road movement. The complete tractor/trailer tare, plates, axle loads, load distribution and movement regime govern usable freight mass. A low deck does not automatically authorise an overweight load. Confirm the loaded plant weight rather than using a dry brochure figure.

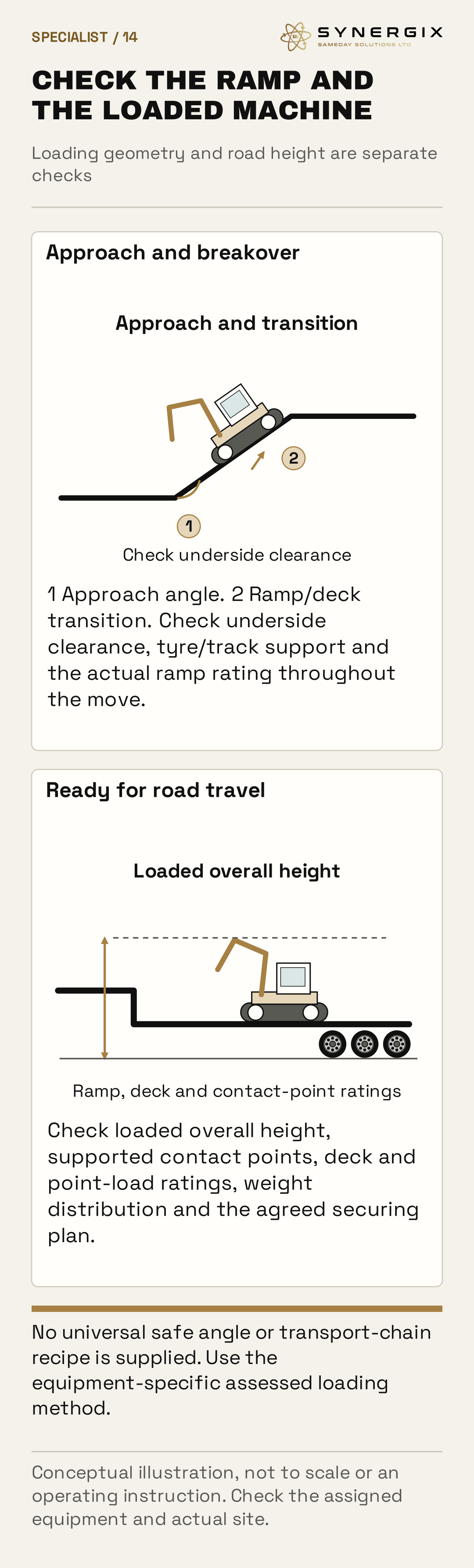

Ramps, traction and loading angles
Ramp width, spacing, length, rating and surface must suit the machine’s tyres or tracks and operating condition. The equipment’s ground clearance, approach angle and breakover geometry affect whether it can load without grounding. A non-running machine needs an agreed recovery or lifting method. Winch capacity, anchor arrangements and the control of movement are assessed separately.
Tracks, wheels and support
The machine must be sufficiently supported through the approved platform or designed support arrangement. Overhanging tracks are not acceptable merely because the central body fits. Concentrated wheel or track loads can exceed local deck strength. Ancillary attachments and their support requirements need declaring. Do not use fragile underbody components as convenient resting points.
Machine transport condition
Include attachments, fuel, buckets, counterweights, cab height and any goods carried within or on the machine when establishing weight and dimensions. Hydraulic booms and articulated parts need their specified travel positions and restraint. Folding a part for the journey must be possible using the approved system; removal or reassembly is separate work to agree.
Load security
Use the approved machine tie-down locations, suitable chains or other restraint, correct geometry, blocking where required and protection against movement of attachments. A brake, transmission lock or winch cable is not the whole securing system. Chains need matching rated fittings and anchor points. Delivery stages and trailer extension changes can alter the arrangement.
Road height and underside clearance
Measure the complete loaded height and every projection. A lower deck can improve bridge clearance but may reduce underside clearance on humps, ramps, steep entrances and uneven sites. Steering behaviour, rear swing and the tractor’s route into the site are part of access planning. A route suitable for a box artic is not automatically suitable for the low loader.
Abnormal-load and project arrangements
Wide, long or heavy loads can need notifications, route surveys, escort arrangements or special orders depending on the actual dimensions and applicable regime. The operator must establish which rules apply. Divisible goods cannot automatically be treated like an indivisible abnormal load to avoid ordinary limits. Tell us what can be dismantled and the required date early enough for the movement to be assessed.
Safe loading area
The loading surface must support the trailer, tractor and plant and provide space for the whole manoeuvre. Segregate other vehicles and people through an agreed system. Do not load beside a drop, on inadequate ground or under unresolved overhead hazards. Loading in darkness or bad weather needs suitable visibility and control, not merely lights on the lorry.
Choosing between flatbed, step frame and low loader
A flatbed may be simpler for a compact machine lifted on and off. A step frame can help with extra cargo height on a suitable deck. A low loader may solve height or ramp-angle requirements at greater cost and with different access needs. Select from the complete cargo and site geometry; the lightest machine is not always the simplest to load.

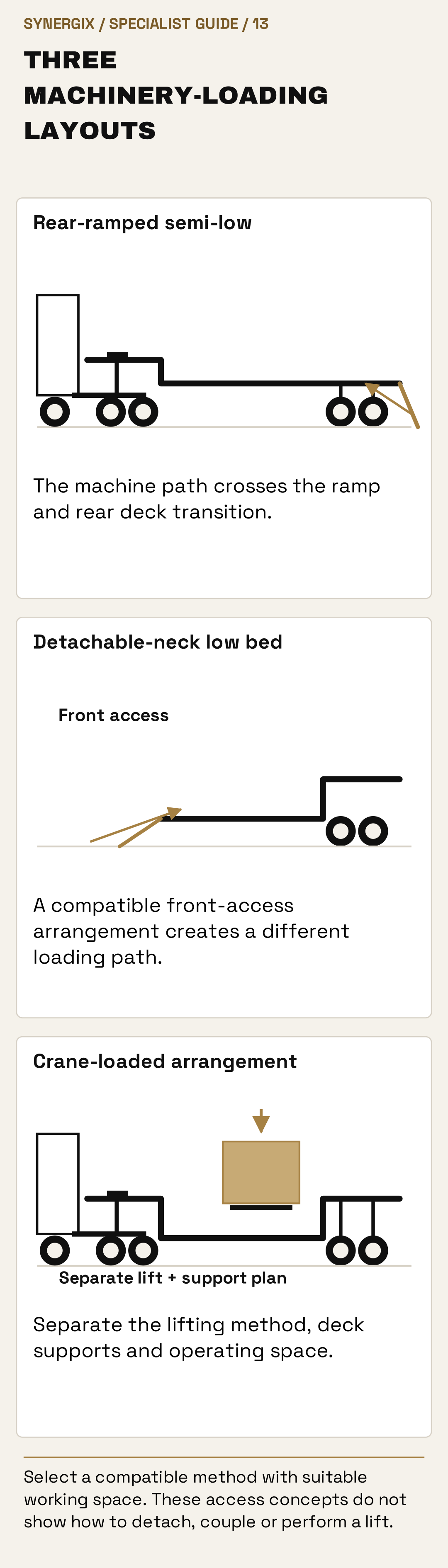

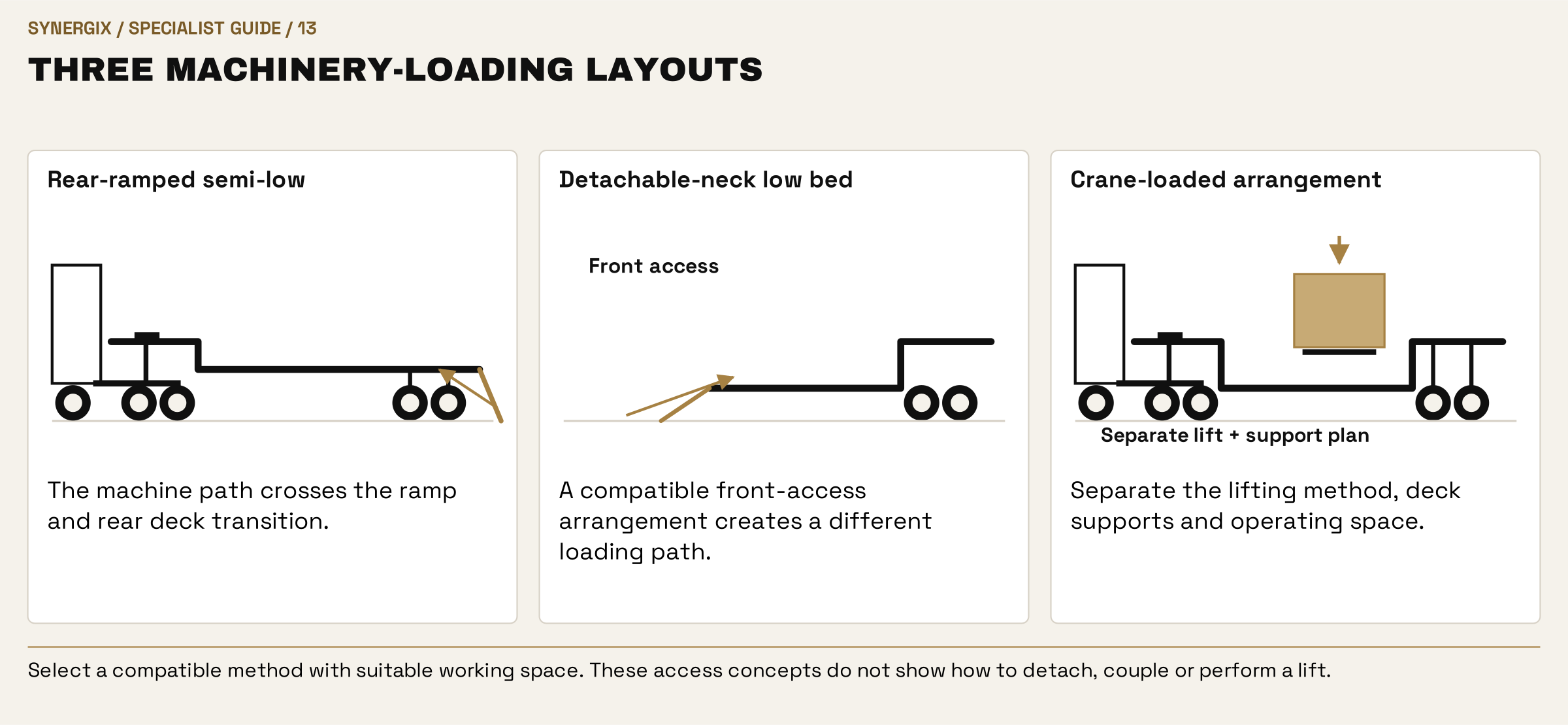

Select a compatible method with suitable working space. These access concepts do not show how to detach, couple or perform a lift.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Prepare the machine description.
Transport configuration changes the answer
An excavator’s boom, a telehandler’s attachment or a machine’s counterweight can alter height, mass and centre of gravity. Obtain the manufacturer’s transport instructions and state what is attached, folded, removed or separately carried. Do not rely on a sales brochure’s base machine weight when the transported unit includes additional equipment. Removed parts still need their own weights, support and restraint.
Non-running equipment needs a method
Tell us whether the machine starts, steers, brakes and rolls, whether tracks rotate and whether there are leaks or damage. Winching a freely rolling machine differs from recovering a locked or unstable one. A winch’s presence does not establish capacity for any condition or pulling geometry. Recovery, specialist lifting and ordinary transport are different scopes.
Track and wheel support
A trailer’s total freight rating does not establish safe support beneath an individual tyre, track edge or outrigger foot. Obtain contact lengths and widths, wheel loads or manufacturer information where needed. Widening equipment and deck infill must be approved for the duty. A machine should not rely on unsupported track overhang simply because its total mass is below a headline figure.
The practical guide
The loading site and the road route.
Loading is a planned workplace operation
Identify the machine operator, trailer operator and site controller. The area needs suitable ground, lighting, separation from people and room for the loading path. Overhead lines, ramp deployment, unstable edges and other plant can change the operation. Customers should provide the machine information and site facts; the public guide is not a substitute for competent planning or the equipment manual.
Road restraint is separate from driving onto the deck
Use the machine’s approved transport securing points, appropriate rated restraints and any required blocking. Buckets, forks and attachments also need restraint. The parking brake, hydraulics and winch are not the complete road securing system. The load plan must address movement and support without damaging the machine or obstructing safe unloading.
Ordinary haulage and abnormal movements
A low loader can carry loads within an ordinary permitted arrangement or form part of a specialist abnormal movement. Actual weight, axles, width, length and projections determine the assessment. Indivisibility, route suitability, bridge authorities, notifications and lead times can matter. Do not assume that a permit applies to every load because the trailer previously carried something larger.
The practical guide
Equipment condition and servicing.
Inspect the load-bearing system
Decks, neck connections, ramp hinges, locking systems, steering equipment, hydraulics and restraint points need the checks appropriate to the installation. A damaged ramp attachment can undermine an otherwise serviceable trailer. The roadworthiness programme must sit alongside manufacturer equipment maintenance and any required examinations, rather than being reduced to an annual test sticker.
Specialist mechanisms need specific instructions
Powered ramps, detachable necks and hydraulic steering have different components and inspection needs. Competent maintenance should address leakage, wear, locking, safe controls and any damage or modification. The legal examination regime follows the actual equipment and function; do not apply one blanket LOLER interval to the whole trailer simply because it carries plant.
The load’s condition matters too
Secure panels, clean excessive mud where necessary and declare fluid leakage, unstable attachments or damage before dispatch. Contaminated equipment and machinery containing hazardous substances can introduce acceptance and document requirements. A transport quote assumes the condition described; discovering a machine cannot move can change the equipment, time and method needed.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate machine preparation, ramps or neck configuration, loading, restraint and route arrangements. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on deck/neck/ramp condition, locking/steering, hydraulics, supports and restraints. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for machine preparation, ramps or neck configuration, loading, restraint and route arrangements, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is actual machine configuration, contact geometry, loading method, support and route. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel plus hydraulic ramps, winch, steering or other equipment duty. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Ramped step frame | For compatible machines within its geometry and loading duty. |
| Crane-loaded platform | For suitable non-drive-on freight with appropriate lifting and support. |
| Recovery service | Where damage, locked wheels or instability require more than ordinary transport. |
Put the information to work
Three practical booking examples.
A forklift from an auction
Give model, actual equipped mass, mast height in transport, wheelbase, clearance and running condition. The smallest wheels and low underbody can make ramp geometry decisive.
A tall excavator
Use its transport configuration and support information, then calculate loaded overall height and axle distribution. A lower deck helps only if the machine can load, sit and travel on it.
A damaged machine that will not roll
Declare the damage before requesting transport. Assess a recovery or lifting method rather than assuming a normal ramp-and-winch collection can proceed.
Terminology in plain English
Useful equipment terms.
- Semi-low loader
- A lowered machinery-carrying platform, often with rear ramps and a raised neck.
- Low bed
- A particularly low loading region between neck and rear running gear.
- Detachable neck
- A designed front loading/coupling system requiring its approved procedure.
- Track contact
- The area and geometry through which the machine loads the deck or ramps.
- Indivisible load
- A load whose treatment under abnormal-load rules needs the relevant legal assessment.
- Technical rating
- An equipment capability under specified conditions, distinct from lawful UK road payload.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Low-loader vehicles and trailers FAQs
Your questions answered.
What can a low loader carry?
Suitable plant, machines, vehicles and tall or heavy industrial goods. Actual support, loading method, mass, dimensions, route and acceptance determine the arrangement.
Does low loader mean abnormal load?
No. Some movements remain within ordinary limits; others need specialist assessment and arrangements. The actual load and outfit decide.
Can you transport a non-running machine?
Describe its condition, steering/braking, rolling or track movement, damage and leaks. An appropriate loading or recovery method must be agreed.
Why do you need the machine model?
It helps establish transport configuration, mass, contact geometry, clearance, securing points and any restrictions. Provide actual fitted equipment as well.
Does the winch secure it for travel?
No. Use a complete appropriate road-restraint system, separately from the loading winch.
Will a lower deck clear every bridge?
No. Calculate actual loaded height and assess the full route, including canopies and site structures. Low beds also need underside clearance.
Can a manufacturer’s 70t rating be used as UK payload?
Not without the specific equipment and lawful operating assessment. Technical ratings can depend on configuration, speed and jurisdiction.
What affects lead time?
Equipment availability, machine preparation, access, surveys, route/authority arrangements, timing and loading scope all matter.
Before you book
Tell us what needs moving.
You do not need to identify every equipment model before contacting us. Start with actual machine configuration, contact geometry, loading method, support and route.
Describe the goods
Product/type, quantity, packed dimensions, verified gross unit weights or density/volume as relevant, support/handling points, condition, value and any hazards, hygiene or temperature instructions.
Show both sites
Postcodes, approach, restrictions, measured openings, ground, working space, loading/discharge equipment, receiving position, contacts and useful photographs or drawings.
Define the work
Date/time windows, stops, loading/unloading roles, equipment operation, placement or transfer, parked periods, returns, cleaning and required documents. Include any installation or indoor handling as a separate requested scope.
Agree the arrangement
The team confirms the appropriate equipment, availability, scope, price and conditions. A vehicle illustration or LoadCheck calculation is planning help, not a reservation or approval for specialist handling.

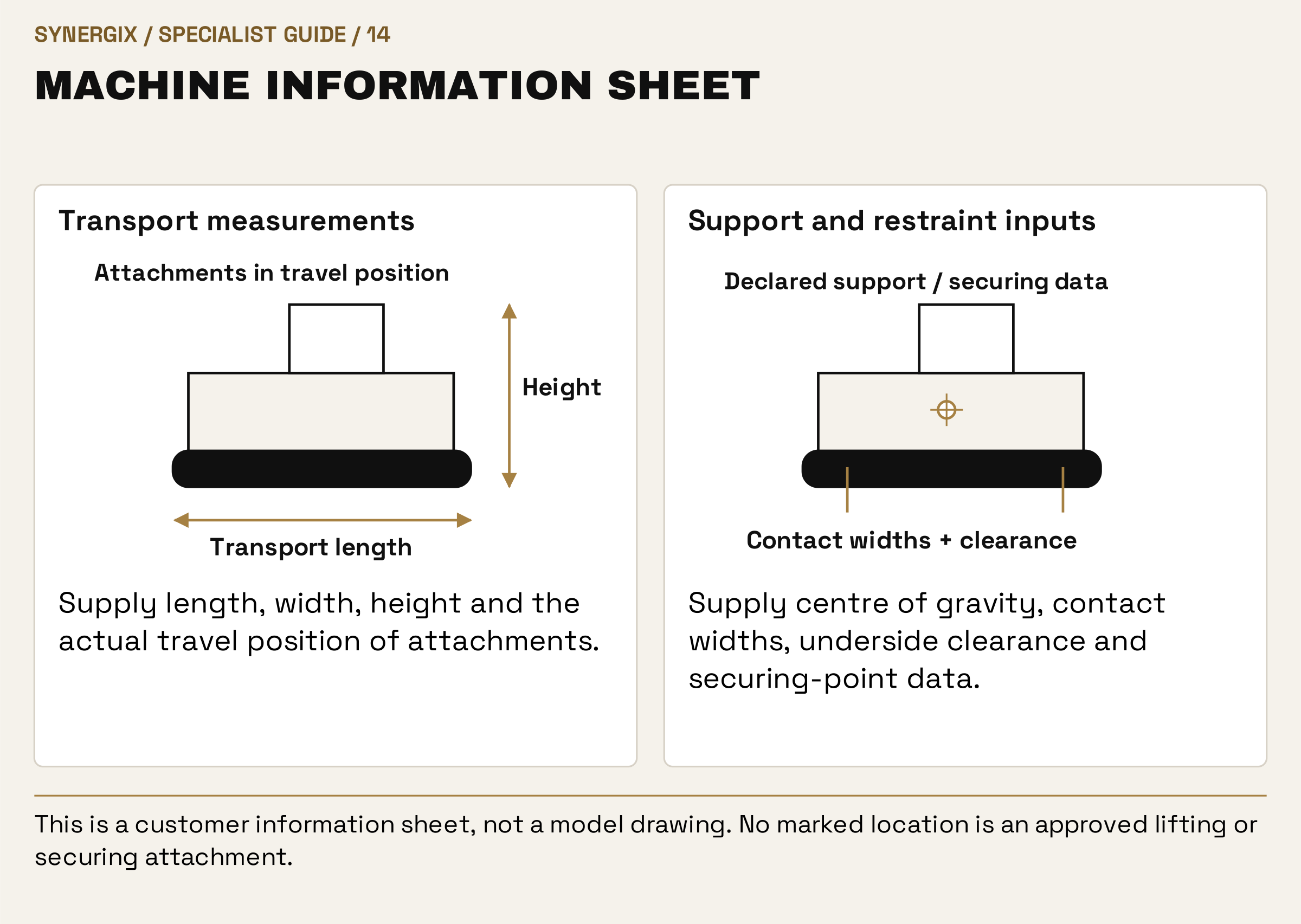

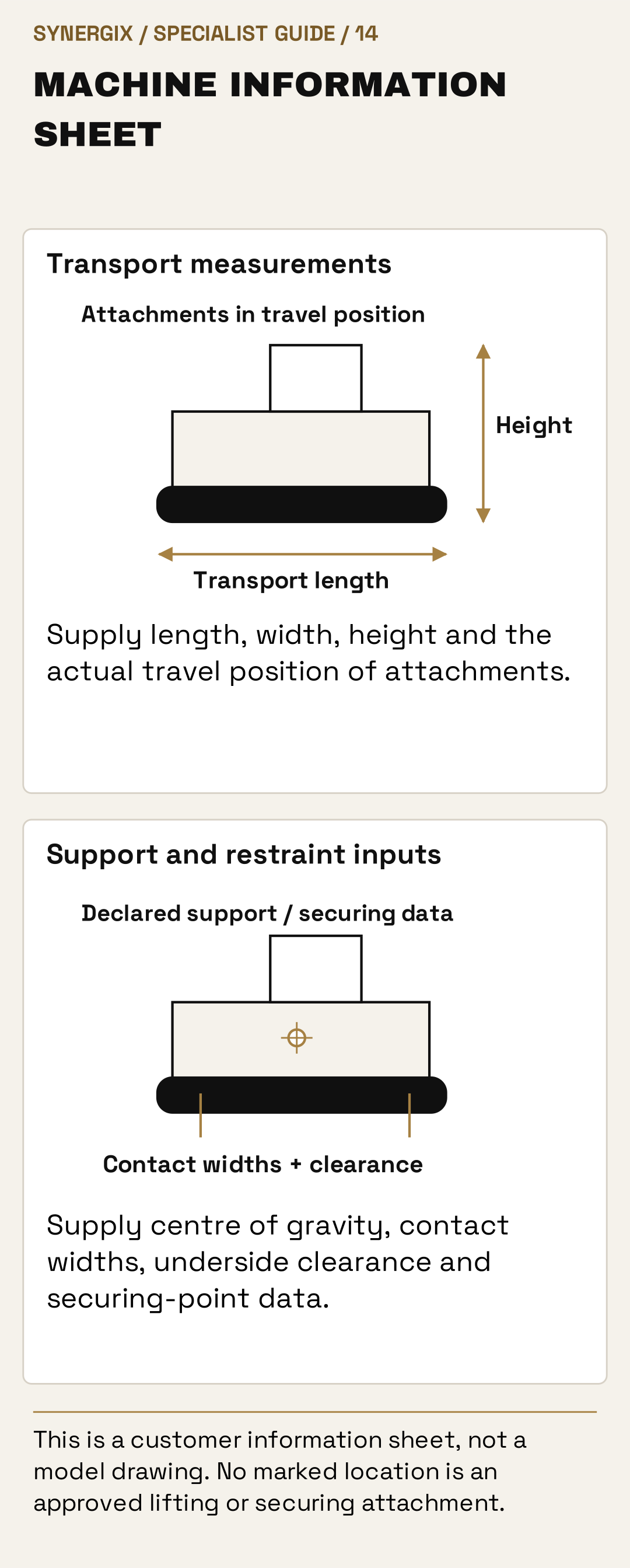

This is a customer information sheet, not a model drawing. No marked location is an approved lifting or securing attachment.
