Synergix / Specialist vehicle guides
Purpose-built keg trailers and drinks transport.
Purpose-built keg equipment needs a load plan for full stock, returns and every delivery stage. Understand its restraint arrangement, dense round loads, side access, handling, temperature requirements and equipment condition.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Kegs and casks | Type, outer dimensions, full/empty gross masses and quantity | Liquid capacity is not the gross handling weight. |
| Loading system | Actual floor/bay layout, restraint and approved stacking | Purpose-built does not prove any universal keg count or stack height. |
| Vehicle | Ready-to-work payload, axle/kingpin distribution and access | Dense drinks can reach weight limits before space is full. |
| Handover | Side/rear handling, final point, return stock and timing | Road transport, venue delivery and cellar work are different scopes. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

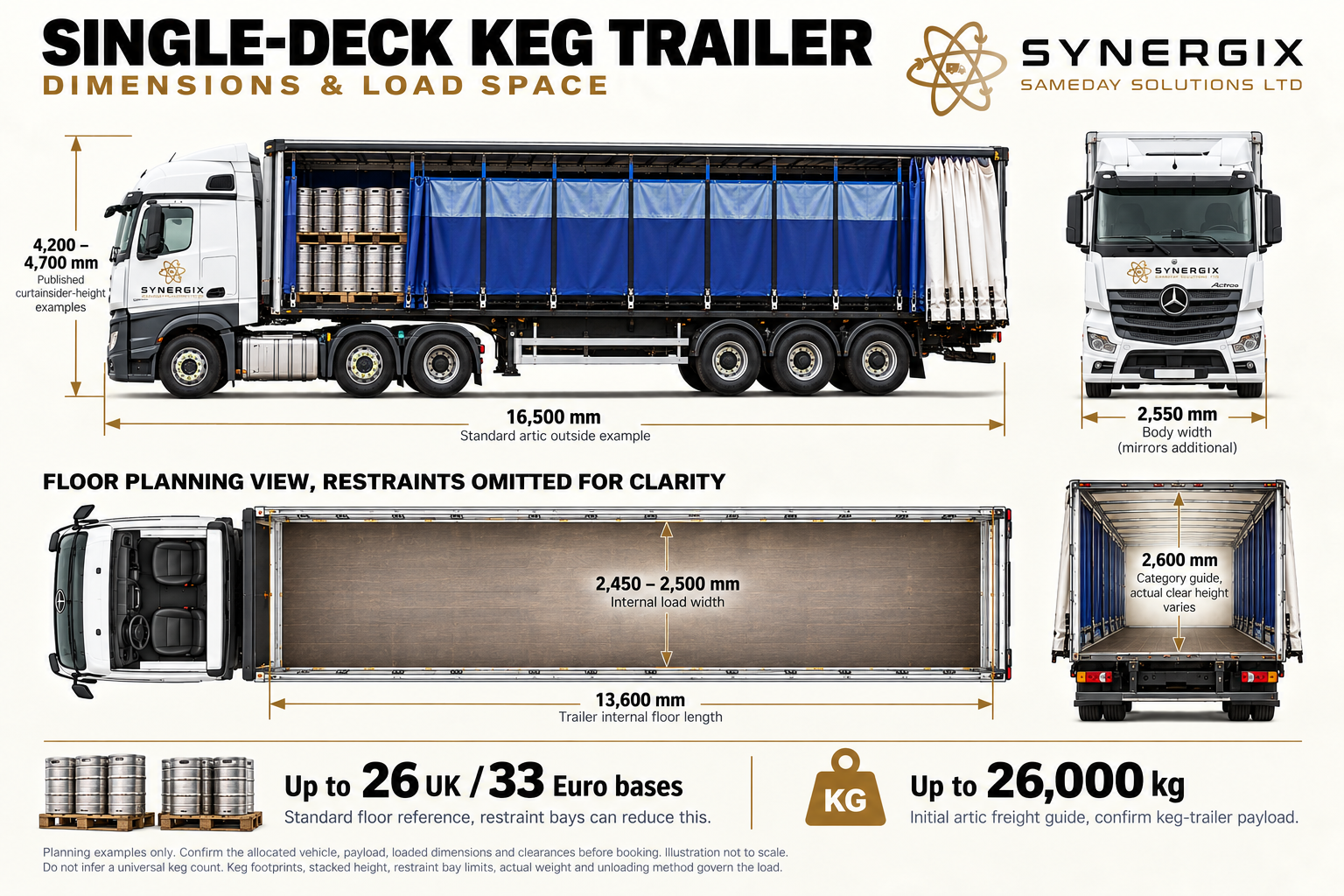

Single-deck blue-restraint keg trailer
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
Standard artic outside example 16,500 mm, body 2,550 mm, published curtain heights 4,200–4,700 mm. Floor reference 13,600 × 2,450–2,500 mm; internal-height guide 2,600 mm. Up to 26 UK /33 Euro floor bases, restraint bays can reduce this. Initial artic freight guide up to 26,000 kg.
Single floor with blue restraint fabric, not a double deck. These are category references, not a measured keg-bay plan or rating. No universal keg count.
Published example sources:

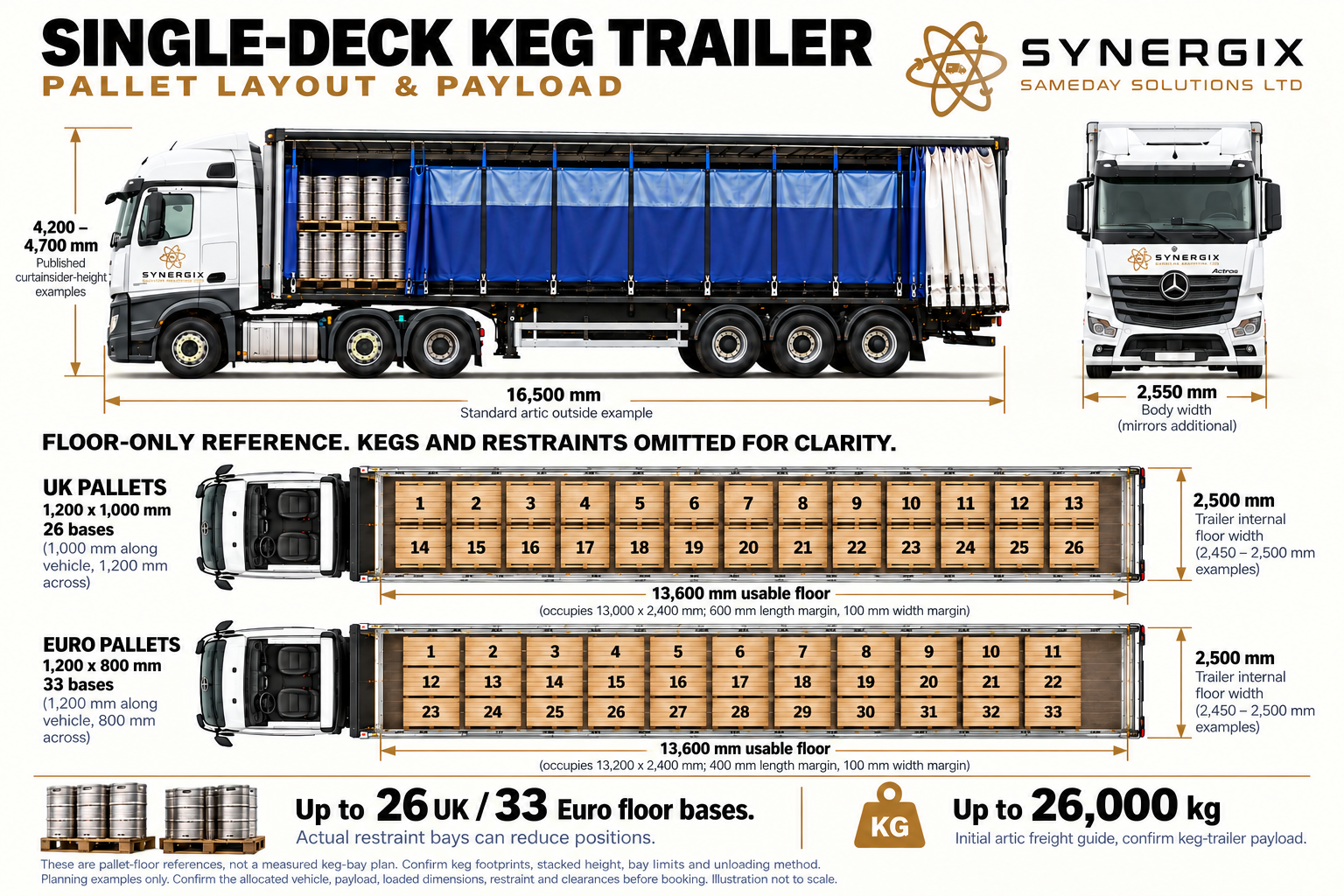

Single-Deck Keg Trailer: pallet layout
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
26 nominal UK / 33 nominal Euro bases. 13,600 × 2,500 mm floor-only reference. Up to 26,000 kg initial artic guide; actual keg trailer must be confirmed.
Kegs and restraints omitted only from plans. Actual restraint bays can reduce pallet positions. No measured keg-bay spacing, universal keg count or bay rating inferred.
Published example sources:
Configuration explained
Purpose-built single-deck keg trailers.
A drinks arrangement with equipment for the agreed load.
Construction and useful capability
The established catalogue includes a single-deck articulated keg trailer illustrated with blue side restraint panels and an exposed loading bay. Its purpose-built arrangement differs from treating loose round containers as ordinary unrestrained freight in a standard curtain body. The actual panels, frame, closures, restraint and loading conditions must be identified for the supplied equipment.
Loading, limitations and booking implications
A picture does not establish its rated containment, permitted keg types, pallet positions or stacking. The operator needs a load plan showing product types, individual masses, distribution and unloading stages. The customer should describe the goods and receiving method rather than ordering by an assumed number of barrels visible in an illustration. No second deck is implied by the side-panel layout.
Configuration explained
Palletised keg and packaged-drinks loads.
An alternative when unitised freight suits the sites.
Construction and useful capability
Kegs can be unitised on suitable pallets or in compatible carriers, then restrained to the vehicle through an appropriate method. This can support forklift or suitable pallet-truck handling, provided pallet condition, locators, unitisation and gross mass are appropriate. Cases and other drinks products have different stacking and crush-resistance characteristics.
Loading, limitations and booking implications
A standard curtainsider or box may be useful for some correctly packaged and restrained consignments, with suitable receiving equipment. The purpose-built keg trailer should be chosen where its actual arrangement solves the job. Mixing keg and case freight requires attention to load interfaces, movement, damage and changing gaps during a round.
Configuration explained
Full stock, empty returns and mixed delivery rounds.
A load plan that remains effective after every stop.
Construction and useful capability
Empty kegs are lighter but still bulky and capable of movement. Full kegs removed at one stop and empty containers added can change distribution and the restraint pattern. Identify which owners/types are being returned, quantities, condition and the receiving authority. Unwashed returns can also introduce odour, residues or contamination concerns.
Loading, limitations and booking implications
Treat the return movement as a real consignment with space, securing and records. Do not fill newly opened gaps casually with containers that do not match the approved pattern. If a different vehicle or a later collection handles returns, agree that explicitly. The price and operating time should include the planned delivery sequence and handling rather than only the outward distance.
The practical guide
Choose by the complete handling task.
The carrying body, the goods and the equipment at each handover need to work together. The following sections explain the product, handling and condition details for this family. Treat an equipment option as a specified arrangement rather than an automatic extra on any vehicle.
The practical guide
Kegs, casks and weight.
Container capacity is not gross mass
A 50-litre container describes nominal contents volume, not what the handler lifts. For an assumed liquid density of 1 kg/litre and a 12 kg empty shell, 50 litres plus shell gives about 62 kg. Actual product density, container tare and filling vary, so obtain the supplier’s actual gross figure. Multiply that by the quantity before assuming a trailer is only space-limited.
Keg and cask requirements differ
Kegs, casks and one-way containers can have different construction, closure, orientation and handling requirements. Follow the product/container supplier’s transport instructions. Do not infer that all can lie on their sides or be stacked in the same way. Product quality and return-container integrity are part of the load requirement.

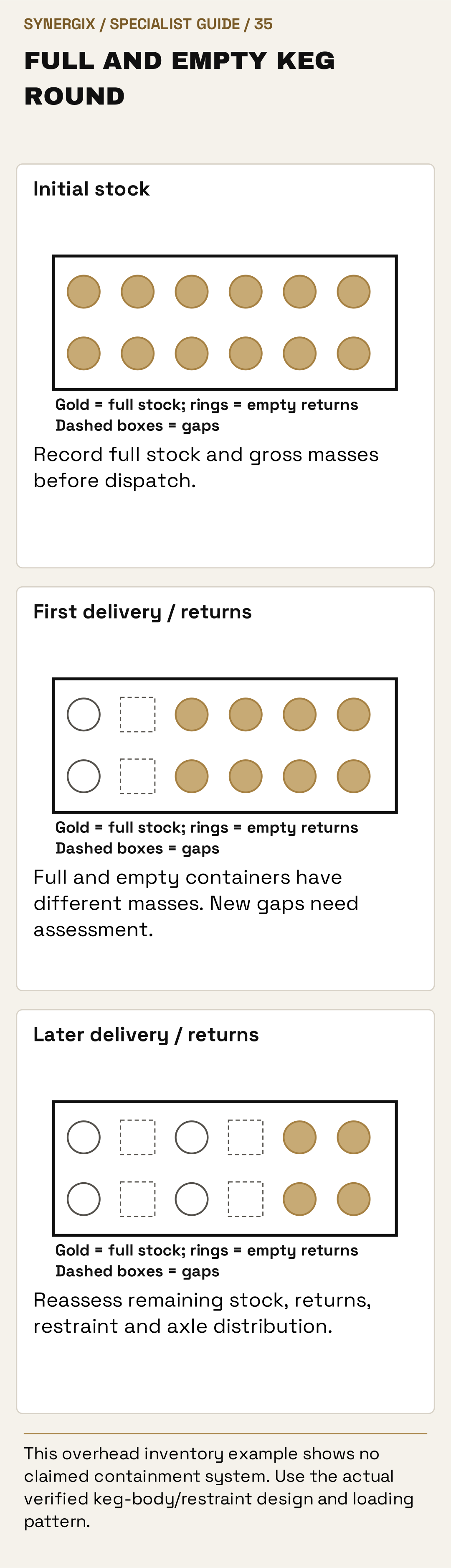

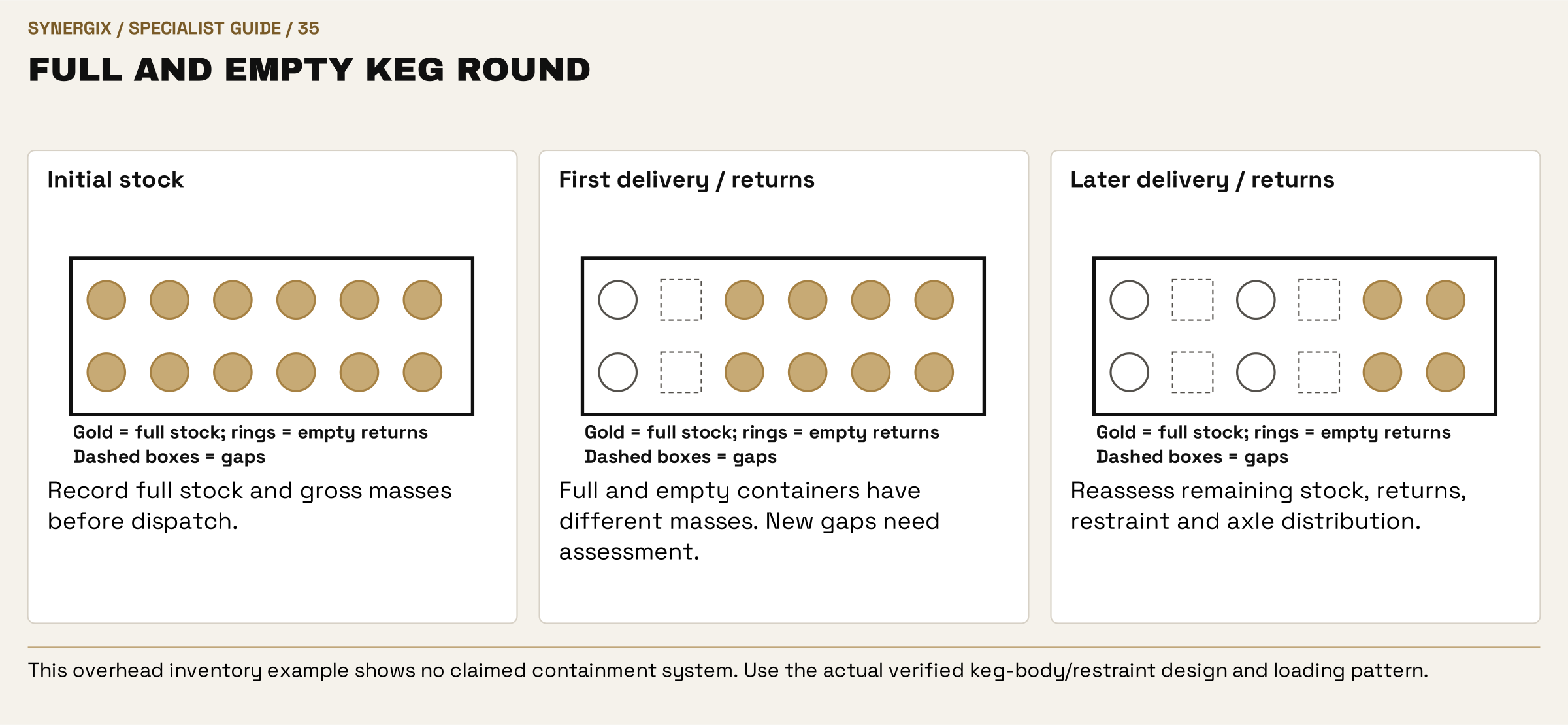

Dense round loads need planned containment
Round containers can roll or shift, while palletised arrangements can overturn or settle if poorly unitised. Current DVSA guidance describes unitisation/locators and vehicle securing for non-hazardous kegs and barrels. Purpose-designed brewery systems must be used within their actual approved conditions. Neither the word brewery nor a curtain creates a blanket exemption from load restraint.
This overhead inventory example shows no claimed containment system. Use the actual verified keg-body/restraint design and loading pattern.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide

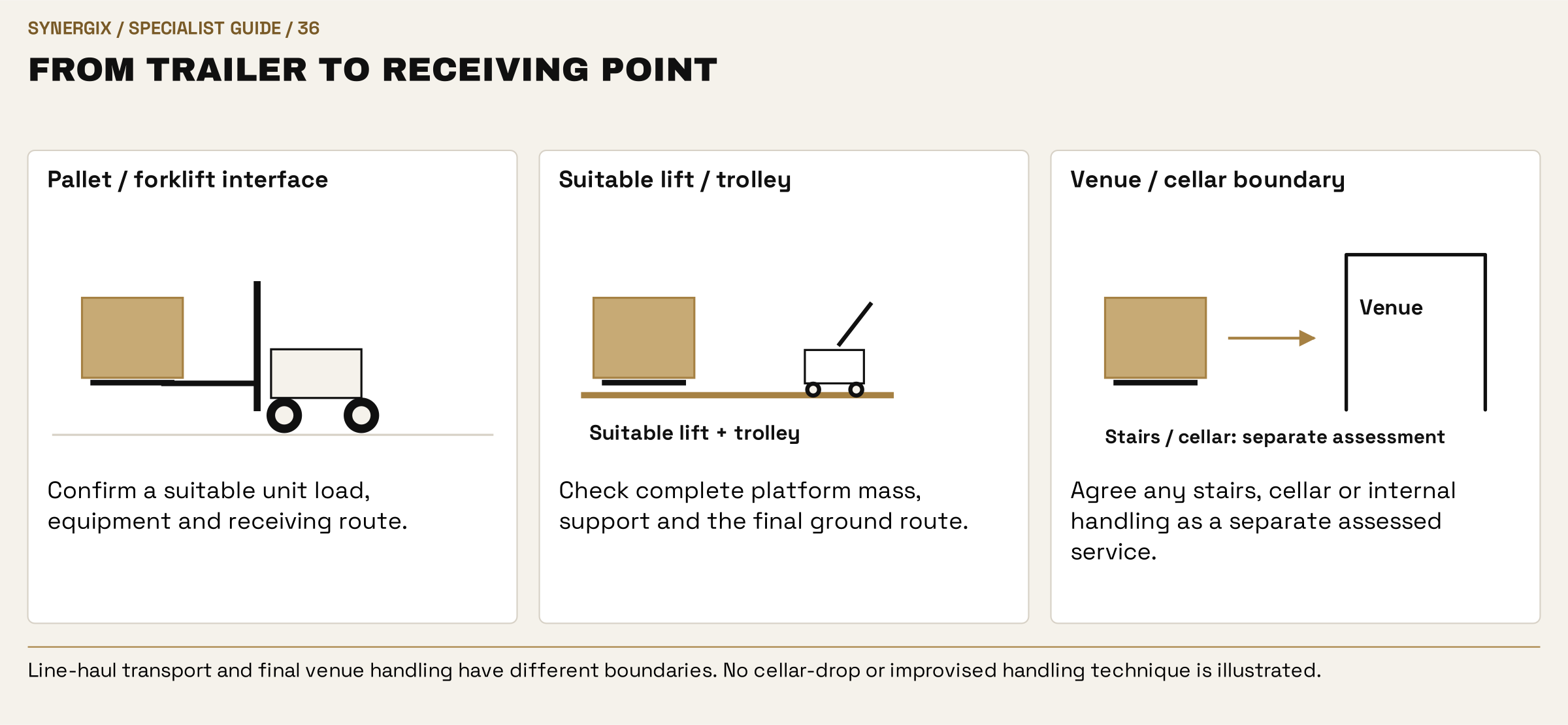

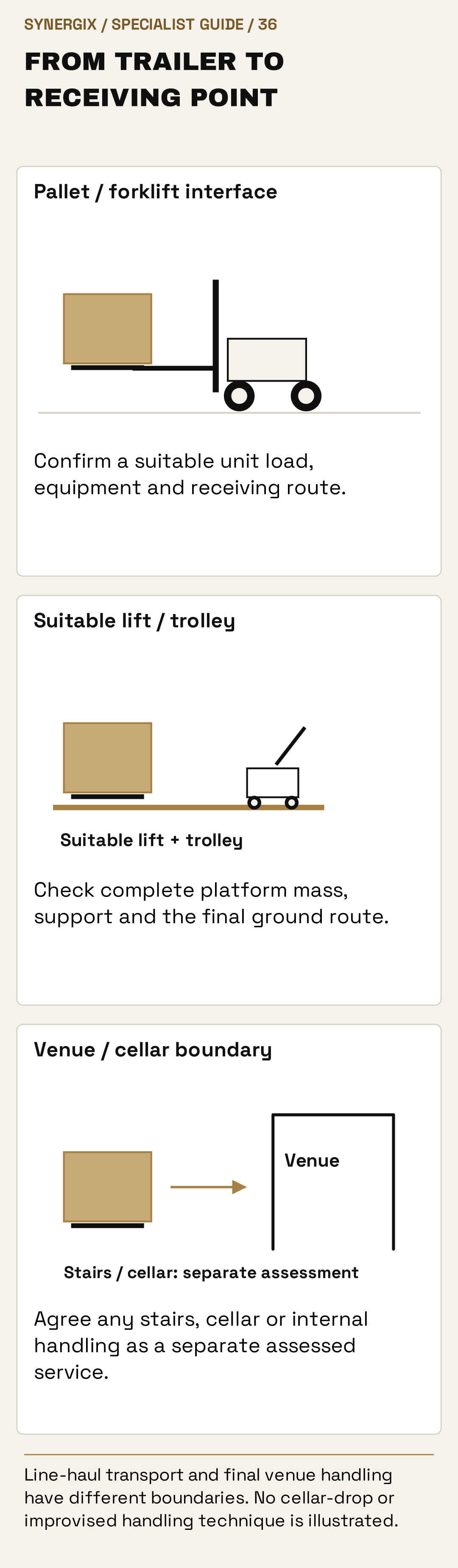

The delivery beyond the trailer.
Side access and unloading equipment
Establish which bays need access and the actual equipment used to move the goods. Forklift handling of suitable unitised loads differs from manual dray work with individual containers. Platforms, lifts, trolleys and routes have their own ratings and limits. The trailer’s road freight allowance does not establish safe individual handling.
Venue and cellar work are separate
A transport movement does not automatically include carrying into a bar, stairs, a cellar drop, installation or beverage connection. These tasks can need additional people, approved equipment, site assessment and specific competence. Give the actual final receiving point, route, gradients, thresholds and access hours before quotation.
Cold-chain requirements are product-specific
An ordinary keg trailer is not automatically refrigerated. Drinks can have transport and storage temperature instructions that affect product quality. State the required conditions and duration, including any parked venue holding. Dispense chilling at the bar is not proof that uncontrolled transport or storage meets the product specification.
Gas and ancillary goods must be declared
CO₂ cylinders, mixed dispense gas, cleaning chemicals or other ancillary products can bring separate classification, segregation and securing requirements. A trailer carrying beer does not automatically accept every item used in a bar. Provide the exact goods and relevant safety information before acceptance.
Line-haul transport and final venue handling have different boundaries. No cellar-drop or improvised handling technique is illustrated.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Condition, servicing and stock control.
Inspect the restraint installation
Panels, rails, closures, pins, nets or other specified restraint equipment must be complete, serviceable and suitable for the load pattern. Damaged or substituted parts can undermine the intended containment. The floor, anchorage, loading access and any handling equipment need their own checks; a general trailer annual test is not approval of an improvised keg restraint pattern.
Hygiene and returns
Leaks, damaged closures and residues can contaminate other stock or make floors slippery. Separate and describe returns appropriately, with ownership and quantities recorded. Transport proof of delivery helps establish the handover, while any container deposit reconciliation, asset scanning or customer stock integration must be specifically agreed. Do not assume a specialist asset-management system is included.
Maintenance follows the installed equipment
The running gear and road structure need the normal roadworthiness programme. Body restraints, loading mechanisms and any lift have additional manufacturer checks, servicing and applicable examinations. Pre-use checks and defect action remain necessary even when scheduled services are current. Confirm the equipment identity where site documents are requested.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate stock handling, bay restraint, each delivery and the collection of empty returns. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on purpose-built restraint components, floor, closures, load pattern and any fitted lift. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for stock handling, bay restraint, each delivery and the collection of empty returns, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is keg types/full and empty masses, restraint pattern, receiving route and return plan. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel and any agreed lift or powered handling, rather than assuming refrigeration. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Unitised freight in a suitable body | Where pallets, restraint and receiving equipment meet the actual drinks requirement. |
| Refrigerated transport | Where the product has an active temperature-control instruction. |
| Separately assessed dray handling | Where the final point needs venue, stair or cellar work beyond transport. |
Put the information to work
Three practical booking examples.
Full kegs to an event, empties back
List quantities and gross masses in both directions, delivery order, unloading method and final point. Reserve return space and a valid restraint arrangement for each stage.
Mixed kegs and glass cases
Assess packaging, unitisation, crush resistance and interfaces between product types. Purpose-built keg containment cannot automatically be credited for unrelated fragile cases.
A pub with cellar access
Separate the road delivery from cellar handling. Provide the route and equipment requirements so a complete assessed service can be agreed if appropriate.
Terminology in plain English
Useful equipment terms.
- Gross keg mass
- Contents plus the actual container and any associated handling unit.
- Cask
- A container/product system with its own transport and handling instructions.
- Keg restraint system
- The actual designed body/equipment and load pattern used to secure the freight.
- Unitisation
- Making compatible containers and a pallet/carrier into one stable handling unit.
- Dray handling
- Delivery handling which must be defined separately from line-haul transport.
- Return stock
- Empty or remaining containers accepted as a separate planned freight and handover requirement.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Purpose-built keg trailers and drinks transport FAQs
Your questions answered.
Is a keg trailer refrigerated?
Not automatically. Declare the product’s required transport and holding conditions so appropriate equipment can be assessed.
How many kegs fit?
The actual body, approved load pattern, keg types, gross masses, stacking, restraint and axle distribution determine that. No universal count is claimed.
How heavy is a 50-litre keg?
Use product mass plus the actual container tare. The guide’s 62 kg example assumes 1 kg/litre and a 12 kg shell; it is not a universal keg weight.
Can kegs lie on their side?
Follow the actual container and product supplier’s transport instructions and the approved securing arrangement. Do not assume one orientation suits all kegs and casks.
Are empty kegs a free return load?
Returns need agreed space, handling, restraint, destination and pricing. Empties are lighter but still need safe transport.
Do you deliver into cellars?
Only if the handling scope and an appropriate assessed method are agreed. A trailer booking alone does not include cellar work.
Can gas cylinders travel with the beer?
Declare the exact cylinders and other ancillary goods for classification, segregation, securing and acceptance checks.
What should I send for a quote?
Container types and full/empty weights, quantities, products, temperature instructions, locations, stops, handling, return plan, timing and any special records.
Before you book
Tell us what needs moving.
You do not need to identify every equipment model before contacting us. Start with keg types/full and empty masses, restraint pattern, receiving route and return plan.
Describe the goods
Product/type, quantity, packed dimensions, verified gross unit weights or density/volume as relevant, support/handling points, condition, value and any hazards, hygiene or temperature instructions.
Show both sites
Postcodes, approach, restrictions, measured openings, ground, working space, loading/discharge equipment, receiving position, contacts and useful photographs or drawings.
Define the work
Date/time windows, stops, loading/unloading roles, equipment operation, placement or transfer, parked periods, returns, cleaning and required documents. Include any installation or indoor handling as a separate requested scope.
Agree the arrangement
The team confirms the appropriate equipment, availability, scope, price and conditions. A vehicle illustration or LoadCheck calculation is planning help, not a reservation or approval for specialist handling.
