Double-deck curtainsider trailers.
A second loading level adds useful space for suitable freight, while curtains provide side access. Deck construction, upper-level load security and loading equipment make this a different choice from a double-deck box.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Both levels | Usable deck area and clear height at every cargo position | Posts, supports, roof taper and the floor mechanism reduce local openings. |
| Upper cargo | Individual pallet/unit mass and load stability | Apply the actual deck rating and current curtainsided multi-deck securing requirements. |
| Side handling | Clear bays, forklift duty at height and working space | Lifting height and remaining capacity are separate forklift checks. |
| Road travel | Loaded height, gross/axle/kingpin distribution and travel locks | Extra volume does not create extra legal freight weight. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

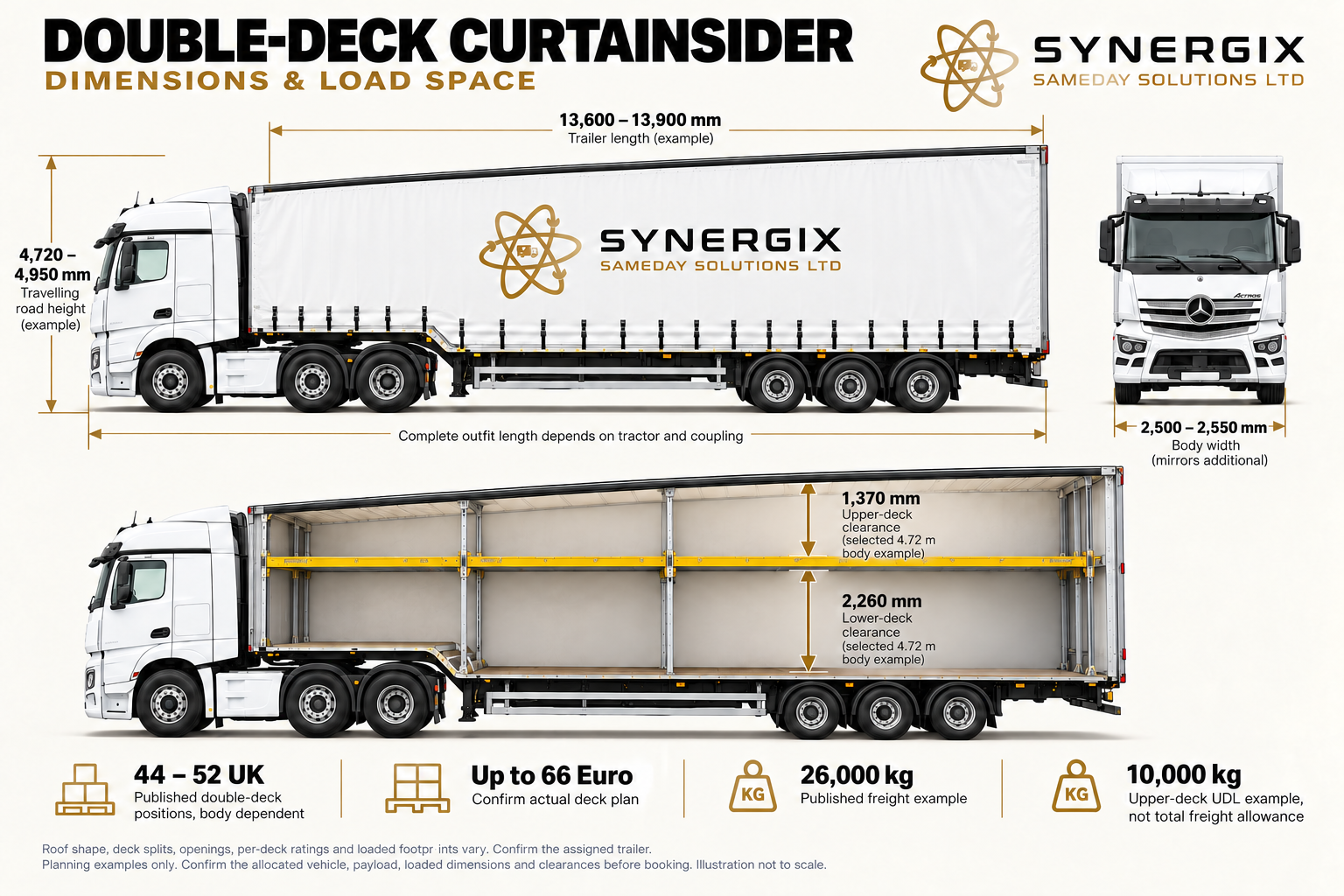

Double-deck curtainsider
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
External trailer 13,600–13,900 mm; height 4,720–4,950 mm; body width 2,500–2,550 mm. Selected 4.72 m body lower 2,260 mm/upper 1,370 mm clearance. 44–52 UK /up to 66 Euro references. Freight 26,000 kg example. Upper-deck 10,000 kg UDL example.
Deck clearances are not door apertures. Separate published builds. Complete outfit length depends on coupling.
Published example sources:

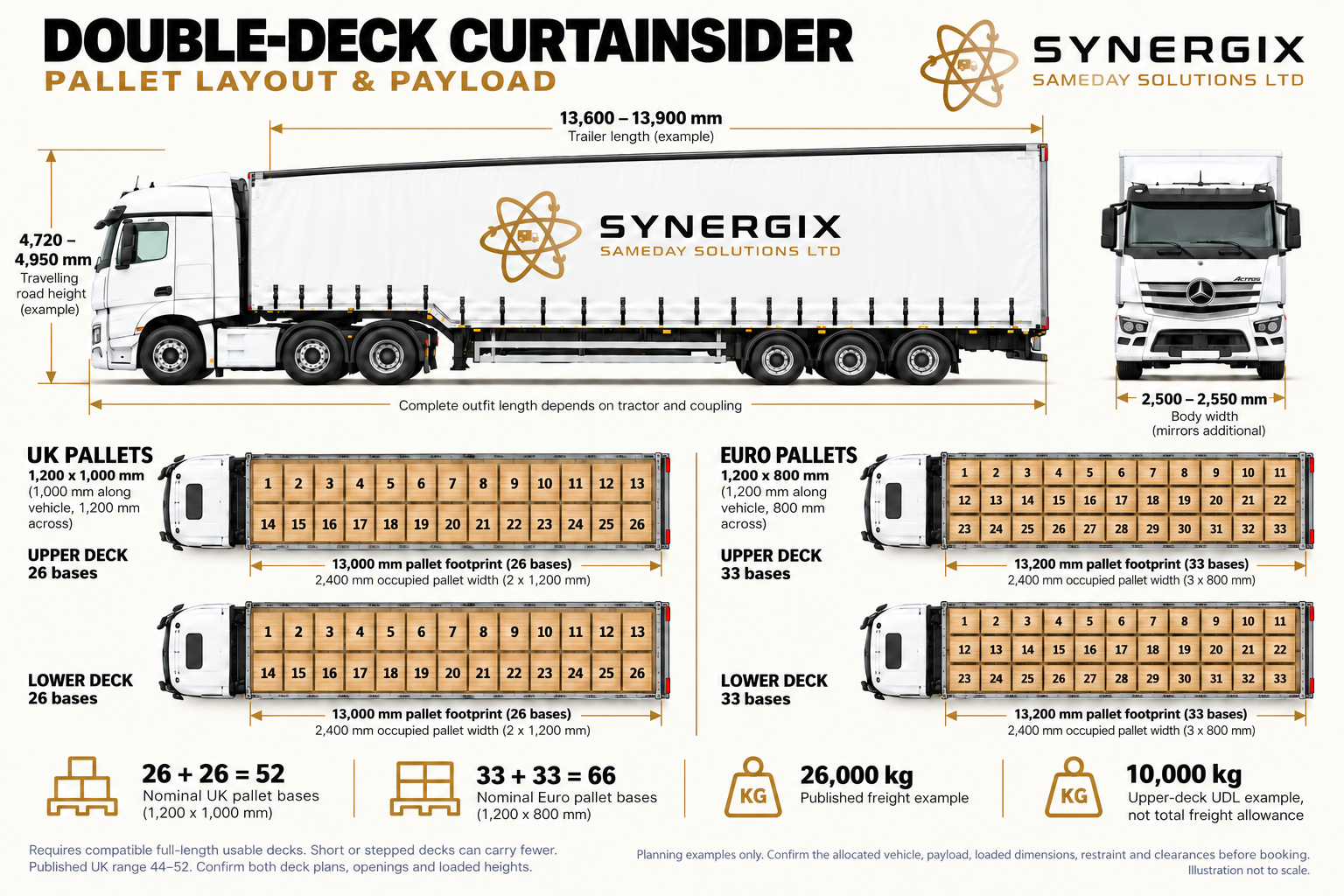

Double-Deck Curtainsider: pallet layout
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
52 nominal UK / 66 nominal Euro bases. Conditional full-length upper and lower decks. 26,000 kg published freight example; separate 10,000 kg upper-deck UDL example.
Shown 26 UK or 33 Euro per level. Requires compatible full-length usable decks; shorter or stepped decks can carry fewer. Published UK range 44–52. Occupied width and loaded-height checks remain separate.
Published example sources:
Configuration explained
Fixed-deck curtainsiders.
Defined floor levels with side access.
Construction and useful capability
The upper floor is supported by the trailer structure and divides the usable height. Side openings can allow loading directly into appropriate bays, which can help freight that does not suit a rear-only sequence. Posts, deck supports and roof structure remain, so opening the curtain does not create one unobstructed rectangular hole.
Loading, limitations and booking implications
Upper-floor loading requires an appropriate machine at the required height and reach. A forklift’s headline rating does not establish its residual capacity high in a bay. Check lower deck access too, including the load’s height when lifted. The equipment at the destination needs to serve the same layout and unload through suitable open working space.
Configuration explained
Adjustable or ratchet decks.
Approved positions to suit different cargo heights.
Construction and useful capability
A repositionable deck can change the split between upper and lower clear heights. This is useful when regular freight varies, but the mechanism must be identified. A deck adjusted empty and locked for travel differs from a powered system intended to move a loaded floor. Its support positions, permissible loads and access need to be known.
Loading, limitations and booking implications
A change of deck position also changes how goods can be reached and restrained. Do not plan an upper load so close to the roof that a forklift cannot lift it clear, or sacrifice lower clearance needed for an electric pallet truck. Use each deck’s actual geometry and operating instructions. The informal word floating does not establish a loading method.
Configuration explained
Powered and partial upper decks.
Flexibility where the installed mechanism supports the job.
Construction and useful capability
A lifting upper deck may make some freight accessible at another loading level. Split or partial decks can leave room for taller units in another zone. These arrangements can help a mixed consignment, but they have different stationary and moving duties, supports, locks and controls. Added machinery consumes payload and needs suitable maintenance.
Loading, limitations and booking implications
The load plan names each zone and the intended loading method. A powered floor is not permission to transport people or drive any forklift onto it. Freight has to remain stable through the approved movement and be restrained for the road journey. Receiving equipment and the full stop sequence decide whether the extra flexibility benefits the actual job.
The practical guide
How the equipment works.
Full-length and 50/50 decks
A full-length upper deck can divide much of the body into two loading levels. A 50/50 description may refer to a roughly equal height split, separate floor sections or another operator’s shorthand. Give the required upper/lower clear heights, useful lengths and cargo positions rather than relying on that label. The actual drawings and ratings control.
Split, folding and removable sections
Some floor sections can fold or be repositioned to create taller bays. Structural supports, handling time, locks and permitted load configurations differ. A section is not movable under load unless the design expressly permits it. Confirm who sets the deck and whether changing configuration between drops is practical. Removed components also need a secure travel position.
Step-frame double decks
A raised foredeck, lower main floor and upper deck create several distinct loading zones. Freight must pass through the relevant openings and remain accessible in delivery order. A low lower floor does not guarantee a tall item can pass the intermediate structure or sit beneath every upper section. Measure each zone independently.
Upper-deck curtainsider restraint
Current DVSA guidance for curtainsided multi-deck loads calls for stable, single-layer upper-deck items weighing no more than 400 kg each, with suitable protection against falling when curtains open. Hanging internal nets or roof buckle straps are not a solution for heavier items or stacks. Heavier freight belongs on suitable lower/foredeck positions with appropriate securing. Deck strength alone does not override the restraint guidance.
XL certification is not the whole answer
An XL body rating applies to the certified complete structure and its loading conditions. Upper-floor falling hazards remain even where the body contributes to road restraint. Gaps, part loads and unloading stages can need extra restraint. Check the manufacturer’s certificate for the actual deck height and load arrangement instead of applying a single-deck positive-fit assumption.
Side access, forks and work at height
The forklift needs enough rated reach and clear aperture to place goods on the upper level. Posts, roof rails and deck beams can restrict access. The operation also needs protection against falls and falling goods; climbing into the upper deck is not a normal shortcut. A receiver with one small forklift may not be equipped to unload the booked trailer.
Pallet count and payload
There is no universal double-deck UK or Euro pallet count. Clear footprint, posts, wheelboxes, upper/lower lengths, load heights and restraint determine usable positions. Freight weight must remain within the whole vehicle, axles and each floor rating. Adding a second floor can make the vehicle more suitable for bulky light stock while reducing the maximum mass available for freight.
When a single deck is better
Tall crates, heavy individual pallets, irregular plant and receivers without upper-level handling can suit a single-deck body. Avoid paying for spare upper space that cannot actually be used. Tell us whether upper-deck freight is lighter and shorter, and whether it is loaded or unloaded separately from the lower deck.
The practical guide

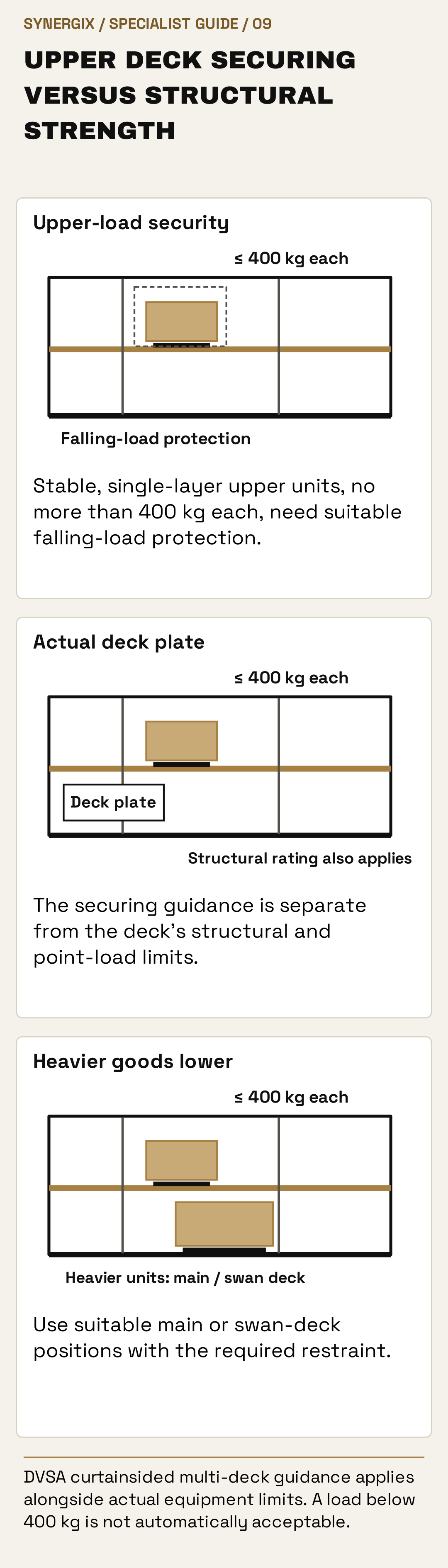

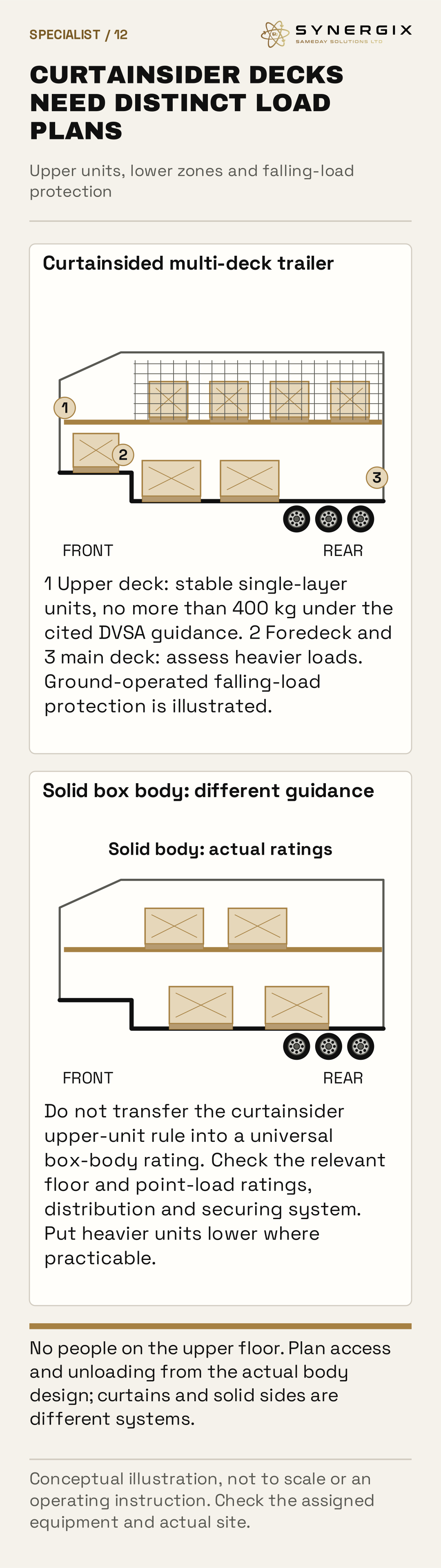

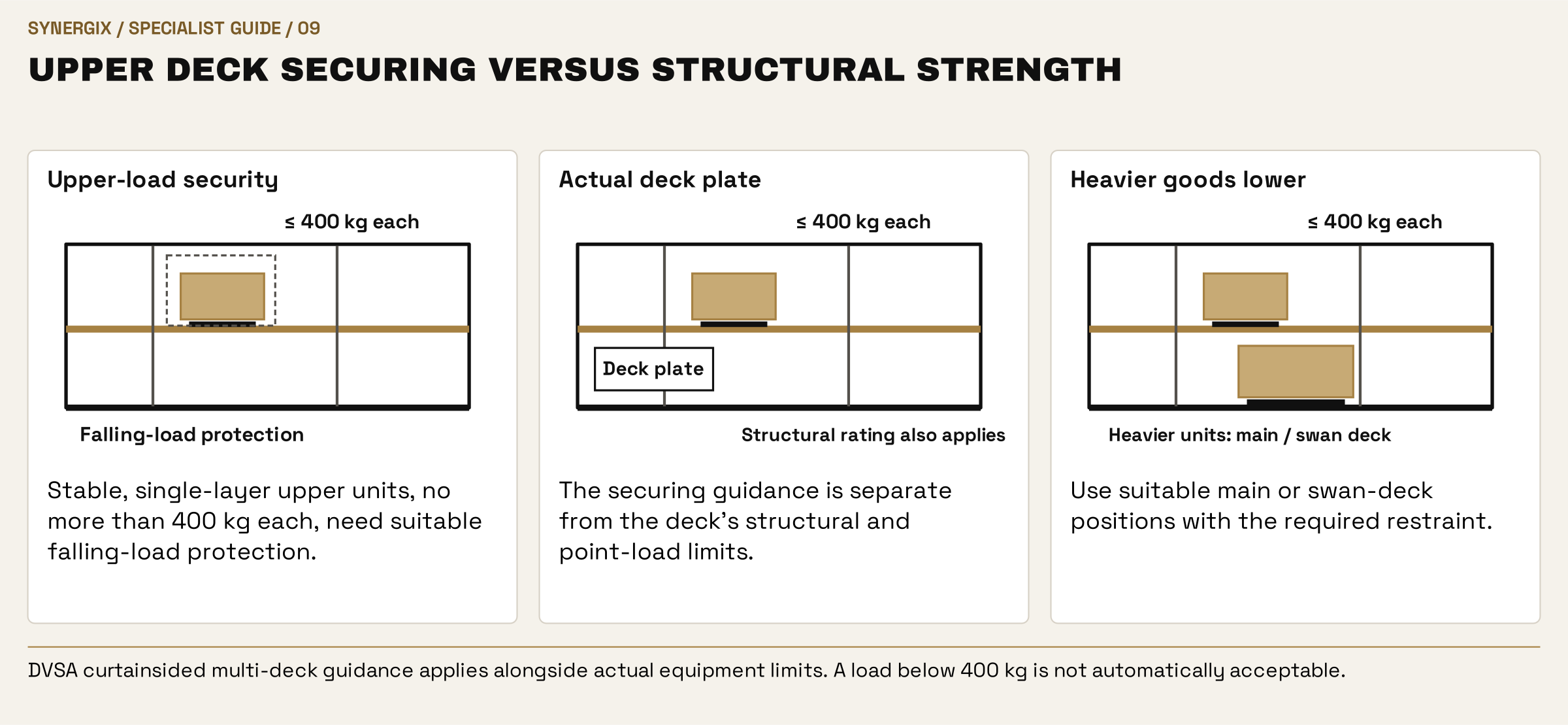

Upper-deck load security needs special attention.
The 400 kg distinction
Current DVSA guidance calls for upper-deck items, boxes or palletised goods to be stable without lashings, carried in a single layer and no more than 400 kg each. Palletised goods need to be unitised, with suitable protection against falling when curtains open. Heavier items belong on suitable main-deck or swan-neck positions with the appropriate securing. This is a load-securing requirement, separate from the deck’s structural rating.
Curtains and certification
Ordinary curtains principally provide weather protection and concealment. An XL-rated body can contribute to containment when the actual load and body meet the certificate’s conditions, including the loading pattern and any gap rules. Upper-floor construction, post positions and the load’s support still need to be considered. A label does not validate a changed curtain, damaged structure or arbitrary partial load.
Heavy below, stable throughout
A load placed higher raises the overall centre of gravity and increases the importance of the vehicle and restraint design. Loading heavier suitable units low can help stability, but axle distribution and access must also work. After a stop, missing pallets can leave gaps in a previously close-packed load. Plan the remaining securing arrangement rather than assuming the outward full-load condition survives every delivery.
DVSA curtainsided multi-deck guidance applies alongside actual equipment limits. A load below 400 kg is not automatically acceptable.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide

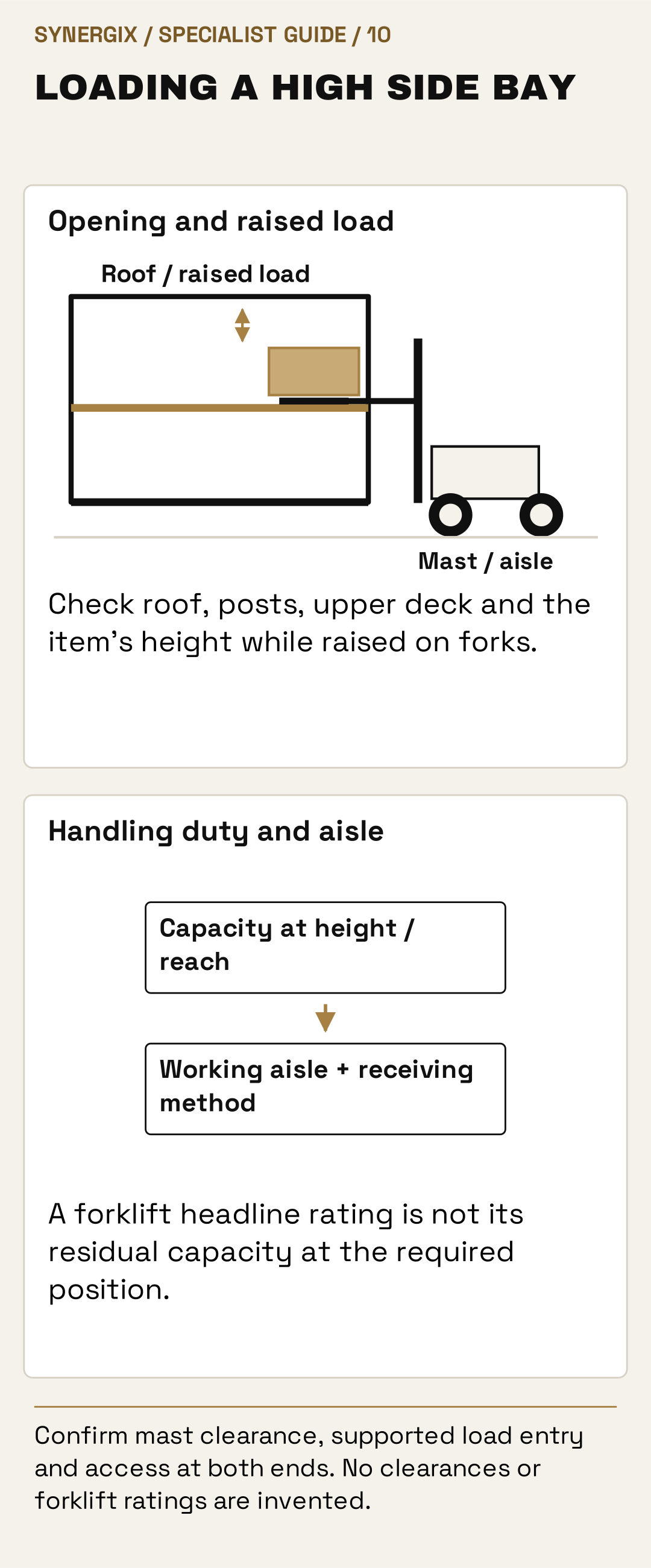

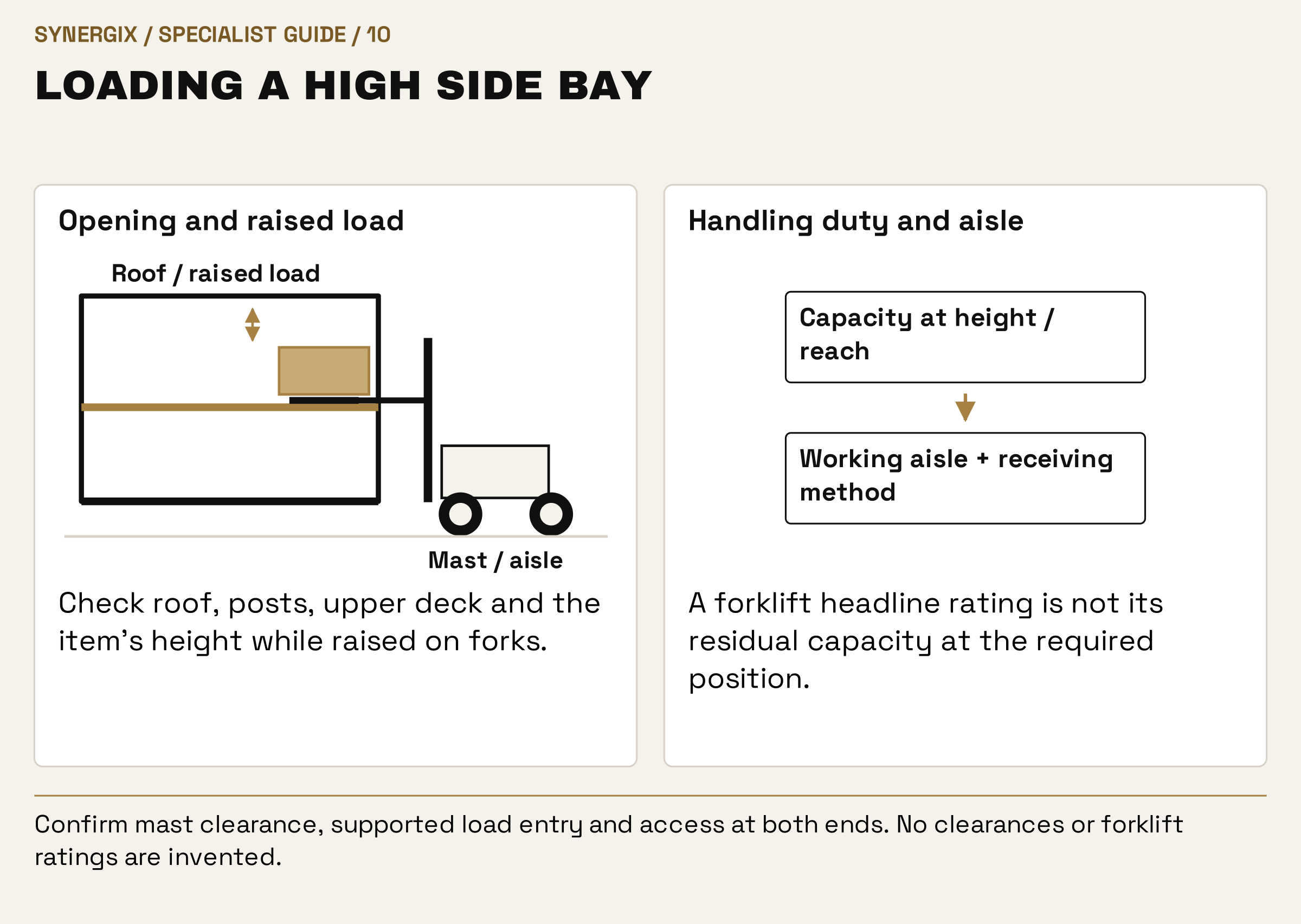

From loading bay to maintained equipment.
Side access is a working area
The loader needs enough space to position a suitable forklift square to the bay, lift with the required residual capacity and clear posts and the roof. Wind, live traffic and other people can affect opening and handling. A narrow gap beside the trailer is not equivalent to a usable loading lane. Identify which side is available and whether access to every necessary bay remains clear.
Inspect the curtain and the deck
Curtain tears, failed buckles, end tensioners, damaged posts, loose floor supports and ineffective locks can each undermine the plan. A replacement curtain used in a certified containment system must preserve the required specification. Moving floors add hydraulic, guide, control, guard and interlock checks. Maintenance must cover the complete installed arrangement rather than only the running gear.
Examination is installation-specific
Where a moving deck falls within LOLER, use the appropriate competent-person examination arrangements. Fixed floors and ordinary curtains still need condition checks and maintenance under the relevant work-equipment duties. The trailer annual test, routine service and any lifting-equipment examination each have their own scope. A current sticker cannot override a new defect.
Confirm mast clearance, supported load entry and access at both ends. No clearances or forklift ratings are invented.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate side-bay access, upper-floor loading, restraint and protection when curtains open. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on curtains/posts, deck supports/locks, upper-floor protection and any moving mechanisms. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for side-bay access, upper-floor loading, restraint and protection when curtains open, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is individual upper unit weights, floor layout, side aisle, machine duty and securing. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel and powered decks or loading lifts where installed. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Double-deck box | A distinct solid-sided containment and loading arrangement. |
| Single-deck curtainsider | For tall or heavy units not suited to the proposed upper floor. |
| Another load plan | Split or reallocate the goods when the extra floor does not add usable capacity. |
Put the information to work
Three practical booking examples.
Light pallets that must not be stacked
A second structural floor can use height without placing goods on each other. Check clear heights, individual masses, side-handling equipment and securing on each deck.
A 600 kg upper pallet
The mass exceeds the DVSA curtainsided multi-deck upper-deck guidance. Allocate it to a suitable main or swan deck with appropriate restraint, or assess a different body. Extra roof-hung straps do not make it an acceptable upper-deck load.
A multi-stop delivery
Plan which bays and levels are unloaded at each stop, the remaining gaps and axle loads. Secure returned packaging and cages through the same plan.
Terminology in plain English
Useful equipment terms.
- Upper deck
- The structural loading level above the main floor.
- Swan deck
- The raised front loading region associated with the neck.
- XL body
- A complete certified body structure used within its specified containment conditions.
- Positive fit
- A loading pattern meeting the relevant containment/gap conditions.
- Residual capacity
- A handling machine’s available capacity at the actual height and geometry.
- Diminishing load
- Freight remaining after some units have been delivered, which can need changed restraint.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Double-deck curtainsider trailers FAQs
Your questions answered.
How is this different from a double-deck box?
Curtains allow side access, but containment and upper-level securing differ from a solid-sided body. Both need suitable decks and loading interfaces.
Is 400 kg the upper floor’s structural capacity?
No. It is a current DVSA load-securing distinction for individual loads on curtainsided multi-decks. The floor rating is a separate limit.
Can I put a heavier pallet upstairs?
The current DVSA curtainsided multi-deck guidance puts heavier items on the main or swan deck, secured appropriately. Consider a suitable lower position or another trailer/body arrangement.
Does an XL curtain remove the need for straps?
Only an actual certified body and load arrangement meeting all relevant conditions can rely on that containment. Partial loads and gaps can need additional measures.
Can both sides be unloaded?
That depends on access, bay openings, deck supports and suitable receiving machinery. Give the available working sides before booking.
Does the upper floor move while loaded?
Only if the installed mechanism is designed for that duty. Adjustable floors are not all powered loading lifts.
Will the same forklift serve both decks?
Check the actual machine’s capacity at height/reach, mast clearance and the trailer openings. Its nominal ground-level rating is insufficient.
What determines the quotation?
Freight plan, trailer arrangement, loading interfaces, route height, stops, timing, working space, handling and any specialist securing.
Before you book
Tell us what needs moving.
You do not need to identify every equipment model before contacting us. Start with individual upper unit weights, floor layout, side aisle, machine duty and securing.
Describe the goods
Product/type, quantity, packed dimensions, verified gross unit weights or density/volume as relevant, support/handling points, condition, value and any hazards, hygiene or temperature instructions.
Show both sites
Postcodes, approach, restrictions, measured openings, ground, working space, loading/discharge equipment, receiving position, contacts and useful photographs or drawings.
Define the work
Date/time windows, stops, loading/unloading roles, equipment operation, placement or transfer, parked periods, returns, cleaning and required documents. Include any installation or indoor handling as a separate requested scope.
Agree the arrangement
The team confirms the appropriate equipment, availability, scope, price and conditions. A vehicle illustration or LoadCheck calculation is planning help, not a reservation or approval for specialist handling.
