Double-deck box trailers.
Two loading levels can carry suitable non-stackable freight without putting one pallet on another. Understand fixed, adjustable and lifting decks, usable clear heights, dock access, deck ratings and the complete load plan.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Each floor | Usable length, width and clear height above the floor | The upper structure consumes space; two floors do not double every capacity. |
| Deck structure | Distributed, concentrated and moving-load ratings | Pallet mass, wheels and forklift loads may have different limits. |
| Loading interface | Rear aperture, dock height, lift travel and level access | The upper deck needs a suitable loading and unloading method at both ends. |
| Complete outfit | Loaded road height, axle/kingpin loads and actual payload | High volume does not prove a higher legal mass allowance. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

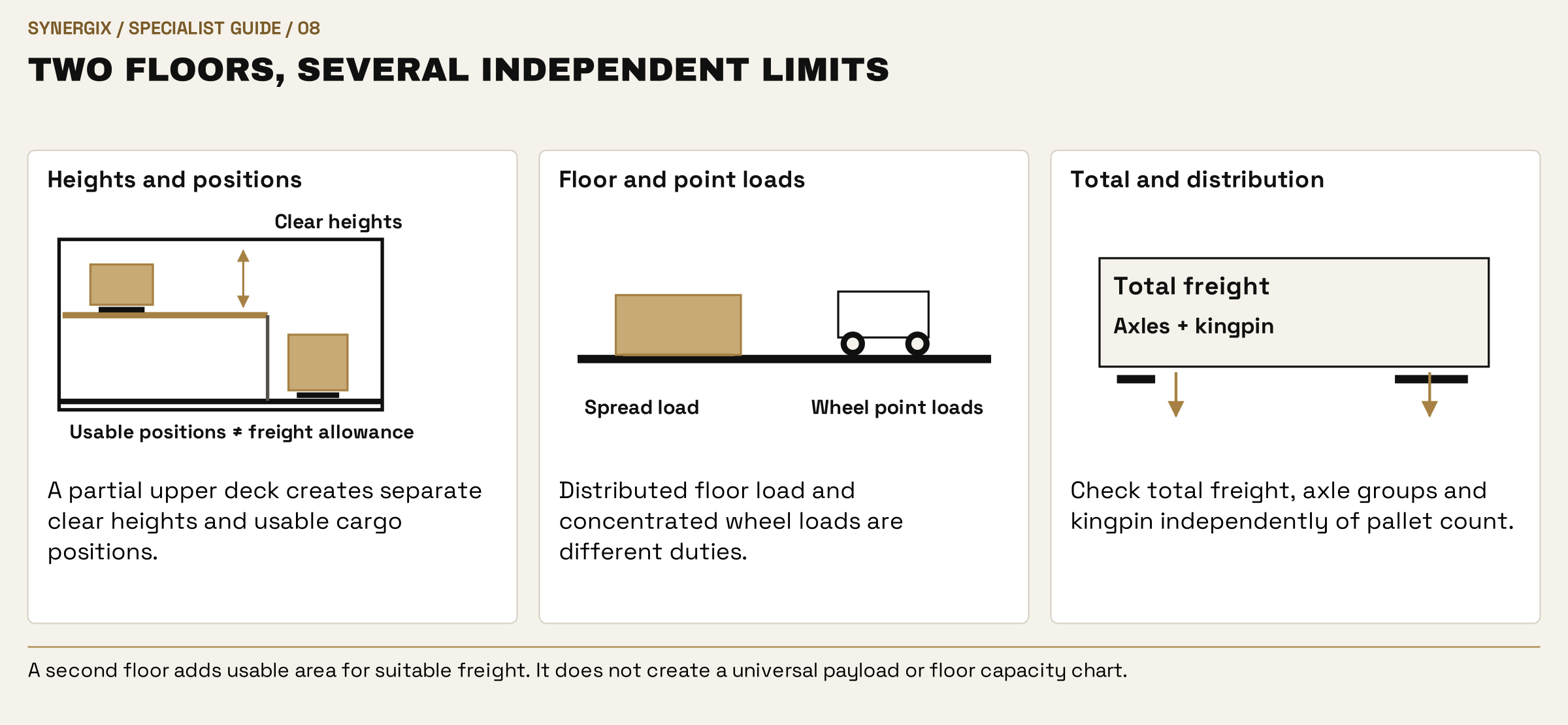

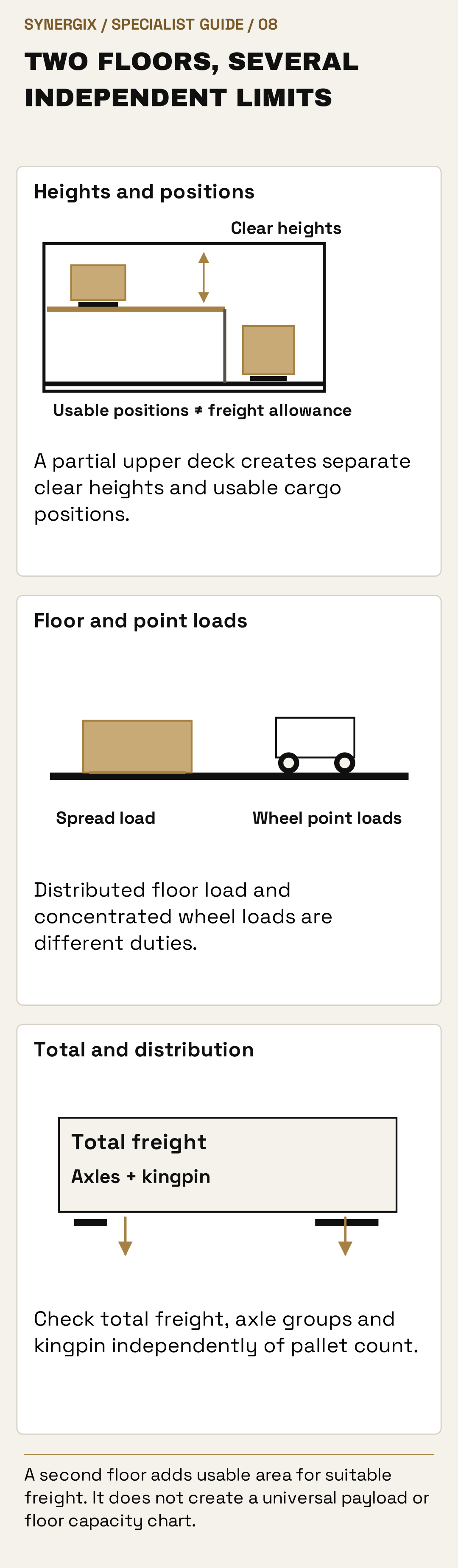

A second floor adds usable area for suitable freight. It does not create a universal payload or floor capacity chart.
Open full-size desktop diagram · Open full-size mobile diagram

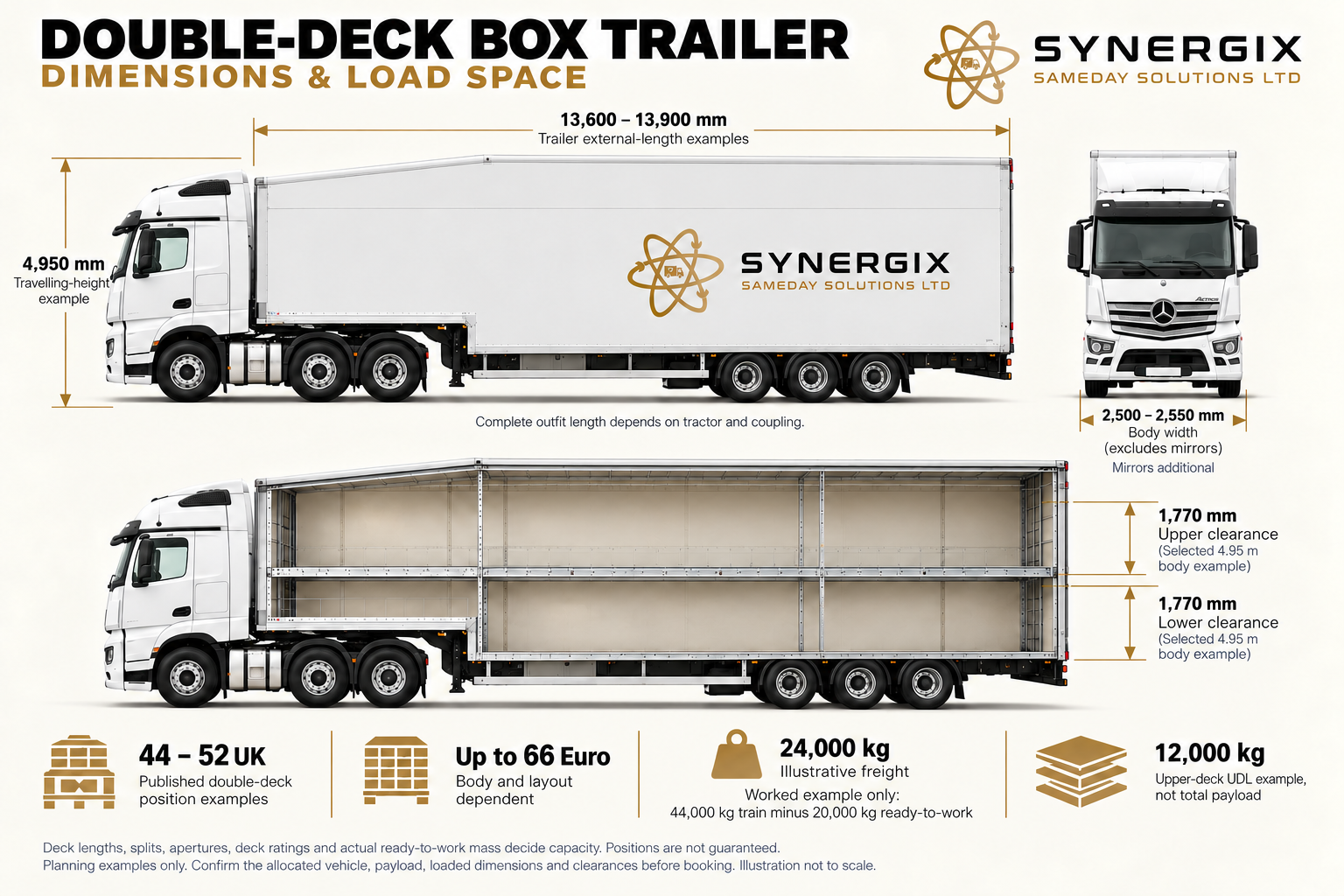

Double-deck box trailer
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
External trailer length 13,600–13,900 mm; travelling height 4,950 mm; body width 2,500–2,550 mm. Selected body has 1,770 mm upper and lower clearances. 44–52 UK /up to 66 Euro published positions. Illustrative freight 24,000 kg =44,000 kg train minus 20,000 kg ready-to-work. Upper deck 12,000 kg UDL example.
The 24 t freight number is a worked hypothetical, not an actual sourced Synergix payload. Full outfit length depends on coupling. Upper-deck UDL is not whole freight allowance.
Published example sources:

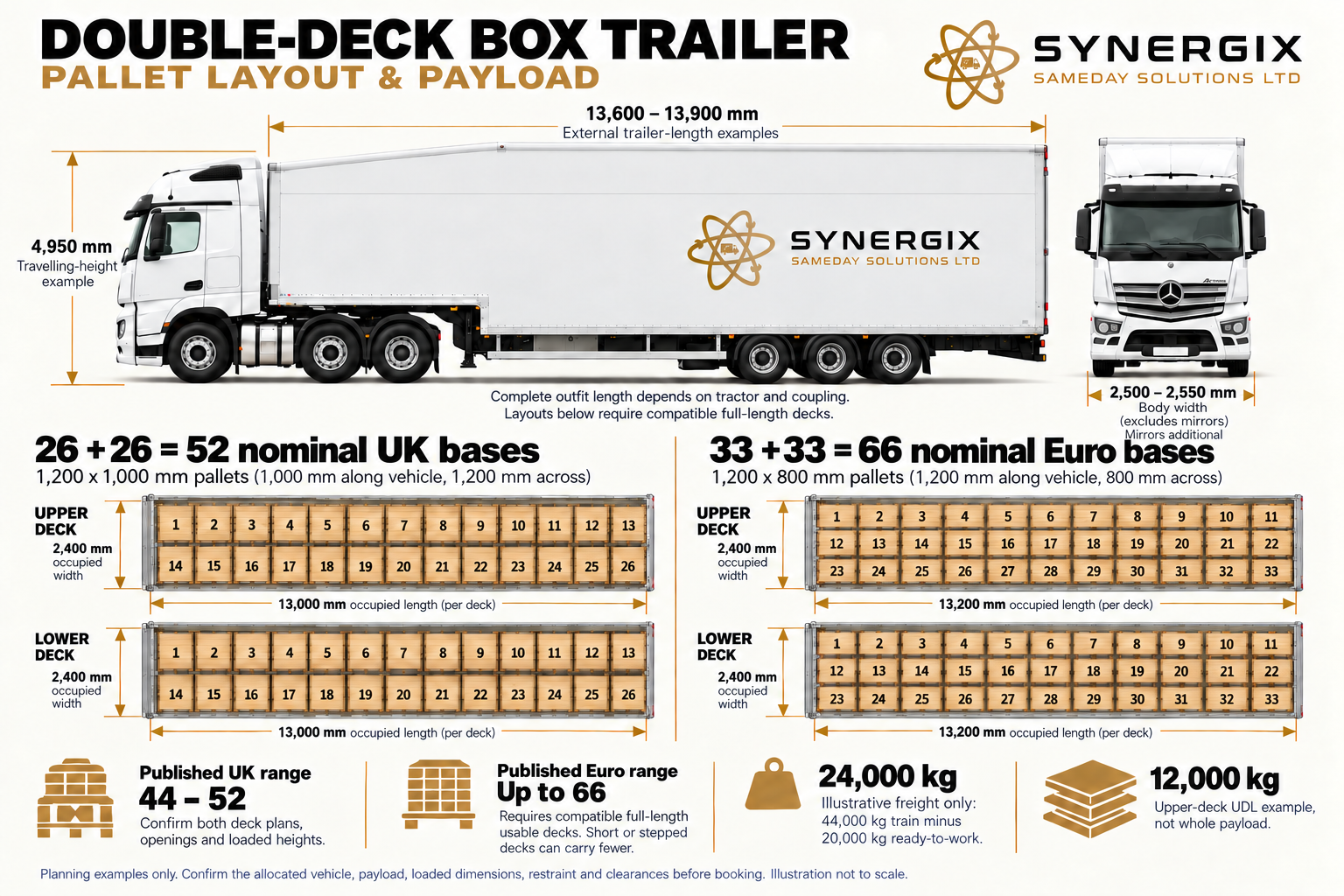

Double-Deck Box Trailer: pallet layout
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
52 nominal UK / 66 nominal Euro bases. Conditional full-length upper and lower decks. 24,000 kg hypothetical freight calculation; separate 12,000 kg upper-deck UDL example.
Shown 26 UK or 33 Euro bases per level. Requires compatible full-length usable decks. The stepped side elevation is a category illustration, not a measured 52/66-position deck plan. Published UK range 44–52. Footprint arrows measure occupied bases, not actual internal deck dimensions.
Published example sources:

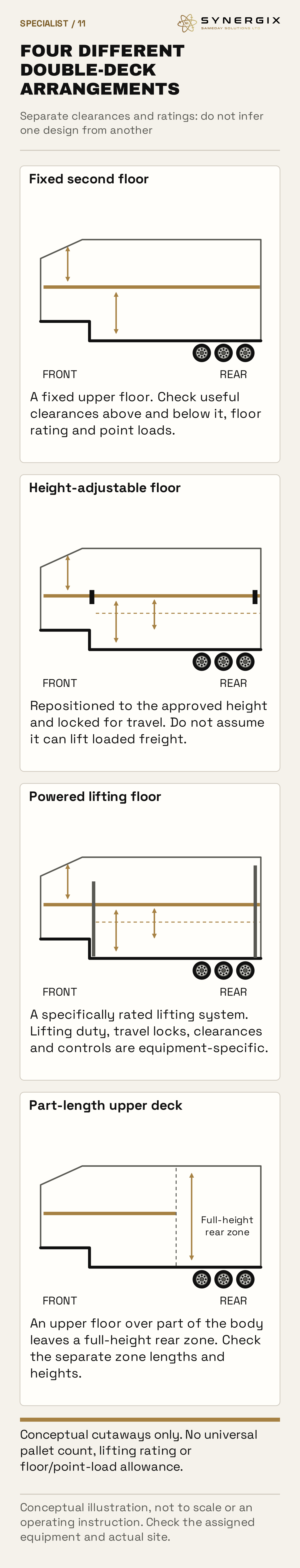

Configuration explained
Fixed upper decks.
Two defined loading levels for repeatable freight.
Construction and useful capability
A permanent upper structure creates predictable clear spaces for cargo that fits each level. This can suit cartons, cages, trays and pallets that should not be stacked on one another. The deck carries the upper load through its own structure to the trailer; the goods below are not supposed to act as supports. Available height depends on floor positions, roof profile and the actual body.
Loading, limitations and booking implications
The upper floor needs a compatible receiving interface. A dock at the lower floor does not automatically unload the upper one. A dedicated double-deck lift, suitable internal transfer system or other approved method must serve each level. The loading plan must work at every destination, including partial deliveries and returns. An attractive floor-space calculation has little value if the receiving site cannot access the goods.
Configuration explained
Height-adjustable and ratchet decks.
A travel arrangement set to suit the cargo heights.
Construction and useful capability
Some decks can be repositioned and secured at approved heights, allowing different proportions of upper and lower space. The adjustment mechanism may be manual, assisted or powered. The term floating floor is too imprecise to identify it. A structure rated to carry freight when locked may not be designed to move with that freight on it.
Loading, limitations and booking implications
Specify whether the adjustment happens empty or loaded, the desired clear heights and the units on each level. Stops, supports, locks and the permitted travel position are part of the equipment design. Never assume that a forklift can lift an entire deck or that a ratchet system substitutes for a powered loading lift. The assigned trailer’s instructions determine the method and permitted duty.
Configuration explained
Powered lifting decks.
A deck that moves approved freight between defined positions.
Construction and useful capability
A powered deck can bring suitable upper-level freight to a practical loading height, then move into its travel arrangement. Hydraulic cylinders or other approved mechanisms carry the moving duty. Locks, interlocks, guides and controls work together; the stationary structural rating and the moving-load rating need to be distinguished. Different sections may move independently on some designs.
Loading, limitations and booking implications
Powered movement can reduce dependence on certain specialist docks, but the exact rear interface still decides compatibility. A forklift or powered truck imposes concentrated wheel loads, which may be excluded even where the deck carries the pallets themselves. People must be protected from moving-deck and edge hazards through the approved system. Do not use the trailer as an improvised passenger lift.
Configuration explained
Partial, split and stepped layouts.
Two levels need not run continuously from front to rear.
Construction and useful capability
A partial upper floor can create room for taller goods in another part of the body. A step-frame base can introduce a higher foredeck and lower main deck, each with different headroom. A curved or tapered roof also changes local clear height. The result needs a zone drawing, not one length × width × height figure for the whole trailer.
Loading, limitations and booking implications
Allocate each cargo unit to a named floor and longitudinal position, with enough access for handling and restraint. A tall unit at the back must not obstruct goods needed earlier. Mixed layouts can provide useful flexibility, but their structure and equipment add mass. Treat loading order, zone dimensions and axle distribution as one plan.
The practical guide
How the equipment works.
Fixed double decks
A fixed upper floor creates defined upper and lower loading spaces. It is useful for repeat consignments and docks designed for that trailer. Cargo must suit the clear heights of both decks and the handling arrangement at each level. A standard forklift or dock leveller may serve only one floor. Specify how goods reach the upper level at collection and leave it at delivery.
Adjustable or “floating” floors
Floating floor is an informal description that can refer to different adjustable or lifting systems. Ask for the actual mechanism: a height-adjustable deck locked for travel, a powered deck used for loading, or a split system with separate sections. State whether the adjustment is required with freight on the deck. Do not assume a manually adjustable floor is designed to lift a loaded deck.
Powered lifting decks
A lifting deck can bring an approved load to a suitable loading height, then move to its specified travel position. Capacity during movement, deck locks, interlocks and uniform-load requirements are equipment-specific. The fact that a deck can hold a distributed load does not prove it can take a concentrated machine or a forklift. Keep people clear of the moving floor through the manufacturer’s operating system.
Part-length and split configurations
Some bodies retain a full-height area at the rear and a second deck elsewhere. Others use independent sections or stepped upper levels. These layouts can mix taller and shorter freight, but the useful lengths, clear heights and access paths differ. Provide a load drawing where tall items and upper-deck freight must share the trailer. The floor cannot be treated as one uninterrupted 13.6 m rectangle.
Step-frame box bodies
A lower main deck behind a raised foredeck can increase available internal height or volume. Wheelboxes, the front step and deck structures affect loading paths. A low floor can require a different dock interface and access assessment. The lower floor does not automatically make the whole vehicle low: double-deck bodies can still have substantial overall road height.
Separate floor and point-load ratings
Confirm upper-deck, lower-deck, foredeck and moving-deck ratings, together with local wheel or point loads. Goods on the upper floor also affect the vehicle’s centre of gravity. Heavier suitable freight is generally better kept low, subject to the load plan and axle limits. Do not decide the layout from pallet numbers alone.
Box-body load restraint
Solid sides can contribute to restraint, but goods still need a suitable load plan, rated blocking/bars or other securing where gaps and movement risks remain. Upper-deck pallet limits differ from curtainsided multi-decks: box-sided bodies can accommodate heavier units where deck and body specifications permit. Do not transplant the curtainsider upper-deck rule into every box trailer, or assume a rigid wall approves every stack.
Benefits and disadvantages
Double decks suit volume-limited stock, retail distribution, parcel/cage work and suitable lighter freight. They can reduce vehicle trips where the load, route and receiving equipment support the plan. They add floor weight, machinery or structure and loading complexity. A height restriction, incompatible dock or high point load can make a conventional trailer the better choice despite fewer floor positions.
The practical guide
Useful capacity is more than a pallet total.
Why two floors can help
Where freight cannot be stacked, a second structural level uses some of the empty air above the lower load. The benefit is carried units per journey for cargo that fits both levels. If the goods are already dense or tall, the trailer may reach its mass or height limits before using the extra floor effectively. Compare the real consignment rather than a headline pallet number.
An actual manufacturer example
Don-Bur describes double-deck layouts with different fixed, adjustable and lifting systems. Its published examples include capacities that depend on how much of the trailer has an upper deck, with longer semi-trailers offering another distinct arrangement. Those manufacturer examples explain why quoted pallet counts vary; they are not a Synergix promise of 44, 52 or 60 pallet positions. Obtain the assigned trailer’s layout and loading limits.
Solid sides and load security
A box body can contribute to an appropriate containment system, but its construction and the load arrangement must support that use. Current DVSA guidance distinguishes solid-sided multi-decks from curtainsided ones: the curtain multi-deck 400 kg restriction is not a universal maximum pallet weight on a box upper floor. Deck ratings, packaging, positive fit or other restraint and stability still apply. Heavier goods should be allocated low where practicable.

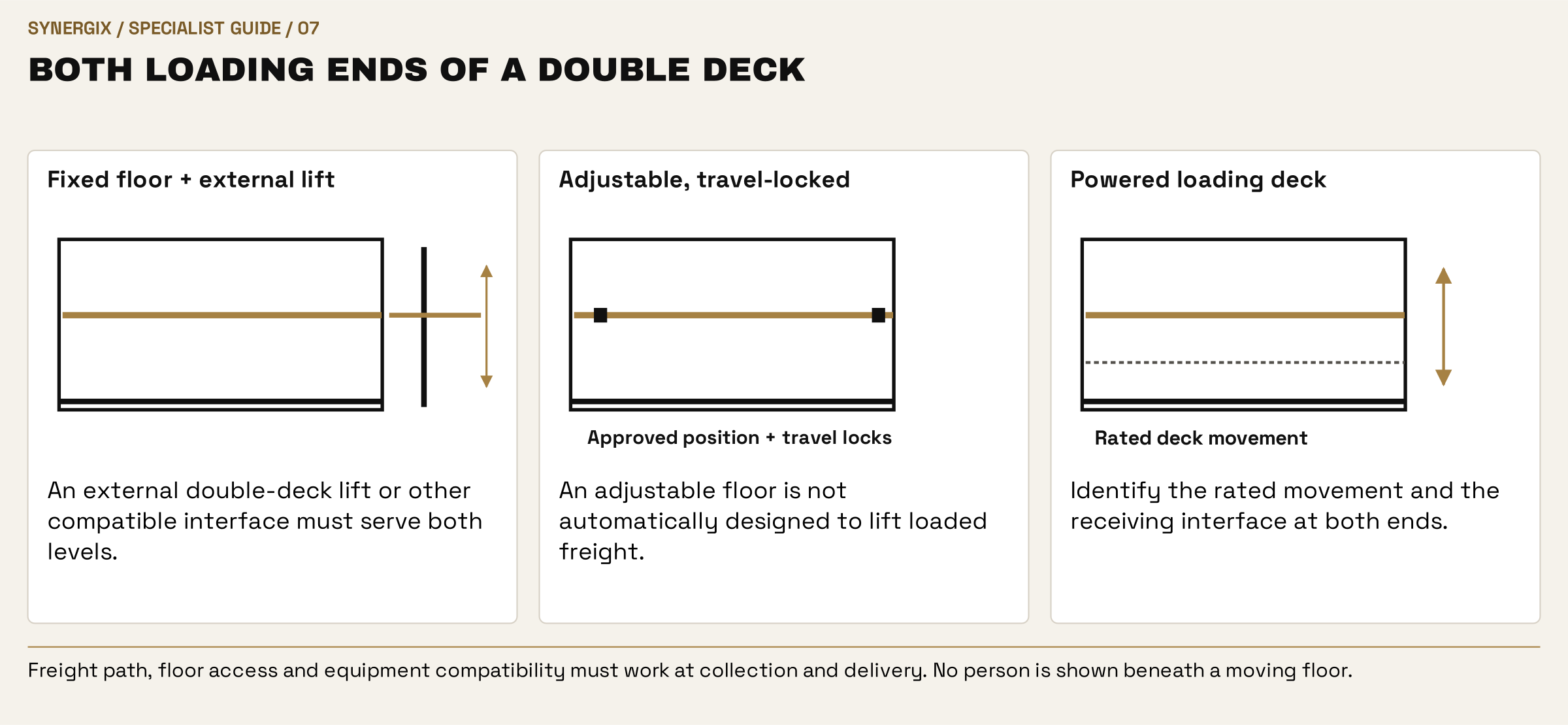

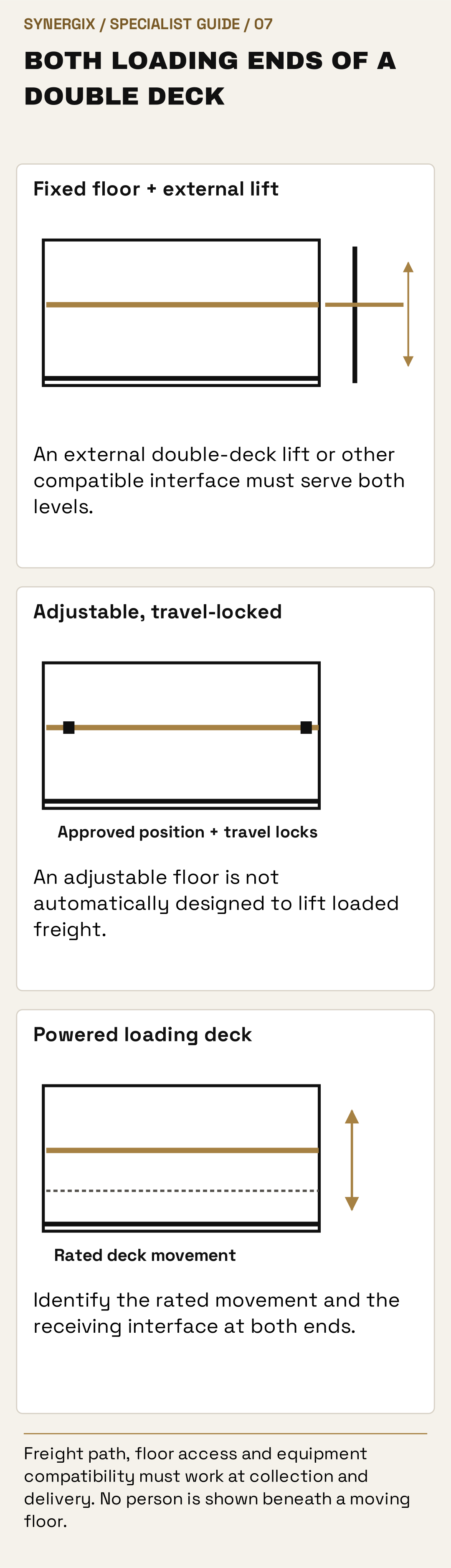

Freight path, floor access and equipment compatibility must work at collection and delivery. No person is shown beneath a moving floor.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Loading, servicing and receiving.
A dock compatibility conversation
Give floor height, dock-leveller range, opening size, upper-deck interface and the handling machine. Confirm whether a loaded trailer is coupled or supported through an approved uncoupled arrangement. Dock restraint and segregation protect people against unintended movement. A site that regularly receives standard single-deck artics may still be incompatible with the proposed double deck.
Deck equipment needs its own care
Inspect supports, locking devices, floor damage, guides, hydraulic leakage, controls, interlocks and guards through the manufacturer’s programme. A trailer annual test does not establish the condition or permitted use of every moving-deck component. Do not move goods under an uncertain support or ask a loader to bypass an interlock for a faster turnaround.
Inspection and examination follow the mechanism
All work equipment needs suitable maintenance and safe use under the relevant duties. Where a powered deck is lifting equipment within LOLER, its examination arrangements need to match that installation and use, with a competent person’s scheme where appropriate. A fixed floor is not automatically subject to the same lifting-equipment regime just because the trailer has two levels. Keep the distinction explicit in the records.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate floor allocation, deck configuration, dock interfaces and upper-level handling. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on deck supports/locks, guards/interlocks, doors, floor condition and receiving interface. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for floor allocation, deck configuration, dock interfaces and upper-level handling, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is each deck’s usable space/rating, unit weights, loading machine and dock at each end. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel and powered deck/lift operation where installed. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Single-deck box | For taller goods or receiving sites without suitable upper-level access. |
| Double-deck curtainsider | Where side access helps and its different upper-load securing conditions suit the freight. |
| Standard artic | Where ordinary floor area, payload and loading equipment already solve the job. |
Put the information to work
Three practical booking examples.
Lightweight non-stackable cartons
Measure each loaded unit, then allocate it to floors with compatible headroom and restraint. Assess whether a second floor reduces journeys without reaching axle or deck limits.
One heavy pallet among light freight
Allocate by unit mass, position and handling access, keeping stability in view. The total consignment average does not establish the rating beneath the one dense pallet.
A standard dock at the destination
Confirm access to the upper floor before dispatch. Select a compatible lifting arrangement or a different trailer if the dock cannot serve the proposed layout.
Terminology in plain English
Useful equipment terms.
- Fixed deck
- An upper floor secured in a defined structural position.
- Adjustable deck
- A floor that can be repositioned through its approved system.
- Lifting deck
- A floor designed to move an approved load between positions.
- Distributed load
- Load spread over the specified floor area, different from concentrated wheel loads.
- Swan neck
- The raised front region above the tractor/coupling.
- Dock interface
- The matched opening, height and handling system used to transfer freight.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Double-deck box trailers FAQs
Your questions answered.
Does double deck mean twice the payload?
No. It can increase useful floor area for suitable goods. Equipment mass, road limits, deck ratings and stability still govern carrying weight.
How many pallets fit?
The actual deck lengths, clear heights, pallet dimensions and loading plan determine that. Partial and full upper floors differ, as do longer trailers.
Can the upper deck take heavy pallets?
Use its actual structural and handling ratings. Solid box bodies differ from curtainsided multi-decks, but body construction alone is not approval for any pallet weight.
Can a forklift drive on the upper floor?
Only if the floor and complete loading arrangement are approved for that machine’s concentrated and moving loads.
What is a floating floor?
An informal term for different adjustable or moving systems. Ask which mechanism is fitted and whether it may move while loaded.
Do both ends need special docks?
Each level needs a compatible method at both ends. A powered trailer system may change the requirement, but does not remove the interface check.
Are these longer semi-trailers?
Some double decks are longer semi-trailers; others are not. The layout, overall length, route and applicable operating requirements must be established.
What should I send for a quote?
Unit dimensions and masses, quantities, stackability, desired floor allocation, docks, handling equipment, stops, route and timing.
Before you book
Tell us what needs moving.
You do not need to identify every equipment model before contacting us. Start with each deck’s usable space/rating, unit weights, loading machine and dock at each end.
Describe the goods
Product/type, quantity, packed dimensions, verified gross unit weights or density/volume as relevant, support/handling points, condition, value and any hazards, hygiene or temperature instructions.
Show both sites
Postcodes, approach, restrictions, measured openings, ground, working space, loading/discharge equipment, receiving position, contacts and useful photographs or drawings.
Define the work
Date/time windows, stops, loading/unloading roles, equipment operation, placement or transfer, parked periods, returns, cleaning and required documents. Include any installation or indoor handling as a separate requested scope.
Agree the arrangement
The team confirms the appropriate equipment, availability, scope, price and conditions. A vehicle illustration or LoadCheck calculation is planning help, not a reservation or approval for specialist handling.
