Curtainsiders, Euroliners and mega trailers.
Side access and weather protection make curtainsiders useful for many commercial loads. Compare vehicle sizes, side openings, roof options and high-volume layouts, then understand restraint, condition and receiving equipment.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Loading space | Actual internal length, width and height | The nominal body size is different from the clear side bay or rear door. |
| Openings | Posts, roof rails, rear aperture and lifted roof where fitted | A normal fixed roof does not permit top loading. |
| Freight | Gross unit masses, pallet footprint, stackability and point loads | Curtains and roof-hung straps are not a generic heavy-load restraint. |
| Road and site | Actual payload, axle distribution, loaded height and side aisle | The receiver needs suitable machinery and room to reach the chosen bays. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

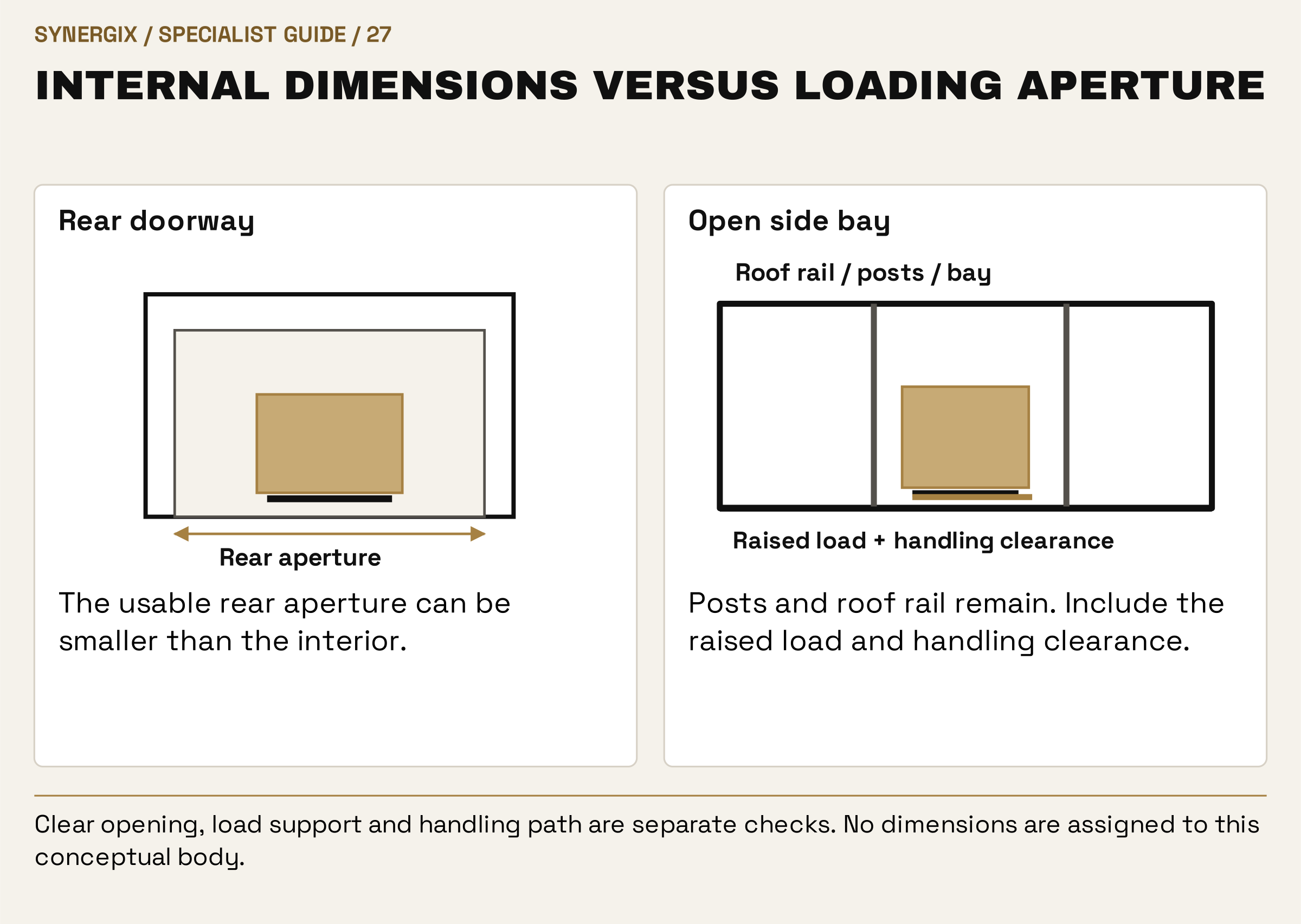

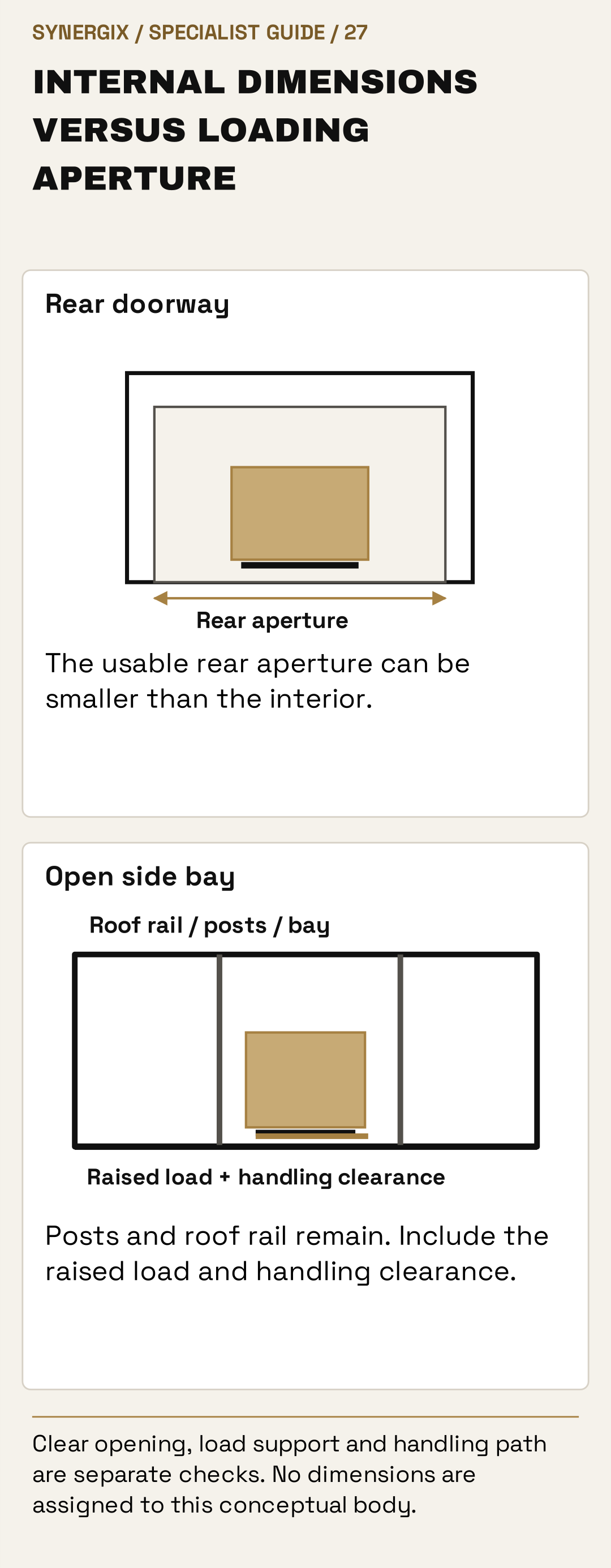

Clear opening, load support and handling path are separate checks. No dimensions are assigned to this conceptual body.
Open full-size desktop diagram · Open full-size mobile diagramConfiguration explained
Luton and 7.5t curtainsiders.
Side access in a smaller carrying arrangement.
Construction and useful capability
These bodies can help suitable freight that is awkward to pass through rear doors or needs loading from the side. The roof, end frames and any intermediate posts remain part of the construction. A body with enough internal length can still have a side opening too low or narrow for a particular piece when lifted on forks.
Loading, limitations and booking implications
Use the actual equipped vehicle’s payload. Body structure, tail lifts or carried handling equipment add mass, and smaller vehicle classes can become weight-limited quickly. Tell us about pallet weights, load orientation and any need for ground-level unloading. Side access is useful only when a suitable forklift or another agreed method exists at each end.
Configuration explained
18t and larger rigid curtainsiders.
One chassis with accessible loading bays.
Construction and useful capability
An 18t rigid or another suitable rigid arrangement can support larger consignments without the articulation of a semitrailer. It can suit multiple pallet positions and a planned multi-stop sequence. The actual wheelbase, body and equipment determine access and freight allowance; the gross-weight class is not the cargo payload.
Loading, limitations and booking implications
Curtains can expose selected bays while leaving other stock inside the body, but the remaining load must stay secure. Posts can sometimes move through an approved procedure, yet they are not all removable or interchangeable. Give long-pack dimensions, loading side and available handling height. A forklift needs enough room to withdraw the unit clear of the body.
Configuration explained
Articulated curtainsiders.
A long enclosed floor with side-loading access.
Construction and useful capability
A standard articulated curtainsider gives useful continuous space for suitable pallets, packs and industrial freight. It can be loaded from accessible side bays and usually through the rear, depending on the body. A 13.6m category is a useful starting point; clear dimensions, roof profile, door opening and rated floor duty still come from the actual trailer.
Loading, limitations and booking implications
Standard single-floor planning can include up to 26 UK or 33 Euro pallets in compatible layouts, but specialist bodies, overhang, restraint and delivery order can change that. Freight weight and axle/kingpin distribution are independent limits. A long body with no receiving machinery is not an independent unloading service.
Configuration explained
Euroliners and sliding-roof arrangements.
A frame and roof system selected for particular access.
Construction and useful capability
Euroliner commonly refers to a curtain-sided semitrailer with an internal frame and suitable side boards or beams, often with a sliding roof. The actual specification matters: the name alone does not prove every roof opens or that every support can be removed. A compatible sliding roof can provide overhead loading access through an approved procedure.
Loading, limitations and booking implications
Top loading needs a suitable crane, lift plan, clear aperture and a way to configure and restore the body safely. The side-frame and load-securing conditions remain important for the road. Current DVSA guidance places specific conditions on light positive-fit loads in Euroliners and requires extra securing for heavier or non-positive-fit loads. Do not assume the name replaces a restraint plan.
Configuration explained
Mega and low-height high-volume trailers.
More useful internal height through a matched low-floor arrangement.
Construction and useful capability
A mega layout can achieve extra internal height by using a low chassis and appropriate tractor coupling arrangement, rather than simply raising the roof. This can suit light, bulky freight where cubic space is decisive. Low tyres, fifth-wheel height, suspension and clearances form a matched system.
Loading, limitations and booking implications
The lower arrangement can alter underbody clearance, loading/dock compatibility and tractor choice. Roof lifting where fitted may temporarily assist side loading; its travel height and permitted loading position are different. Extra volume does not guarantee extra payload. Ask for the real internal and loading dimensions before selecting a high-volume option.
The practical guide
How the equipment works.
Standard curtainsider
Side curtains and the roof protect appropriate freight from weather and provide forklift access when open. The curtain is not a general substitute for load restraint. Posts, roof rails, buckles and side apertures affect loading. Check the actual clear opening for long, tall or heavy goods, and allow sufficient space beside the vehicle for the loading equipment.
EN12642XL and partial loads
XL describes the certified complete body structure and its loading conditions, not just stronger replacement curtains. Suitable positive-fit loading may allow the body to contribute to restraint. Gaps and delivery stages can remove that condition and require extra securing. Request the actual body certificate and load plan. Do not assume ordinary hanging roof straps can secure a heavy pallet.
Euroliner, tilt and sliding roof
A Euroliner or tilt can provide particular removable posts, frames or roof-opening arrangements for assessed side/top loading. Not every curtainsider has those features. Tilt does not mean a tipping bulk trailer. Confirm the opening dimensions, safe dismantling process, overhead handling and the ability to close and secure the body after loading.
Mega and low-deck high-cube trailers
A mega trailer commonly provides greater usable internal height through a lower floor and compatible low coupling/tyre arrangement. Exact figures and road height are model-specific. It is not a Megalift container side-loader. Tractor compatibility, underside clearance, dock interface and load restraint need checking. Extra volume does not create extra legal weight allowance.
Longer semi-trailers and specialist extensions
Longer semi-trailers operate under their own approved framework; an extendable open deck is another separate configuration. Neither follows simply from booking a standard 13.6 m trailer. State if your load needs extra length, turning access or a specific body feature. Availability and movement suitability must be established individually.
Weather and handling limits
Curtains can be vulnerable to damage and cutting; sensitive goods may need an enclosed body or other agreed protection. A forklift or crane is included only where booked. A side-loading vehicle may solve the door problem for a long pallet while still failing the site’s space or lifting-capacity checks.

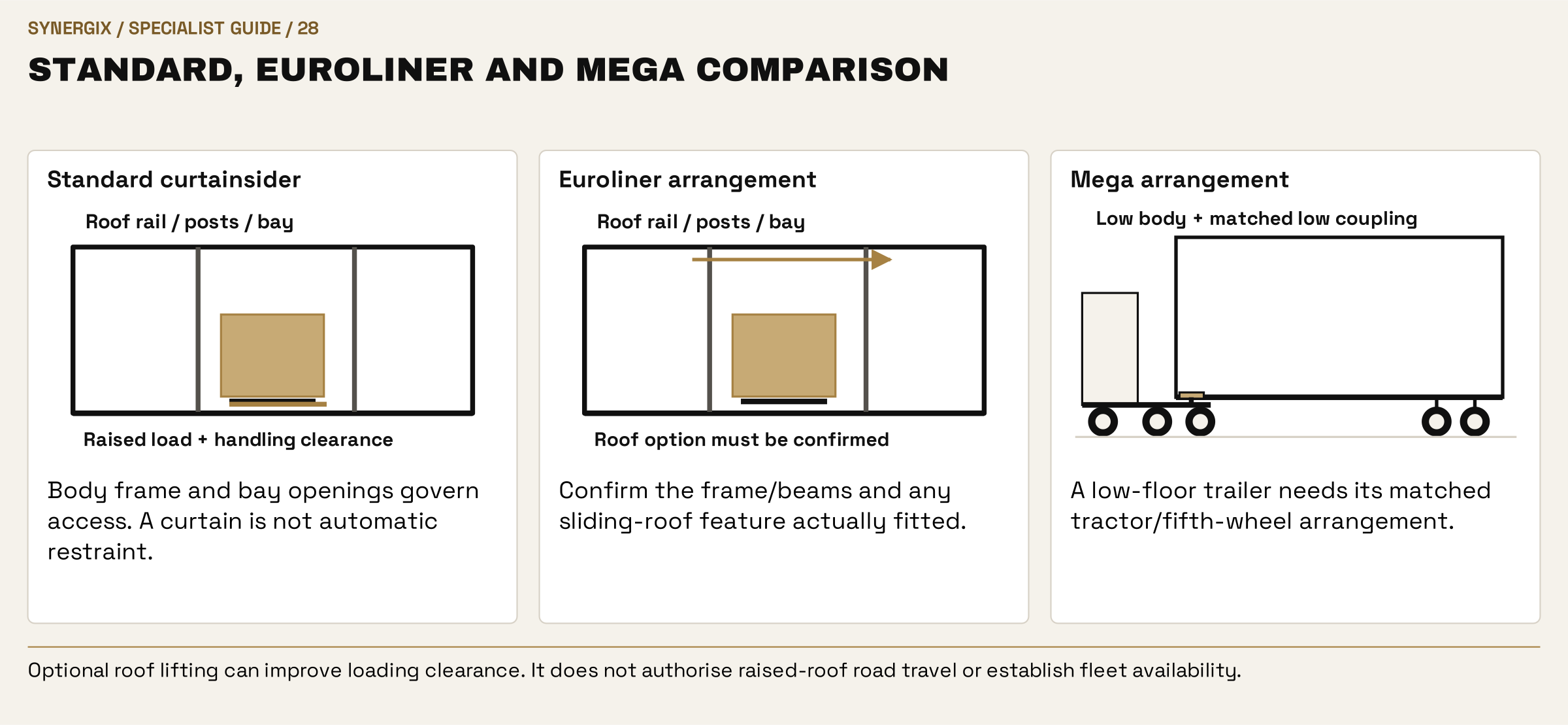

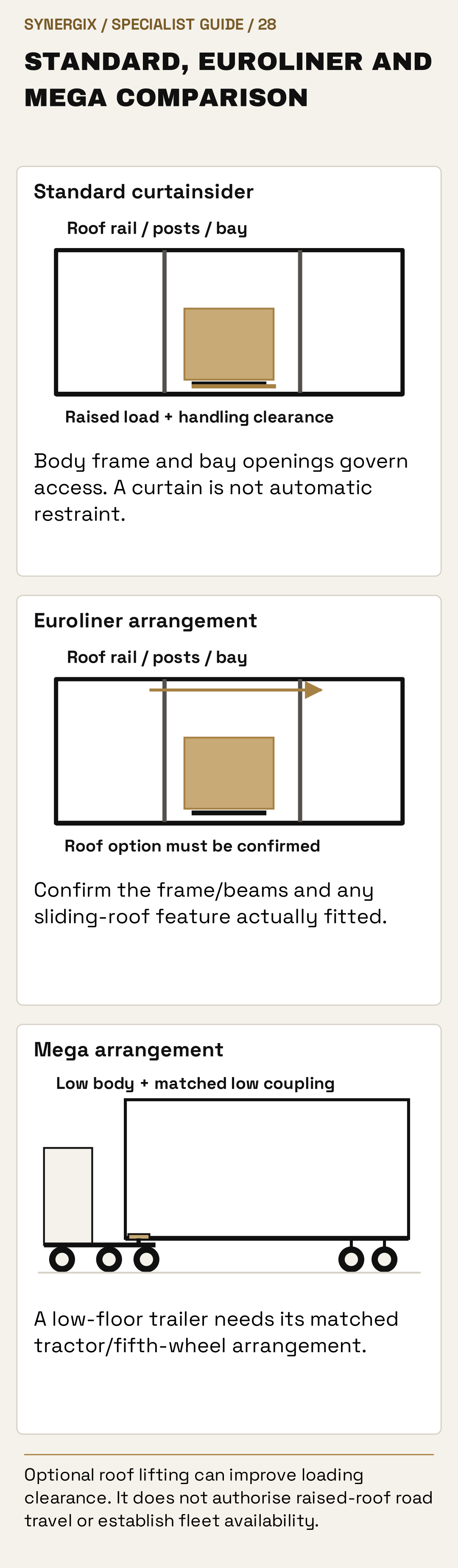

Optional roof lifting can improve loading clearance. It does not authorise raised-roof road travel or establish fleet availability.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Curtains, frames and load restraint.
Ordinary curtains are weather protection
A standard curtain and its superstructure are not a general heavy-load restraint. Current DVSA guidance limits what roof-attached systems can be credited with securing and treats heavier loads differently. Match actual rated anchorages, straps, blocking or containment to the freight. A bundle’s packaging bands and a curtain pulled tight do not establish road security.
What an XL body rating means
BS EN 12642 XL concerns the certified complete body, including its structural elements and loading conditions. Installing an XL curtain on an ordinary body does not convert the whole vehicle. Actual positive fit, gaps, unit strength, partial loads and certificate conditions decide whether containment can be relied upon. Retain appropriate extra securing where the complete conditions are not met.
Side access does not remove loading limits
The forklift must reach and support the goods at the required height and load centre. Mast, roof and bay clearance are practical constraints. Overhead loading requires a body actually designed to open that way; forcing a pack through a fixed roof is not an alternative to choosing a suitable vehicle. Long goods still need suitable support and restraint on the floor.
The practical guide
Weather, condition and distribution.
Enclosed is different from refrigerated
Curtains offer useful protection during travel but do not provide active temperature control or guaranteed humidity. Opening bays exposes goods to conditions at the site. Tell us about product sensitivity, clean handling, odours and packaging. A refrigerated body or solid-sided box may be the better choice for some loads even where a curtainsider can carry the mass.
Maintain the complete body
Check fabric, straps and buckles, end tensioners, runners, roof rails, posts, doors and load-bearing floors through the equipment programme. A damaged certified body may no longer perform as intended. Roof mechanisms need their own manufacturer maintenance and safe-use controls. Roadworthiness and body condition must both be addressed.
Load for the delivery sequence
Name each stop and its goods, available working side and receiving equipment. Removing a pallet can leave a gap or alter axle loading. Returns and empty pallets need space and restraint too. Plan these stages before dispatch rather than asking the driver to reorganise a fully loaded trailer in a public roadside space.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate opening/configuring the body, loading bays, restraint and staged unloading. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on curtains/rails/posts, certified structure where relied upon, floors and roof mechanism. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for opening/configuring the body, loading bays, restraint and staged unloading, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is body/openings, gross unit masses, restraint, stops and receiving machinery. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel and any specifically fitted lift/roof/handling system. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Box body | Where a rear-loading enclosed body suits the product and receiver. |
| Flatbed | Where roof/posts obstruct the goods and weather protection can be managed. |
| Refrigerated body | Where the goods require active temperature control. |
Put the information to work
Three practical booking examples.
A long pack loaded from the side
Check side-bay opening, posts, pack support, forklift capacity/approach and the unloading side. Internal body volume alone cannot establish fit.
A tall light consignment
Compare an appropriate mega layout with a standard body. Confirm internal height, door/side clearance, tractor compatibility and the route, rather than assuming a raised roof gives road clearance.
Crane loading through the roof
Request an actual sliding/opening-roof body and agree configuration, lift and reinstatement. A standard curtainsider does not automatically provide top access.
Terminology in plain English
Useful equipment terms.
- Side aperture
- The clear loading opening between relevant body structures.
- Euroliner
- A term commonly used for a framed curtainside arrangement, often with roof options requiring verification.
- Mega
- A matched low-height/high-volume tractor and trailer arrangement.
- XL body
- A complete certified structure, not merely an XL-labelled curtain.
- Positive fit
- The specified close-loading arrangement used for suitable body containment.
- Roof lifting
- An installed loading-clearance feature, different from a permanent increased travel height.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Curtainsiders, Euroliners and mega trailers FAQs
Your questions answered.
What is a curtainsider lorry?
A roofed freight body with opening flexible sides. It provides side-loading access and weather protection, with actual structure and restraint depending on the body.
Is every curtainsider a Euroliner?
No. Terms vary, but the internal frame, beams and roof features need identifying. Describe the access required rather than relying only on a name.
Can all curtainsiders be crane loaded from above?
No. The actual roof must be designed and configured for top loading, with a suitable lifting plan.
Do curtains secure pallets?
Not automatically. Ordinary curtains are not general load restraint. An actual XL body/load arrangement may contribute under its conditions.
What does mega mean?
A high-volume low-height arrangement using compatible trailer and tractor geometry. Obtain actual internal dimensions and road/access limits.
How many pallets fit an artic?
A suitable standard single deck can plan up to 26 UK or 33 Euro pallets. Actual footprint, equipment, weight, restraint and delivery sequence govern the job.
Can it unload without a forklift?
Only with an appropriate agreed method, such as a suitable tail lift, carried forklift or crane-equipped arrangement. A standard curtain body does not unload itself.
What affects price?
Vehicle/body, quantity and mass, access, loading method, full mileage, stops, handling, waiting and timing.
Before you book
Tell us what needs moving.
You do not need to identify every equipment model before contacting us. Start with body/openings, gross unit masses, restraint, stops and receiving machinery.
Describe the goods
Product/type, quantity, packed dimensions, verified gross unit weights or density/volume as relevant, support/handling points, condition, value and any hazards, hygiene or temperature instructions.
Show both sites
Postcodes, approach, restrictions, measured openings, ground, working space, loading/discharge equipment, receiving position, contacts and useful photographs or drawings.
Define the work
Date/time windows, stops, loading/unloading roles, equipment operation, placement or transfer, parked periods, returns, cleaning and required documents. Include any installation or indoor handling as a separate requested scope.
Agree the arrangement
The team confirms the appropriate equipment, availability, scope, price and conditions. A vehicle illustration or LoadCheck calculation is planning help, not a reservation or approval for specialist handling.
