Bulk tipper vehicles and trailers.
A tipping body uses gravity to discharge an accepted loose load. Match body material, volume, density and discharge method to the goods, then plan the ground, raised-body envelope and receiving operation.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Material | Identity, density, moisture, temperature and hazards | Waste, food/feed, hot or contaminated loads need separate acceptance. |
| Body | Usable volume, construction, wear protection and rear opening | Volume is different from mass allowance and permitted material. |
| Hydraulics | Actual tractor/trailer interface and tipping equipment | Towing compatibility does not establish operating compatibility. |
| Tipping site | Sound level support, raised height, edges and discharge space | The travelling outline is much smaller than the working envelope. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

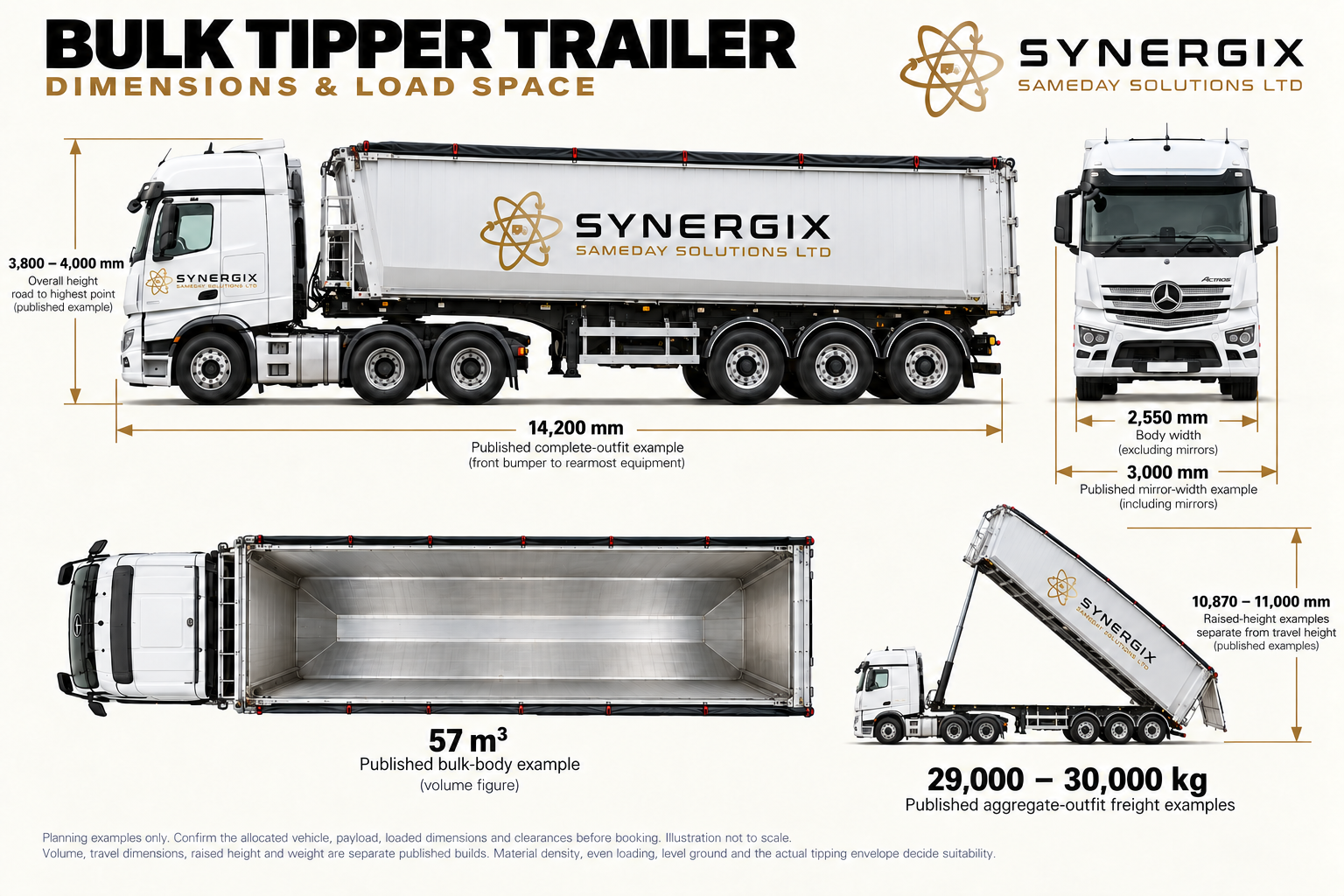

Bulk tipper
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
Complete-outfit example 14,200 mm; travelling height 3,800–4,000 mm; body width 2,550 mm, mirrors about 3,000 mm. Selected bulk body 57 m³. Raised-height examples 10,870–11,000 mm. Freight examples 29,000–30,000 kg.
Volume and complete-outfit data are different examples. Raised height is not a site clearance approval. No pallet count.
Published example sources:
Configuration explained
Rigid tipping bodies.
One vehicle for appropriate bulk access and quantity.
Construction and useful capability
A rigid tipper keeps the cab and body on one chassis. It may suit an assessed delivery where the quantity fits and a larger combination would complicate access. The actual body construction, axle layout, tipping mechanism and turning behaviour determine suitability. A rigid can still impose substantial ground pressure and needs a suitable level tipping location.
Loading, limitations and booking implications
Tell us whether the material is free-flowing, wet, sticky, abrasive, hot or liable to contaminate the body. These factors change the acceptable equipment and discharge plan. A standard body image does not establish an insulated asphalt specification, food/feed suitability or waste acceptance. Product and site information are needed before the vehicle is selected.
Configuration explained
Articulated bulk tipper trailers.
A larger bulk body with a separate tractor and hydraulic supply.
Construction and useful capability
A tipping semitrailer can provide useful volume and freight allowance for a suitable bulk movement. Its body material and reinforcement follow the product duty. Tall-volume bodies suit some light materials; a dense aggregate may reach legal mass with only part of the body filled. The hydraulic ram, pivots, chassis and rear discharge system operate together.
Loading, limitations and booking implications
The complete combination must be appropriately aligned and supported through the approved tipping procedure. The tractor’s wet kit must match the installation. Access, tipping surface, edges, overhead hazards and the receiver’s material-handling capacity decide whether the site can accept the load. A large body cannot compensate for an unsuitable discharge position.
Configuration explained
High-volume, heavy-duty and alloy options.
The body is selected for the material, not just appearance.
Construction and useful capability
A high-sided body can help with lower-density goods; abrasion-resistant construction can help with particular harder materials. Alloy can reduce unladen mass in an appropriate design, while heavy-duty steel or protection can suit another duty. These are engineering choices, not proof that one material is always stronger, cleaner or more economical.
Loading, limitations and booking implications
A rounded U-shaped alloy tipper is a separate catalogue option with its own guide and product assessment. The basic gravity-discharge principles are shared, but body geometry, wear, capacity and permitted products differ. Supply material specification and load history requirements so the body is chosen for real service rather than a generic cubic-volume claim.
The practical guide
How the equipment works.
What a bulk tipper can carry
Suitable loose aggregate, soil, agricultural material, biomass, scrap or other bulk goods can be carried in an appropriately specified body. Material type determines required structure, wear protection, cleanliness, cover and discharge arrangement. A tipper configured for sharp scrap is not interchangeable with a light grain body. Acceptance of waste or hazardous material needs a separate check.
Maximum payload versus body volume
Subtract the actual ready-to-load tare from the relevant permitted mass, then check axle and body limits. Dense aggregate can reach the weight limit with plenty of body volume left. A high-sided body full of wet material can overload the vehicle. State product density and actual tonnes, not only the number of loader buckets.
Ground and tipping position
The standing/tipping area must suit the loaded vehicle and raised-body operation. Uneven ground, side slopes, soft edges, drains and trenches can undermine stability. The site needs a controlled tipping point and clear approach/reversing area. Edge protection and required setbacks depend on the site assessment. Do not assume stabilisation is solved by the truck’s tyres being on a paved surface.
Raised height and power lines
Include the full raised-body envelope, not just travel height. Buildings, overhead conveyors, trees and power lines can prevent tipping. Electrical danger must be resolved through the appropriate assessed arrangements. A vehicle that can enter a shed can still be unable to discharge inside it. Consider another compatible discharge method where the raised body cannot be accommodated.
Load sticking and instability
Wet, frozen, cohesive or unevenly distributed material can stay high in the body during tipping, increasing risk. The body and discharge method must suit the product. The operator follows the manufacturer’s controlled system for any failure to discharge; driving, jerking or improvising a release is not an acceptable customer instruction.
Rear gate, discharge and sheeting
Tailgate type, opening, locks and clearance must suit the material. The roof cover may need a particular position during discharge to avoid damage or a vacuum, depending on the equipment. For road travel, containment must prevent escape. Do not rely on material settling after departure or use a net where a suitable sheet is needed.
Waste, product history and cleaning
Declare waste status, contamination and any hazardous classification. The movement may need appropriate carrier registration, records and receiving-site acceptance. Food or feed work needs its applicable hygiene system and restrictions on earlier loads. A visually clean body does not prove it is acceptable for every agricultural or food ingredient.
Receiving and price arrangements
Give the agreed tip point, available hours, weighbridge arrangements, unloading method and permitted time on site. Waiting for a loader or a blocked receiving hopper affects working time. Road mileage is only one part of the price; tipping-system compatibility, body suitability, cleaning and a lawful route also matter.
The practical guide
Loading and material behaviour.

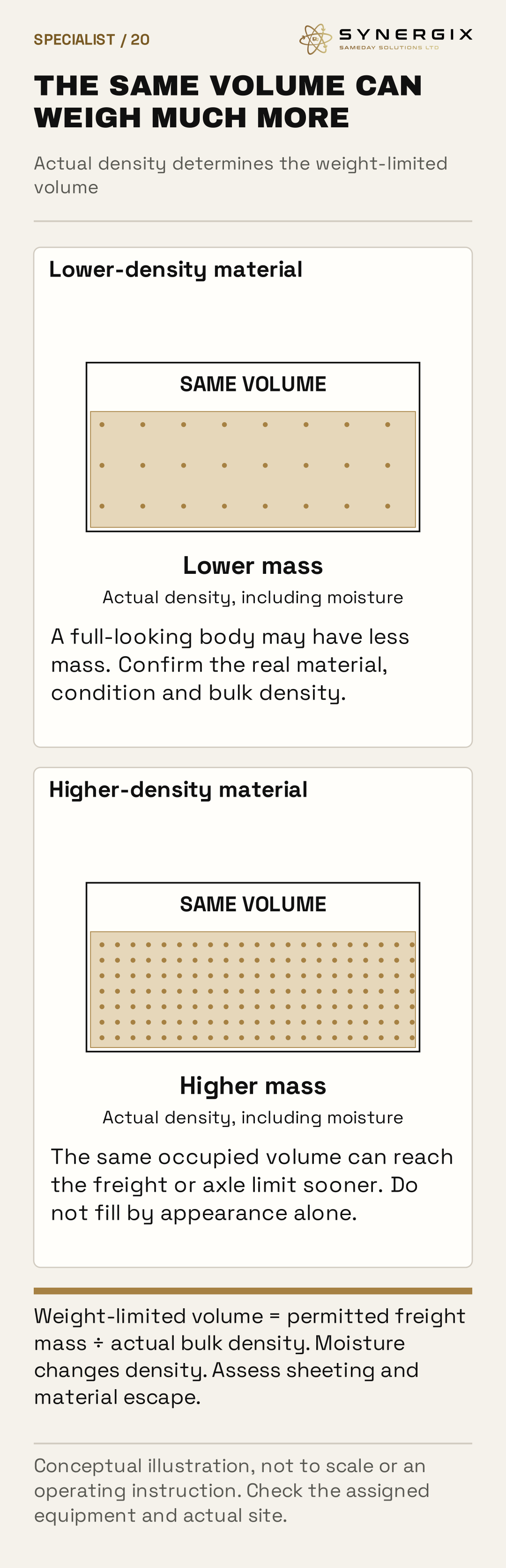

Use density to prevent overloading
The weight-limited material volume is available freight kilograms divided by actual bulk density. In an illustration, 25,000 kg at 1,600 kg/m³ gives about 15.6m³. Wetness and compaction can change the result. Body volume and a loader-bucket count alone are not a weighing method. Loading must also maintain appropriate axle and kingpin distribution.
A free-flowing description needs evidence
Wet, frozen, compacted or adhesive material can remain attached as the body rises, shifting the centre of gravity and upsetting a planned discharge. Temperature and residues can affect sticking and body damage. Declare those properties so the operator can select a suitable body and approved response. Do not plan for shaking, jerking or driving with a raised body to free a stuck load.
Covering and containment
The load must not escape by blowing, bouncing or spilling during travel. An appropriate sheet or other containment method depends on the product, loading level and risk assessment. A net suitable for a coarse below-side load is not automatically suitable for fine material or a load above the sides. Mechanical covers can reduce work at height, but their own condition and operation matter.
The practical guide
The tipping site decides whether the job works.
Stable support throughout discharge
The raised load has a higher centre of gravity. Uneven support, crossfall, settlement or asymmetric sticking can cause instability. The tipping area needs assessed capacity and level conditions, with edge protection and separation appropriate to the location. An apparently firm surface may conceal drains, voids or a weak edge. Provide the actual discharge-point details before dispatch.
Full height and overhead services
Allow for the body’s full approved movement and any roof, doors or equipment, plus overhead lines and structures. The operator needs site-specific controls, not a customer’s guessed generic clearance from a power line. Indoors, height and ventilation are separate checks. If the receiver cannot accommodate tipping, assess another discharge system rather than shortening the description of the hazard.
Control people and material
The receiver must provide an authorised position and manage pedestrians, plant and other traffic. Doors and discharged material create crush, impact and engulfment risks. Adequate lighting and a clear communication method matter. The driver and site controller need to agree the operation before tipping rather than treating an instruction to drop it anywhere as sufficient.
The practical guide
Condition, servicing and acceptance.
Mechanical and hydraulic condition
The body, subframe, pivots, ram and mounts, hoses, controls, tailgate/latches and cover need appropriate pre-use checks and manufacturer maintenance. Wear or damage at a hinge or support is not addressed merely by topping up oil. Hydraulic leakage, defective locks and structural problems require competent assessment and repair.
Keep road and work-equipment records separate
Roadworthiness inspections cover the trailer and tractor as road assets. Tipping equipment also needs suitable maintenance and safe-use arrangements under the applicable work-equipment duties. The need for any specialist examination follows the actual function and system; do not claim every tipper is subject to one universal lifting-equipment interval.
Accepted product and previous loads
State the commodity, contamination, waste status and any hygiene or previous-load restrictions. Food/feed or waste approvals cannot be inferred from a clean-looking body or a competitor’s credentials. A change of product can change required cleaning, documents, body specification and acceptance. Agree wash and disposal responsibilities before booking.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate weighing, sheeting, tipping-site preparation, discharge and cleaning. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.

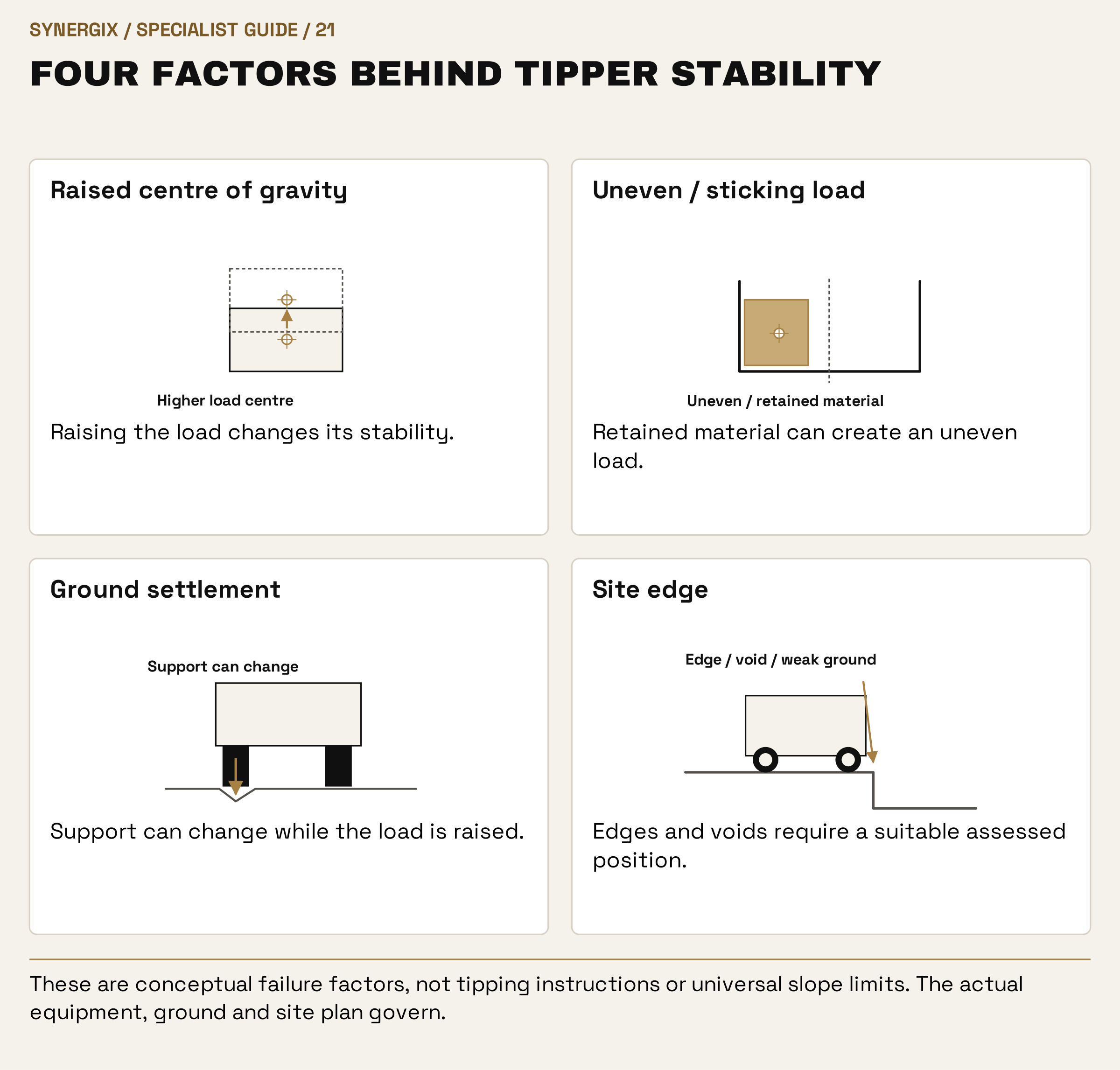

These are conceptual failure factors, not tipping instructions or universal slope limits. The actual equipment, ground and site plan govern.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on body/ram/pivots, tailgate/cover, hydraulics and suitable ground/overhead space. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for weighing, sheeting, tipping-site preparation, discharge and cleaning, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is commodity, density/mass, body duty, hydraulic interface and tipping location. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel plus tipping hydraulics and any powered cover. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Alloy U-shaped tipper | Where the specific product, wear duty and mass benefit fit. |
| Moving floor | For compatible material needing horizontal discharge at a suitable receiver. |
| Powder tanker | Where a compatible closed transfer into a silo is required. |
Put the information to work
Three practical booking examples.
Dense wet aggregate
Obtain actual density or verified mass, assess the body/material duty and weigh/distribute appropriately. A partly filled trailer can still reach its freight limit.
Light bulky stock
Volume may decide the body before mass. Confirm cover and escape prevention, material behaviour and the receiving operation.
A low shed with a stockpile inside
Check the full raised-body envelope and ventilation. A horizontal-discharge moving floor may merit assessment if tipping cannot be accommodated.
Terminology in plain English
Useful equipment terms.
- Tipping ram
- The hydraulic lifting mechanism moving the body through its permitted travel.
- Bulk density
- Mass per volume, affected by moisture and compaction.
- Ullage/free space
- Space above the load; it does not on its own prove legal mass or containment.
- Crossfall
- Side-to-side slope, relevant to tipping stability.
- Tailgate
- The rear closure and discharge arrangement with its own locks and duty.
- Wet kit
- The actual hydraulic supply matched to the trailer’s system.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Bulk tipper vehicles and trailers FAQs
Your questions answered.
How many tonnes can a bulk tipper carry?
Use the actual ready-to-load outfit, plated/axle limits, body duty and product. Body volume alone cannot provide a payload.
Can a tipper carry any bulk material?
No. Abrasion, impact, temperature, contamination, density and product/waste requirements determine acceptance and equipment.
Can it tip on a slope?
Tipping needs an assessed suitable level and stable working position. Crossfall or settlement can create serious instability.
What if the load sticks?
Use the operator’s approved response. Declare sticky, wet, frozen or compacted material before booking; do not improvise shaking or movement with the body raised.
Does the tractor need a wet kit?
The actual tipping power system must be supplied and compatible. A coupling alone does not run the body.
Is alloy always better than steel?
No. Compare ready-to-work mass, wear/impact duty, product compatibility, structure and service life for the actual material.
Can you carry waste or animal feed?
Declare the specific product and required approvals/documents for acceptance. The equipment guide does not establish every waste or hygiene capability.
What affects price?
Product, mass/volume, body, full mileage, loading/tipping time, site conditions, cleaning, documents and scheduling.
