Box vehicles and box trailers.
Solid sides and a roof provide useful enclosure, but the doors, floor, restraint and receiving method still decide what works. Compare Luton, rigid and articulated bodies with their equipped alternatives.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Body | Actual clear internal length, width and height | Wheel housings, fittings, roof profile and equipment can reduce useful space. |
| Entry | Rear-door opening, sill, dock and handling clearance | An item fitting inside may still be unable to pass through the doorway. |
| Floor | Permitted point/wheel loads and cargo support | Overall freight allowance does not establish forklift-entry approval. |
| Receiving | Dock, forklift, tail lift or another agreed method | A solid body does not provide independent unloading by itself. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

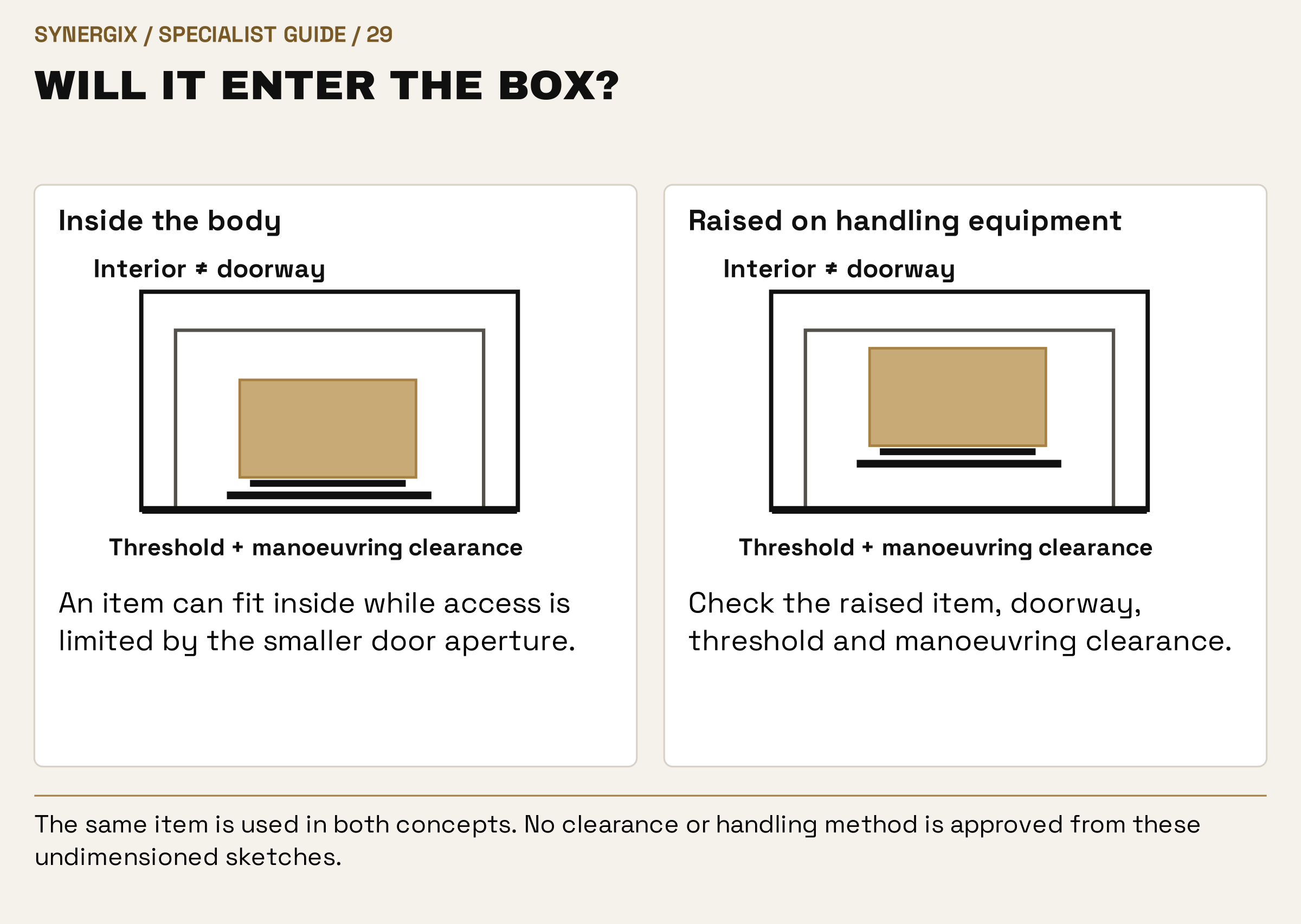

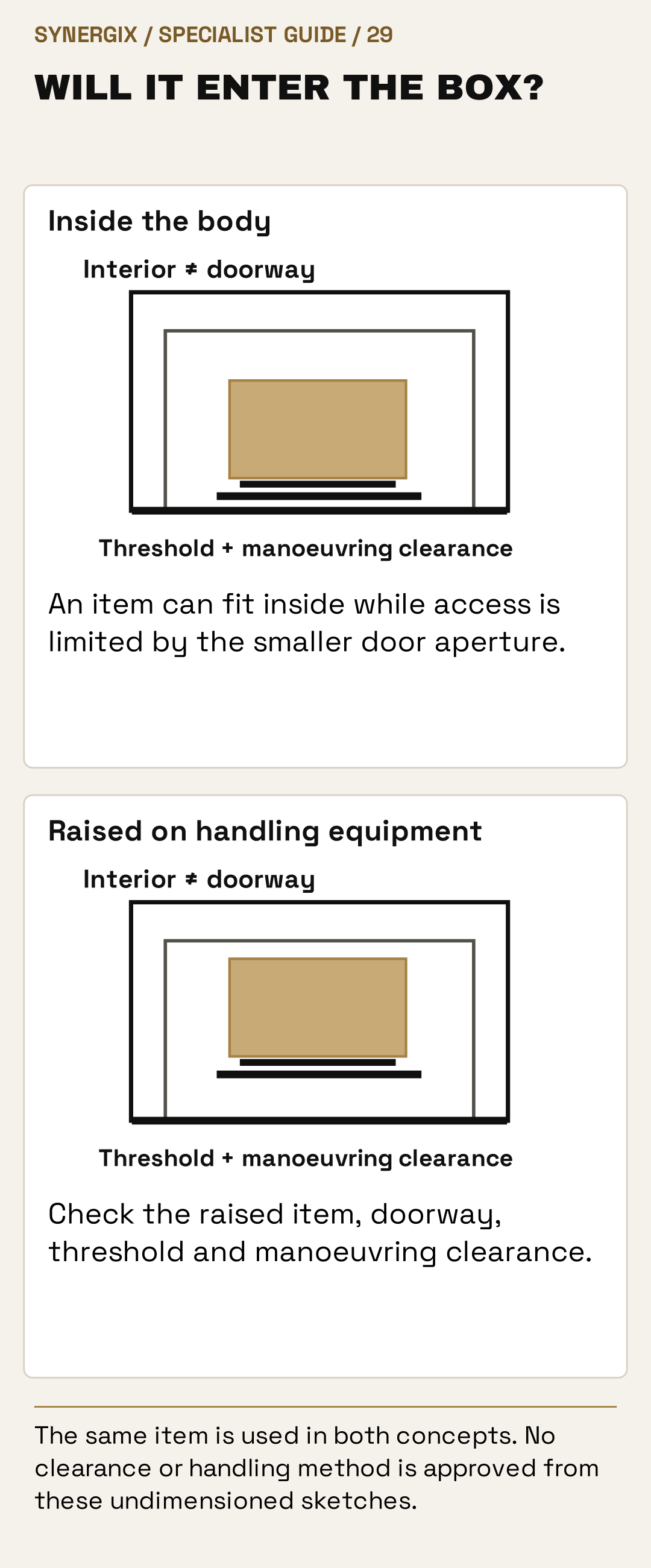

The same item is used in both concepts. No clearance or handling method is approved from these undimensioned sketches.
Open full-size desktop diagram · Open full-size mobile diagramConfiguration explained
Luton box vans.
Enclosed space for suitable smaller bulky consignments.
Construction and useful capability
A Luton body provides a distinct box behind the cab and can offer useful rectangular space for packaged goods. Any over-cab area has its own shape and permitted use. The actual body, payload, doors and equipment determine suitability, rather than the visual size of the box. Tail-lift mass and handling equipment can consume a substantial part of a light vehicle’s road allowance.
Loading, limitations and booking implications
This can suit appropriate furniture, retail stock, cases and other freight that benefits from enclosure. Confirm packaged dimensions and loading orientation through the rear aperture. A bulky item may fit the floor but exceed doorway height or be impossible to turn. Indoor carrying, assembly and unpacking are separate handling requirements to agree.
Configuration explained
7.5t, 18t and larger rigid box bodies.
One enclosed body on the same chassis as the cab.
Construction and useful capability
A rigid gives a single body with its own access and manoeuvring requirements. It can support suitable pallets, cages, cases and industrial goods where rear loading works. Different gross-weight classes have different freight allowances, and the supplied body can vary in length, door design, floor height and fitted equipment.
Loading, limitations and booking implications
A dock or suitably rated loading equipment must reach the goods. A tail lift may help a suitable ground-level receiving operation, but requires its own platform, mass and ground-route checks. Moving from a Luton to an HGV box can solve carrying space without solving the handling of one unusually long or heavy unit.
Configuration explained
Articulated box trailers.
A long solid-sided freight body for compatible rear loading.
Construction and useful capability
A box semitrailer can provide a long single loading floor, weather enclosure and useful concealment for suitable packaged freight. Rear-door loading is the usual starting assumption unless a different approved opening is specified. Loading order therefore matters where the receiver must reach goods through the same end.
Loading, limitations and booking implications
The floor and complete trailer support arrangement must suit any entering forklift or powered truck. A dock leveller must match the height, opening and intended wheel loads. When a trailer is left uncoupled, approved support and restraint are essential. The combination’s route, axle/kingpin loads and rear access determine the useful plan, rather than cubic volume alone.
Configuration explained
Tail-lift, double-deck and refrigerated alternatives.
Extra systems change both capability and limits.
Construction and useful capability
A tail lift changes the loading interface. A double deck creates structural upper space for suitable goods. Refrigeration adds temperature-maintenance equipment and a product-specific operating plan. These features should be explicitly requested because a normal box photograph does not establish their presence.
Loading, limitations and booking implications
The systems add mass, possible obstructions and condition/maintenance requirements. A double deck can increase useful floor area without doubling legal payload. A refrigerated body still needs freight restraint, and a lift needs the complete platform load and ground-route assessment. Select the equipment around the outcome required at collection and delivery.
The practical guide
How the equipment works.
Dry box and retail work
A box can suit rear-loaded pallets, cages, parcels and packaged stock. The body can offer useful enclosure, but locks, seals, parking arrangements and any high-value requirements need agreeing. A dry box has no assured chilled or frozen set point. Specific side doors, hanging rails or other internal fittings must be requested rather than assumed.
Docks, floors and forklift entry
Check floor height, rear opening, dock leveller, floor wheel-load rating and support/restraint of the trailer. Prevent unintended vehicle movement through the agreed site system. An ordinary rear-only box can be unsuitable for a long item that cannot manoeuvre through the doors, even when its cubic volume is small.
Load bars and cages
Use the body’s rated restraint equipment for the actual freight, including required blocking at gaps and behind a diminishing load. Bars, tracks and fittings have their own ratings and correct positions. Cage parking brakes are not the complete road securing system. Open doors cautiously through the approved process where shifted freight is suspected.
Specialist choice rather than automatic inclusion
Double decks, refrigeration, tail lifts, demountable bodies, additional doors and powered decks are separate configurations. Describe the cargo and receiving process. A picture of an enclosed trailer does not prove it has a lift, any particular deck or an approved floor rating for your equipment.

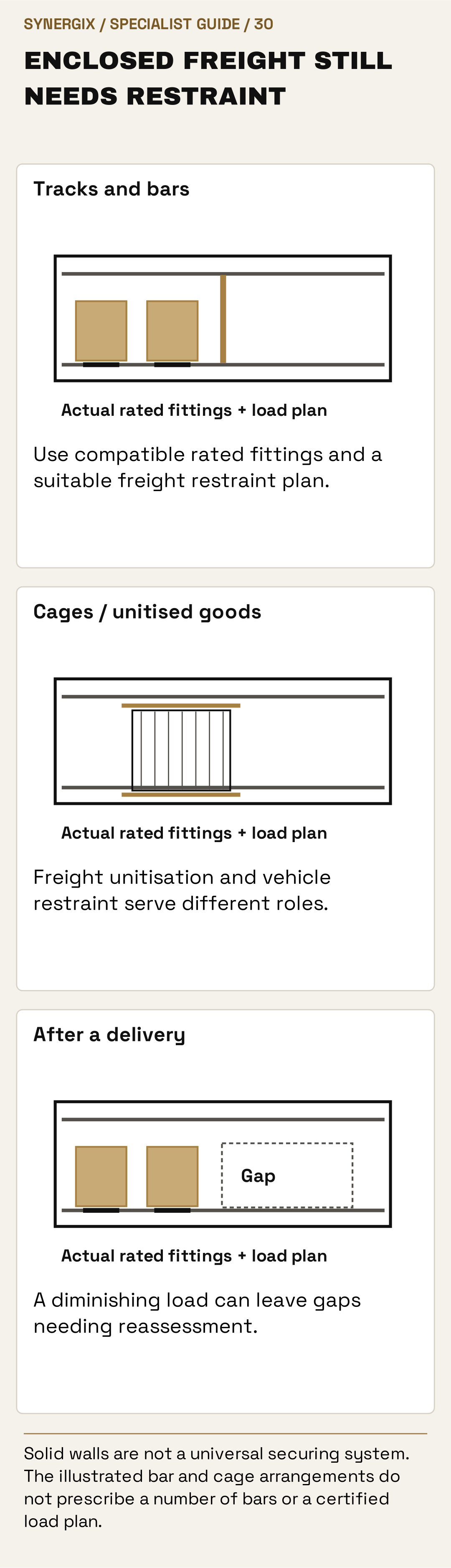

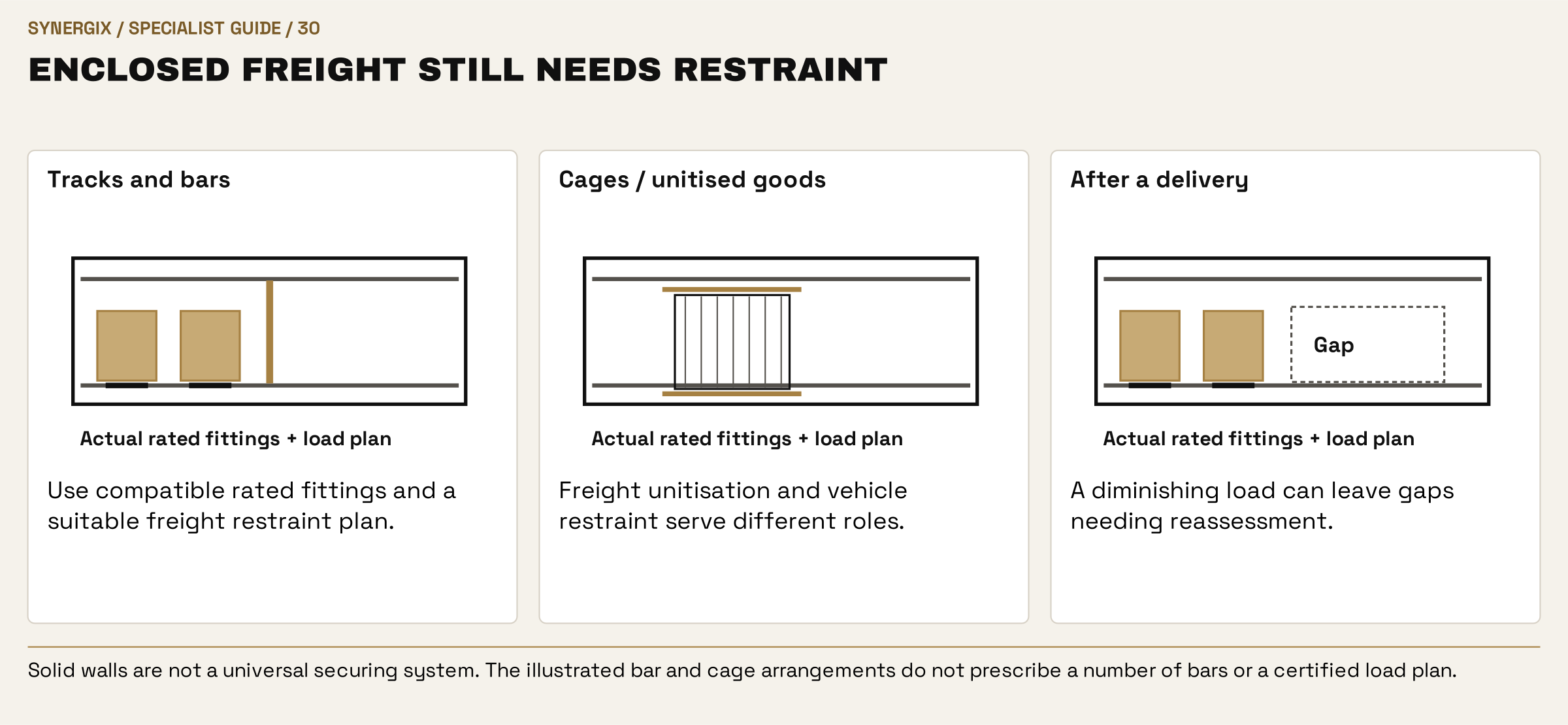

Solid walls are not a universal securing system. The illustrated bar and cage arrangements do not prescribe a number of bars or a certified load plan.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Enclosure and freight security.
Walls are part of a system
Solid sides can contribute to suitable containment, but the body and load arrangement must be adequate. Gaps, rolling cages, tall unstable units and dense freight can still need appropriate bars, blocking, straps or other restraint. Body enclosure is not permission for goods to move freely inside. Secure the load for braking and cornering as well as ordinary travel.
Load bars need rated tracks and positions
A positive-locking bar in a compatible rated track differs from a friction pole simply pressed between walls. The fittings, number, location and load must match the approved method. Do not place a restraint against a weak lining or use a damaged track because the doors will be shut. Cage wheel brakes do not form the complete road securing system.
Concealment is not a security guarantee
A box reduces public visibility of goods and can provide a defined door/seal interface. Lock specification, seal records, parking, route and handling affect actual security. Declare value and any unusual security or insurance requirement before acceptance. Do not infer a specialist security accreditation, automatic unlimited cover or a particular lock system from the body type.
The practical guide
Receiving, condition and cleanliness.
Check the doorway as well as the room
The clear rear aperture can be smaller than the interior. Pallet-truck lift, forklift mast, packaging and the manoeuvre itself use space. A long narrow item may be difficult to turn inside. A side-loading curtainsider or open deck can be more practical even when the box has enough total volume.
Floor and dock condition
The floor must sustain cargo contact and any approved handling equipment. Damaged boards, rot, holes, loose restraint tracks and poor thresholds can prevent safe use. The receiver needs a compatible leveller and effective system against unintended vehicle movement. A road annual test does not approve an arbitrary forklift entering every box.
Dry, clean and suitable for the product
Look for water ingress, damaged seals, residues, odours and contamination risk appropriate to the goods. A dry box is not active refrigeration or guaranteed humidity control. Food, chemicals, sensitive finishes and incompatible products need specific handling and acceptance arrangements. Agree cleaning evidence or previous-load restrictions before quotation.
Door and shutter mechanisms
Hinges, locks, seals, shutters, retaining catches and any lift equipment need appropriate inspection and maintenance. A failing open-door retainer or unstable shifted load can endanger the receiver when opening. If damage or load shift is suspected, use a controlled assessment and recovery plan rather than releasing doors into a live unloading area.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate door/dock preparation, rear loading sequence, restraint and any agreed lift handling. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on doors/seals, floor/tracks, restraint equipment and any lift installation. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for door/dock preparation, rear loading sequence, restraint and any agreed lift handling, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is interior and doorway fit, floor duty, freight restraint and unloading interface. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel plus any fitted lift and powered handling equipment. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Curtainsider | Where side-loading access is more useful than a rear-only body. |
| Flatbed | For appropriate open-deck support and overhead/side loading. |
| Equipped body | Request refrigeration, double deck or a suitable lift where it solves the job. |
Put the information to work
Three practical booking examples.
A crate that fits the internal height
Check its packed height through the doorway while supported by the intended machine. If it cannot enter, more internal volume will not solve the problem.
Cages delivered to a shop
Plan the road restraint, platform duty if using a lift and the complete surface/threshold route. Include return cages and the agreed handover point.
A loaded trailer left at a dock
Agree approved support and vehicle restraint, dock compatibility, security and responsibility while uncoupled, plus later collection.
Terminology in plain English
Useful equipment terms.
- Dry box
- An enclosed ordinary freight body without an automatic temperature-control duty.
- Aperture
- The usable opening, which may be smaller than the interior.
- Shoring bar
- A compatible rated restraint installed through its approved fittings and positions.
- Point load
- Concentrated weight beneath a wheel, runner or machine foot.
- Dock leveller
- The receiving interface bridging an approved height/gap arrangement.
- Unitisation
- Making goods and their pallet/carrier act as a suitable stable freight unit.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Box vehicles and box trailers FAQs
Your questions answered.
Is a box trailer refrigerated?
Not unless refrigeration is specifically fitted and suitable for the product requirement.
Can it be side loaded?
Only if the actual body has an appropriate designed opening. A normal rear-only box should be planned around its rear doors.
Does the internal height equal the door height?
Not necessarily. Obtain the clear loading aperture and allow for handling equipment and the load’s raised position.
Can a forklift go inside?
Only where the floor, support and loading arrangement are approved for the actual machine and wheel loads.
Do solid sides remove the need for restraint?
No. The actual load, gaps, body strength and rolling/tipping risks determine the complete securing method.
Is a box more secure than a curtainsider?
It provides a different enclosure and access system. The actual security plan, locks, parking and handling matter; no blanket theft-proof claim is made.
Does a box include a tail lift?
Only if requested and confirmed. The lift and handling route need their own assessment.
What should I send to book?
Goods and value, packed dimensions, gross unit weights, quantity/stackability, sites, openings/docks, handling, timings and any special protection requirements.
Before you book
Tell us what needs moving.
You do not need to identify every equipment model before contacting us. Start with interior and doorway fit, floor duty, freight restraint and unloading interface.
Describe the goods
Product/type, quantity, packed dimensions, verified gross unit weights or density/volume as relevant, support/handling points, condition, value and any hazards, hygiene or temperature instructions.
Show both sites
Postcodes, approach, restrictions, measured openings, ground, working space, loading/discharge equipment, receiving position, contacts and useful photographs or drawings.
Define the work
Date/time windows, stops, loading/unloading roles, equipment operation, placement or transfer, parked periods, returns, cleaning and required documents. Include any installation or indoor handling as a separate requested scope.
Agree the arrangement
The team confirms the appropriate equipment, availability, scope, price and conditions. A vehicle illustration or LoadCheck calculation is planning help, not a reservation or approval for specialist handling.
