Alloy U-shaped and half-pipe tippers.
A rounded alloy body is a distinct bulk transport option. Understand the benefit of lower unladen mass, the material and wear limits, and why body shape does not remove tipping-site or road-weight checks.
Body, equipment and receiving method considered together.
Understand carrying limits, loading and the complete working area.
Clear handling scope, timing and specialist availability.
The practical guide
Choose your layout.
Start with the layout and the job it needs to do.
Jump to the layout that interests you, then compare its useful capability, loading method and trade-offs. The actual vehicle and equipment are agreed for your job.
Stationary list of the layouts explained
Before choosing a vehicle
Dimensions, weight and handling.
Use these measurements to describe the requirement. They are separate limits, not interchangeable ways of approving a load. A standard body’s dimensions or payload must not be copied to a conversion without its own specification.
| Check | What to establish | Why it matters |
|---|---|---|
| Body | Actual material, usable volume, lining and discharge opening | Rounded appearance does not prove alloy, thickness or permitted product. |
| Product | Density, abrasion, impact, temperature, moisture and contamination | Match the load to the actual manufacturer-approved duty. |
| Mass | Ready-to-load outfit, axle/kingpin distribution and freight allowance | A lighter body can help; it does not create a fixed payload for all outfits. |
| Discharge | Compatible hydraulics, raised envelope and suitable tipping ground | Shape helps flow in some duties, but does not guarantee release or stability. |
For an ordinary road arrangement, permitted gross mass includes the vehicle or combination, body, people, fuel, equipment and goods. Subtract actual ready-to-load mass for a nominal freight allowance, then check axles, coupling, local floor/support loads and handling separately. Enough total payload does not prove one item can be lifted or supported.

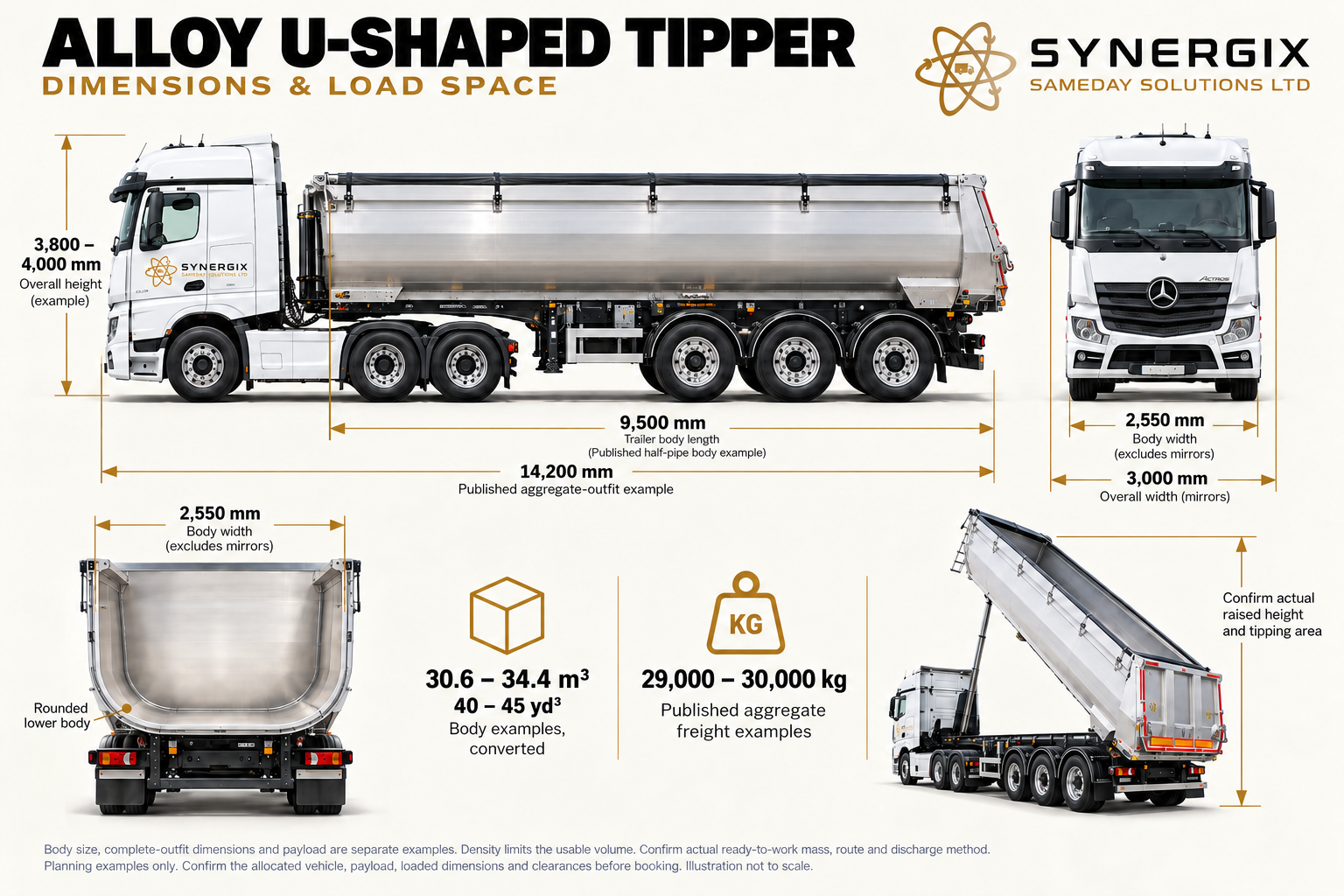

Alloy U-shaped tipper
Published planning examples. The actual vehicle, equipment, load distribution and access must be checked for your booking.
Open the full-size diagramDimensions and planning figures in text
Complete-outfit example 14,200 mm; height 3,800–4,000 mm; body width 2,550 mm, mirrors 3,000 mm. Half-pipe body 9,500 mm; 40–45 yd³ =30.6–34.4 m³. Freight examples 29,000–30,000 kg.
Body volume/length and complete-outfit/payload examples are separate builds. No pallet count; assess actual tipping area and raised height.
Published example sources:
Configuration explained
Alloy U-shaped or half-pipe bodies.
A curved cross-section in a lightweight body arrangement.
Construction and useful capability
The rounded lower body can help suitable material move towards discharge and reduce internal corners where residues collect. Aluminium alloy can offer a useful mass saving within an engineered design. Wall and floor thickness, reinforcement, chassis, tailgate and permitted material still determine the practical duty. A body made to save weight is not automatically suitable for sharp demolition waste or severe impact loading.
Loading, limitations and booking implications
The current catalogue distinguishes this alloy U-shaped option from the other bulk tipper. Select it by product compatibility and actual ready-to-work mass, rather than assuming the picture has the same volume or payload as a steel-bodied trailer. Loading method and discharge site matter just as much as the product name.
Configuration explained
Rounded steel bodies: an important comparison.
The same broad shape can serve a different material duty.
Construction and useful capability
Half-pipe describes geometry, not a guarantee of aluminium construction. Manufacturers also offer rounded steel bodies, including abrasion-resistant specifications for certain demanding materials. Thickness, steel grade, mass and application differ. A rounded steel tipper and a rounded alloy tipper can therefore look related while being chosen for different loads and service lives.
Loading, limitations and booking implications
A heavier body can be the more appropriate tool when material wear and impact would damage a lighter one. Conversely, a compatible alloy specification can improve useful freight allowance on weight-limited work. Compare whole-job suitability, downtime and maintenance rather than declaring one material universally better. Manufacturer examples are comparisons, not a commitment that every version is available.
Configuration explained
Lined, insulated and application-specific bodies.
Separate specifications that must be requested.
Construction and useful capability
Liners can change sliding, wear and residual material behaviour, but compatibility with temperature and product is specific. Insulation can support certain hot-material duties, but an ordinary sheeted alloy body is not automatically an insulated asphalt carrier. Tailgate type and controls also alter the discharge and containment arrangements.
Loading, limitations and booking implications
State the full material specification and loading temperature, any contamination or cleaning restriction, and whether a particular liner or insulated duty is required. Retrofitted equipment and body repairs need to preserve the manufacturer’s permitted use. A general catalogue image cannot establish the actual floor thickness, liner rating or operating temperature.
The practical guide
How the equipment works.
Alloy, steel and body shape
U-shaped or half-pipe describes the rounded body form; alloy describes its material. A rounded steel body and a rounded aluminium-alloy body are not the same specification. Material, thickness, lining and impact rating control suitability. Do not book sharp demolition chunks or heavy point-impact loads merely because another half-pipe vehicle carries them.
Potential benefits
A suitable lighter body can leave more weight allowance for cargo, and its shape can assist the discharge of certain bulk materials. That benefit is design-specific and still subject to gross/axle limits. The rounded section also affects usable volume and how the material lies in the body.
Material and temperature limits
Give the product’s density, maximum piece size, temperature, sharpness and expected loading impact. Hot materials, aggressive chemicals, large rocks and scrap can require another construction or protective lining. A liner can alter tare, usable volume, discharge behaviour and cleaning. Follow the actual approved body specification.
Payload and loading method
Do not assume an alloy body always carries more than every other tipper. The complete tractor/trailer tare and fitted equipment decide the actual allowance. A loader bucket can impose a damaging impact despite the final load being within payload. Agree how material will be placed and how the loading operator knows the accepted specification.
Tipping and covers
The same stability, ground, gate, raised-height and containment checks apply as to other tippers. An easy-flowing shape does not remove the danger of a wet or frozen load sticking. Compatible sheeting must close without leaving escape gaps and operate through the manufacturer’s intended process.
Cleaning and product acceptance
Previous cargo, residues, corrosion concerns and any food/feed specification need declaring. Cleaning requirements and records can affect turnaround and price. The body shape does not establish food-grade status, waste acceptance or a universal suitable cleaning method.

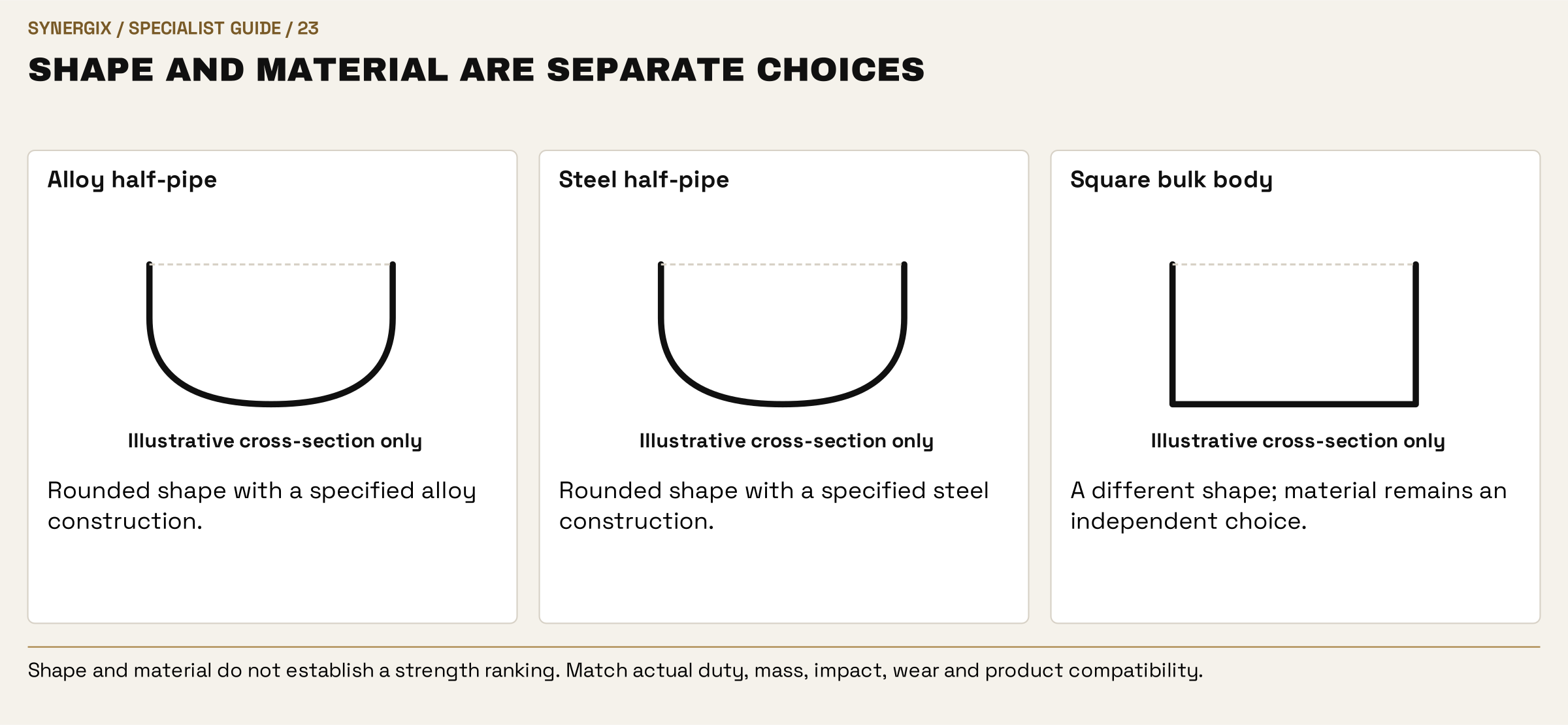

Shape and material do not establish a strength ranking. Match actual duty, mass, impact, wear and product compatibility.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
What the lightweight design can and cannot do.
A real manufacturer example
Colson’s published Superlite is an aluminium half-pipe example marketed for aggregate and sand, with a nominal 35 cubic yard body, about 26.8m³. Its published floor, sidewall and chassis specifications demonstrate that lightweight is still an engineered material-and-structure choice. This is a manufacturer example, not the model, dimensions, volume or payload promised for a Synergix booking.
Mass saved is only one part of payload
If two otherwise equivalent assumed ready-to-load outfits differed by 1,000 kg, the lighter would have 1,000 kg more nominal mass allowance under the same total limit. Axle distribution, body duty, actual tare and route limits must still work. Real trailers also differ in equipment and volume, so advertised body-weight savings should not be copied directly into a freight promise.
Density still decides the fill
A relatively small volume of dense aggregate can reach the freight limit. A larger volume of light material may fill the body first. Use actual moisture/density or verified mass, then plan distribution. A lighter tipper body is not permission to fill every cubic metre with the densest commodity.

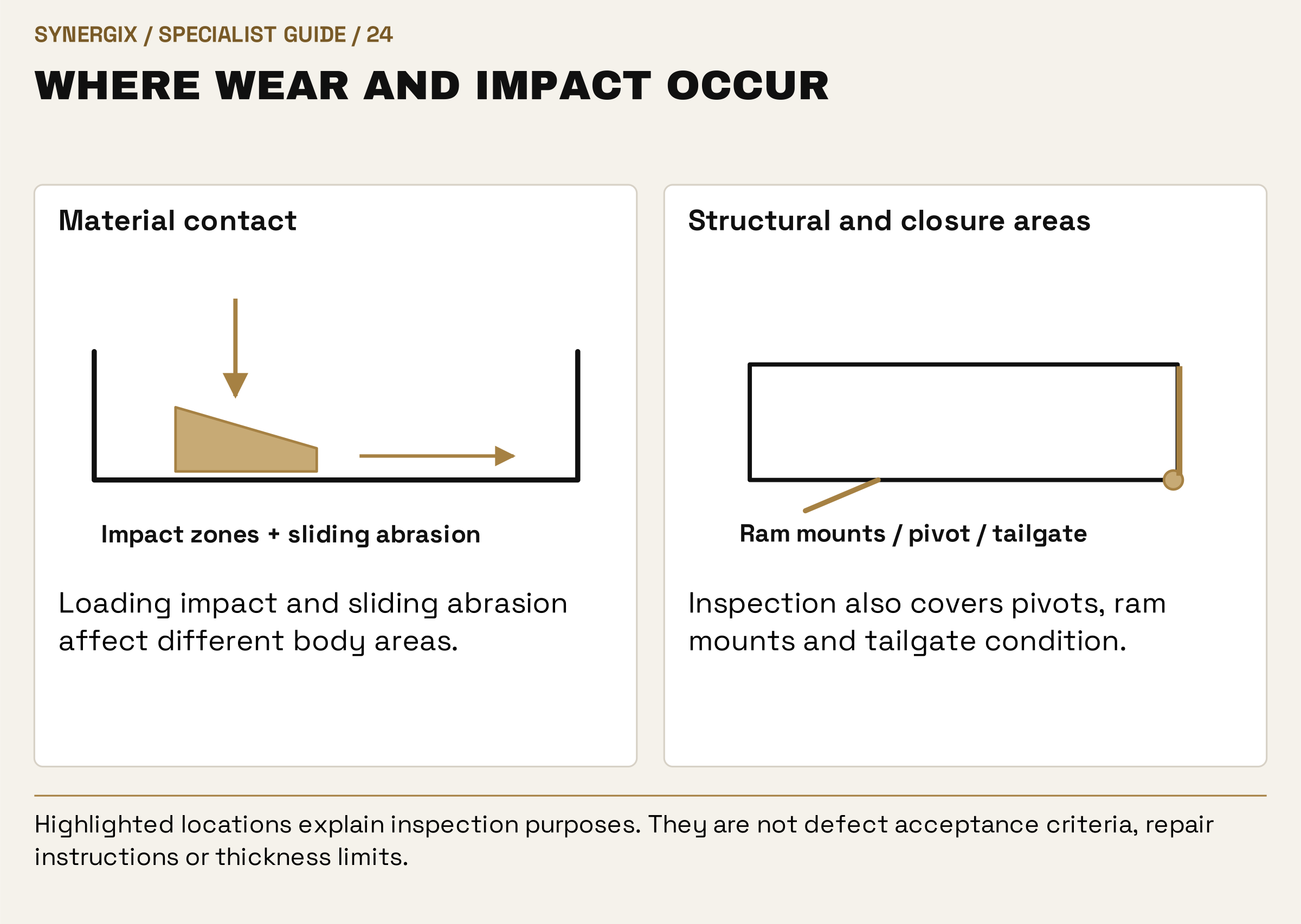

Highlighted locations explain inspection purposes. They are not defect acceptance criteria, repair instructions or thickness limits.
Open full-size desktop diagram · Open full-size mobile diagramThe practical guide
Wear, discharge and service life.
Abrasion and loading impact are different
Material sliding during repeated discharge wears the floor and sides. A loader dropping hard pieces can create impact damage. The body specification must address both where relevant, including the loading method and drop height. A smooth rounded profile does not make either effect disappear. Tell us about stone size, sharpness and any metal or debris mixed with the load.
Body shape does not prevent a stuck load
Moisture, freezing, adhesion and compaction can hold material in a rounded body. Uneven release can change stability as the body rises. Use the approved operating response and a suitable discharge site; do not plan to shake or jerk a stuck load free. If the product regularly bridges or sticks, assess the appropriate body and discharge system before booking.
Condition checks need to see the body
Floor thinning, cracked welds, distortion, damaged pivots, ram mounts, tailgate locks and cover gear can affect the job. Repairs to alloy structure need appropriate competence and materials. A road test certificate does not establish remaining body wear allowance or product suitability. Maintenance should reflect actual product and loading cycles as well as the running gear.
Cleanliness and residues
A smooth internal profile can aid cleaning, but it does not certify hygiene or make incompatible previous loads acceptable. Food/feed restrictions, contamination and waste status must be declared. Cleaning evidence and any disposal of residues are agreed for the job rather than assumed from a bright alloy appearance.
The practical guide
The complete approach and working area.
The gate is only one part of access
Use the actual loaded vehicle dimensions and assess the approach, bends, mirrors, rear swing, gradients and departure. A route that admits the cab may still be unsuitable for the trailer or its load. Height includes the body, supports and cargo, not just the nominal vehicle category. Where required, the in-cab height indication must represent the actual overall height.
Space to complete the operation
The site must accommodate product loading, sheeting, tipping, residue management and wear-related checks. Add working space to the parked outline, with suitable ground and separation from people and traffic. Overhead lines, canopies, drains, buried services and weak edges may be relevant. Photographs help identify obstacles, but cannot certify hidden ground strength or approve a machine’s duty.
Permissions and receiving authority
Give timed-access rules, parking/road occupation constraints, site inductions, authorised contacts and the actual receiving point. An except-for-access exemption does not suspend a weak-bridge or physical height restriction. For unusual mass, width, length or projections, the operator establishes the appropriate road framework and any surveys, notices or other arrangements. GB, Northern Ireland and international movements can have different requirements.
The practical guide
Condition, records and responsibility.
Condition on the day
For this family, focus on alloy structure/welds, wear, ram/pivots, tailgate, cover and hydraulics. Pre-use checks and defect reporting remain essential alongside scheduled maintenance. A current annual test or an equipment sticker cannot approve a newly damaged component. Stop using defective equipment and have it assessed through the appropriate competent process.
Servicing, tests and examinations are different
The road vehicle/trailer needs its roadworthiness programme. Specialist mechanisms need manufacturer-based maintenance suited to age, duty, environment and condition. Where lifting or pressure equipment falls within a statutory inspection or examination regime, its reports and defect actions have their own purpose. Do not replace all of these with one claim that the vehicle is serviced annually.
Agree the roles
The consignor supplies accurate goods, weights, dimensions and handling information. The carrier and driver retain their own road and equipment responsibilities. The receiver provides the agreed access, receiving arrangement and authority. Identify who loads, operates machinery, provides documents and receives the goods. Ownership or hire of equipment does not remove the duties of those using or controlling it.
The practical guide
Driver hours and a realistic schedule.
Driving is only part of the job
Allow for product loading, sheeting, tipping, residue management and wear-related checks, as well as travel, queues and departure. Loading, equipment operation and checks are normally work, not a driving break simply because the vehicle is stationary. Waiting has to be classified under the applicable conditions; unknown waiting with continuing duties is not automatically rest.
The usual in-scope HGV limits
For a normal in-scope operation, the assimilated rules generally allow nine hours of daily driving, extendable to ten twice a week, with 56 hours in a week and 90 across two consecutive weeks. After 4½ hours of driving, a qualifying 45-minute break is required, which can normally split as 15 then 30 minutes. Rest, working time, the actual regime and any valid exceptions also need consideration. These limits are not an arrival-time calculator.
Working time, rest and overnight work
Mobile-worker rules generally limit working time to a 48-hour weekly average and 60 hours in an individual week, with separate break and night-work provisions. Previous duties can reduce what the assigned driver can do on your job. A long movement can require suitable overnight parking, sleeper/hotel arrangements, relief or a multi-day plan. A specialist day cab does not automatically provide sleeper accommodation.
Routes and vehicle scope matter
The actual vehicle, activity and route determine the applicable rules. Since 1 July 2026, relevant UK/EU international light-goods movements over 2.5t can fall within expanded hours/tachograph scope; that is not a blanket statement about every domestic van. International requirements, borders, site hours and ferry timings belong in the schedule.
The practical guide
What the quotation needs to cover.
Quote the whole movement
The useful starting specification is material/temperature, actual body construction, mass, wear duty and discharge site. The price covers the suitable vehicle/equipment, competent people, full route, agreed handling, availability and time. It is not simply a loaded-mile fuel calculation. Tell us about urgency, exact slots, extra stops, waiting, returns and work beyond the vehicle.
Positioning and onward mileage
The vehicle may need to travel to collection, reposition, return equipment, use a wash or move to another agreed handover. Empty mileage still uses time and energy. Uncoupled hire, delayed release or a second visit can create additional work. Agree these elements in the quotation, including what happens if the site or goods are not ready.
Good preparation helps value
Accurate dimensions and weights, clear access, prepared receiving equipment and a ready contact reduce the risk of a failed visit. Appropriate specialist equipment can cost more per mile while completing the actual job more effectively. The cheapest vehicle description is not a useful comparison if it excludes the handling you need.
The practical guide
Fuel, auxiliary power and emissions.
Count the actual energy sources
The energy plan includes road travel plus tipping hydraulics and cover operation. Load, equipment mass, road speed, gradients, traffic, stops and weather all affect consumption. Published economy for another body or a lightly loaded vehicle is not a reliable specialist-job MPG. Use measured data or clearly declared assumptions for an estimate.
Avoid double counting
If fuel is measured for the complete movement, do not add the same engine-driven PTO consumption again. A separate refrigeration engine, compressor, generator or metered supply may need its own entry. Include positioning and the agreed return scope. Distinguish an energy estimate from an actual vehicle record and avoid claiming a single consumption figure for the whole equipment family.
Electric feasibility is a duty decision
Electric road vehicles or auxiliaries can suit appropriate known routes with compatible power, range, charging and reserve. Their suitability depends on the load, deadline, auxiliary demand and reliable supply; availability is confirmed separately. Electric standby on a trailer is different from an electric tractor and does not make the entire movement electric.
Use a consistent reporting boundary
CO₂ measures carbon dioxide; CO₂e includes other greenhouse gases on an equivalent basis. Compare like-for-like combustion and upstream fuel, or electricity generation/supply, as applicable. A whole-life comparison also needs manufacture, batteries/equipment, maintenance and end of life. No exhaust at the vehicle is not the same as no lifecycle impact. A calculated footprint needs its date, factors and assumptions.
Choose the equipment for the outcome
Compare the adjacent choices.
| Alternative | Reason to assess it |
|---|---|
| Heavy-duty steel body | Where product impact/abrasion demands that particular specification. |
| Other bulk body | Where volume, product or discharge needs favour a different arrangement. |
| Moving floor | For compatible material and horizontal unloading, subject to its own floor duty. |
Put the information to work
Three practical booking examples.
A compatible aggregate movement
Compare the real body specification, density/mass, wear duty, loading method and tipping site. Confirm the actual freight allowance after tractor and equipment are included.
Sharp demolition material
Do not book by half-pipe shape alone. Assess whether a suitable heavy-duty body or another arrangement is required, including classification and acceptance.
Hot material
Give the actual product and temperature, required insulation/liner and discharge specification. An ordinary alloy body is not evidence of hot-material capability.
Terminology in plain English
Useful equipment terms.
- Half-pipe
- A rounded body cross-section, not a material specification.
- Alloy body
- An engineered aluminium-alloy structure whose grade, thickness and duty matter.
- Tare
- Unladen equipment mass, which must be defined consistently in a payload calculation.
- Abrasion
- Wear from material rubbing or sliding against the body.
- Impact duty
- Demand caused by material striking the body during loading or use.
- Liner
- A specified internal protection/sliding system with its own compatibility and temperature limits.
Why Synergix
Confidence in the whole delivery.
Practical transport experience
Three generations of family transport experience support useful decisions about the load, site and receiving operation. We bring those details together before agreeing the movement.
Direct delivery and wider capability
Dedicated direct delivery and UK/European capability help connect collection with the required handover. Specialist equipment, route, timing and availability are confirmed for the actual job.
Tracking and proof of delivery
Live tracking and delivery evidence help you follow progress and establish receipt. Any specialist temperature, cleaning or equipment record needs to be requested in the required format before booking.
Insured transport and active support
Insured transport and active operational support provide reassurance through the movement. Declare goods, value and unusual handling so applicable cover and terms can be confirmed. No unlimited cover or automatic acceptance is implied.
Specialist equipment availability and mobilisation are confirmed for the job. Synergix’s separate 60-minute UK courier collection proposition is not a universal guarantee for these specialist vehicles.
Alloy U-shaped and half-pipe tippers FAQs
Your questions answered.
Does half-pipe always mean aluminium?
No. It describes a rounded body shape; steel and alloy versions exist with different duties.
Why choose alloy?
An appropriate alloy design can reduce equipment mass and help freight allowance. Product compatibility, wear, impact and service needs still decide suitability.
Does the rounded body guarantee unloading?
No. Wet, frozen, sticky or compacted material can still behave unpredictably and require an approved response.
Can it carry sharp scrap?
Only an actual body and accepted product arrangement suited to that duty. Do not infer approval from the tipper name or shape.
Is it insulated for asphalt?
Not automatically. Hot-material and insulated specifications must be requested and verified.
How much can it carry?
Use the actual ready-to-load tractor/trailer, plates, axles, body and product. No universal alloy-tipper payload is supplied by this guide.
Does it have the same site needs as other tippers?
It still needs a suitable assessed tipping position, sound level support, overhead clearance and controlled discharge area.
What do you need for a quote?
Product, density or verified mass, volume, condition/temperature, locations, loading and tipping method, timing, documents and cleaning requirements.
