Heavy loads with fewer pallets

5 TONNE VAN
DELIVERY SERVICE

Get a 5-tonne quote Call 01782 911 181

Urgent & planned business transportActual vehicle checked before bookingUK & European enquiries

Gross vehicle category5,000 kgVehicle, people, fuel and freight

Selected upper freightUp to 2,200 kgBody and equipment affect capacity

Best fitHeavy, fewer palletsHandling and access checked

Operating frameworkTruck-style rulesDriver time and tachograph scope

The conversion decides the capacity

5-tonne van body types

Start with the body and loading method. A 5-tonne chassis does not identify its cargo dimensions or freight allowance.

Box / Luton body

A fixed box body protects suitable goods from normal weather exposure and gives a more regular loading shape than a panel van. The over-cab section on a Luton does not automatically provide a suitable place for dense pallets or heavy machinery.

Rear-door opening, floor support, body length and tie-down equipment vary. Third-party bodywork can consume a substantial part of the gross-weight allowance.

Curtainside body

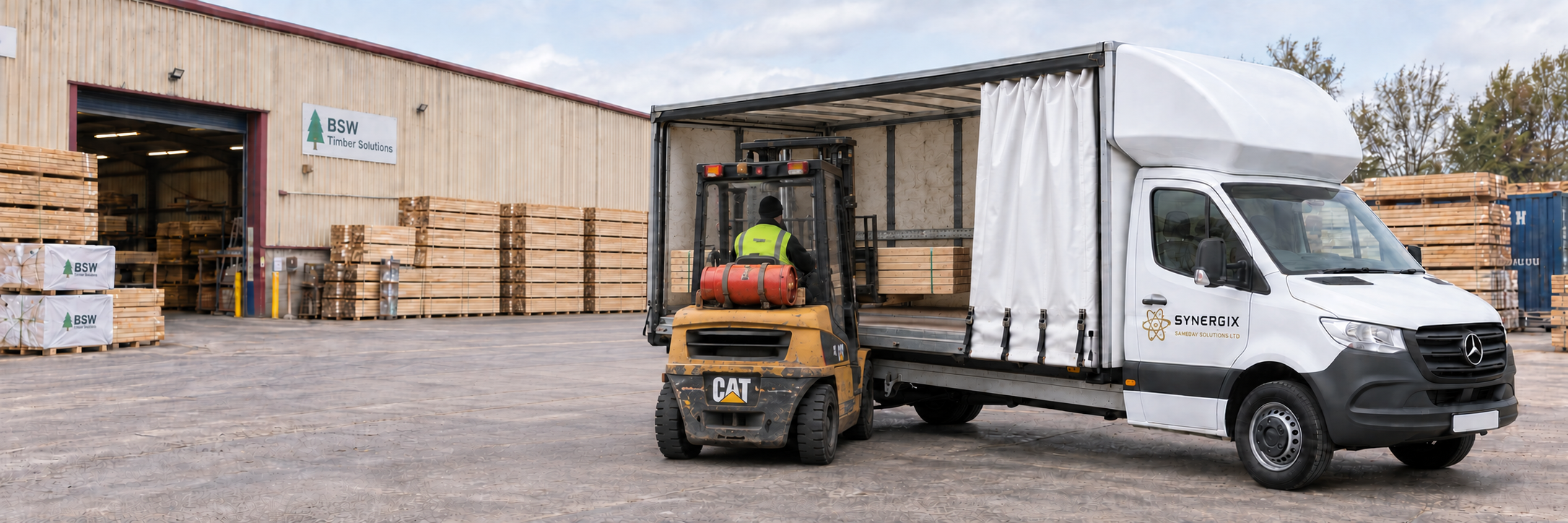

Opening the side can allow suitable forklift loading where rear-door access is unsuitable, including certain long pallets. The actual clear opening, side posts, roof rail, floor and unloading facilities still matter.

A curtain does not automatically act as load restraint or security equivalent to a rigid wall. Confirm an appropriate securing system and a workable side-access position at both ends.

Refrigerated / temperature-controlled

If your goods need a controlled temperature, give the set point, loading condition, route, time, products and any recording requirement. A suitable refrigerated option is subject to the particular job and availability.

Insulation, cooling equipment and auxiliary energy change internal space and useful payload. Do not apply the standard box or the selected 2,200 kg upper capability automatically to a refrigerated conversion.

Tail lift as an equipment option

A suitable tail lift can make ground-level pallet handover possible without a forklift at the receiver. It is an equipment choice, not proof that every five-tonner has one or that it can lift the vehicle’s entire freight capacity.

Specify the individual loaded pallet weight, footprint, centre of gravity and handling equipment. Confirm the actual platform, rated load at that load centre, access and surface.

Confirm the completed body

5-tonne dimensions and weight

The size of the finished vehicle is set by its chassis and conversion. Use these approximate references as enquiry context, not a promised universal body.

Body references and the checks needed
Feature	Starting information
Gross vehicle mass category	5,000 kg, not 5,000 kg of freight
Selected freight capability	Up to 2,200 kg where the actual body and equipment allow
Freight reference range	Approximately 1,500–2,200 kg across differing specifications
Internal-size examples	About 5.0–5.5 m long × 2.2 m wide × 2.2 m high
Pallet layout examples	6–8 UK / 8–10 Euro in some suitable bodies; not a guarantee
Rear and side apertures	Confirm actual clear openings for the chosen body
Tail-lift freight allowance	Confirm fitted lift, equipment and ready-to-work mass
External access	Confirm actual height, width including mirrors, length and turning space

Check the actual clearances

Internal length at the height of the goods.
Width between arches or other obstructions.
Usable height and any roof taper.
Rear and side door apertures.
Loaded pallet footprint, including overhang.
Outside dimensions for the receiving site.

Packed dimensions and working clearance matter more than a model badge. Send the measurements and photographs so we can assess the actual vehicle.

Bodies can vary considerably.

A five-tonner can be a van-based chassis cab with a box, curtainside or another agreed body. Many are completed by specialist bodybuilders. Wheelbase, rear overhang, body materials, roof height and fitted equipment affect the dimensions and empty weight.

Some body examples are around 5.0–5.5 × 2.2 × 2.2 m. These are not a measured fleet average or a guaranteed loading envelope. A compact body selected for a heavy two-pallet job may be different. Ask for the specification allocated to your booking.

Rear openings are smaller than body space.

Door frames, shutters, lift arrangements and the sill can reduce the loading aperture. A 2.2 m internal height does not prove a 2.2 m tall crate can enter. A long pallet can fit on the floor but fail the rear loading method.

Check the packed measurements, manoeuvring route and securing clearance. Where side forklift loading is needed, the curtain opening and site position must be suitable.

Outside dimensions decide bay access.

Broad external examples of roughly 6–7.5 m length, 2.5 m width and 3.0–3.5 m height do not certify clearance. They do not identify roof kit or say whether mirrors are included.

Use the actual completed vehicle height, width including mirrors, length, overhang and turning needs for a loading bay, covered entrance, ramp, bridge or residential access.

A useful step between Luton and rigid truck

What a five-tonner is for

A 5-tonne vehicle can suit freight that is too heavy for a 3.5-tonne Luton but does not need the floor space of a larger rigid.

Synergix assesses five-tonners for high-weight, low-pallet-count work. The aim is to carry a compact heavy shipment in a suitable body without selecting a much larger vehicle simply because the smaller Luton has run out of payload. The result depends on the actual capacity, handling, vehicle position and quote.

The “5 tonnes” is the maximum authorised mass of the complete loaded vehicle. It is not freight capacity. Selected suitable vehicles may offer up to 2,200 kg for the consignment, but heavier bodies, lifts, refrigeration, crew and equipment can reduce that allowance. The 1,500–2,200 kg reference illustrates variation, not a guaranteed minimum.

The advantages

A suitable body can combine more freight capacity than a conventional 3.5-tonne Luton with a potentially smaller footprint than a 7.5-tonne rigid. That can help with dense palletised goods, compact machinery, heavier shop stock and certain urban deliveries.

With an appropriate lift and pallet truck, ground-level handover may be possible where the receiver has no forklift. The individual load must still suit the lift and surface.

The trade-offs

This category normally brings the operating framework of a goods vehicle over 3.5 tonnes, including relevant driver entitlement, tachograph and drivers-hours arrangements. It should not be booked on the assumption that it runs like an unregulated large car.

Specialist availability can be thinner than for common van categories, and approach miles can affect the price. A 7.5-tonne vehicle can sometimes provide a better overall plan even where the freight would theoretically fit a five-tonner.

Twin rear wheels are not two rear axles.

Many heavier van chassis use two tyres on each side of one rear axle. That is a twin-wheel rear axle. It is different from a vehicle with two separate rear axles. The actual chassis, axle arrangement and plated limits must be checked; wheel count is not a way to establish payload.

Some vehicles are factory-built for higher gross weights and others have appropriately approved specifications or uprating. A larger box, stronger tyre or extra spring on its own does not authorise operation at five tonnes. The legal plate and approval of the completed vehicle matter.

Weight first, then the complete job

5-tonne delivery uses

Heavy freight with a modest floor footprint is the strongest reason to consider this category.

Heavy drinks and retail stock

A few pallets of bottled drinks, cases or other dense retail stock can exceed a smaller Luton’s allowance. A suitable five-tonner may carry them in one journey if its payload, axle limits and unloading equipment fit.

Give the gross weight of each pallet, delivery bay restrictions, receiver staffing and any excise or temperature requirements. A large overall payload does not prove a heavy pallet can be lowered by the lift.

Engineering equipment and machinery

Compact machines, tools, fixtures or components can be heavy despite a small pallet count. Describe feet, point loads, oil, sharp edges, centre of gravity and the required loading method.

An appropriately rated lift may suit some items; others need a forklift or crane at the site. A five-tonne label does not establish crane capacity, machine restraint or floor strength.

Building supplies and dense materials

Bricks, bagged goods, fixings and other suitable materials can use the payload efficiently. Provide verified loaded weights and the site conditions. Dense freight placed at the rear can exceed an axle limit before the total weight reaches five tonnes.

If the receiver has no suitable loading area, a different specialist vehicle may be required. A tail lift is not a solution for soft ground, deep gravel or an obstructed offload route.

Furniture, events and regular routes

Heavier equipment or retail fixtures can justify the higher capacity, while bulky light furniture may be better in a different body. Longer routes and repeat work can involve packaging returns, timed bays or two-person handling.

State the whole service, including agreed final positioning. Vehicle capacity does not automatically include assembly, stairs, room-of-choice delivery or refrigeration for events.

Illustration: two heavy pallets without a forklift

Two loaded pallets of 900 kg each total 1,800 kg. A suitable five-tonner with enough actual freight capacity may be assessed, but each pallet still needs a lift rated for its weight at its actual load centre, plus appropriate powered handling and a safe surface. A nominal 750 kg lift would fail the task even though the vehicle can carry the total.

The example explains the checks; it is not evidence that a particular lift or vehicle is available. If the required unloading cannot be provided, we assess another arrangement before confirming the job.

One size down and one size up

Luton vs 5t vs 7.5t

Choose the vehicle that solves the weight, space, handling and access problem without unnecessary extra capacity.

Synergix guide comparison, with actual specifications confirmed
Decision	3.5t Luton	5t van / Luton	7.5t rigid
Freight guide	1,100 kg standard / 900 kg with tail lift	Selected suitable vehicles up to 2,200 kg	2,400 kg company planning guide
Size reference	400 × 200 × 200 cm planning space	Body-specific; legacy examples around 5–5.5 × 2.2 × 2.2 m	600 × 240 × 200 cm planning space
Pallet context	Up to 6 suitable UK pallets	Confirm actual layout; useful for heavier low-count jobs	Up to 10 suitable UK pallets
Best reason	Suitable lighter load and agreed ground-level handling	More freight mass without necessarily needing large rigid space	More floor space, body options or the better available complete plan
Operating framework	Ordinary domestic van context; exceptions apply	Normally >3.5t goods-vehicle rules	Normally >3.5t goods-vehicle rules
Main warning	A heavy load can exceed its allowance	Selected maximum does not guarantee every body or lift	Extra size can fail a restricted site or add needless cost

Choose the complete transport planVehicle categories are starting points. Actual freight, body, lift and site checks decide the booking.

Do not move up only because a van looks small.

A 1,600 kg two-pallet shipment may need more payload than a 3.5-tonne Luton, but it does not automatically need ten pallet positions. A suitable five-tonner can be worth assessing. Its actual lift and delivery surface must also fit.

Conversely, a larger floor plan, unsuitable five-tonne availability or a particular handling requirement can make a 7.5-tonner the sensible choice.

Do not move down only because the pallet count is low.

One very heavy or long pallet can need a larger truck, a different body or specialist handling. The smallest vehicle that carries the total weight is not useful if it cannot load, unload or legally reach the site.

Read the Luton van guide and 7.5-tonne truck guide for the adjacent options. We compare availability, approach mileage, handling, timing and price rather than promising that one category will always be cheapest.

The mass budget of a finished vehicle

5-tonne payload explained

A larger gross rating does not make every converted body a 2,200 kg freight vehicle.

The completed vehicle must stay within its approved gross mass and each axle limit. Its chassis, cab, body, fuel, driver, additional crew, lift, pallet truck, tools, restraints and consignment all contribute. Freight capacity is the remainder after the vehicle is ready for the assignment, subject to the other limits.

Chassis-cab manufacturer payload can describe capacity before a separate body is installed. A headline chassis figure cannot be presented as the freight allowance of the finished box. The actual completed specification and any published weight convention must be checked.

Illustrative 5,000 kg gross-weight budget
Example	Freight room before axle and other checks
Ready-to-work vehicle weighs 2,800 kg	5,000 − 2,800 = 2,200 kg
Ready-to-work vehicle weighs 3,100 kg	5,000 − 3,100 = 1,900 kg
Ready-to-work vehicle weighs 3,500 kg	5,000 − 3,500 = 1,500 kg
An extra 100 kg of equipment or crew is added	Remaining freight room reduces by 100 kg, unless already counted
Actual vehicle differs	Use its legal plate, completed mass and axle weights

These are hypothetical mass budgets, not measured weights for the vehicles available today. They explain why the 1,500–2,200 kg range and the selected upper capability are not contradictory. Do not deduct a driver or fuel again if already included in the ready-to-work mass.

Tail lifts reduce carrying capacity.

A fitted tail lift contributes to the empty vehicle mass, and can alter the axle distribution as well as the remaining gross allowance. Its model, mountings and the body design determine the actual effect. A pallet truck also has its own travelling weight.

There is no universal 100 kg or 150 kg deduction for every five-tonner. Confirm the freight capacity with the equipment actually fitted. The 900 kg guide for a 3.5-tonne tail-lift Luton must not be treated as the rule for a five-tonner.

Axles and point loads can be the limiting factor.

Dense freight near the rear can exceed the rear axle allowance. A long body or lift can add leverage behind that axle. A large total mass allowance does not prove that all freight can sit anywhere on the floor.

Check individual axle weights, legal limits, load positions, floor construction and suitable restraints. A weighbridge can verify total and axle mass. A schematic is not proof of a legal load distribution.

Three parts of a 5t freight calculationGross remainder is only one check. Each axle, tyre, floor and restraint arrangement must also be suitable.

The freight upper limit is conditional.

Up to 2,200 kg is for selected suitable vehicles. If the assigned configuration has less capacity, that lower limit applies. It cannot be increased by driving more slowly or describing the same weight as fewer pallets.

If the shipment is close to the allowance, supply verified gross weights. An approximate product-only figure is not enough to assess a heavy delivery reliably.

Low count can still be high weight

Pallets, floor layout and long goods

Pallet capacity is a floor-space description. It cannot replace payload or handling checks.

Some bodies may accommodate six to eight UK pallets or eight to ten Euro pallets. Those examples depend on actual internal dimensions, orientation and obstructions. They must not be combined with the highest 2,200 kg freight figure as a guaranteed load. This category is often useful precisely because the pallet count is modest but the total mass is high.

A common UK pallet base is 120 × 100 cm; a Euro pallet is 120 × 80 cm. The loaded goods can overhang either base. Include wrapped width, depth, total height, gross weight and whether the product may be stacked. Door apertures and side access must work with the final loaded shape.

Illustrative pallet-weight arithmetic
Load	Total freight
2 loaded pallets at 900 kg each	1,800 kg
3 loaded pallets at 700 kg each	2,100 kg
6 loaded pallets at 400 kg each	2,400 kg, above this page’s selected upper freight capability
8 loaded pallets at 250 kg each	2,000 kg, but actual floor fit and handling still need checking

One pallet can decide the lift.

The heaviest individual loaded pallet needs to fit the actual platform and its rated load-centre capacity. Other freight remaining inside the body does not share the lifting allowance. The pallet truck, and any permitted operator or equipment on the platform, also contribute to the lifted mass.

Total vehicle payload and individual lift capacity are separate calculations. Send each loaded pallet’s weight rather than only the total shipment.

A three-metre pallet needs a different check.

A 3 m long pallet may fit a body floor but fail a normal rear doorway or tail-lift platform. The load centre can fall beyond the rated position, and the pallet can overhang or lack support. A pallet truck cannot make an unsupported platform longer.

For a suitable long item, curtainside forklift loading may be a better approach if the side opening, support and equipment work at both ends. It is not a universal solution; some goods require a larger vehicle or specialist handling.

Plan multi-drop freight and return packaging.

Goods for an early stop must be reachable without unsafe moving of heavy pallets. When a load is removed, the remaining mass distribution and restraint still have to be suitable. Empty pallets, cages or packing collected later occupy space and have weight.

State the order of stops, return items and any permitted stacking. The usable body rectangle does not establish a safe packing plan for mixed freight.

Freight capacity is not lifting capacity

Tail lifts and pallet trucks

An appropriately equipped five-tonner can offer ground-level handover, but the platform, load centre and surface have to suit the actual pallet.

Check the actual lift plate and instructions.

Column, tuckaway and cantilever lifts are equipment designs, not fixed capacity classes. No single kilogram rating applies universally to each design. Models and their capacity at different load centres vary.

Confirm platform length and width, loading direction, usable support, wheel or roll stops, maintenance status and the permitted handling method. The vehicle must be parked and prepared according to its equipment instructions.

Count everything carried by the platform.

The pallet includes its goods and packaging. Add the pallet truck and any other mass that is permitted to travel on the platform. Moving the load further out can reduce the allowable lift weight.

Illustration: a 900 kg pallet plus a 180 kg pallet truck is already 1,080 kg before any other permitted load. A nominal 1,000 kg platform cannot be assumed suitable, and even a higher-rated lift needs the correct load centre.

Three separate unloading checksPassing one check does not pass the others. This diagram does not specify an engineering lift rating.

Request powered handling for heavier pallets.

Where pallet-truck handling is needed for an individual loaded pallet weighing 800 kg or more, request an electric pump truck under Synergix’s booking rule. This is inclusive of 800 kg. It is not a legal weight threshold or a guarantee that a particular truck can handle the job.

Even lower weights can need powered handling because of gradient, rolling resistance, distance or the task. A manual pallet truck’s nominal rating does not prove a person can safely move that load here.

Prepare the receiving site.

Ground should be firm, suitable and clear, with enough space to deploy the lift and manoeuvre the pallet truck safely. Steep slopes, broken surfaces, kerbs, gravel, soft ground and narrow gates can prevent delivery by the planned method. People need to be kept clear of the working area.

A dock at collection does not prove ground-level unloading at delivery will work. If the equipment or access is different at either end, state it before booking. Any additional handling, crew or final positioning must be agreed.

The body must physically reach the bay

City, residential and loading-bay access

A five-tonner can be more compact than some larger trucks, but actual height, width and turning requirements decide access.

Shopping-centre and large-building bays

Many receiving sites specify a vehicle category or a maximum height, length or gross weight. Some accept a 7.5-tonner, some only a Luton-sized body, and others have particular booking restrictions. A five-tonner is not automatically accepted just because it looks similar to a Luton.

Get the site’s current limits, bay booking instructions, ramp details and unloading facilities. Compare them with the actual assigned vehicle, including mirrors and roof equipment. A body that is only slightly too tall can prevent the entire delivery.

Residential and restricted streets

Check parked cars, street width, turning space, reversing, safe stopping and the offload route to the property. A high-payload vehicle may solve freight weight while still being too large for a driveway or covered entrance.

Road restrictions can use maximum gross weight, actual weight or another description. Follow the sign and permitted exemptions. An empty five-tonner is still a five-tonne plated vehicle where the restriction is based on that maximum.

Confirm total vehicle height, including roof equipment and body fittings.
Check mirror width, gates, side clearance and usable manoeuvring space.
Check rear overhang, ramps and deployment room for a tail lift.
Provide the permitted delivery times, security procedure and named receiver.
Tell us about pedestrian areas, booking-only bays, roadworks and site inductions.
Agree a safe alternative if the site cannot accept the confirmed vehicle, rather than expecting the driver to improvise an unsafe offload.

Clean-air requirements are registration-specific.

An ordinary diesel five-tonner can face different London and local-zone requirements from a smaller van. Vehicle emissions standard, category, registration and route determine the actual result. Being a modern-looking Sprinter or a five-tonne vehicle does not establish exemption.

Check charges, permits and delivery restrictions before confirming the route. Any charge or detour can affect the quote and timing. Vehicle access is more than whether the goods fit inside the body.

The vehicle may look like a van

Drivers hours and tachographs for 5t

For normal commercial goods carriage, a vehicle over 3.5 tonnes is generally within the assimilated drivers-hours and tachograph framework, subject to specific exemptions.

The legal scope follows the approved weight and actual operation, not the cab shape or pallet count. A five-tonner with one pallet does not acquire the ordinary domestic rules of a 3.5-tonne van. Nor does calling it a van make its driver’s working day unlimited.

The operator checks the applicable framework, driver entitlement, professional requirements, operator licensing, maintenance and records. A normal diesel 5,000 kg goods vehicle needs the appropriate licence entitlement, generally C1 or C as applicable. Standard category B entitlement alone is not sufficient. Trailer combinations can require additional entitlement and checks.

Normal in-scope driving and rest, simplified
Rule	Ordinary starting position
Daily driving	9 hours, extendable to 10 on no more than two days in a week
Weekly / fortnightly driving	No more than 56 hours in a week or 90 across two consecutive weeks
Driving break	45 minutes by 4.5 hours of driving; permitted split is at least 15 then at least 30 minutes
Daily rest	Normally 11 hours; permitted reduction to 9 hours is limited and subject to the rules
Daily-rest timing	The required rest must fit within 24 hours after the end of the previous daily or weekly rest in ordinary single-manning
Weekly rest	Normally 45 hours. Permitted reduced rest has conditions and compensation; do not assume it is an everyday option
Previous work	Earlier driving and other jobs remain part of the driver’s legal and fatigue picture

The summary does not cover every multi-manning, ferry, international, exemption or exceptional circumstance. A driver cannot start a fresh allowance simply because a new customer books the vehicle. Required rest and existing hours are assessed before agreeing the transport plan.

In ordinary single-manning, reduced daily rest is limited to three occasions between weekly rests. The normal weekly-rest pattern and any reduced weekly rest have timing and compensation requirements. A reduced weekly rest is at least 24 hours where permitted; it is not a substitute for the normal 45 hours on every weekend. Regular weekly rest must not be taken in the vehicle.

Driving time and working time differ.

Loading, unloading, vehicle checks, paperwork and other duties can be work without being driving. Waiting is not automatically a break or rest. Certain periods of availability have specific conditions and must not be assumed solely because a vehicle is stationary.

Under the relevant road-transport working-time framework, the normal weekly average is 48 hours and a single week can reach 60 only while preserving that average. Break and night-work requirements also apply. A long wait can consume working capacity without consuming driving time.

Tachograph records are part of the job.

For an in-scope assignment, driving, other work, availability and breaks or rest must be recorded correctly. The required equipment and records depend on the vehicle and route, including international smart-tachograph requirements where applicable.

An urgent order, a customer’s closing time or low pallet count is not an exemption. The route may need a different start time, a planned overnight stop or another properly agreed operating arrangement.

Plan time beyond the loaded driveDriving, other work and rest have separate roles. A stationary vehicle is not automatically on a lawful break.

There is no fixed daily mileage limit.

There is no single legal mileage allowance or promised range for a working day. The workable distance depends on speed, traffic, loading, previous duty, required breaks and the full route. Plan hours, not an invented mileage allowance.

Accommodation is another practical issue. A day cab is not a suitable sleeper just because seats can recline. If the job requires overnight rest, suitable accommodation may need to be arranged and priced. Any in-vehicle rest requires the conditions to be met, including a suitable stationary sleeping facility where permitted.

Working-time breaks and night work

A mobile worker must not work more than six consecutive hours without a break. The required total is at least 30 minutes for six to nine hours of work, or 45 minutes for more than nine, with qualifying portions of at least 15 minutes. A driving break may also satisfy working-time requirements where it qualifies, but the two sets of rules must both be met.

For goods-vehicle night work, the relevant night period is normally midnight to 4 am. Where it is performed, working time is generally limited to ten hours in a 24-hour period unless a valid agreement allows a variation. The weekly average is normally assessed over 17 weeks, or up to 26 with a valid agreement. These road-transport weekly limits do not have an individual opt-out. Loading through the night cannot simply be added to a full driving day.

Speed limits and limiters affect the estimate.

For a normal goods vehicle not over 7.5 tonnes and not towing, national limits are generally 50 mph on single carriageways, 60 mph on dual carriageways and 70 mph on motorways, subject to lower limits. Built-up limits and signs differ, including Wales. A required speed limiter can prevent the vehicle reaching the posted motorway maximum.

Do not calculate a five-tonne trip by dividing its distance by car cruising speed. The exact vehicle, roads, limiter, stops and handling determine its practical schedule.

Rules were checked against official guidance in October 2026. This is a practical guide for planning a delivery, with the operator responsible for the exact vehicle and operational requirements.

Protect the load through the journey

Restraint and specialist goods

Weight capacity is only useful when the freight can be supported, secured and handled appropriately.

Secure each load for the actual body.

Suitable restraint must account for braking, cornering and normal road movement. Shrink-wrap keeps cartons together but does not automatically secure a pallet to the vehicle. Curtains generally weatherproof the opening and cannot be assumed to replace a restraint system.

Use the relevant load points, rated restraints, product protection and floor support. The driver and operator need a workable method, including safe access to fit and release the equipment.

Declare unusual goods early.

Batteries, aerosols, chemicals, fuel-containing machinery and other hazardous materials can need a specific compliant arrangement. Do not present them simply as ordinary boxes to fit a general vehicle quote.

For high-value goods, unusual machinery or temperature-sensitive freight, agree the transport terms, handling and relevant controls. A box body is not a certification of security, food compliance or temperature control.

Final delivery position is a separate requirement.

A ground-level pallet handover does not automatically include moving the goods into a shop, unpacking, carrying upstairs, installing products or collecting all packing. State the final position and equipment expected so we can check the service.

Two-person work, warehousing, cross-docking and planned returns can help solve a larger logistics task where agreed. They also change crew, equipment, timing and capacity.

The whole job, not just the loaded miles

Fuel economy and running costs

Use real route and load information. An empty-van brochure figure is not the fuel economy of a heavy delivery.

Illustrative diesel use and emissions per 100 miles
Imperial mpg	Diesel	Fuel cost at £1.60/L	Combustion kg CO₂e	Fuel + supply kg CO₂e
15 mpg	30.31 L	£48.49	78.30 kg	96.82 kg
20 mpg	22.73 L	£36.37	58.73 kg	72.61 kg
25 mpg	18.18 L	£29.09	46.98 kg	58.09 kg
30 mpg	15.15 L	£24.25	39.15 kg	48.41 kg

How lower mpg increases diesel use. Illustrative imperial mpg inputs, not manufacturer or Synergix averages. Litres for 100 miles.

15 mpg30.31 L

20 mpg22.73 L

25 mpg18.18 L

30 mpg15.15 L

Loaded use can be much worse

Published test figures help compare specific versions under a test procedure. They do not price a loaded courier job. Freight mass, hills, stop-start work, wind, speed, tyres, idling and the vehicle body affect actual consumption. A high roof or tall box adds aerodynamic demand. There is no honest fixed percentage that covers every fully loaded journey.

Reducing mpg from 30 to 20 increases diesel used per mile by 50%, because consumption is the inverse of mpg. Reducing mpg by one third therefore does not mean fuel use rises by only one third.

Price the complete vehicle movement

The vehicle has to reach collection before your goods are aboard. It may then travel between drops, return, reposition or visit a suitable fuel or charge stop. Those miles and driver time exist even when your consignment travels a short distance.

Illustration: 30 miles to collection + 100 loaded miles + 20 repositioning miles = 150 vehicle miles. At an assumed 25 mpg, that uses 27.28 litres rather than the 18.18 litres for just the loaded leg. Real outbound and empty-return rates can differ, so a proper calculation uses each leg separately.

Match the energy source to the assignment

Diesel, petrol, hybrid and electric

The goods, deadline, route and confirmed vehicle specification come first.

Diesel: flexible refuelling

Diesel can be a practical choice for an urgent heavy delivery over an uncertain distance. Refuelling is generally quick and a delivery can be planned without depending on a suitable charger being free. That flexibility matters when a job arrives late, collection overruns or a diversion adds miles.

It still creates exhaust emissions and requires maintenance, fuel and exhaust-treatment checks. A diesel vehicle is not automatically exempt from clean-air charges, and its registration must be checked for the route.

Electric: useful on suitable planned routes

Electric drive has no tailpipe CO₂ and can suit predictable urban or regional work with verified payload, usable energy and reliable charging. Quiet operation may help at delivery sites, while traffic and route conditions still matter.

A heavy load, heating, cold weather, refrigeration and motorway running can change usable range. Published range is not an allowance to arrive at a charger almost empty. Start state of charge, reserve, real route demand and the next working leg must be planned.

Urgent long-distance electric work needs a workable charging plan.

If the job needs charging that cannot fit inside its deadline, an electric vehicle is unsuitable for that booking. Charger availability, queues, access for a tall body, faults, detours and the slower part of a battery charge can turn a small timing margin into a missed delivery. We assess the whole assignment before agreeing the vehicle.

Battery size divided by an advertised peak charger output is not a guaranteed charging time. The vehicle can limit charging power, the site can share power and the charge curve changes. Actual vehicle performance and usable chargers matter more than the charger’s largest headline number.

Petrol and plug-in hybrids

Petrol and PHEV vans exist in some market segments, but that does not mean an equivalent 5-tonne Luton body and 2,200 kg freight capacity is available for this job. We do not substitute a different weight class or body just because it has a different drivetrain.

A plug-in hybrid’s benefit depends on charging and how much of the real route runs electrically. Battery-depleted petrol operation must be counted. A low weighted test fuel figure cannot be applied to 250,000 miles of predominantly uncharged motorway work.

Battery mass and freight capacity

An electric conversion or factory model can change the empty weight, gross rating and usable payload. The legally approved weight of that specific vehicle is the starting point; diesel freight figures must not be copied to an electric version.

A 4.25-tonne zero-emission van and a genuine 5-tonne vehicle are different categories. Specific GB rules for the former do not create a general exemption for a five-tonner. Any alternative is checked as its own vehicle and operation.

Check the complete electric journeyCharging is part of journey planning. A required stop must fit the agreed delivery window.

A charger stop is not automatically a driver break.

For a regulated driver, a break must be free of driving and other work. Connecting, supervising or moving a vehicle can involve duties. Charging time and a lawful break may overlap only where the actual arrangement meets the rules.

Diesel flexibility and electric energy efficiency answer different questions. We choose a workable transport plan rather than describing one power source as the answer to every job.

Transparent boundaries and assumptions

CO₂, fuel supply and 250,000 miles

Compare equivalent transport work. Keep measured figures separate from illustrative calculations.

CO₂ describes carbon dioxide. CO₂e expresses several greenhouse gases as an equivalent amount of CO₂. Exhaust emissions, energy production and total vehicle lifecycle are different boundaries. An electric vehicle has zero tailpipe CO₂, but electricity generation and vehicle manufacture can produce emissions. Diesel and petrol also have upstream fuel emissions.

The examples below use UK government 2026 reporting factors. Diesel average blend is 2.58354 kg CO₂e per litre for combustion plus 0.61101 for fuel supply. Petrol average blend is 2.075 plus 0.58094. UK electricity totals 0.18436 kg CO₂e per metered kWh across generation, transmission/distribution and upstream energy. They are reporting factors, not a measurement of this particular delivery.

Operating-energy illustration, with fuel or electricity supply included
Energy	Assumed consumption	Per 100 miles	Over 250,000 miles
Diesel	20 imperial mpg	72.61 kg	181.53 tonnes
Petrol	20 imperial mpg	60.37 kg	150.93 tonnes
Electricity	80 kWh from the meter / 100 miles	14.75 kg	36.87 tonnes

These are deliberately stated sensitivity inputs, not like-for-like manufacturer test results or claimed average fleet economy. The petrol row demonstrates arithmetic and does not advertise an equivalent petrol 5-tonne vehicle. Consumption must be replaced with actual job or model evidence before comparing vehicles. Electric use is measured at the charging meter, so charging losses must not be added again.

250,000 miles equals 402,336 kilometres. The long-distance figures simply multiply the per-100-mile estimate by 2,500. They hold the 2026 fuel and electricity factors constant for illustration; they do not forecast the future electricity mix, duty cycle or service life.

What happens when consumption changes?

At the same fuel factor, twice the litres means twice the energy-related emissions. Freight mass and the vehicle’s shape can therefore affect carbon through actual consumption. Smaller is not automatically cleaner if it takes two vehicle journeys to do one safely planned load.

For electricity, use the real meter energy and the factor appropriate to its supply and accounting method. An overseas fast charger cannot automatically be assigned the UK electricity factor. A renewable tariff description alone is not a complete lifecycle calculation.

Manufacturing belongs in a separate calculation.

A whole-life comparison adds vehicle and battery production, body manufacture, maintenance, any evidenced replacements and end-of-life treatment to operating energy. Battery size, manufacturing electricity and vehicle lifespan matter.

We have no verified product-specific manufacturing footprint for the actual van and body assigned to your job. Giving one confident production number, or assuming a battery replacement every fixed mileage, would invent the result. This table therefore does not claim to be a complete lifecycle assessment.

Three parts of a lifecycle comparisonThe numeric table covers operating energy and its supply only. Other stages need separate evidence.

When would a higher production footprint be recovered?

For two equivalent vehicles, divide the evidenced extra production emissions of one by its evidenced operating-emissions saving per mile. That gives a simple carbon break-even distance. The same boundaries, useful transport work and realistic consumption must be used on both sides.

Without a reliable production difference and operational saving, there is no reliable break-even mileage. Electric charging restrictions can make a route impractical even where the operating-carbon arithmetic is favourable.

Formula: miles × 1.609344 × grams per kilometre ÷ 1,000 = kilograms CO₂. A zero tailpipe rate for an electric vehicle returns zero in this calculator. That is not a statement that manufacture or electricity supply has no emissions.

A complete brief makes a useful quote

Booking, price and services

The right answer is the smallest suitable complete transport plan, with enough capacity and workable handling.

Describe the goods

Send a plain description, quantities and the packaged length, width and height of every different item. Include protruding handles, crate feet, pallet bases and wrapping. State the individual loaded pallet weights and total shipment weight, including all packaging.

Tell us what can be stacked, what must stay upright, whether anything is fragile, hazardous, high-value or temperature-sensitive, and whether the weight is verified or estimated. Photos help clarify shapes and handling, but do not replace measured dimensions.

Describe both sites

Give collection and delivery addresses and postcodes, named contact details, opening times, booking references and the required collection and delivery windows. Tell us about waiting, security checks, timed bays, restricted roads and loading restrictions.

State how loading and unloading will happen at each end. Include forklift or dock availability, tail-lift and powered pallet-truck needs, ground condition, the distance from vehicle to final handover and any stairs or room-of-choice requirements.

Details that can change vehicle suitability or price
Detail	Why it matters
Loaded weight changes	A few added cartons can remove the remaining payload allowance. Tell us before dispatch.
Extra stops or returns	They add route miles, handling and driver time. Returned packaging also occupies space and weight.
Out-of-hours work	Access, site staff and the available driver need checking. A phone enquiry is not guaranteed immediate vehicle availability.
Two-person handling	Crew and equipment change weight, time and price. Agree the task rather than assuming the driver can lift every item.
No equipment at delivery	The loading plan at collection does not prove the goods can be unloaded at destination.
Waiting or missed appointments	They can affect the next job, energy allowance and legal driving/rest plan.
Value and liability	Declare unusual value and discuss the applicable transport terms and any additional cover before booking.

Urgent, regular and wider logistics work

A dedicated 5-tonne vehicle can be assessed for urgent business consignments, scheduled collections and regular delivery routes. The right arrangement depends on freight size, capacity, available vehicle positioning and the service requested. There is no universal collection time or daily mileage guarantee.

Retail replenishment, alcohol stock, engineering goods, printing, building supplies and event equipment can involve consolidation, warehousing, return packaging or two-person handling. Discuss the complete job so vehicle selection supports the service rather than becoming a separate guess. Specialist transport and event refrigeration are agreed services with their own requirements.

Explore courier, haulage and logistics services, regular planned routes or storage and warehousing where they form part of the movement. Request an assessment through the quote form or speak to the team. Availability, handling and the final price are confirmed for the job.

Clear transport terms

Useful terms

A few definitions make vehicle specifications easier to compare.

Wheelbase: Distance between front and rear axle centres. It is not internal cargo length.
Gross vehicle weight / MAM: Maximum authorised total vehicle mass, including the vehicle, people, fuel, equipment and freight.
Ready-to-work weight: Actual vehicle mass with the people, fuel and equipment needed for the assignment, before its new freight is loaded.
Consignment weight: The goods together with their pallets, crates, packaging and other shipment materials.
Axle limit: Maximum permitted load on an individual axle. It must be respected as well as the gross limit.
Load centre: Position of a load’s centre of gravity relative to the reference point on the lifting equipment. Lift capacity may reduce as it moves outward.
Door aperture: Clear opening through which the goods must pass. The cargo bay can be wider or higher than this opening.
CO₂e: Carbon dioxide equivalent, a reporting measure that combines the effect of different greenhouse gases.
Imperial mpg: Miles per UK gallon. One imperial gallon is 4.54609 litres; US mpg uses a different gallon.
Tachograph: Recording equipment for driving, other work, availability, breaks and rest in operations covered by the rules.

Practical answers before you book

5-tonne delivery FAQs

Vehicle choice, payload, access, handling and the complete journey.

Vehicle and body choice

What is a 5-tonne van?

A goods vehicle with a maximum authorised gross mass of 5,000 kg. It can be based on a heavier van chassis with a fitted body. Five tonnes includes the vehicle, people, fuel, equipment and freight; it is not the payload.

Is it the same as a 3.5-tonne Luton?

No. It may have a similar cab or body shape, but its approved gross mass, freight capability and operating rules are different. The actual completed vehicle must be checked.

When is a five-tonner useful?

For heavier compact consignments with a low pallet count that exceed a smaller Luton’s allowance, provided the actual body, payload, unloading and access suit the job.

Can it save money compared with a 7.5-tonner?

It can be worth assessing where larger rigid capacity is unnecessary. Availability, approach mileage, equipment, driver time and site access determine the actual quote, so it is not always the cheapest option.

Which bodies can be considered?

Box and curtainside are the normal starting options for this guide. Refrigerated or other specialist bodies are subject to the job and availability checks. Each conversion has its own dimensions and payload.

Does it have two rear axles?

Not necessarily. Many heavier van chassis have twin tyres on either side of one rear axle. That is different from two rear axles. The actual chassis and plated limits must be identified.

Is every five-tonner uprated from a standard van?

No. Some are built for a higher gross rating, while other specifications may involve approved uprating. The legal plate and completed-vehicle approval determine its allowed weight, not its appearance or a modification alone.

When should I choose a Luton instead?

When the freight fits the smaller vehicle’s space and actual weight allowance, with suitable loading and access. The current 3.5-tonne Luton guide is 1,100 kg standard or 900 kg with tail lift, subject to checks.

When is a 7.5-tonner better?

When more floor space, a different body or equipment, extra actual payload or a better available complete transport plan is required. It must still fit the receiving site.

Payload and dimensions

Can every five-tonner carry 2,200 kg?

No. Up to 2,200 kg is a selected upper freight capability. Actual body, lift, refrigeration, people, fuel and equipment determine the allowance, and each axle and floor arrangement must also suit the load.

Does the chassis payload include the box body?

Not automatically. Manufacturer chassis-cab figures can leave the body yet to be fitted. The completed vehicle’s actual ready-to-work mass must be used for freight capacity.

How much does a tail lift reduce payload?

By its actual contribution to the ready-to-work vehicle mass, with axle effects also checked. There is no universal 100 kg or 150 kg deduction. The fitted lift and handling equipment must be included.

Do the pallets and pump truck count?

Yes. Loaded pallets include their goods, packaging and base. A travelling pallet truck contributes to the vehicle weight and also to the lifted mass whenever carried on the platform.

What are the loading dimensions?

Some body examples are around 5.0–5.5 m long, 2.2 m wide and 2.2 m high. Those are examples, not a guaranteed universal envelope. Request the actual assigned body and door measurements.

How many pallets can it take?

Some bodies may accommodate six to eight UK pallets or eight to ten Euro pallets. The real floor layout, loaded dimensions, weight and securing clearance determine the result. This category can be useful for only a few heavy pallets.

Can six 400 kg pallets travel?

They total 2,400 kg and exceed the selected upper freight capability on this page, before any omitted shipment weight. A suitable alternative needs assessment even if the bases fit.

Can one axle be overweight under five tonnes total?

Yes. Gross weight and individual axle limits are separate. Dense freight, rear overhang and lift position can make one axle the limiting factor.

Will a high crate fit a 2.2 m body?

Only if the actual door opening, internal profile, loading route and securing space permit it. Internal height alone does not guarantee entry through the rear.

Lifts, long pallets and delivery

Does every five-tonner include a tail lift?

No. The body and equipment must be requested and confirmed. A five-tonne gross rating does not identify the fitted lift or its capacity.

Can the lift raise the whole 2,200 kg payload?

Do not assume that. Vehicle freight capacity and platform lifting capacity are different. Check the heaviest individual movement, its load centre and all mass on the platform against the actual equipment instructions.

Are column lifts always rated at 1,200 kg?

No. Column, tuckaway and cantilever describe designs, not universal ratings. Actual models, platforms and load-centre capacity vary.

Can a 1,000 kg lift handle a 900 kg pallet?

Not automatically. The pallet truck and any other permitted platform mass must also be counted, and the rated capacity must apply at the actual load centre. Platform fit and the operating conditions need checking.

When do I need an electric pump truck?

If pallet-truck handling is required for an individual loaded pallet weighing 800 kg or more, request an electric pump truck under Synergix’s booking rule. This is not a legal threshold or a guarantee of equipment suitability. Lower weights can also need powered handling.

Can you tail-lift a three-metre pallet?

A normal rear platform may not support it or permit its load centre, even where the body has enough floor length. Side forklift loading in a suitable curtainsider or another specialist arrangement may be necessary.

Does a curtainsider solve every long-pallet problem?

No. The side aperture, posts, floor, support and forklift access must fit the goods at both sites. Side access cannot remove payload, axle or restraint limits.

Can a pallet truck run over gravel or a kerb?

Do not assume so. Surface, wheels, ground clearance, gradient and the specific truck affect movement. Tail-lift delivery normally needs a safe firm surface and an agreed clear route.

Does tail-lift delivery include moving goods inside?

Only the agreed handover and handling are included. Final positioning, room-of-choice delivery, stairs, unpacking and installation need their own assessment and agreement.

Will it fit a shopping-centre loading bay?

Compare the site’s current limits and booking conditions with the actual vehicle height, mirror width, length, turning and weight. A five-tonner can look like a Luton but still fail the bay.

Drivers, routes and timing

Can a standard car licence drive a diesel five-tonner?

Standard category B entitlement alone does not cover a normal diesel 5,000 kg goods vehicle. Appropriate C1 or C entitlement and any required professional conditions must be checked, including restrictions and trailers.

Does it normally need a tachograph?

For normal in-scope commercial goods carriage over 3.5 tonnes, yes, subject to specific exemptions. The framework depends on the vehicle and operation rather than whether the cab looks like a van.

Can an urgent load avoid drivers-hours rules?

No. Urgency, one pallet or a customer’s closing time does not create an exemption. The operator must plan lawful driving, other work, breaks and rest.

Is waiting at collection a driver break?

Not automatically. Loading, supervision, paperwork and other duties can be work. A qualifying break, rest or period of availability has its own conditions.

How far can it drive in a day?

There is no universal legal mileage maximum or guaranteed distance. Prior hours, driving limits, traffic, loading, stops, speed and the complete route decide the workable schedule.

Will it travel at car motorway speed?

A required limiter and its actual specification may keep it below the posted motorway maximum. National goods-vehicle limits, lower signs, traffic and handling also affect the estimate.

What happens on an overnight job?

Required rest and suitable accommodation must be planned. A day cab is not automatically a sleeper. Hotel or other appropriate rest arrangements can add time and cost.

Does the 4.25t electric derogation cover a 5t van?

No. A genuine 5,000 kg vehicle is outside that stated gross-weight range. The specific GB conditions, international work, Northern Ireland and any trailer require their own checks.

Price, power and carbon

Why can it cost more than a Luton?

Higher-weight vehicle operation, appropriate driver requirements, compliance, equipment, vehicle positioning and the complete job can increase cost. It should not be priced as an ordinary domestic 3.5-tonne van just because it looks similar.

Does a heavier body reduce fuel economy?

Actual mass, height, aerodynamic shape, speed, terrain, traffic and idling affect consumption. The page’s mpg examples are stated sensitivity inputs rather than measured economy for every five-tonner.

Why include miles before collection?

The vehicle and driver must reach the goods. Approach, additional stops and attributable return or repositioning can affect time, price and emissions.

Do you guarantee an electric five-tonner?

No. An electric alternative must be assessed for its actual approved weight, completed body, payload, usable energy, charging and availability. A different 4.25-tonne vehicle is not an identical five-tonne substitute.

Why can charging prevent an urgent delivery?

A required charge stop may not fit the deadline, especially with detours, queues, unsuitable access or variable charging power. The full job and reserve must be workable before that vehicle is agreed.

Are petrol or hybrid carbon figures an available vehicle quote?

No. Their arithmetic examples show stated consumption and reporting factors. They do not establish that an equivalent five-tonne body and freight specification is available.

Does the carbon table include building the van?

No. It covers operating energy and its supply under stated assumptions. Vehicle, body and battery manufacture, maintenance and end of life need separate product-specific evidence.

Is the 250,000-mile result a full lifecycle assessment?

No. It multiplies a stated per-mile operating-energy calculation while holding 2026 factors constant. It is not a forecast of future electricity or proof of battery replacement or manufacturing emissions.

What information do I need for a quote?

Provide the goods, packaged dimensions, individual loaded pallet weights and total shipment weight, both addresses, deadline, site limits and loading facilities. State lift, powered truck, temperature, crew and final positioning needs.

Talk through the whole job

Get the right vehicle for your load

Send the goods, packaged measurements, total weight, route, deadline and handling details. We will assess a suitable vehicle and confirm availability and the transport arrangements before booking.

Request a 5-tonne quote Call 01782 911 181 Email sales

5 TONNE VANDELIVERY SERVICE
