01 / Choose the body and handling

Available Luton van body types

A Luton is a cab with a separately built goods body. A box, curtainsider and refrigerated body solve different problems. A tail lift is an additional handling option, so tell us which body and loading method the job needs.

ENCLOSED REAR LOADING

Box Luton

Rigid sides and a roof give an enclosed, broadly rectangular cargo area. A box body suits cartons, packaged furniture, retail stock, display stands and bulky goods that need protection during the journey.

Access is usually through the rear, with a shutter or doors depending on the build. Check the actual clear opening and whether the goods can travel through it upright. A wide internal body does not make the doorway equally wide.

Rigid walls do not make an unsecured load safe. Packaging, suitable restraint points, blocking and the loading plan still matter. Do not assume the over-cab area is rated for heavy freight.

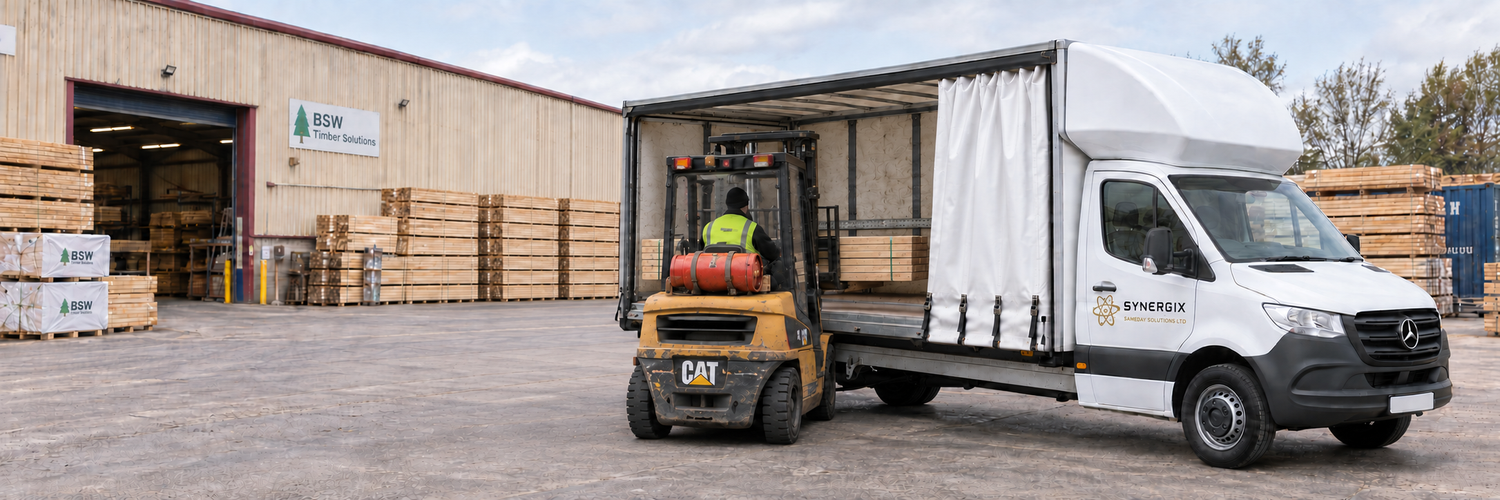

SIDE ACCESS FOR FORKLIFTS

Curtainside Luton

A curtainsider allows the side to be opened for compatible forklift loading. It is useful for long pallets, timber, awkward equipment or a load that cannot be brought safely across a rear lift platform.

Side access depends on posts, rails, roof height and the clear opening of the particular body. Confirm the forklift capacity, fork length and available working room at collection and delivery.

The curtains offer weather protection when closed. They are not automatically a load restraint system. Goods still need securing, and opening the side does not provide an unloading machine at the destination.

AGREED TEMPERATURE REQUIREMENT

Refrigerated or temperature controlled

An insulated body with suitable refrigeration can be considered for goods requiring an agreed temperature. Give the product, set point, permitted temperature range, journey length and loading conditions.

Insulation, cooling equipment, airflow clearance and any onboard power equipment reduce usable space or payload. Use the confirmed conversion figures rather than the standard dry Luton dimensions.

Pre-cooling, product temperature, door openings and monitoring need to be agreed. A refrigerated delivery vehicle is different from a refrigerated trailer hired for storage at an event.

Add a tail lift where the job needs it.

A suitable tail lift can raise or lower compatible goods between the body and firm ground. It can be paired with an agreed pallet truck for suitable pallet deliveries. Our tail-lift Luton booking guide is up to 900 kg of total consignment weight. The platform's own load chart, working area and site conditions can impose a lower limit on an individual item.

Tail lifts are not fitted to every Luton. Neither a pallet truck, a second person nor refrigerated equipment is included just because the vehicle has a large body. Tell us what is needed before the vehicle is assigned.

02 / Check the space and the weight

Luton van dimensions and capacity

For a standard dry Luton, use 400 × 200 × 200 cm as the initial planning space. That is a calculated rectangular volume of 16 m³. Book around up to 1,100 kg without the tail-lift arrangement, or up to 900 kg with it, subject to the actual vehicle.

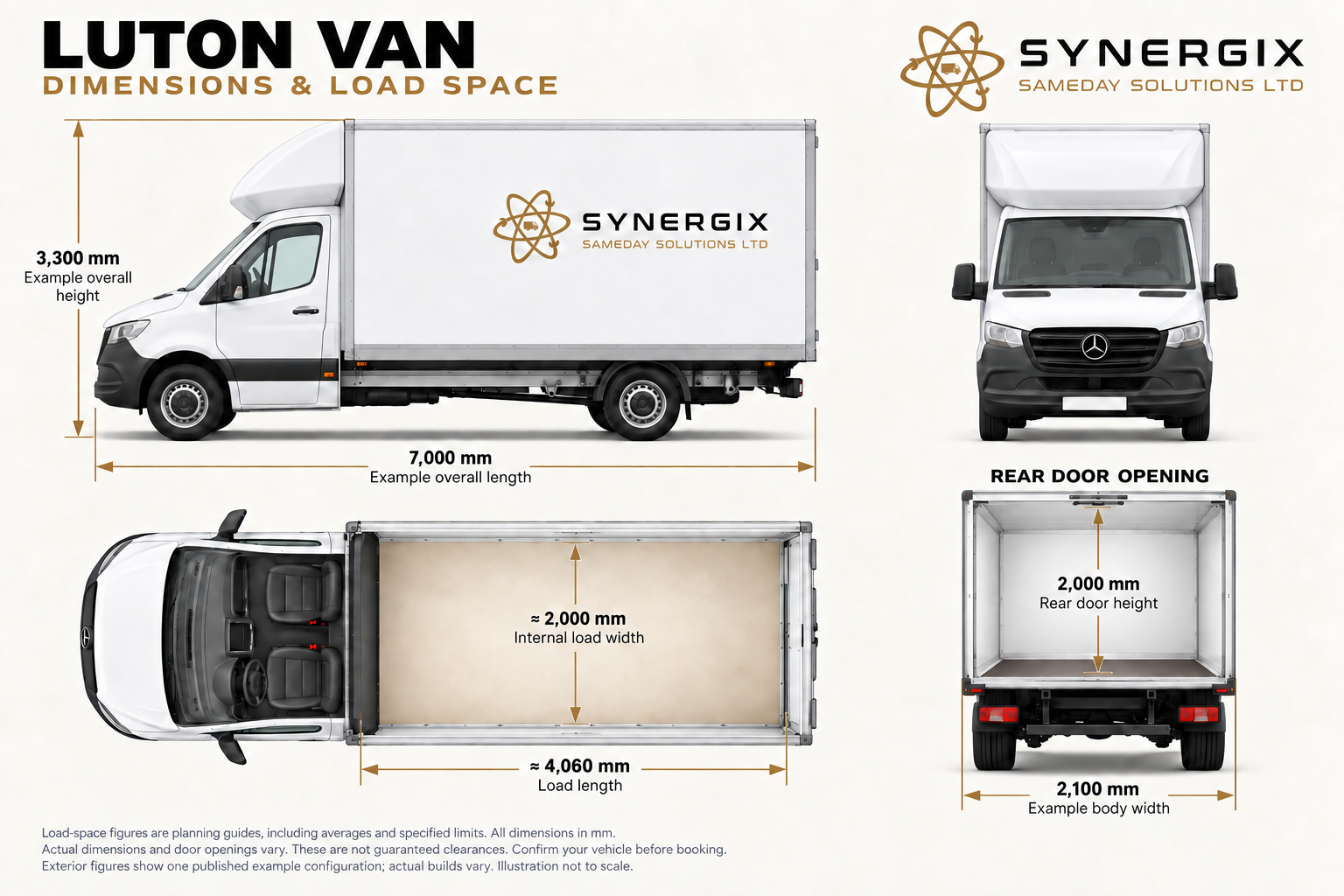

Luton dimensions illustration. Example exterior length 7,000 mm, height 3,300 mm and body width 2,100 mm excluding mirrors. Approximate load length 4,060 mm, internal width 2,000 mm and rear door height 2,000 mm.

Our booking figures

Planning load length: 400 cm / 4.0 m
Planning load width: 200 cm / 2.0 m
Planning load height: 200 cm / 2.0 m
Calculated rectangular volume: 16 m³
Standard body consignment: Up to 1,100 kg
Tail-lift body consignment: Up to 900 kg
Pallets: Up to six suitable pallets
Individual lift limit: Confirm platform load chart

Read the diagram as an example.

The diagram's approximate 4,060 mm internal length is different from our rounded 4,000 mm booking guide. Do not use the extra 60 mm to promise that a tight load will fit. Its 2,000 mm rear door height is an opening measurement, not confirmation that every Luton has that clearance.

The illustrated 7,000 mm overall length, 3,300 mm height and 2,100 mm body width describe an example build. The width excludes mirrors. Actual heights, tail-lift overhang, cab fairings, refrigeration units and roof equipment vary. Ask for the assigned vehicle's external dimensions if access is restricted.

The goods must fit the loading route.

A body that is four metres long does not guarantee that a four-metre crate can be loaded. The doorway, approach, platform, handling equipment and room to secure the goods must all work. Give the fully packaged length, width and height of each item, with anything projecting beyond its pallet.

A 200 cm high crate is a tight proposal for a nominal 200 cm opening. A pallet, packaging and manoeuvring clearance use height too. The smallest relevant opening determines whether the complete load can pass through safely.

Conversion-specific figures take priority. A fridge body, battery-electric chassis, tail lift, heavier flooring or a different body build can change usable space and freight capacity. We check the actual arrangement before confirming the booking.

Read the illustrated measurements in text

Example overall length: 7,000 mm. Example overall height: 3,300 mm. Example body width, excluding mirrors: 2,100 mm. Approximate internal length: 4,060 mm. Approximate internal width: 2,000 mm. Rear door height shown: 2,000 mm. The illustration is not to scale. These are not guaranteed clearances for the supplied vehicle. Use 400 × 200 × 200 cm and the appropriate 1,100 kg or 900 kg booking weight as initial guides.

03 / What a Luton is good for

More body space. The right handling.

A Luton van is often chosen because the goods need a wider, squarer body or a tail lift. The load can be light and still need this vehicle. One suitable pallet with no forklift at delivery can justify a Luton, while three heavier pallets may be better in an LWB or a truck.

Luton describes the body, not a payload rating.

The name is commonly used for a vehicle with a separate box-style goods body, often with a section extending over the cab. A curtainside version gives similar general body space with side access. This guide concerns the usual 3.5-tonne gross vehicle category. Larger vehicles can have comparable body designs, so the body name alone is not enough to book correctly.

Gross weight includes the chassis, body, driver, fuel, equipment and freight. A 3.5-tonne Luton does not carry 3.5 tonnes of goods. Its wide body may offer more volume than a panel van while leaving less freight capacity after the body and handling equipment are fitted.

When a Luton earns its place

Think of packaged furniture, several light pallets of retail stock, bulky cartons, exhibition stands, display fixtures, appliances or equipment with a handling requirement. The rectangular body helps when the shape of the consignment is awkward for a narrower panel van.

A tail lift is particularly useful when compatible palletised goods must move between vehicle floor and ground without a forklift. Side-opening curtains can be more useful than a lift where the goods are long or require forklift placement. For refrigerated work, the product requirement decides the body before the general size comparison does.

Benefits

Broad, generally rectangular load space for bulky goods.
Box protection or curtainside access according to the task.
A suitable tail lift can solve a missing forklift problem.
Dedicated collection and delivery can avoid hub transfers.
A middle step between a panel van and a heavier rigid truck.

Disadvantages

Body and equipment weight can reduce freight payload.
Height and width need more access planning.
A large body increases aerodynamic demand.
The lift and pallet truck introduce additional limits.
Six pallet spaces can be filled before, or after, the weight limit is reached.

Where another vehicle helps

An LWB may be preferable for a narrower, heavier consignment with suitable handling already at both ends. A 7.5-tonne truck may be needed for greater total weight, more floor space or a suitably specified lift.

Rough-ground delivery can require a different unloading system. Booking a bigger tail-lift vehicle does not turn a standard pallet truck into an off-road machine.

04 / Choose enough capacity without wasting it

LWB vs Luton vs 7.5-tonne

Compare the shape, weight and unloading method together. An LWB can have a higher freight weight guide than a tail-lift Luton despite its smaller body. A 7.5-tonne truck gives a further step in capacity, but site access and the actual lift still need checking.

Synergix initial planning guides, subject to the assigned vehicle
Vehicle	Load space L × W × H	Consignment weight	Pallet guide	Main reason to consider it
LWB panel van	360 × 120 × 180 cm 7.78 m³ calculated	Up to 1,250 kg	Up to 3 suitable pallets	Narrower load with handling already arranged
Standard Luton	400 × 200 × 200 cm 16 m³ calculated	Up to 1,100 kg	Up to 6 suitable pallets	Wider, bulkier freight or suitable side access
Tail-lift Luton	Use the confirmed body's space	Up to 900 kg	Up to 6, within all limits	Suitable goods need vehicle-to-ground lifting
7.5-tonne vehicle	600 × 240 × 200 cm 28.8 m³ calculated	Up to 2,500 kg	Up to 10 suitable pallets	More weight, floor area or an agreed heavier lift arrangement

Choose the LWB when it fits.

Three suitable pallets weighing 1,050 kg in total may suit the LWB planning guide if their loaded dimensions and the loading method work. That same weight exceeds the 900 kg tail-lift Luton guide.

If both sites have suitable forklifts and the goods fit the narrower space, extra body width may add no useful benefit. Tell us the actual sizes rather than choosing a Luton simply because it sounds larger.

Choose the Luton for space or handling.

One 350 kg pallet needing ground-level unloading can justify a suitable tail-lift Luton, subject to the pallet truck, platform and site checks. Five light pallets can justify the body floor area even when their total weight is modest.

A bulky 1.6 m wide crate may fit a Luton body better than the LWB planning space. Its doorway, orientation and handling route still decide whether it can be transported.

Choose the truck when the limits demand it.

A 1,500 kg consignment is beyond both Luton weight guides and the LWB guide. A suitable 7.5-tonne vehicle may be the next option if its body, axle loading and handling equipment are appropriate.

A heavy individual pallet can require a truck with a properly rated lift even when the total consignment would fit a smaller body. Check the installed lift instead of assuming every truck can lower it.

A larger vehicle can solve the wrong problem.

If a three-metre pallet needs forklift side loading, ordering a bigger rear-loading box may still fail. If a pallet truck cannot cross gravel, ordering a truck with more payload may still fail. Describe the obstacle so the body and handling method can be matched to it.

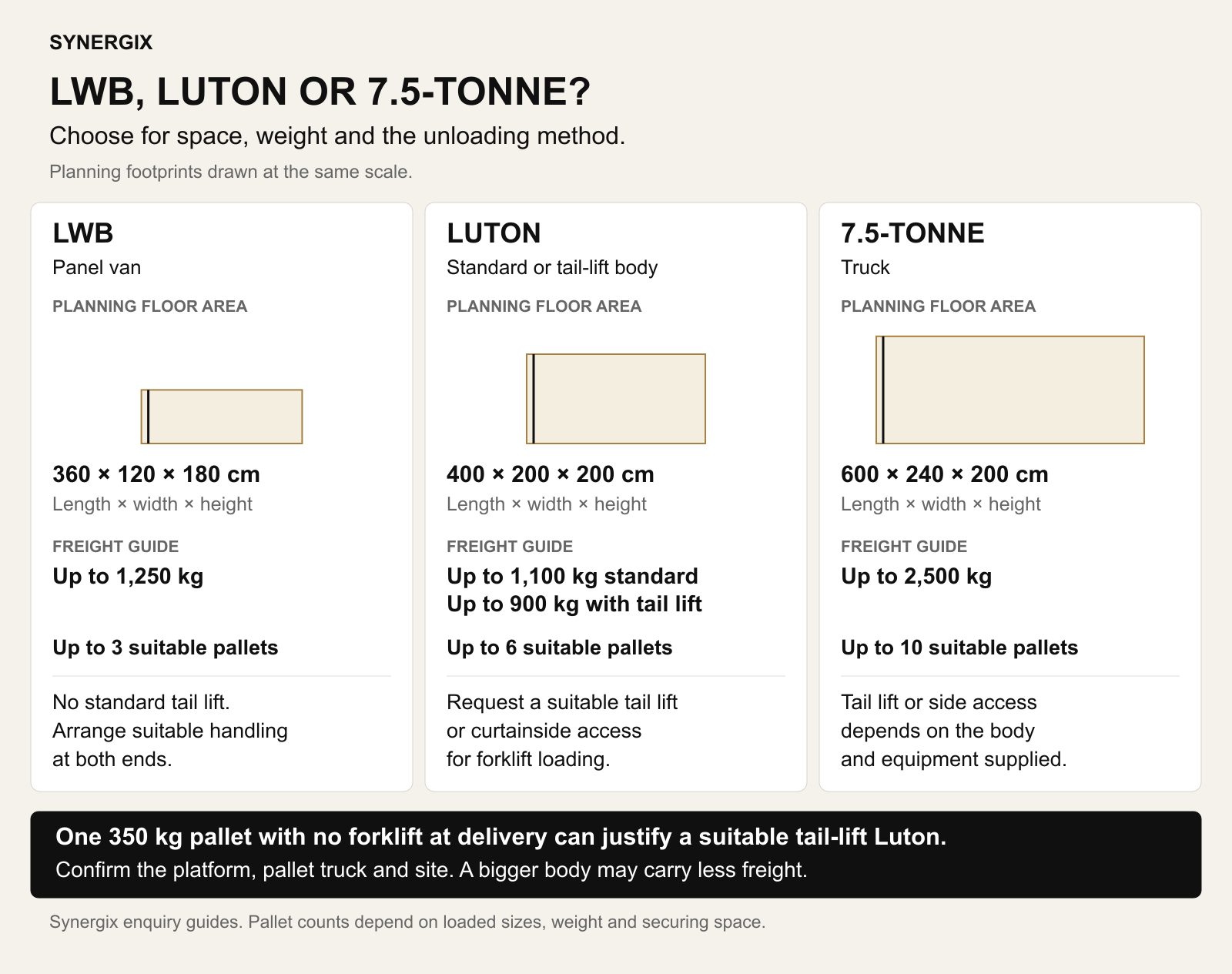

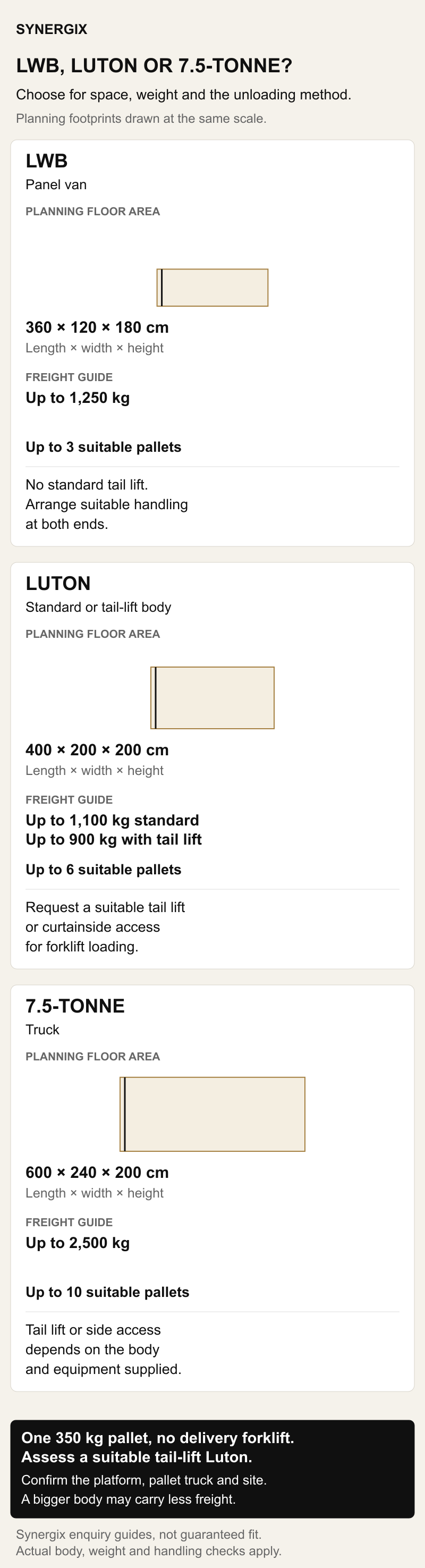

LWB, Luton and 7.5-tonne planning space, weight and pallet comparison. A tail-lift Luton has a 900 kg freight guide, below the LWB's 1,250 kg guide, but may suit one pallet needing ground-level unloading. — **LWB, Luton or 7.5-tonne?**Educational illustration. Actual vehicle, equipment and loading arrangements must be checked.

LWB, Luton or 7.5-tonne?

Compare useful space, total freight weight and the unloading method. The illustration uses Synergix planning guides, subject to the actual body, loaded goods and site checks.

A suitable tail-lift Luton may solve ground-level unloading for one pallet, even though its 900 kg freight guide is lower than the LWB guide. Lift capacity remains a separate check.

05 / Understand the weight limits

Luton payload, tail lifts and axle loading

The freight weight available is what remains after the actual vehicle, people, fuel and equipment are accounted for. Published chassis or conversion figures can use different assumptions. Our booking guide leaves room for the working arrangement, with final checks on the assigned vehicle.

Why the quoted maximum can be higher

A manufacturer's chassis-cab figure is not the freight payload of a completed Luton. The separate body, floor, fairing, shutter, restraint fittings and optional lift have to be added. Two conversions using the same base model can therefore carry different amounts.

Check what the quoted unladen or running-order weight already includes. A standard driver or fuel allowance may be included in one figure and absent from another. Do not subtract the same driver and fuel twice, and do not assume that a headline maximum applies to the vehicle arriving at collection.

A current weighing of the working vehicle, combined with its plated gross and axle limits, is more useful than a generic brochure claim. Refrigeration, additional crew, an electric pallet truck or a different fuel load can change the remaining capacity.

Why our tail-lift guide is 900 kg

Use up to 900 kg for a Luton with the tail-lift arrangement. This is Synergix's initial booking guide, rather than a claim that every such vehicle has exactly 900 kg available. Some conversions or equipment combinations can leave less.

A tail lift adds weight. A light installation may account for roughly 100–150 kg, but the fitted mass varies with platform size, capacity, mechanism and mounting and can be higher. A pallet truck adds more. The separate 1,100 kg standard-body and 900 kg tail-lift guides are not a calculation based on one universal lift weight.

Allowing for working conditions also supports sensible handling and vehicle use. A margin for equipment and operational variation never overrides a lower legal, axle or lift limit.

Count everything travelling as the consignment.

Give the weight of the goods including their pallet, crate, packaging, wrapping and any attachments. If six loaded pallets average 150 kg each, their combined weight is 900 kg. At 160 kg each, the total is 960 kg, already above the tail-lift Luton guide before any unreported freight is added.

Equipment supplied for the job is checked within the vehicle's available capacity. Do not subtract a pallet truck from the 900 kg freight guide yourself and assume the answer is approved. Tell us it is required so we can confirm the whole arrangement.

Total weight is only one test.

The front and rear axles have separate limits. Heavy freight placed near the back, together with a rear-mounted lift, can create an unsuitable rear-axle load even if the total vehicle weight appears acceptable.

Loading order, distribution and the changing load after each delivery matter. A single heavy item also puts a local load on the floor, pallet and restraint points. Give its position and support area when it differs from evenly distributed cartons.

Weight uncertainty needs resolving before dispatch.

“About a tonne” is not enough to choose between a 900 kg tail-lift guide and a 1,100 kg standard guide. Use a reliable product weight, packing list or weighing rather than an estimate that excludes packaging.

If the loaded weight is close to a limit, we need better evidence and the actual vehicle checks. A driver arriving with a lift cannot fix an overweight load by agreeing to take it carefully.

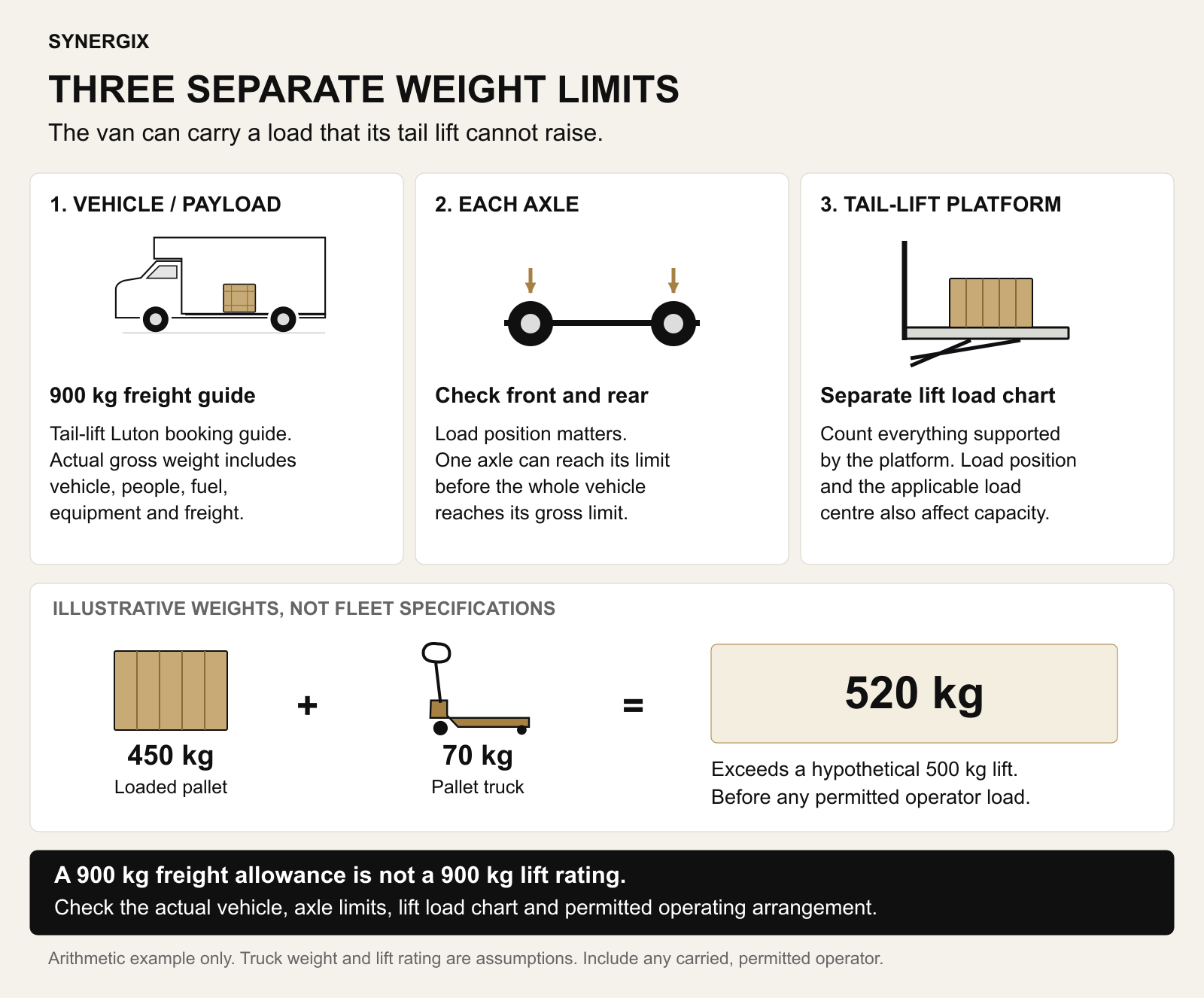

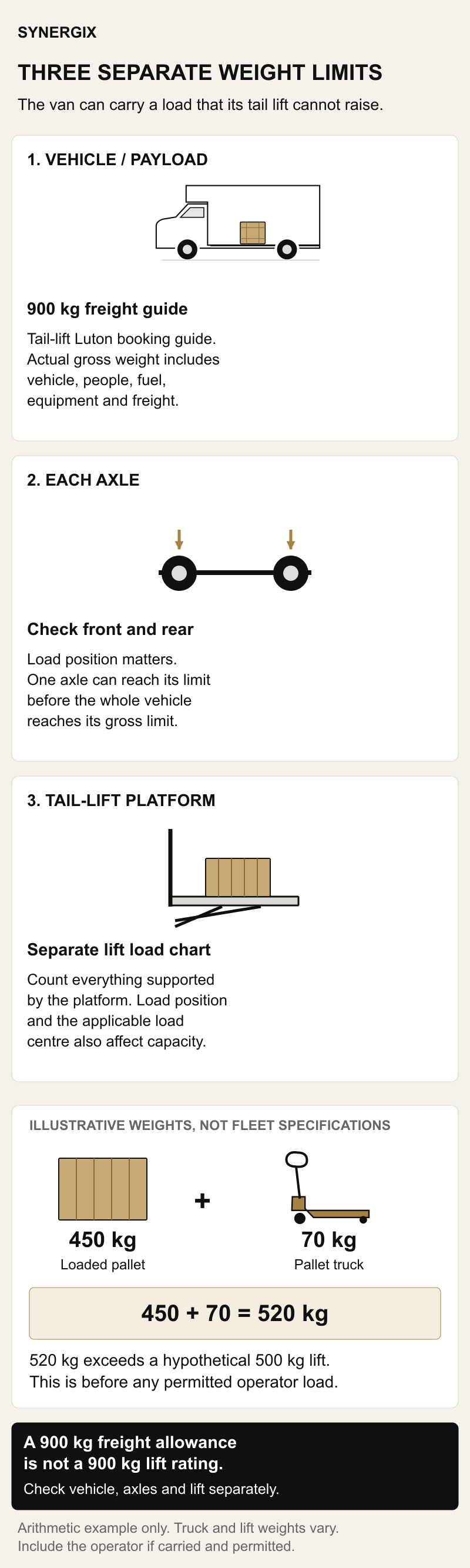

Vehicle, axle and tail-lift limits are separate.

The 900 kg tail-lift Luton freight guide is not the platform rating. Check the actual gross and axle limits, load position and applicable lift load chart.

In the hypothetical illustration, a 450 kg loaded pallet plus a 70 kg pallet truck totals 520 kg. That exceeds a hypothetical 500 kg lift before any permitted operator load is added.

06 / Fit the complete load

Pallets, bulky crates and usable space

Up to six suitable pallets is a floor-space guide, not permission to put six pallets of any weight in the van. The loaded footprints, total weight, doors, restraint space and unloading order must all be considered.

Euro and UK pallet sizes

An EPAL Euro pallet is nominally 120 × 80 cm and 14.4 cm high, with an approximate empty weight of 25 kg. UK pallets are commonly 120 × 100 cm, although other sizes are used. Measure the actual loaded pallet because cartons, wrapping and projecting goods can extend beyond the base.

Six Euro footprints can be arranged as three 120 cm rows, each with two 80 cm widths, giving a nominal 360 × 160 cm footprint. Six 120 × 100 cm footprints in the same orientation occupy 360 × 200 cm. Against a 200 cm planning width, that second arrangement leaves no nominal side clearance.

These calculations explain the guide; they are not a guaranteed loading plan. Internal rails, posts, pallet condition, wrapping and space for securing can affect the arrangement. The assigned body and actual loaded sizes need checking.

The pallet base uses height and weight.

A nominal 200 cm opening with a 14.4 cm pallet leaves 185.6 cm arithmetically for goods above the base, before any clearance, packaging or movement allowance. It does not promise a safe load height of 185.6 cm.

Six pallets at 180 kg each total 1,080 kg. That is within the 1,100 kg standard guide but above the 900 kg tail-lift guide. Whether those pallets can be carried in a standard Luton still depends on actual available payload and the agreed handling method.

Do not stack pallets unless the goods, pallet supports, packaging and securing plan allow it. A body height figure is not evidence that one loaded pallet can safely sit on another.

Give us the longest, widest and heaviest item.

For mixed freight, a total cubic volume can hide the problem. Ten small cartons and one long crate may add up to less than 16 m³, but the crate can decide the vehicle and loading method. Send individual dimensions, weight and orientation restrictions rather than volume alone.

Furniture and fragile goods

Allow for protective packaging, legs, handles and surfaces that cannot be used as supports. Specify whether an item may be laid on its side, stacked or moved by pallet truck. Extra handling or room-of-choice delivery needs separate agreement.

Machines and dense freight

A small machine can use much of the payload. Ask about floor support, lifting points, centre of gravity and forklift access. A low cubic volume does not make it suitable for manual handling or a standard tail lift.

Over-cab storage

Some Lutons have additional space above the cab. Its shape, access and loading rating vary. Do not include it in guaranteed pallet space or place heavy goods there without confirming what the body builder permits.

07 / Make the unloading method work

Luton tail lifts and long-pallet limits

A Luton with an agreed tail lift and suitable pallet truck is the smallest usual category in our vehicle guide for this way of lowering compatible pallets to the ground. It can solve the problem of a site with no forklift, even for a single pallet. It still needs a workable platform, route and safe operating area.

Vehicle payload and lift capacity are different.

The 900 kg total freight guide does not mean that one 900 kg pallet can be lowered. The installed lift has a rated capacity and load-position requirements. The pallet truck and anything else supported by the platform count in the lift calculation too.

Illustration only: a 450 kg loaded pallet plus a 70 kg pallet truck totals 520 kg. That exceeds a hypothetical 500 kg platform rating, despite being below the van's total freight guide. The truck weight and lift rating in this example are assumptions, not specifications for the vehicle supplied.

If an operator is permitted on the platform under the manufacturer's instructions, their weight and safe standing area must be included as applicable. Do not assume that a platform intended for goods is automatically suitable for carrying a person.

The load centre can reduce the usable rating.

A lift's headline rating applies under stated conditions. The load's centre of gravity, distance from the lift's reference point, platform position and support arrangement matter. Moving the same mass further out can make it unsuitable.

Long loads, overhanging pallets and unevenly distributed machines need particular attention. A lift that can raise a compact pallet does not necessarily support a much longer pallet of the same weight. We need the loaded dimensions and the manufacturer's applicable load chart.

A larger platform or stronger lift can also add vehicle weight. The choice needs to work for both the lifting operation and the road journey.

A three-metre pallet is a loading-method question.

A 3 m long pallet may fit lengthways inside a 4 m body. That does not show that it can be brought across a standard rear tail lift with an ordinary pump truck. Platform depth, full support, load centre, fork engagement, door clearance and space to approach or turn can all prevent that method.

Length alone does not prove that it cannot pass every rear door. A narrow long load may pass straight through a suitable opening with the right handling arrangement. The problem is approving the complete transfer, not simply comparing its length with the width of the door.

If rear transfer will not work, a suitable curtainsider can allow forklift side loading. Confirm suitable equipment at both collection and delivery. A curtain gives access; it does not unload the goods itself.

Questions that determine whether a rear tail-lift transfer works
Check	What we need	Why it can rule the method out
Combined platform load	Loaded pallet, handling equipment and permitted operator load	The combined load can exceed the lift's allowed capacity
Support and load centre	Overall footprint, weight distribution and manufacturer limits	Overhang or a distant centre of gravity can be unsuitable
Fork engagement	Pallet entry, runner layout, fork length and supporting structure	A truck can lift one end without safely supporting the whole item
Door and approach	Clear opening, orientation and space to align the load	The body can be large enough while the loading route is not
Ground and working area	Surface, slope, traffic and rear clearance	A lowering operation may be possible but ground movement may not

What the tail lift does

It raises and lowers a suitable supported load over its working travel. It can bridge the height difference between the vehicle floor and ground. Depending on the installation, its storage position and operating envelope need space behind or below the body.

It does not guarantee delivery over a kerb, along a sloping driveway, through a doorway or up stairs. Where the goods must finish after unloading is part of the booking.

What needs agreeing

Request the lift, suitable pallet truck, individual pallet weights and intended delivery point. Photos of the approach, unloading area and pallet can help identify a mismatch before collection.

Equipment must be suitable, maintained and checked. Lifting operations need competent planning and operation. If the lift cannot be used safely on arrival, the delivery method has to be resolved rather than improvised.

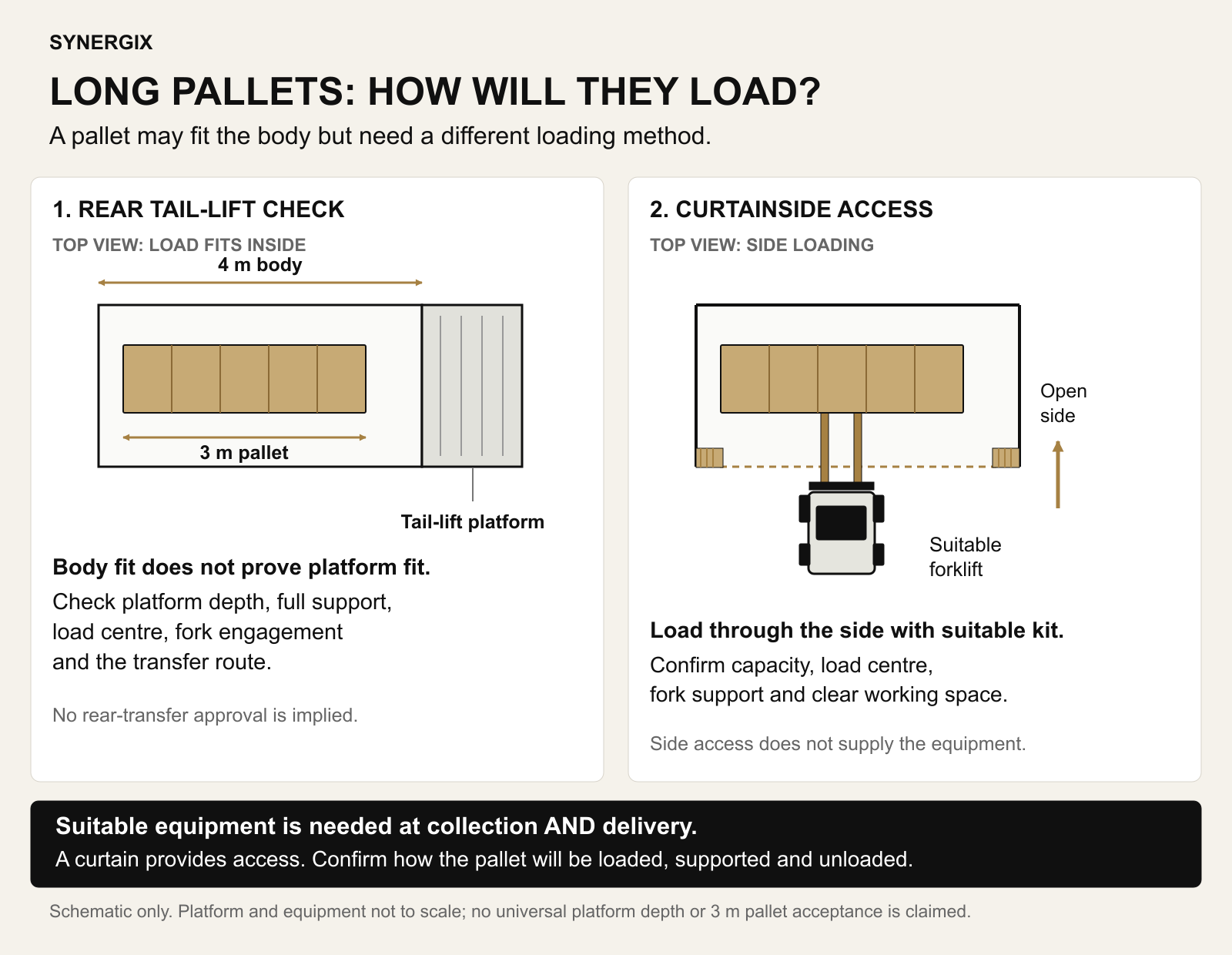

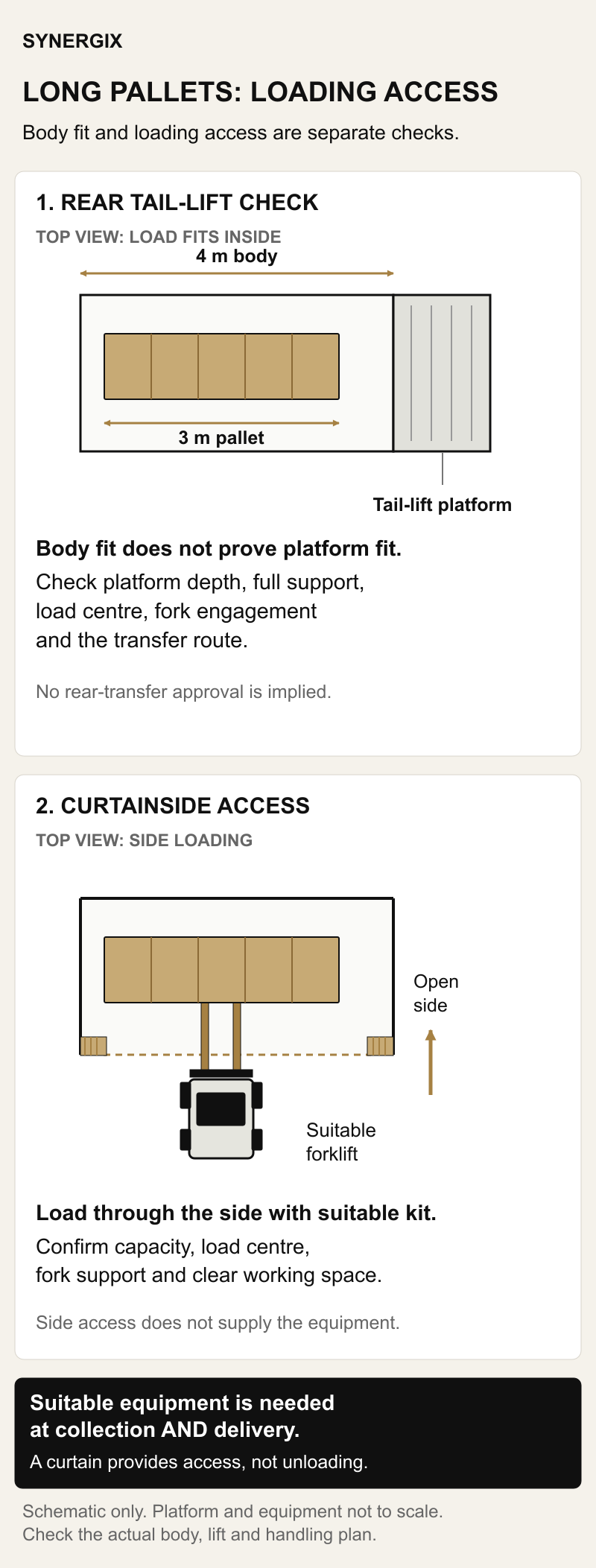

A 3 m pallet may fit a 4 m body, but rear tail-lift transfer needs separate support and capacity checks. Curtainside forklift access requires suitable equipment at both collection and delivery. — **Body fit and loading access are different checks.**Educational illustration. Actual vehicle, equipment and loading arrangements must be checked.

Body fit and loading access are different checks.

A 3 m pallet may fit inside a 4 m body without being suitable for rear tail-lift transfer. Platform support, load centre, pallet-truck engagement and the transfer route need checking.

Curtainside access can allow suitable forklift loading through the side. It does not provide the equipment: confirm support, capacity and working space at both collection and delivery.

08 / Check the ground route

Pump trucks, site access and delivery limits

A pallet truck rating says what the equipment can lift under its stated conditions. It does not establish what one person can safely move across a particular surface. We need the whole route from the vehicle to the agreed handover point.

Manual or electric pallet truck?

A manual pump truck uses small wheels and manual pushing or pulling. Surface joints, loose stones, gradients and damaged pallets can make a seemingly straightforward movement difficult. A level, firm, smooth route is very different from a sloping yard or gravel drive.

Synergix requires an electric pallet truck for an individual loaded pallet weighing 800 kg or more. This is our booking rule, not a universal legal threshold. Loads below 800 kg may also need powered assistance or a different method after the site assessment.

An electric truck must be compatible with the pallet, platform, combined lift load and available vehicle payload. Asking for one does not make an overweight platform load acceptable. Tell us early so suitable equipment can be considered.

Conditions that need another plan

Gravel, grass, mud, soft paving or broken ground.
Steep slopes, crossfalls, drains, steps or kerbs.
Tight turns with a long or top-heavy pallet.
Domestic driveways with weak surfaces or poor access.
Public traffic, pedestrians or insufficient space behind the lift.
Door thresholds and narrow passages beyond the unloading point.

A forklift, suitable site handling, a different delivery point or a separately agreed specialist vehicle may be needed. A tail lift and pallet truck are not substitutes for every kind of site equipment.

Confirm the handover point.

Vehicle-to-ground unloading, kerbside handover, movement across a warehouse floor and delivery into a room are different services. Specify where the goods must finish, who will receive them and what assistance is available.

A second person can help with an agreed handling task, but does not remove equipment ratings, slope risks or the need for a suitable access route. Stairs, installation, unpacking and removal of packaging should be discussed explicitly.

Vehicle access before unloading

Check gates, low branches, bridges, loading-bay height, turning space and parking restrictions. Use actual width including mirrors and actual overall height including fitted equipment. The example dimensions in the illustration are not an access clearance certificate.

Allow enough space for the lift to deploy, goods to move and the driver to work without stepping into traffic. A vehicle that can enter a site may still have no suitable place to unload.

Collection needs the same attention.

If the goods cannot be loaded safely at collection, a compatible delivery site does not solve the job. Tell us whether the pallet is accessible, whether a forklift or dock is present and whether a shutter or curtains need to be opened.

For multi-drop work, each destination can have different conditions. Give separate access and handling details, not one assumption for the whole route.

09 / Prepare and protect the goods

Packaging, restraint and loading order

An enclosed body protects goods from exposure during travel. It does not stop them moving during braking or cornering. A curtainsider needs an appropriate securing plan as well as properly closed curtains.

Pack for the actual handling.

Use a sound pallet or crate with compatible fork entry and enough support for the goods. Secure goods to their base and avoid loose pieces or unsupported projections. Tell us if the pallet is damaged, unusually long or loaded unevenly.

Fragile surfaces need protection appropriate to the item. Wrapping alone is not necessarily adequate protection against impact, pressure or movement.

Restrain within the body.

Goods need an appropriate arrangement using the vehicle's suitable restraint equipment and rated attachment points. Do not assume thin body panels or curtains can hold a shifting load.

Certified body strength may form part of a specific securing system, but that must be verified for the vehicle and load. It is not a blanket exemption from securing freight.

Plan the unloading sequence.

The first delivery must remain accessible without unsafe unloading of other goods. Removing a load can change axle distribution and the restraint arrangement for what remains.

Tell us the stop order, any return goods and whether items can be moved or stacked. Changes during the job may require a revised plan.

Photographs help with unusual freight.

A photograph of the wrapped load, pallet entry and destination approach can resolve questions that a description misses. Send measurements and weights as well; a photograph cannot reliably establish either.

For machinery, include lifting points, support feet, anything that can move or leak, and orientation requirements. A machine that is safe on a warehouse floor may need extra preparation for road transport.

Special goods need early disclosure.

Discuss dangerous goods, batteries, liquids, food, medicines, high-value items and any contamination or hygiene requirement before booking. Acceptance, documentation, packaging and the appropriate service depend on the goods.

Do not assume a dry box is temperature controlled, a refrigerated body meets every specialist standard, or a Luton booking includes insurance cover for any value. State the requirement so the arrangements can be checked.

10 / Plan the whole job's energy

Luton fuel economy and running costs

A large goods body, the loaded weight and the route affect energy use. Do not apply a panel van's best MPG or electric range to a completed Luton conversion. The practical cost includes reaching collection, the loaded journey, handling time and any onward movement.

Why a loaded Luton uses more fuel

More mass needs more energy to accelerate and climb. A tall, broad body also creates aerodynamic demand, particularly at sustained road speeds. Stop-start urban work, headwinds, gradients and a heavy load can produce a very different result from a light van on a steady route.

Loading does not reduce MPG by one fixed percentage. The body shape, traffic, speed, tyres, weather, engine and duty cycle interact. Refrigeration and repeated lifting operations can add energy demands too. Use measured consumption from a comparable working vehicle when available.

Manufacturer test figures are useful within their stated conditions. A chassis or panel-van figure does not necessarily describe a box conversion with a lift, pallet truck and freight. No single MPG figure here is presented as a certified average for Synergix's Lutons.

Use UK gallons consistently.

UK MPG uses the imperial gallon of 4.54609 litres. A US MPG figure uses a different gallon, so identical-looking numbers are not directly comparable. Litres per 100 km can be converted to UK MPG using 282.481 divided by the litres-per-100-km figure.

For a UK MPG calculation, litres used = miles ÷ UK MPG × 4.54609. Multiply litres by the fuel price to estimate the fuel cost. This is the fuel component, not a courier rate or a quote.

The examples below deliberately vary consumption. They are assumptions for understanding the effect of efficiency, not current fuel prices, a road test or promises of what a loaded Luton will achieve.

Illustrative diesel use over 100 miles, assuming £1.60 per litre
Assumed UK MPG	Diesel litres	Fuel cost
20 MPG	22.73 L	£36.37
25 MPG	18.18 L	£29.09
30 MPG	15.15 L	£24.25

Diesel

Diesel can be a practical choice for unpredictable, urgent long-distance work where a short refuelling stop fits the deadline. The actual vehicle still needs sufficient payload and suitable body equipment.

Fuel, maintenance, tyres, servicing, AdBlue where applicable and time off the road contribute to running cost. Short repeated journeys and an unsuitable duty cycle can cause different maintenance demands from regular longer runs.

Petrol and hybrid

A fuel or hybrid option must be checked for the actual chassis and converted body. The fact that a manufacturer sells petrol or plug-in hybrid vans does not establish that the required Luton, lift and payload combination is available.

A plug-in hybrid's result depends on charging and how much of the job is driven electrically. Its weighted test MPG is not a promise for a long journey with a depleted battery. Fuel and electricity must both be counted.

Battery electric

A suitable electric conversion can work for predictable routes with confirmed loaded range, capacity and reliable charging. It produces no driving tailpipe CO₂ and may suit some planned urban or regional deliveries.

Battery size, body, load, road speed, weather, heating and refrigeration affect the operating plan. The highest advertised payload and longest range may relate to different variants or weights.

Urgent long-distance work cannot depend on an unplanned charge.

An electric Luton is unsuitable when the job exceeds the usable charge available and the necessary charging cannot fit the delivery deadline. A detour, queue, unavailable charger or slower session can create a serious delay.

Assess the approach to collection, loaded trip, reserve and onward needs. Diesel is often more practical for this unpredictable work because refuelling is easier to fit into the route. An electric job within verified usable range, or with reliable time allowed for charging, needs its own assessment.

Electric range for a converted body

Check the actual conversion rather than quoting a panel van's best range. A box body changes the vehicle's mass and airflow. A refrigeration unit can also consume energy while the van is stationary.

Charging claims such as “10–80%” describe a stated battery interval, not a full recharge. Charger power, arrival state of charge, battery temperature, power sharing and connection time affect the stop. An advertised charger rating is not a guaranteed rate throughout the session.

When using battery-side consumption, account for charging losses before calculating electricity purchased. The examples on this page instead assume electricity measured at the meter, so charging losses are already included within those assumed figures.

Electric cost needs a tariff as well as consumption.

Illustration only: at 55 metered kWh per 100 miles, a £0.30/kWh tariff gives £16.50 of electricity. A £0.75/kWh tariff gives £41.25 for the same consumption. Those are assumed tariffs, not current market prices.

A depot charging pattern is different from repeated public rapid charging. Waiting, detours, charging access and the vehicle's time available for work matter alongside the electricity bill. Neither example establishes the total cost of providing a courier service.

If you require a particular powertrain, tell us before booking. Suitability and availability of the body, handling equipment and powertrain combination must be confirmed.

Fuel cost is one part of the courier price.

A collection-to-delivery distance leaves out the drive to collection and any repositioning after delivery. Freight weight can change consumption on the loaded leg, while waiting, loading, unloading and the delivery window affect the time the vehicle is committed.

Illustrative whole job: 40 approach miles at 30 MPG, 100 loaded miles at 20 MPG and 40 onward miles at 30 MPG use about 34.85 litres over 180 miles. At an assumed £1.60/litre, that is £55.77 in fuel. Counting only the 100-mile loaded leg gives £36.37 and misses £19.40 of the example fuel use.

The quote also needs to cover the driver, suitable vehicle, handling equipment, maintenance, insurance, scheduling and any agreed specialist arrangements. Waiting, parking, tolls, ferries and access restrictions can change the job. Ask for a quote based on the actual work rather than applying a universal price per mile.

Illustrative courier journey: 25 miles to collection, 100 miles loaded to delivery and 25 miles onward or returning, totalling 150 miles. — **Collection to delivery is only part of the journey.**Educational illustration. Actual vehicle, equipment and loading arrangements must be checked.

Collection to delivery is only part of the journey.

This general illustration shows 25 miles to collection, 100 miles loaded and 25 miles onward, totalling 150 miles.

It is a separate example from the Luton fuel calculation on this page, which uses 40 + 100 + 40 = 180 miles. Actual positioning, loading, fuel use and onward travel vary.

11 / Compare the same emissions boundary

Luton CO₂, electricity and lifetime emissions

Tailpipe emissions, emissions from supplying energy and the emissions involved in making a vehicle answer different questions. A fair comparison states which of them is included, the mileage, the consumption assumptions and the vehicle being assessed.

Tailpipe CO₂

The carbon dioxide emitted directly while an engine burns fuel. A battery-electric vehicle has no driving tailpipe CO₂. That does not include electricity supply or the manufacture of the vehicle and battery.

Operating CO₂e

Carbon dioxide equivalent includes the relevant greenhouse gases. A fuller operating comparison adds fuel production and supply to combustion, or electricity generation and supply to electricity use.

Whole lifecycle

Add vehicle and body manufacture, battery production where applicable, replacements, maintenance and end-of-life processes to the stated operating boundary. Consistent assumptions are necessary before comparing totals.

Convert a known g/km figure to 100 miles.

100 miles is 160.9344 km. Tailpipe CO₂ in kilograms = miles × 1.609344 × g/km ÷ 1,000. At an assumed 250 g/km, 100 miles gives 40.23 kg CO₂.

A model's g/km figure must match the relevant variant and measurement basis. The examples below are calculations using assumed rates, not certified Luton test results or measured emissions from a particular delivery.

Count the job, not just the freight leg.

Approach and onward travel use energy too. If a delivery is one stop on a shared route, a stated allocation method is needed before assigning the whole trip to one shipment.

A diesel refrigeration unit or other separate fuel use needs counting separately if it is outside the measured vehicle consumption. For electric equipment, clarify whether its consumption is already included. Avoid omitting it or counting it twice.

Illustrative tailpipe CO₂ only, using assumed g/km
Assumed rate	Per 100 miles	Over 250,000 miles
200 g/km	32.19 kg CO₂	80.47 tonnes CO₂
250 g/km	40.23 kg CO₂	100.58 tonnes CO₂
300 g/km	48.28 kg CO₂	120.70 tonnes CO₂
350 g/km	56.33 kg CO₂	140.82 tonnes CO₂

Fuel and electricity supply included

The following scenarios use the UK Government's 2026 greenhouse gas conversion factors. Diesel uses the average biofuel blend factor of 2.58354 kg CO₂e/litre plus 0.61101 kg CO₂e/litre for upstream fuel supply, giving 3.19455 kg CO₂e/litre.

Electricity uses a UK grid supply total of 0.18436 kg CO₂e per metered kWh: generation 0.13096, transmission and distribution 0.01299, upstream generation 0.03682 and upstream transmission and distribution 0.00359. These are dated UK accounting factors, not the emissions of every charging session worldwide.

Illustrative energy-related operating emissions. Manufacture is excluded.
Powertrain and assumed use	Energy per 100 miles	Operating CO₂e per 100 miles	Operating CO₂e over 250,000 miles
Diesel, 20 UK MPG	22.73 litres	72.61 kg	181.53 tonnes
Diesel, 25 UK MPG	18.18 litres	58.09 kg	145.23 tonnes
Diesel, 30 UK MPG	15.15 litres	48.41 kg	121.02 tonnes
Electric, 45 metered kWh/100 miles	45 kWh	8.30 kg	20.74 tonnes
Electric, 55 metered kWh/100 miles	55 kWh	10.14 kg	25.35 tonnes
Electric, 65 metered kWh/100 miles	65 kWh	11.98 kg	29.96 tonnes

All consumption values are assumed scenarios, not tested equivalent Lutons. The 250,000-mile column holds 2026 factors and consumption constant to explain the arithmetic. It is not a prediction of future grid emissions, vehicle life or battery performance. Values are rounded after calculation. These follow UK greenhouse-gas reporting conventions; separately reported biogenic CO₂ from the biofuel blend is outside these totals.

What about petrol and plug-in hybrids?

The 2026 average-blend petrol factors are 2.075 kg CO₂e/litre for fuel use plus 0.58094 for upstream supply. At an assumed 25 UK MPG, that produces 48.30 kg operating CO₂e per 100 miles, or 120.74 tonnes over 250,000 miles.

This equal-MPG example is arithmetic, not evidence that a petrol Luton matches a diesel Luton for consumption or availability. A plug-in hybrid needs both fuel and metered electricity, with its actual charging pattern and electric share. Do not assign one blended result without those inputs.

How much CO₂ does making an electric Luton produce?

A defensible number requires a relevant lifecycle assessment for the chassis, battery capacity and chemistry, manufacturing supply chain and converted body. The battery, insulation, lift and refrigeration equipment can all change the production footprint.

There is no verified matched diesel, petrol and electric Luton production dataset supporting a single total on this page. Giving an exact manufacturing number or a fixed break-even mileage would create false precision. The operating table is useful within its clearly stated boundary; it is not a complete lifecycle comparison.

Practical suitability and carbon are both part of the decision.

In these UK energy scenarios, the assumed electric use produces lower operating emissions than the assumed diesel use. Diesel can still be the more practical choice where charging delays make an urgent deadline unworkable. That operational benefit is not evidence of lower lifecycle emissions.

Choose a vehicle that can carry and handle the goods within the deadline, then compare energy and emissions using consistent inputs. Matching body size, avoiding failed deliveries and arranging suitable handling can improve the job without relying on an unsupported environmental claim.

The tailpipe calculator includes driving only. Operating-energy examples include energy supply and driving. Full lifecycle assessment also needs manufacture, maintenance, replacements and end-of-life. — **Compare carbon figures on the same basis.**Educational illustration. Actual vehicle, equipment and loading arrangements must be checked.

Compare carbon figures on the same basis.

The tailpipe calculator covers driving only. Operating-energy examples add the stated fuel or electricity supply components.

A full lifecycle comparison also needs vehicle and battery manufacture, maintenance, replacements and end-of-life. This diagram explains the boundaries; it does not supply a manufacturing total.

12 / Fit the service to the consignment

Luton courier work and regular deliveries

A suitable Luton can support urgent courier movements, planned business deliveries and larger logistics arrangements. The service needs to describe the goods, the handling and the handover, rather than just the vehicle name.

Same-day and urgent deliveries

A dedicated movement can be useful for urgent stock, equipment or bulky freight that needs a direct collection and delivery. The available vehicle, collection readiness, route, site access and receiver's opening hours determine what is achievable.

A “same-day” enquiry is not a guaranteed arrival time. Give the latest acceptable arrival and whether missing it stops production, loses an appointment or prevents an event opening. Handling time has to be included alongside driving.

General haulage and regular work

Regular collections, supplier deliveries and planned movements can be matched to the body and equipment needed each time. Repeat work benefits from accurate load profiles, site details and realistic windows.

Do not assume every repeat delivery weighs the same or that an access route remains clear. Changes in packaging, load height, pallet count or equipment availability can require a different vehicle.

Retail distribution and stock transfers

Packaged stock, fixtures and replenishment deliveries can use the wider floor area of a Luton. Multi-drop planning needs the stop order, unloading method, opening hours and returns recorded for each location.

A store with no forklift can need a suitable lift and pallet truck even for a small consignment. A pedestrianised frontage or restricted unloading window can matter more than the distance driven.

Warehousing and onward transport

Storage, stock holding and timed onward movement can form part of a wider logistics arrangement. Goods must be suitable for the agreed warehouse handling and identified accurately for release.

Talk to us about the whole requirement if the delivery depends on stock preparation, consolidation or temporary storage. A vehicle booking alone does not include those additional services.

Furniture and two-person delivery

Packaged furniture and appliances can benefit from a box body, but the final handling often decides the service. Door widths, stairs, lift access, item weights, protection and the requested delivery point all need discussion.

Two-person handling, room-of-choice delivery, unpacking or assembly are separate requirements. A tail lift lowers compatible goods from the vehicle; it does not automatically provide a full household removals or installation service.

Events, exhibitions and specialist transport

Stands, display units and event equipment can require booked collection and delivery slots, careful handling and a defined return movement. Give venue access details, passes, site rules and any time spent waiting for admission.

For chilled transport or event refrigeration, distinguish moving temperature-sensitive goods from providing refrigerated trailer storage at a venue. The equipment, power requirements and operating responsibility are different.

A dedicated van keeps responsibility clear.

Tell us the task and the details that could prevent it being completed. We can assess the appropriate vehicle and arrangements, confirm what is included and identify the contact and handover information needed for the journey.

Dedicated transport means a vehicle arranged for the agreed movement. It does not replace suitable packaging, handling equipment, recipient availability or the checks needed for unusual goods.

13 / Route, access and operating requirements

UK and European Luton journeys

The actual plated vehicle, journey and goods determine the operating requirements. A 3.5-tonne label does not establish access to every road, exemption from every restriction or permission to carry any freight.

Gross weight and road limits

The plated maximum authorised mass and axle limits apply to the complete working vehicle. The driver's licence entitlement and any relevant operating requirements must match that vehicle and journey. Do not use the freight weight alone to decide the rules.

In Great Britain, the usual national limits for goods vehicles up to 7.5 tonnes, without a trailer, are 50 mph on single carriageways, 60 mph on dual carriageways and 70 mph on motorways. Posted limits and the vehicle's applicable category take precedence. A Luton is not automatically entitled to car speed limits.

A 7.5-tonne goods vehicle can share those national speed limits while having different driver and operator requirements. Choose it because the task needs its capacity or equipment, not because either category is promised to arrive faster.

European hire-or-reward work

International movements need checks on the operator, driver, vehicle, goods documents and route. From 1 July 2026, in-scope international hire-or-reward goods journeys using vehicles or combinations over 2.5 tonnes require smart tachograph 2 equipment and the applicable drivers' hours arrangements.

Exceptions and own-account conditions depend on the actual operation. A domestic 3.5-tonne movement should not be treated as identical to an international job. Customs, permits, ferries, borders and delivery opening hours can change the schedule.

Give the countries, goods description, commercial documentation, deadline and return requirement. We can assess the movement and what needs to be agreed rather than relying on the van's size name.

Rules checked against GOV.UK van guidance, national speed limits and tachograph guidance on 5 October 2026. Requirements can change; confirm the actual journey before booking.

Urban and site restrictions

Check current clean-air or low-emission requirements against the actual vehicle. A diesel Luton is not automatically non-compliant, and a zero-tailpipe vehicle is not exempt from parking, height, width or weight restrictions.

Delivery windows, permits and loading permissions need arranging for the site. Give pedestrian zones, security gates and restricted approaches in the enquiry.

Height and wind exposure

A tall box or curtain body needs suitable route clearance. Bridges, canopies, trees and overhead services can matter before the vehicle reaches the unloading area.

Weather and exposed routes can affect the working plan. Do not use the diagram's example height as a substitute for the assigned vehicle's measured clearance.

Trailer or unusual vehicle weight

A trailer changes the combination, manoeuvring space and potentially the applicable licence and operating rules. An alternative-fuel vehicle may also have a different plated weight and entitlement requirement.

Those arrangements need specific assessment. This guide does not automatically apply the standard 3.5-tonne Luton figures to a heavier or towing combination.

14 / Give us the details that decide the job

Booking a Luton van with Synergix

A complete enquiry helps us choose a suitable body, weight allowance and handling method. Send the load and site details together, particularly if you need a lift, side loading, refrigeration or an urgent arrival.

The freight

Description: what the goods are and any fragile, hazardous, high-value or temperature-sensitive requirement.
Count: pallets, crates, cartons and loose pieces.
Packaged dimensions: each item's maximum length, width and height, including overhang and its base.
Loaded weights: each item or pallet, plus the complete consignment total.
Handling details: pallet entry, lifting points, orientation restrictions and whether stacking is permitted.

The journey and handover

Collection and delivery: full addresses, postcodes, contacts and opening hours.
Timing: goods-ready time, required arrival and any booked slot.
Equipment: forklift, dock, tail lift, manual or electric pallet truck and who supplies each.
Access: height and width limits, parking, surface, slope and rear or side working space.
Service scope: handover point, extra crew, temperature arrangements, return goods and additional stops.

If there is no forklift, say so at both ends.

Tell us whether collection and delivery each need vehicle-to-ground lifting. Include the loaded pallet footprint and weight, the ground surface and the requested final position. That lets us check the van, lift and pallet truck as one workable arrangement.

For a long pallet, send a photograph showing the base, goods and fork entry as well as measurements. Side loading can be appropriate, but compatible unloading has to be arranged too.

What happens before confirmation

We assess the vehicle category, body, freight fit, available capacity, handling and timing. If a smaller suitable vehicle meets the task, it can avoid unnecessary body space. If a limit requires a truck or specialist method, that needs identifying before dispatch.

Availability and the agreed service determine what can be confirmed. A submitted enquiry, indicative calculation or page capacity guide does not reserve a van or prove that equipment is available.

Changes after booking

Tell us promptly if the weight, pallet count, dimensions, deadline, access or goods change. Adding one pallet or changing a collection from forklift loading to tail-lift loading can make the original arrangement unsuitable.

Waiting, failed access, additional handling and route changes can affect cost and schedule. Resolve them before the vehicle is sent where possible, and keep the receiver informed of the agreed delivery plan.

Request a Luton quote Email the enquiry team

15 / Useful terms

Luton van terms explained

Vehicle and body

Luton: a cab with a separately constructed goods body, commonly with a section over the cab. Box: enclosed rigid-sided goods body. Curtainsider: a body with opening side curtains for suitable loading access. Refrigerated: an insulated body with suitable cooling equipment for an agreed task.

Gross vehicle weight or maximum authorised mass: the permitted weight of the complete loaded vehicle. Payload: the load capacity remaining under the stated weight assumptions. Axle limit: the separate permitted load on each axle. Planning volume: a calculated rectangle used as an initial guide, not a guarantee that a particular shape fits.

Handling and energy

Tail lift: the vehicle-mounted platform used to raise or lower suitable supported goods. Safe working load: the allowed equipment load under specified conditions. Load centre: the position of the load's centre of gravity relative to the equipment's reference point. Pump truck: a pallet truck, often manually moved and hydraulically lifted.

UK MPG: miles travelled per imperial gallon. kWh: a unit of energy used for electricity consumption. Tailpipe CO₂: direct carbon dioxide from fuel combustion. CO₂e: greenhouse gases expressed as carbon dioxide equivalent. Upstream energy emissions: emissions involved in producing and supplying the fuel or electricity.

Clear answers before you book

Luton van courier FAQs

Find the practical detail on weight, fit, handling, costs and the journey.

Choosing a Luton and its body

What is a Luton van?

A Luton has a cab with a separately constructed goods body, commonly with additional space over the cab. Box and curtainside versions offer different loading access. This guide covers the usual 3.5-tonne gross vehicle category, with the actual build and equipment checked for the job.

Is a Luton the same as a long wheelbase van?

No. LWB describes a wheelbase category, usually discussed here as a panel van. Luton describes a separately built goods body. The Luton planning guide is wider and taller, but its freight weight allowance can be lower once the body and handling equipment are included.

What body types can I enquire about?

Box, curtainside and refrigerated or temperature-controlled arrangements can be considered according to the task. Tail lifts are an additional option. Availability and the combination of body, powertrain, equipment and capacity need confirming before a booking is accepted.

When should I choose a box Luton?

Consider a box for bulky packaged goods that need an enclosed body and can be loaded through its actual rear opening. Confirm dimensions, orientation and handling. Rigid walls protect the enclosure but do not remove the need to secure goods against movement.

When is a curtainside Luton useful?

Side access can be useful for long pallets, timber and awkward freight requiring forklift placement. Posts, rails and clear opening dimensions still need checking. Suitable loading and unloading equipment must be available at both ends unless another method is specifically agreed.

Does opening the curtain unload the goods?

No. The curtain opens a loading route. A compatible forklift or other agreed handling arrangement still has to move the goods. A delivery site with no forklift may need a different method even if side loading works at collection.

Can a Luton carry refrigerated goods?

A suitable insulated and refrigerated conversion may be considered where its temperature capability, payload and loading arrangements meet the task. Give the product, required range, starting temperature, journey and monitoring needs. A standard dry body is not temperature controlled.

Does a refrigerator reduce load space and payload?

It can. Insulation, cooling units, airflow clearance and power equipment use space or add weight. The confirmed refrigerated body's dimensions and freight capacity replace the standard dry Luton figures. Do not assume all six dry-body pallet positions remain available.

Is a Luton suitable for furniture?

It can be suitable for packaged furniture where the dimensions, protection and handling work. Specify item weights, whether pieces can be stacked or turned, and the final delivery point. Two-person handling, stairs, unpacking or assembly need separate agreement.

Can I request an electric Luton?

Tell us if an electric powertrain is required. We need to confirm an appropriate conversion, available capacity, usable loaded range, charging arrangements and deadline. The fact that an electric chassis exists does not guarantee that the required body and lift combination is available for your job.

Dimensions, pallets and weight

What are Synergix's Luton planning dimensions?

For the standard dry body, start with 400 × 200 × 200 cm, in length × width × height order. The assigned body, doorway and loading route still need checking. Refrigerated, electric or differently equipped conversions may have different usable figures.

What is the Luton planning volume?

Multiplying 4.0 × 2.0 × 2.0 metres gives 16 m³. This is a rectangular planning calculation. A load with less than 16 m³ can still be too long, too wide, too heavy or unsuitable for the doorway or handling method.

How much can a standard Luton carry?

Our initial standard-body guide is up to 1,100 kg of total consignment weight. That includes the goods' pallets and packaging. The actual body's available capacity, gross weight, axle limits and equipment arrangement can require a lower limit.

How much can a Luton with a tail lift carry?

Use up to 900 kg as Synergix's initial total consignment guide for the tail-lift arrangement. This is separate from the lift's allowed individual platform load. The actual conversion, pallet truck and working configuration must also be suitable.

Why might a brochure show more payload?

A chassis-cab, completed body and working vehicle can have different weight assumptions. Body build, lift, flooring, driver, fuel and equipment all matter. Check what is already included so driver or fuel allowances are not subtracted twice. The assigned vehicle's verified capacity takes precedence.

Does a tail lift always reduce payload by 100–150 kg?

No. That can describe a light installation, but the fitted weight depends on the platform, mechanism, capacity and mounting and can be greater. Our 1,100 kg standard and 900 kg tail-lift booking guides are separate guides, not a universal lift-weight subtraction.

Does 3.5 tonnes mean 3,500 kg of freight?

No. Gross weight covers the whole vehicle, including its chassis, body, people, fuel, equipment and goods. Freight is only the remaining permitted load. Use the booking guide and the actual vehicle checks rather than the gross category as a freight allowance.

Do pallets and packaging count towards the weight?

Yes. Give each loaded pallet or crate's weight including the base, packaging, wrapping and attachments, plus the total consignment. Equipment required for the job must also be included in the working vehicle assessment.

How many pallets fit in a Luton?

The initial guide is up to six suitable pallets, subject to loaded footprint, weight, body and handling. Six light pallets can work differently from six heavy pallets. Nominal pallet bases alone do not establish the loaded sizes or clearance for securing them.

Can a Luton take six standard UK pallets?

It may, after checks. Six 120 × 100 cm bases in three rows of two occupy a nominal 360 × 200 cm footprint. Against a 200 cm planning width that leaves no nominal side clearance. Actual body width, wrapping, fittings and the loading plan therefore matter.

Can it take six Euro pallets?

Six 120 × 80 cm bases can nominally occupy 360 × 160 cm in three rows of two. That arithmetic is not a guaranteed arrangement. Loaded overhang, restraint space, doors, weights and the supplied body must still be checked.

What is the maximum height of goods on a pallet?

Use the actual doorway and internal clearance, including the pallet and packaging. Subtracting a 14.4 cm Euro pallet from a nominal 200 cm opening gives 185.6 cm before any clearance. That calculation does not establish a safe or guaranteed goods height.

Why does the diagram show 4,060 mm but the guide uses 4,000 mm?

The illustration shows an approximate example body measurement. The booking guide is rounded to 400 cm. Do not use the additional 60 mm to approve a load near the limit. Confirm the actual assigned body and room for loading and restraint.

Does the diagram show width including mirrors?

No. Its example 2,100 mm outside body width excludes mirrors. Its approximate 2,000 mm internal width is a different measurement. Ask for the assigned vehicle's overall width including mirrors when planning gates or restricted access.

What is the external height of a Luton?

The illustration gives an example height of 3,300 mm. Actual builds, fairings, cooling units and roof equipment vary. Use the supplied vehicle's confirmed height for access and routing rather than treating that example as universal.

Can goods be stored above the cab?

Some bodies have an over-cab area, but its shape, access and loading rating vary. It is not additional guaranteed pallet space. Heavy items must not be placed there without confirming the body builder's permitted loading arrangement.

Can the rear axle be overloaded below the total weight limit?

Yes. Weight distribution and rear-mounted equipment can make an axle limit the controlling factor. The freight needs an appropriate position and loading order, including how distribution changes at each delivery. Passing a total-weight check alone is insufficient.

Can I give an estimated weight?

An estimate can help an initial discussion, but close-to-limit or uncertain loads need reliable figures before confirmation. Product weights or packing lists must include pallets and packaging. About a tonne is too imprecise to distinguish the standard and tail-lift guides safely.

Tail lifts, pump trucks and long goods

Does every Luton have a tail lift?

No. Request it explicitly. The body and lift combination, platform dimensions and individual load capacity need confirming. A vehicle category or picture is not proof that a particular lift or pallet truck is included.

Can a Luton unload one pallet without a forklift?

A suitable tail lift and agreed pallet truck can provide that method on appropriate ground. The pallet weight, base, lift load chart, equipment weight, access and final handover point must work together. One pallet can justify a Luton where a smaller van cannot provide the required unloading.

Is a tail-lift Luton the smallest vehicle that unloads itself?

It is the smallest usual category in our guide for lowering compatible pallets using a tail lift and suitable pallet truck. Specialist smaller arrangements exist, so this is not a universal vehicle rule. It also does not mean the vehicle can automatically complete every ground-level delivery.

Can the tail lift lower a 900 kg pallet?

The 900 kg guide is total freight capacity, not a lift rating. A single 900 kg pallet needs a lift able to support the applicable combined platform load at its actual load centre. The pallet truck and any permitted operator load matter too. Another vehicle or method may be required.

Does the pallet truck count on the platform?

Yes. Include the loaded pallet and handling equipment supported by the platform. Include an operator's load where the manufacturer's permitted operating arrangement requires it. The lift's load chart and platform space must accommodate the full arrangement.

What does the lift's load centre mean?

It describes the load's centre of gravity relative to the equipment's reference point. The allowed mass can depend on where that centre sits. A long or uneven load positioned further out may be unsuitable even when its weight is below the headline capacity.

Can I send a three-metre pallet on a tail-lift Luton?

It needs a specific handling assessment. Fitting lengthways in the body does not establish safe transfer across a rear platform. Support, overhang, load centre, fork engagement, approach and doorway clearance can make a standard tail-lift and pump-truck method unsuitable.

Is a three-metre pallet always too long for the rear doors?

No. A narrow long load may pass straight through a suitable rear opening with the right equipment. The complete transfer can still fail because the platform, support or manoeuvring route is unsuitable. Length alone is not enough to approve or reject every rear-loading arrangement.

When should a long pallet be side loaded?

Where the rear transfer is unsuitable, a compatible curtainsider and forklift arrangement may allow side loading. Clear openings, posts, fork length, load support and site working room need checking. Suitable unloading must also be available at delivery.

Can an ordinary pump truck support any long pallet?

No. Fork length, entry direction, pallet construction, load centre and support matter. A truck's headline weight rating does not show that it safely supports a long or uneven item. Tell us the base design and loaded dimensions before relying on that method.

When is an electric pallet truck needed?

Synergix requires one for an individual loaded pallet weighing 800 kg or more. Lower weights can also require powered assistance following assessment of the surface, gradient and handling. This company rule does not override the truck, lift or vehicle limits.

Can a pallet truck work on gravel or grass?

Do not assume so. Small wheels and the forces needed to move the load can make soft or irregular surfaces unsuitable. Give photographs and surface details. Suitable site equipment, a different delivery point or another unloading method may be necessary.

Can the driver pull a pallet up a steep driveway?

That should not be assumed or left to arrival. Slopes, pallet weight, stopping control and surface conditions need assessment. A powered truck also needs to be suitable for the route. Arrange a workable handover point and handling method before dispatch.

Can a tail lift deliver over a kerb or up stairs?

A tail lift provides vehicle-to-ground movement for suitable goods. It does not automatically solve kerbs, steps, stairs or movement through a building. Describe the final delivery point, route and assistance needed so any additional service can be agreed.

Does a second person solve a heavy-pallet problem?

Not by itself. Extra crew does not increase equipment ratings, make an unsupported pallet safe or remove terrain risks. Two-person handling can be useful for an agreed suitable task, but the load and equipment still need the appropriate checks.

What lift inspection information matters?

Suitable lifting equipment needs the required maintenance, checks and competent examination arrangements. A current examination is not permission to exceed its capacity or ignore an unsuitable site. The lift's operating instructions and load chart still control the operation.

What if the lift cannot be used when the vehicle arrives?

The handling arrangement must be resolved safely. An alternative point, suitable equipment or changed delivery plan may be needed. Provide accurate access, surface and load information in advance to reduce failed delivery, waiting and additional cost.

Choosing between LWB, Luton and a truck

When is an LWB better than a Luton?

An LWB may suit freight within its 360 × 120 × 180 cm and up-to-1,250 kg planning guide where the loading method works. Its narrower body can be sufficient, and its freight weight guide is higher than the tail-lift Luton's. Actual fit and capacity still need checking.

When is a Luton needed rather than an LWB?

A wider or bulkier load, more suitable pallet positions, side-loading access or a tail-lift requirement can justify a Luton. The decision should include handling at both sites. A relatively light consignment can need a larger body or lift.

When should I move to a 7.5-tonne vehicle?

Consider it when the consignment needs more weight or floor space, or a suitably specified lift arrangement beyond the van's limits. Our initial 7.5-tonne guide is up to 2,500 kg and 600 × 240 × 200 cm, with up to ten suitable pallets, subject to the actual body and equipment.

Does every 7.5-tonne truck have a stronger lift?

No. A truck's total capacity does not establish the rating or platform size of its fitted lift. Request the handling requirement and check the installed equipment against the individual load, truck and applicable load centre.

Can booking a larger van unnecessarily increase cost?

It can add capacity or equipment the task does not need, but the actual quote depends on availability, route and service. Give accurate dimensions, weights and handling details so the smallest suitable arrangement can be considered without risking a failed collection or delivery.

Can several van journeys beat one truck?

That needs a whole-job comparison of available capacity, handling, deadlines, mileage, drivers and cost. A smaller vehicle's lower consumption per mile does not necessarily offset multiple trips or duplicated approach miles. Do not decide from vehicle size alone.

Fuel, electric operation and carbon

What MPG does a Luton van do?

It depends on the actual chassis, conversion, load, route and conditions. The page's 20, 25 and 30 UK MPG values are illustrative scenarios, not a measured fleet average or certified Luton range. Use comparable loaded operating data where available.

Does carrying a full load reduce fuel economy?

Additional mass increases energy demand during acceleration and climbing. Its effect depends on the route and vehicle, while a tall body and sustained speed also matter. There is no universal percentage reduction that can be applied to every loaded Luton.

Why count travel to collection in fuel cost?

The vehicle uses energy before the goods are loaded. Onward or return movement can use more after delivery. A complete job calculation includes those legs and their appropriate loaded or unloaded consumption instead of counting only collection to delivery.

Is fuel cost the price of the delivery?

No. Providing the service also involves the driver, vehicle, maintenance, insurance, scheduling and agreed handling. Waiting, access, additional stops, tolls and specialist requirements can affect cost. The fuel examples are calculations under assumptions, not quotes.

Are electric Lutons suitable for urgent long-distance work?

Only where the actual loaded range, available charge and any necessary charging fit the deadline. Unplanned detours, queues or slower sessions can make a time-critical journey unworkable. A verified route within usable range is a different case from a cross-country job requiring uncertain charging.

Why can diesel be more practical for that work?

Refuelling can generally be fitted into an unpredictable long-distance route more readily than a required charging session. That can support an urgent deadline. It is an operational suitability point, not evidence that diesel produces less lifecycle carbon than electric.

Can I use a panel van's electric range for a Luton?

Not automatically. The converted body's weight and airflow, fitted equipment, load, speed, weather and heating can change energy use. Confirm working range for the actual arrangement and keep an appropriate reserve for the approach and onward requirements.

Do petrol and plug-in hybrid options need different checks?

Yes. Confirm that the required converted body and capacity exist for the actual model. Petrol consumption needs its own data. A plug-in hybrid needs both its fuel use and metered electricity, with the charging pattern and electric driving share stated.

How much CO2 is produced per 100 miles?

There is no single Luton value. With a known tailpipe g/km rate, multiply it by 160.9344 and divide by 1,000 for kilograms over 100 miles. For example, an assumed 250 g/km gives 40.23 kg tailpipe CO2. Energy-supply and manufacturing emissions are separate.

Is CO2 the same as CO2e?

No. CO2 is carbon dioxide. CO2e expresses greenhouse gases on a common carbon dioxide equivalent basis. The operating factors used here include the relevant gases. Tailpipe CO2 examples and energy-related CO2e totals therefore have different boundaries.

Are electric vehicles zero carbon?

They have no driving tailpipe CO2. Electricity generation and supply, vehicle and battery manufacture, maintenance and end-of-life processes can produce emissions. Zero tailpipe emissions must not be presented as zero total lifecycle emissions.

What does the 250,000-mile comparison include?

The operating table includes assumed energy use and the stated 2026 UK fuel or electricity supply factors. It excludes vehicle manufacture and holds those factors constant for the calculation. It is not a prediction of future grid emissions or a matched vehicle road test.

How much carbon does an electric Luton's manufacture create?

A relevant assessment must cover the actual chassis, battery size and chemistry, manufacturing supply chain, body conversion and equipment. This page has no verified matched production dataset for the three powertrains. It therefore does not invent a single manufacturing total or break-even mileage.

Can I use the examples for a formal emissions report?

They explain the method, but a report needs your actual energy, geography, reporting boundary, dates and allocation method. Check the applicable conversion factors and whether auxiliaries and charging losses are included. Do not treat assumed consumption as measured delivery data.

How can the delivery avoid unnecessary energy use?

Use accurate load information to choose suitable capacity, agree workable handling, plan stops and avoid failed deliveries or unnecessary trips. Compare the whole movement rather than the van's headline efficiency. Environmental requirements should be stated alongside the deadline and freight needs.

Booking, service and routes

Can I book a same-day Luton courier?

Send the goods-ready time, route, loaded sizes and weights, required arrival and handling details. Availability and a workable journey must be confirmed. A same-day enquiry does not automatically guarantee a vehicle, tail lift or precise delivery time.

Can a Luton do multi-drop deliveries?

A suitable vehicle can be considered for an agreed route. Each site needs its own opening hours, access and unloading details. The stop order must work for load access, restraint and axle distribution, including any returns collected along the way.

Is a pallet truck automatically included?

No. Request the required equipment and specify whether manual or electric handling is necessary. It must be compatible with the pallet and lift and accounted for in the working configuration. The category name does not confirm included equipment.

Does booking a Luton include room-of-choice delivery?

Not automatically. State where the goods must finish, including stairs, thresholds, lifts and distances from the vehicle. Vehicle-to-ground unloading and a handover outside are different from carrying goods into a room. Extra crew and handling must be agreed.

Can the vehicle make a European delivery?

Give the countries, goods, documentation, timing and return requirement. The operator, driver, vehicle, customs and route arrangements need assessment. In-scope international hire-or-reward movements over 2.5 tonnes have additional tachograph and drivers' hours requirements from July 2026.

Can a Luton travel at car speed limits?

Do not assume that. A usual goods vehicle up to 7.5 tonnes without a trailer has national limits of 50 mph on single carriageways, 60 mph on dual carriageways and 70 mph on motorways in Great Britain. Posted limits and the actual vehicle category apply.

Will a Luton be allowed into a low-emission zone?

Check the current scheme against the actual vehicle. Body size alone does not establish emissions compliance, exemption or charges. Height, width, parking and loading restrictions remain separate even for a zero-tailpipe vehicle.

Can dangerous goods or high-value items be carried?

Disclose the exact goods and value before booking. Acceptance, suitable packaging, documents, vehicle requirements and any agreed cover need checking. A generic Luton enquiry does not establish that every product or declared value is accepted.

What information makes an accurate quote easier?

Give individual packaged dimensions and loaded weights, total weight, addresses, deadline, goods-ready time, body requirement and handling at both ends. Include access restrictions, final handover point, extra crew, temperature requirements and returns or additional stops.

What if the load changes after booking?

Tell us before dispatch where possible. Added weight, another pallet, a larger crate or changed equipment at a site can make the original arrangement unsuitable. Rechecking early can avoid waiting, failed access and an unnecessary replacement journey.

The right body. A workable delivery.

Tell us what the Luton needs to do.

Send the goods, packaged dimensions, loaded weights, collection and delivery details, deadline and handling requirements. We will check the body, capacity and loading method before confirming your booking.
